A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
DTC Table [AFS (Adaptive Front Lighting System)]
DTC Table [AFS (Adaptive Front Lighting System)]

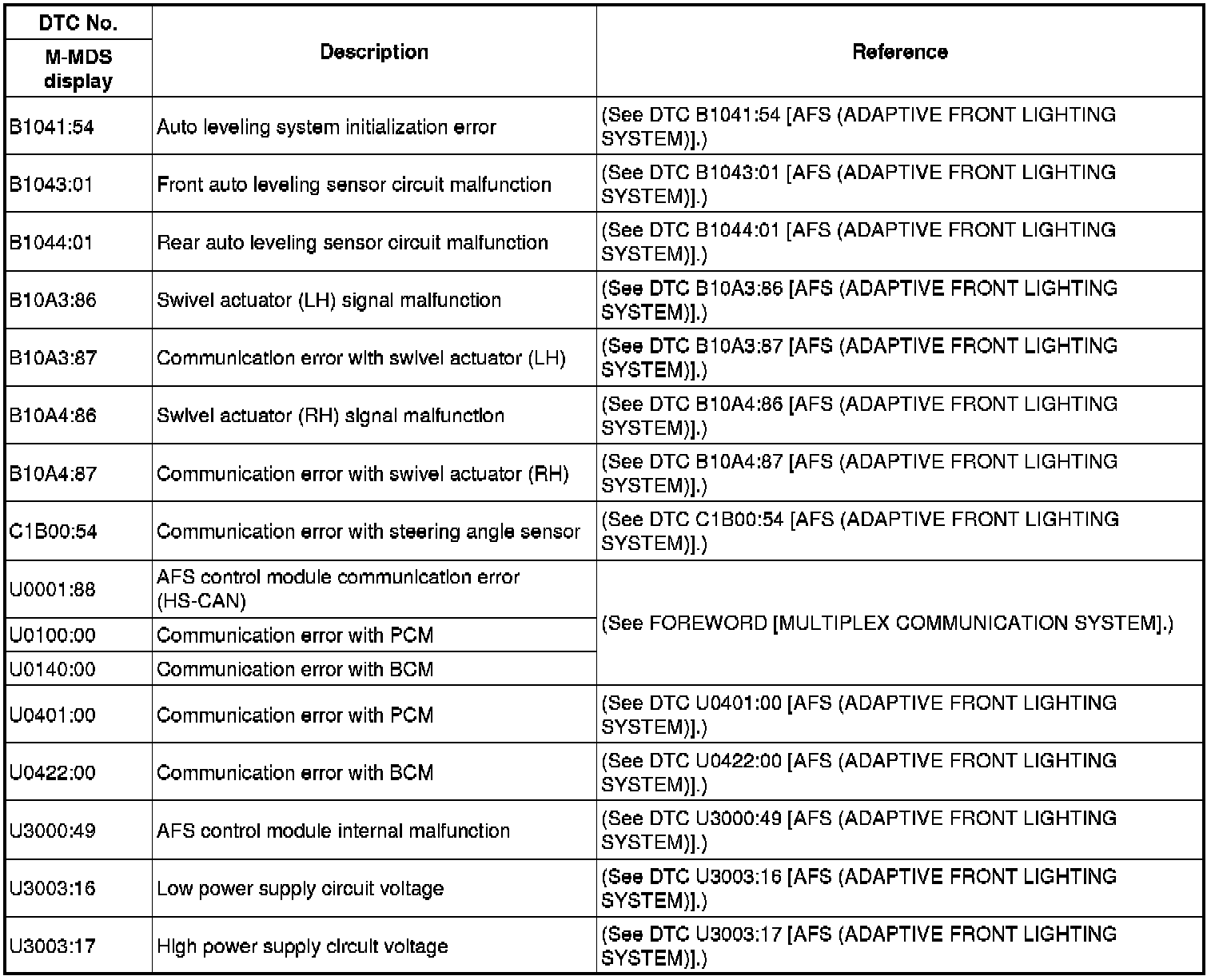

DTC TABLE [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]
B1041:54-B1044:01 / B10A3:86-B10A4:87 / C1B00:54 / U0001:88-U3003:17:
