C1B00
C1B00
DTC C1B00:54 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]
Detection Condition/Possible Cause:

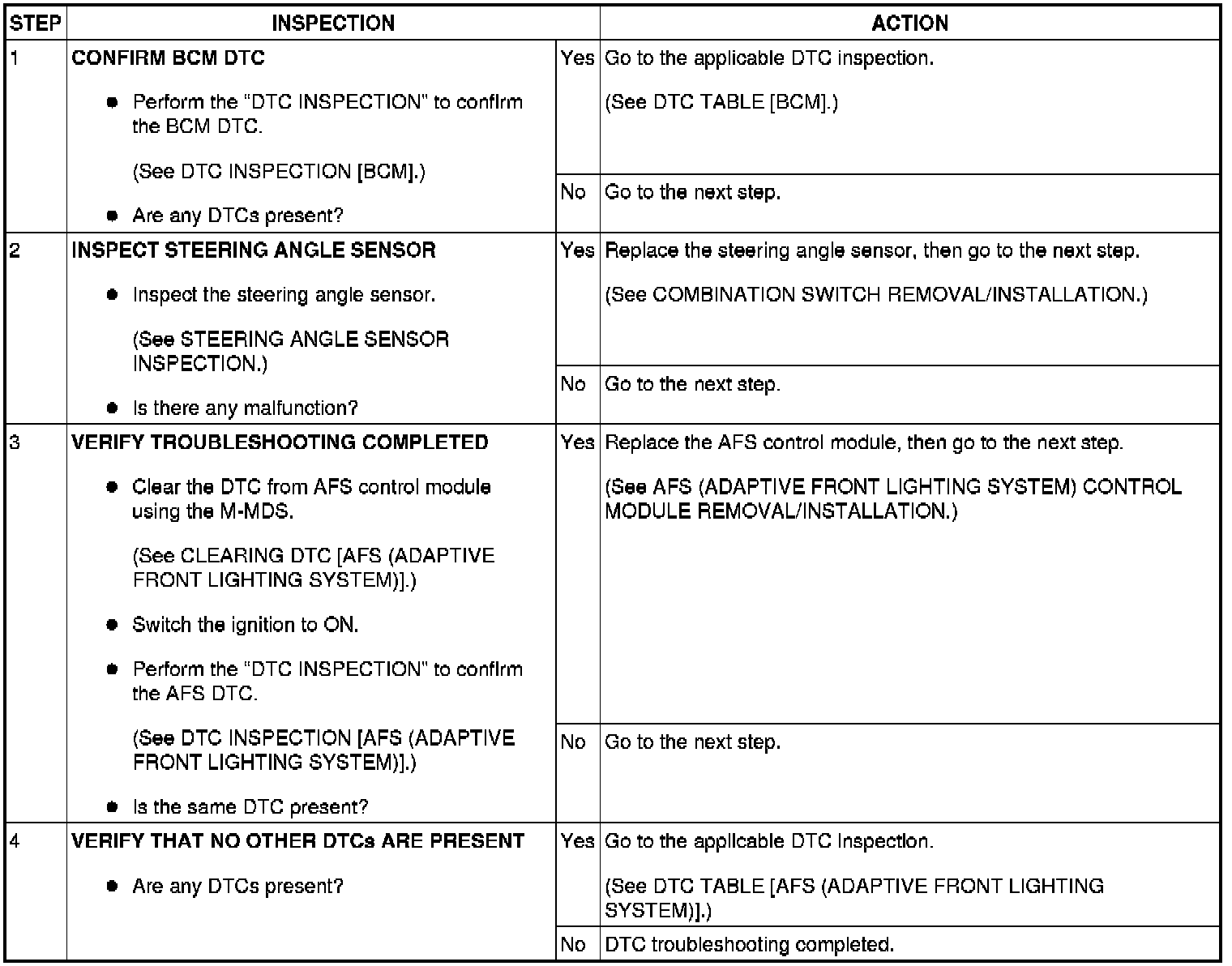

Diagnostic Procedure
Step 1-Step 4:
