C1137




DTC C1137:12 [BCM]

ATX

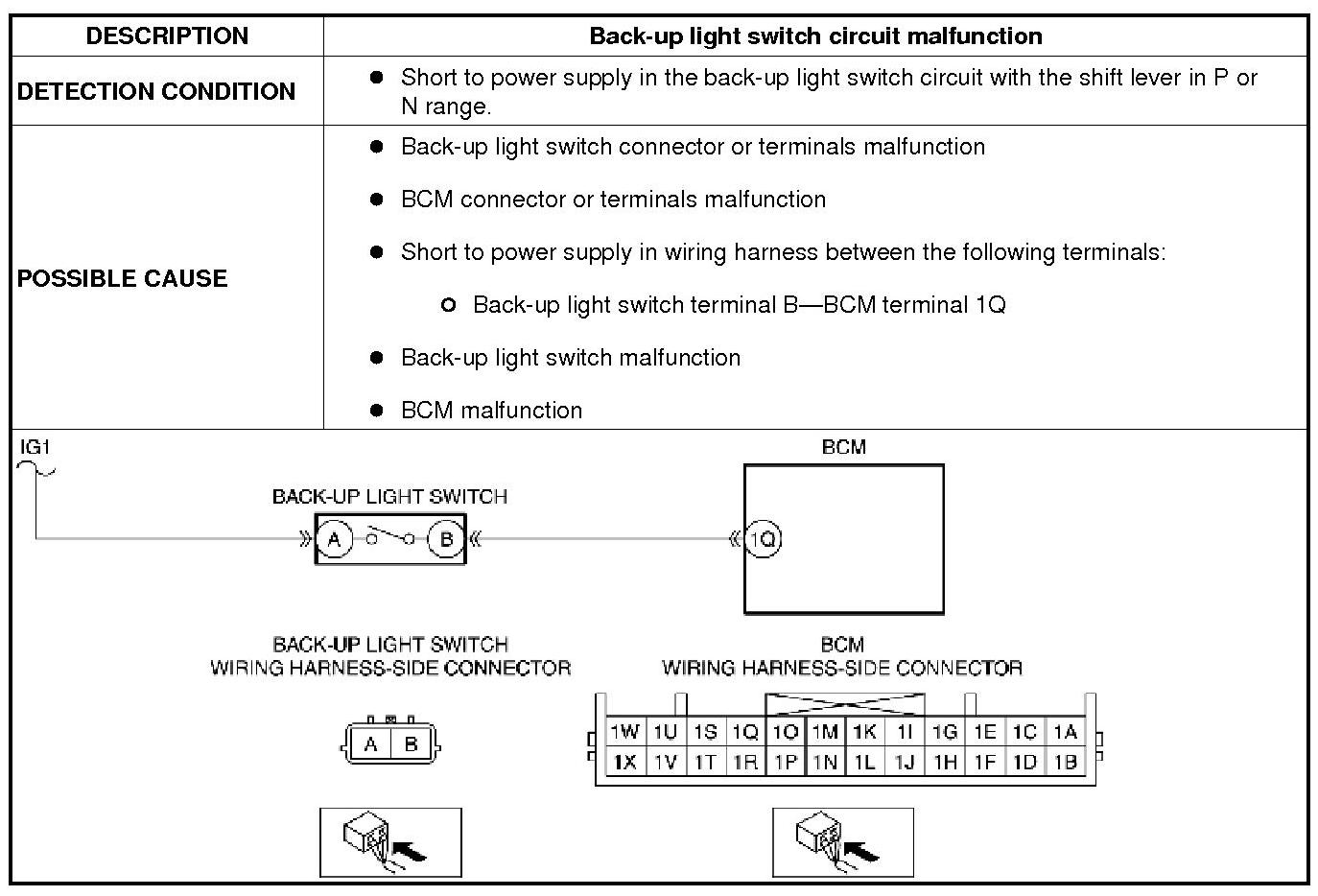

Detection Condition/Possible Cause:





Diagnostic Procedure

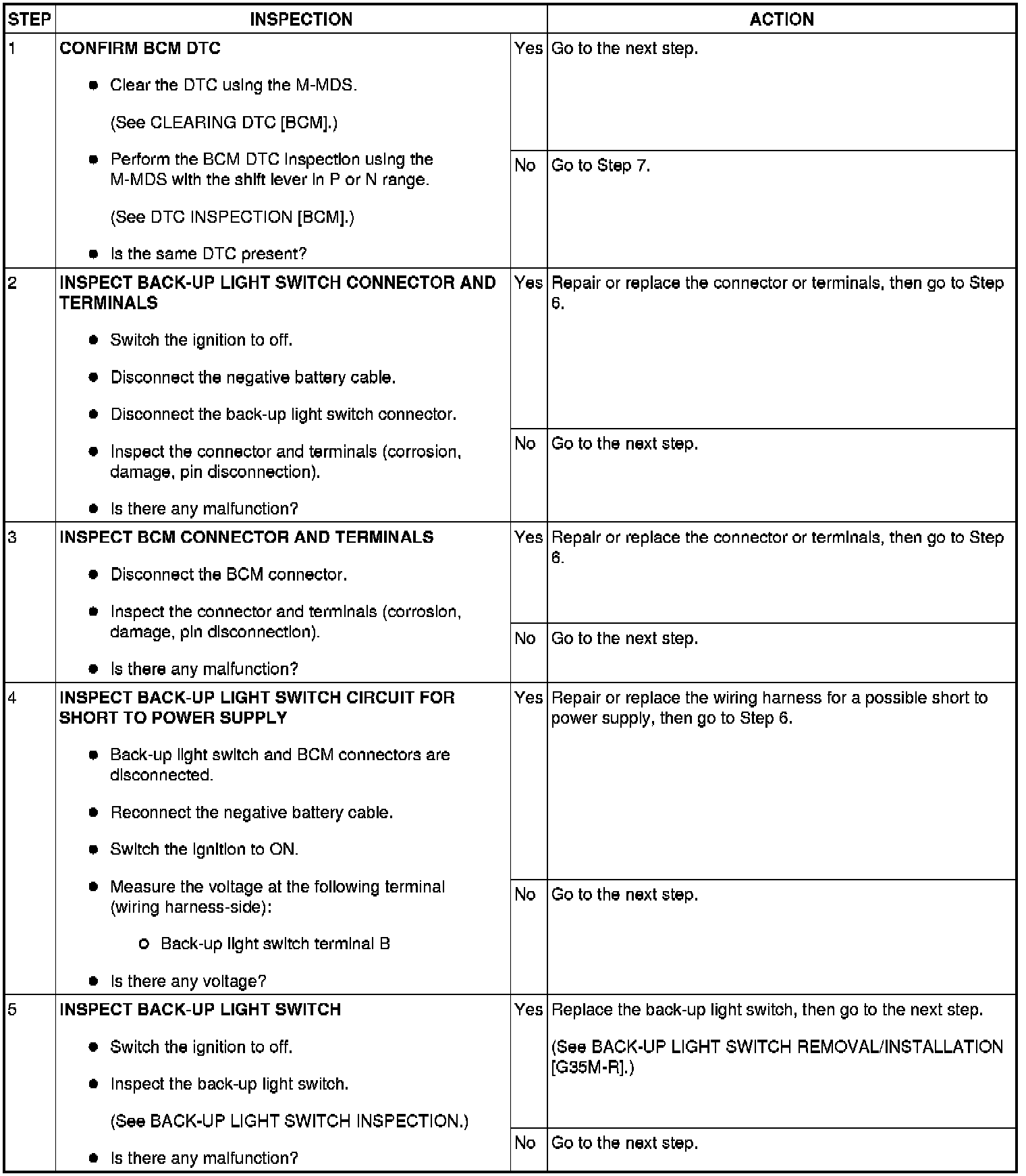

Step 1-Step 5:





Step 6-Step 7:





MTX

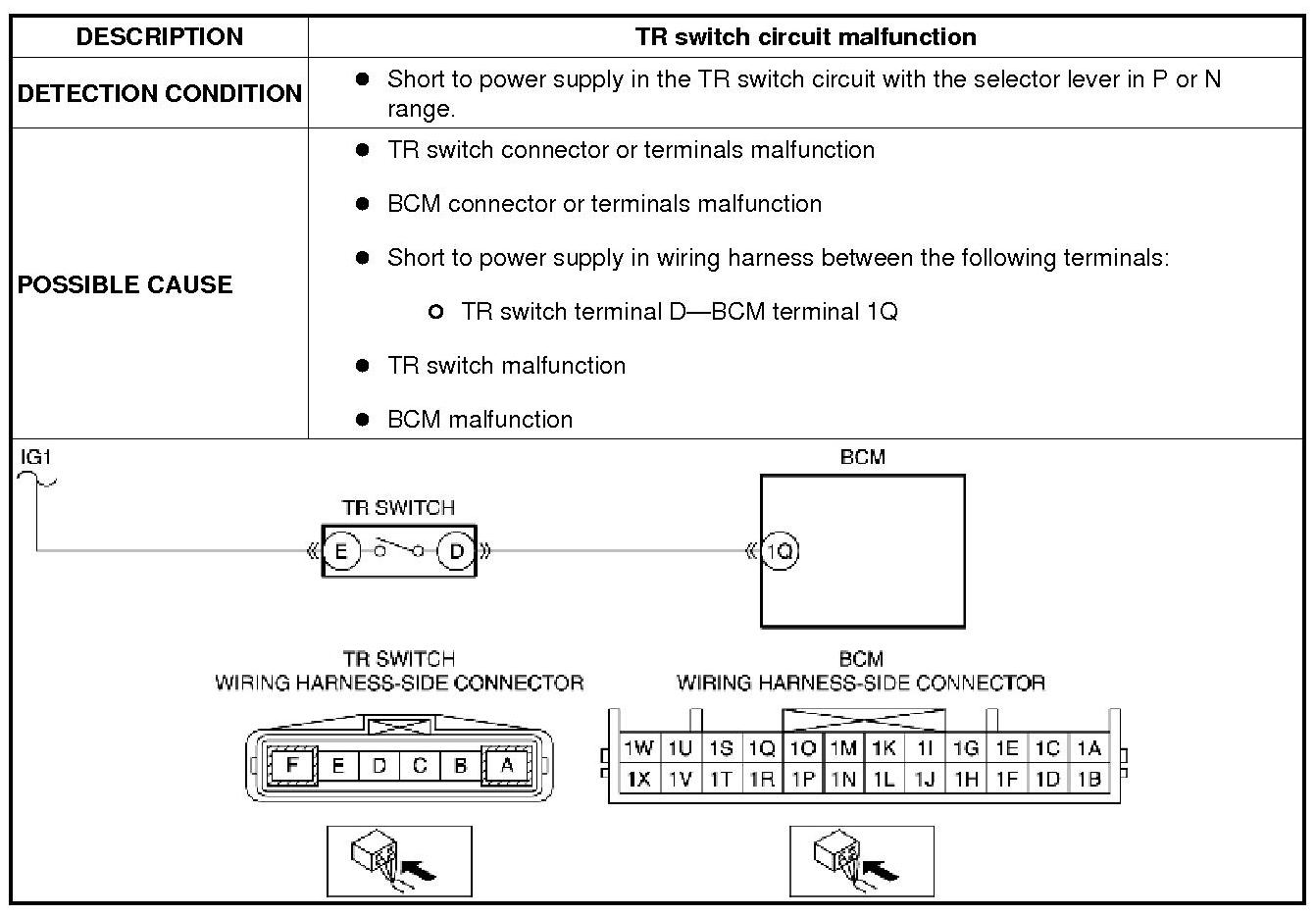

Detection Condition/Possible Cause:





Diagnostic Procedure

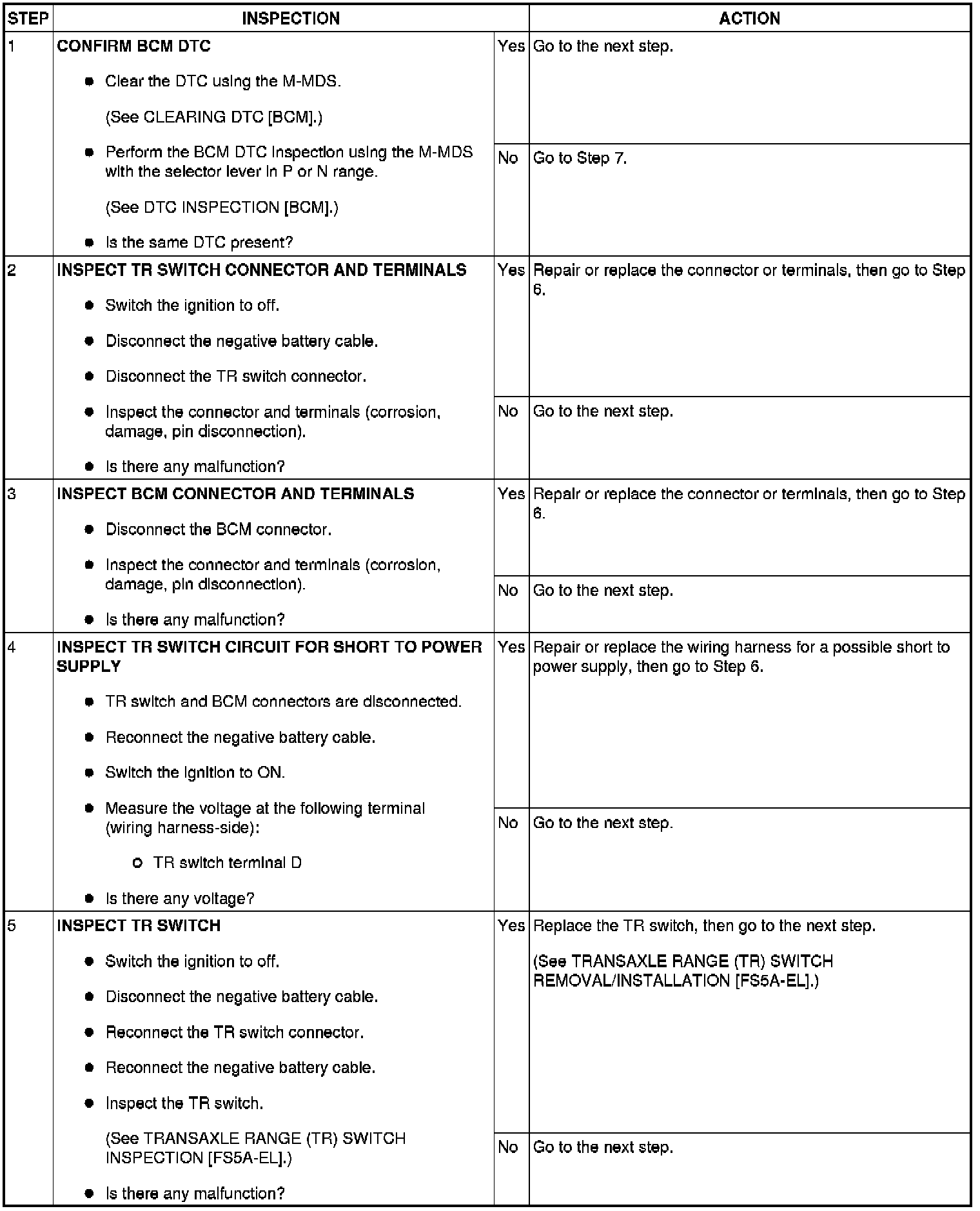

Step 1-Step 5:





Step 6-Step 7:
