A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B1C45
B1C45

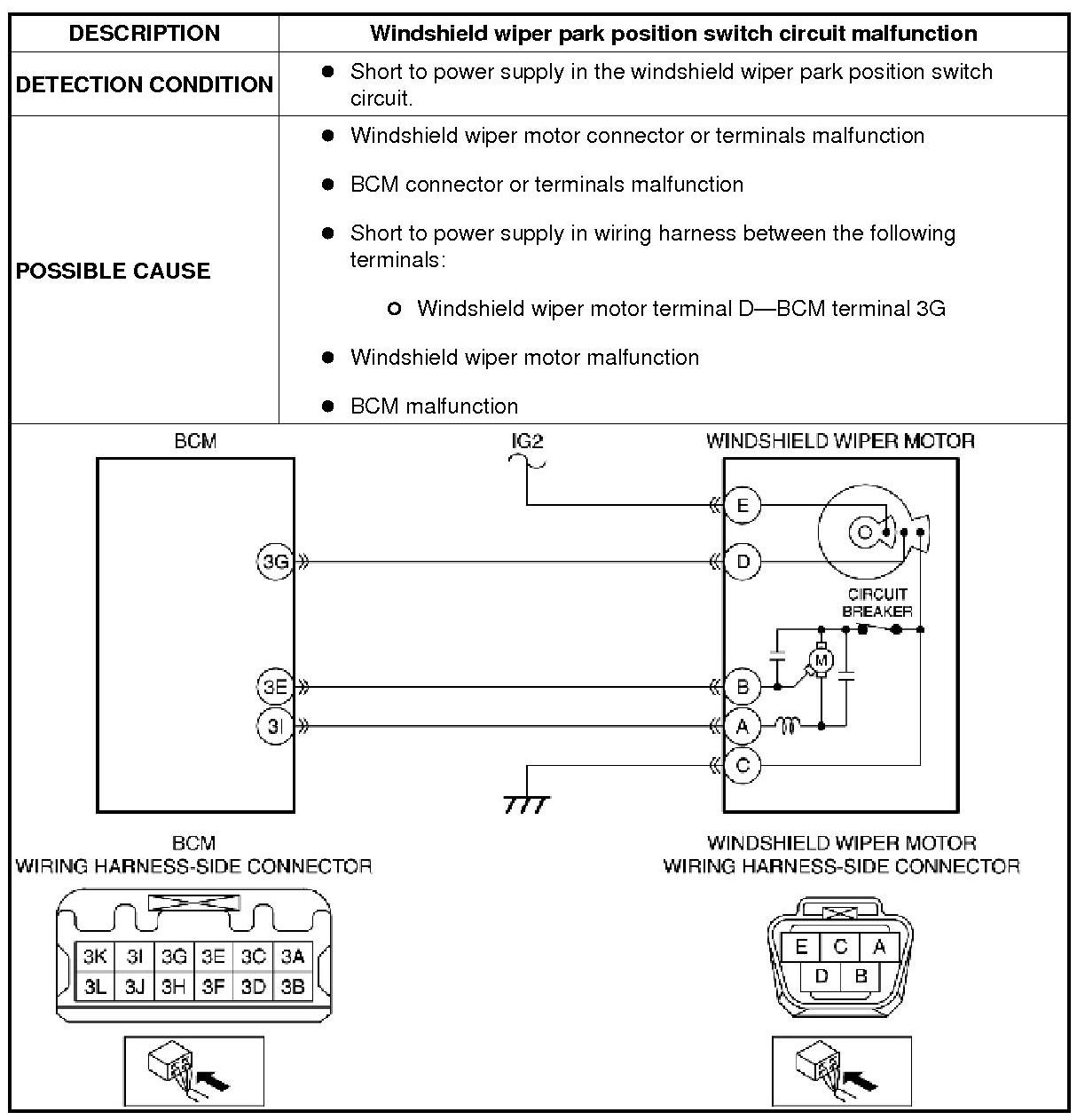

DTC B1C45:12 [BCM]
Detection Cause/Possible Cause:
Diagnostic Procedure

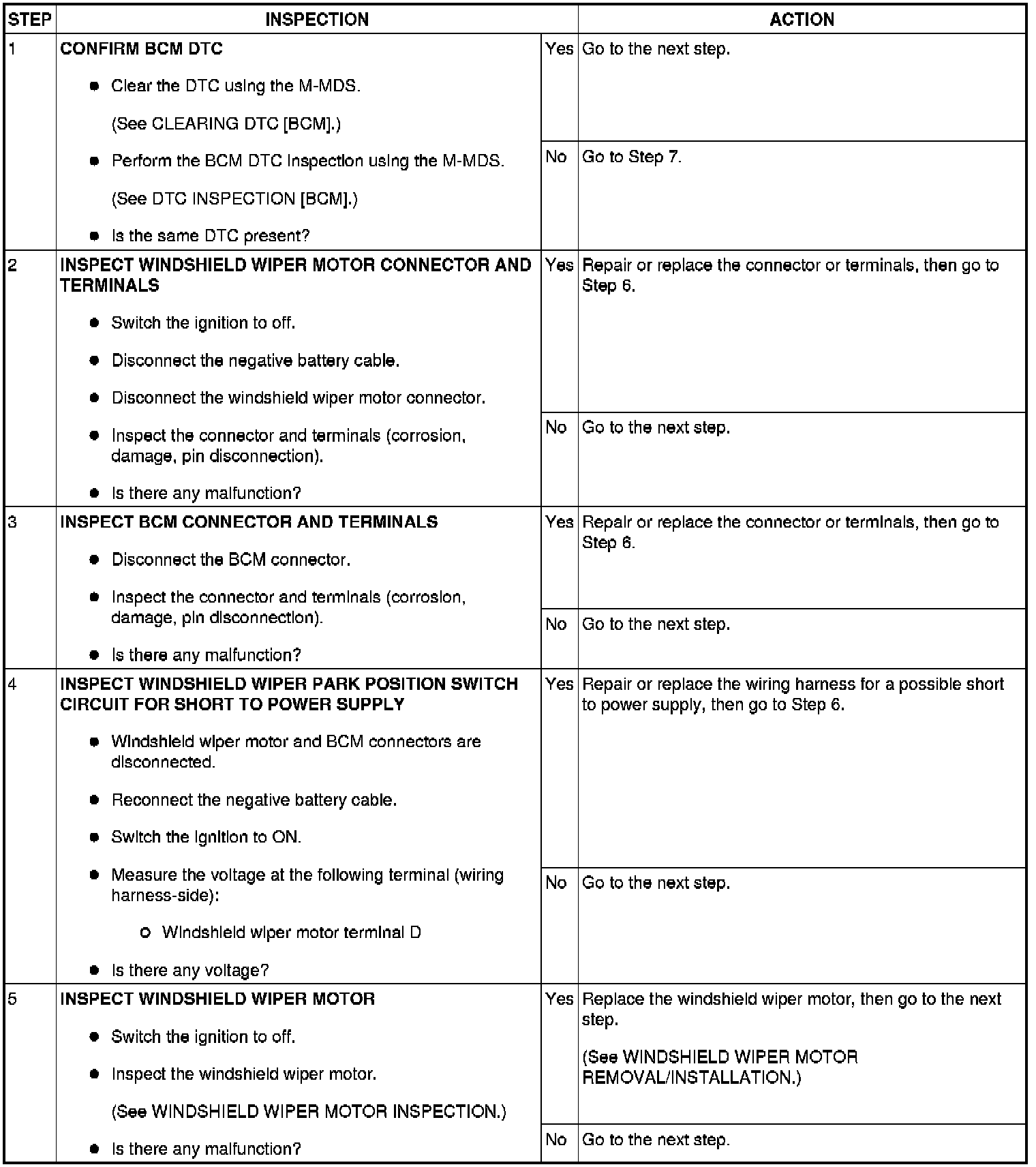

Step 1-Step 5:
Step 6-Step 7:
