Auto Light/Wiper Control Module




DTC B1318 [AUTO LIGHT/WIPER CONTROL MODULE]

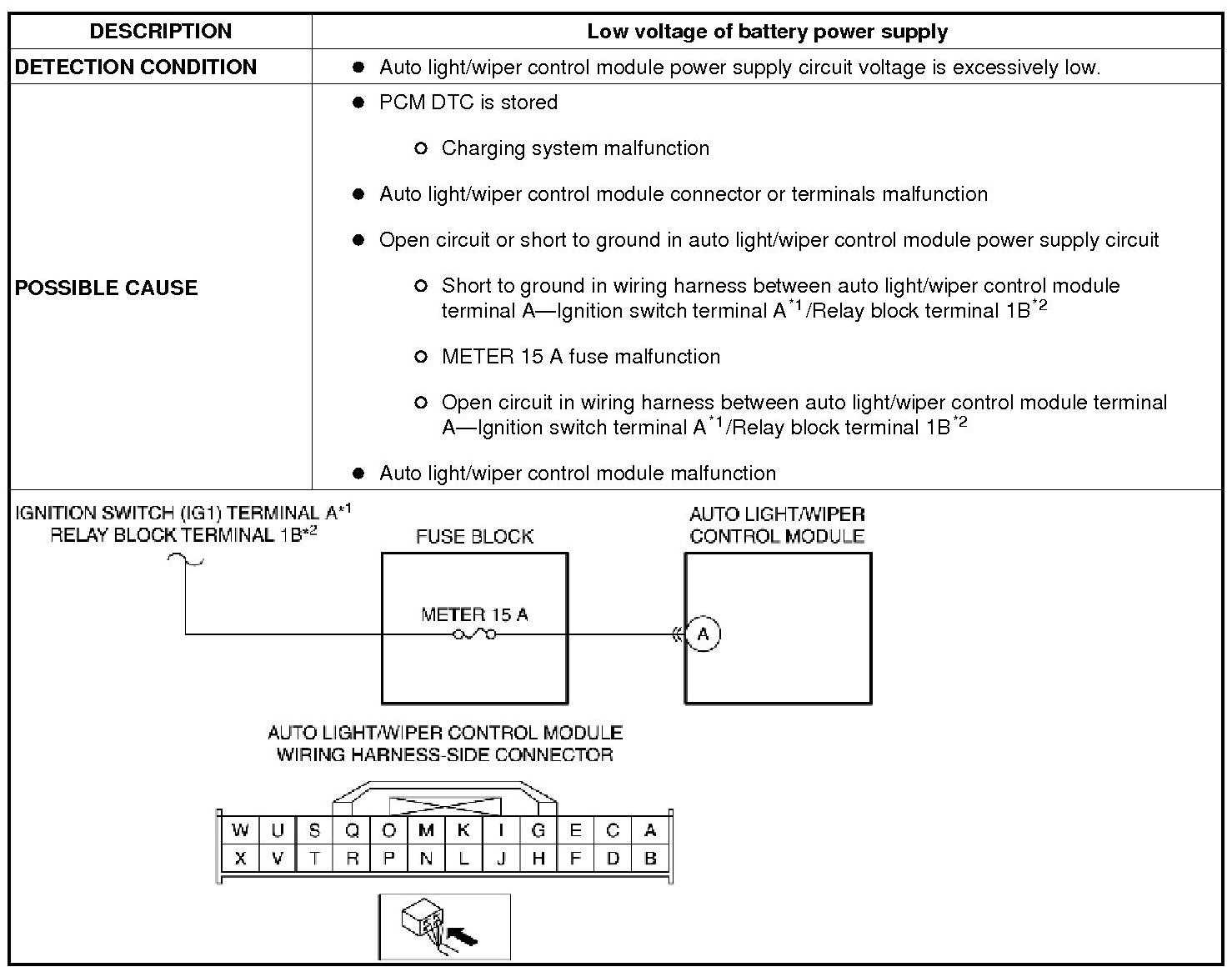

Detection Condition/Possible Cause:





*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system
Diagnostic Procedure

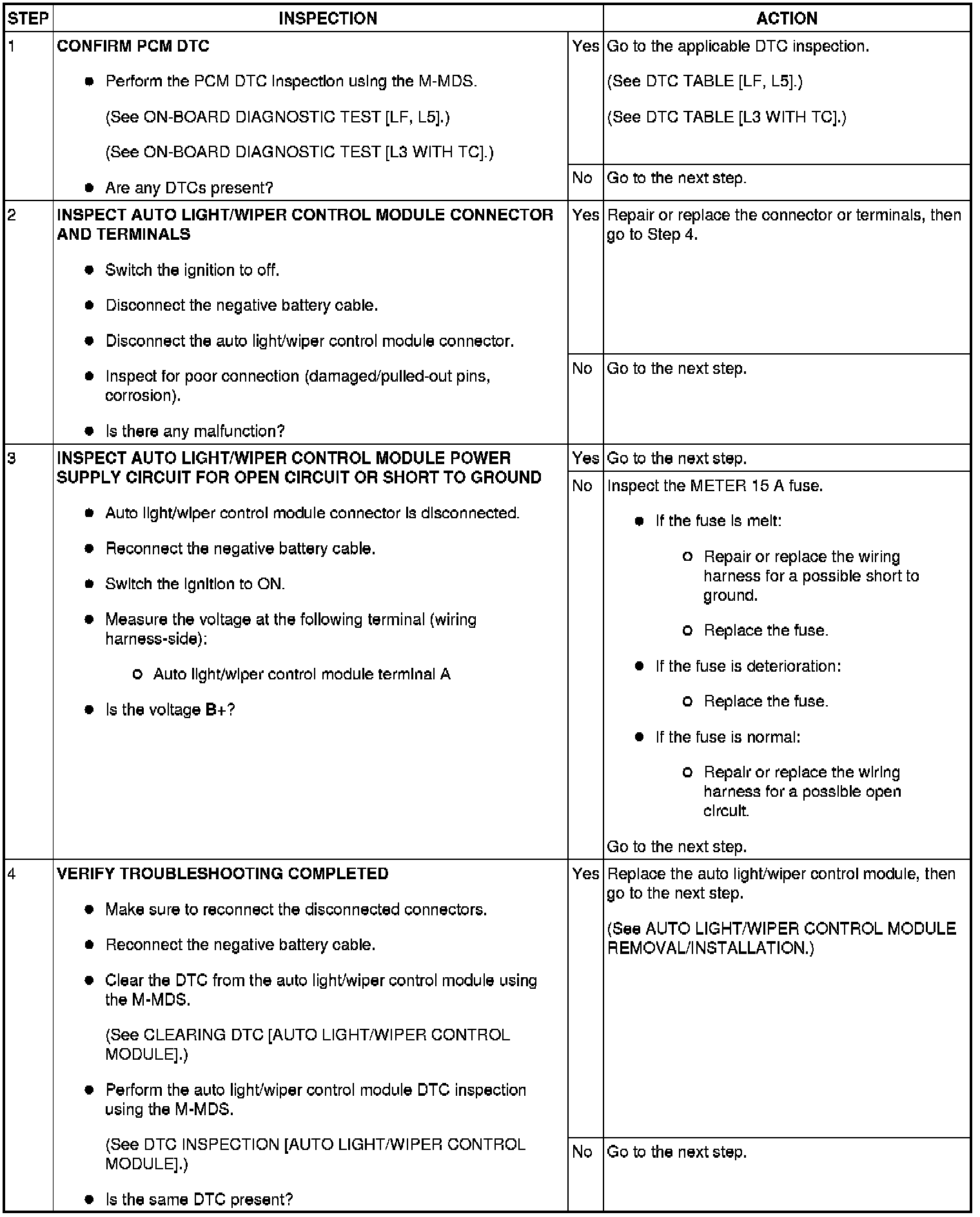

Step 1-Step 4:





Step 5:
