DTC B1317 [AUTO LIGHT/WIPER CONTROL MODULE]
Detection Condition/Possible Cause:

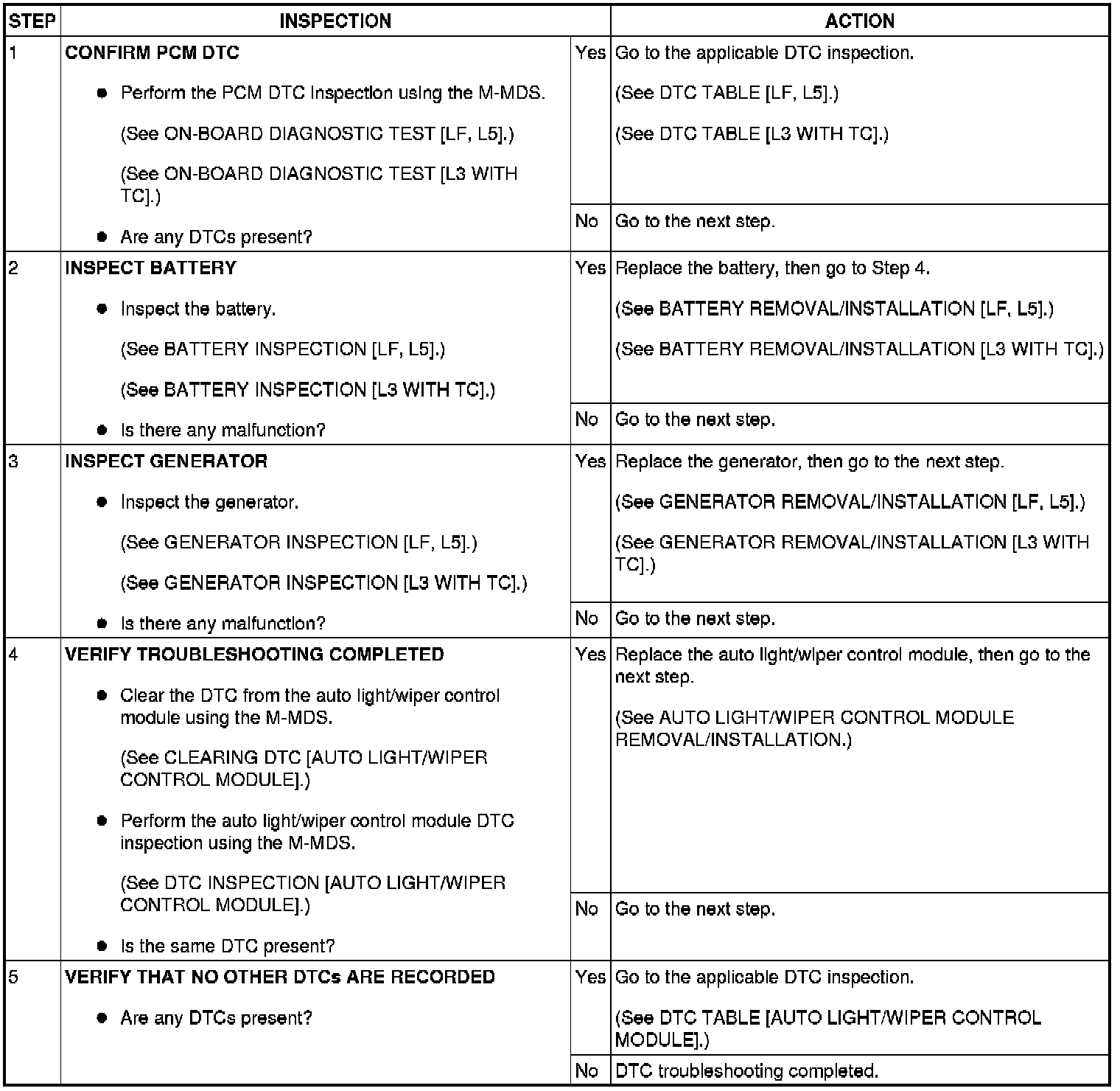

Diagnostic procedure
Step 1-Step 5:
