DTC: B1134:23, 26:Er85 [Bluetooth SYSTEM (HANDS-FREE TELEPHONE (HF/TEL) SYSTEM)]

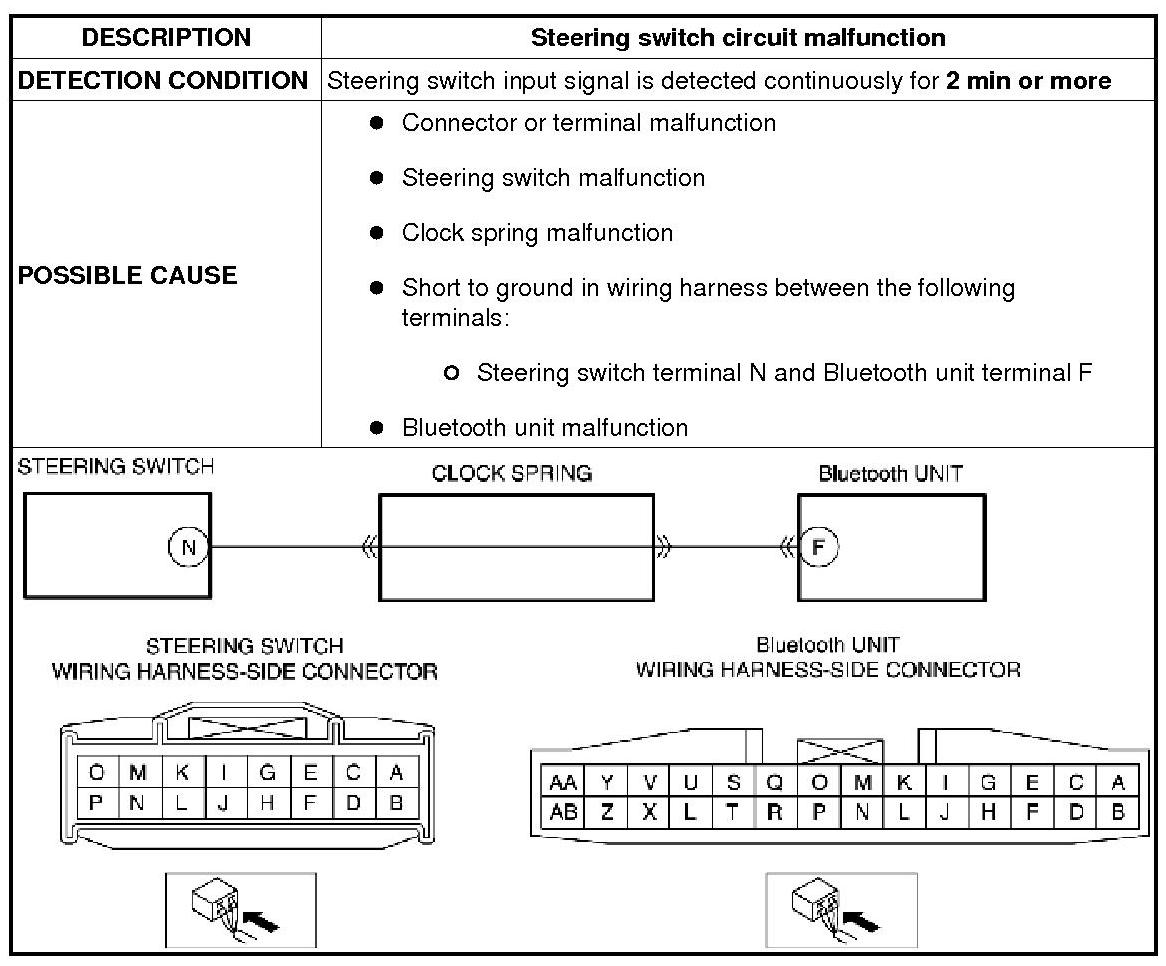

Detection Condition/Possible Cause:

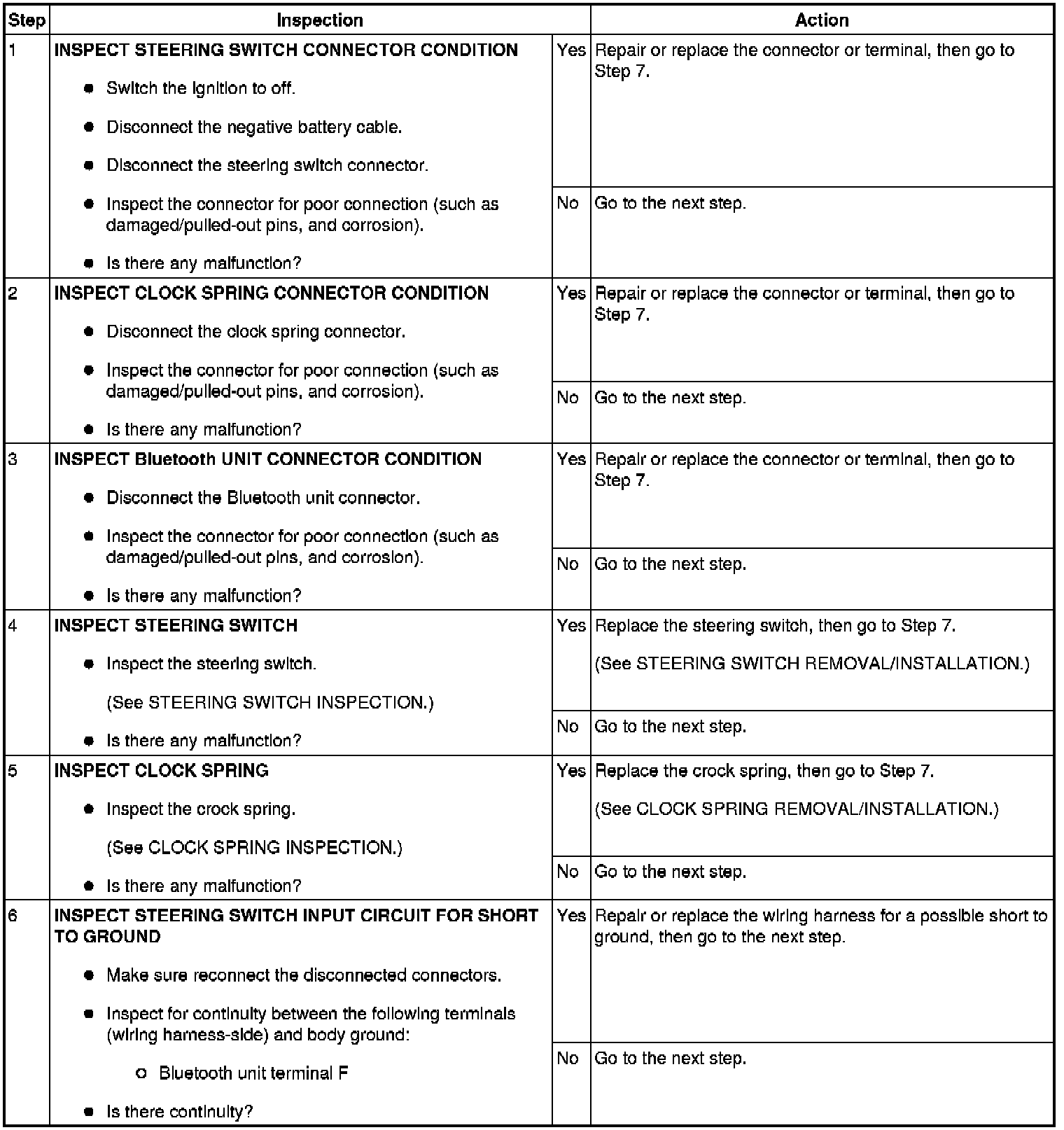

Diagnostic Procedure
Step 1-Step 6:
Step 7-Step 8:
