Immobilizer System (Advanced Keyless Entry And Push Button Start System)




SECURITY LIGHT: 11, DTC: B10D9:87/P1260:00 [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

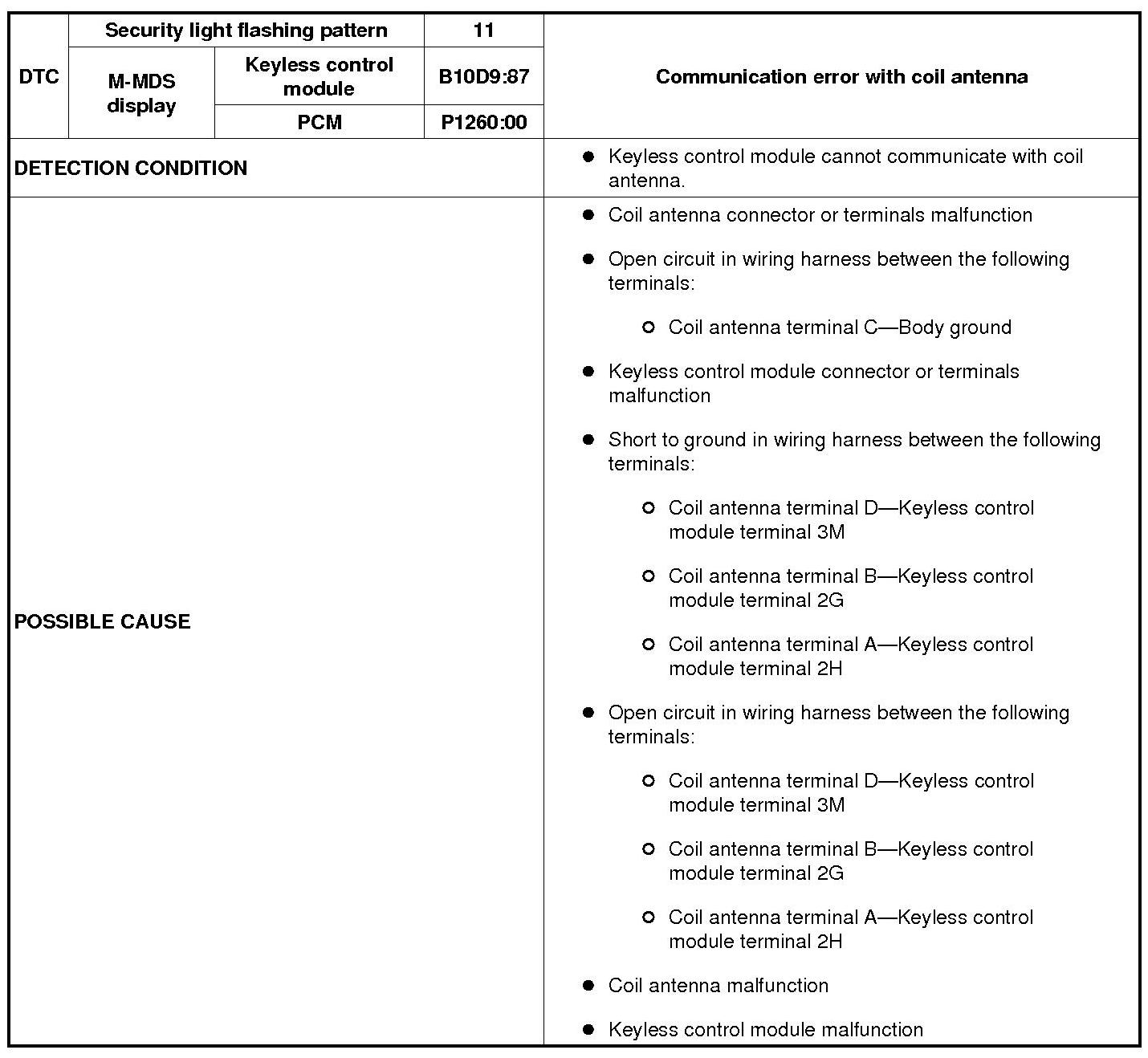

Detection Condition/Possible cause (Part 1):

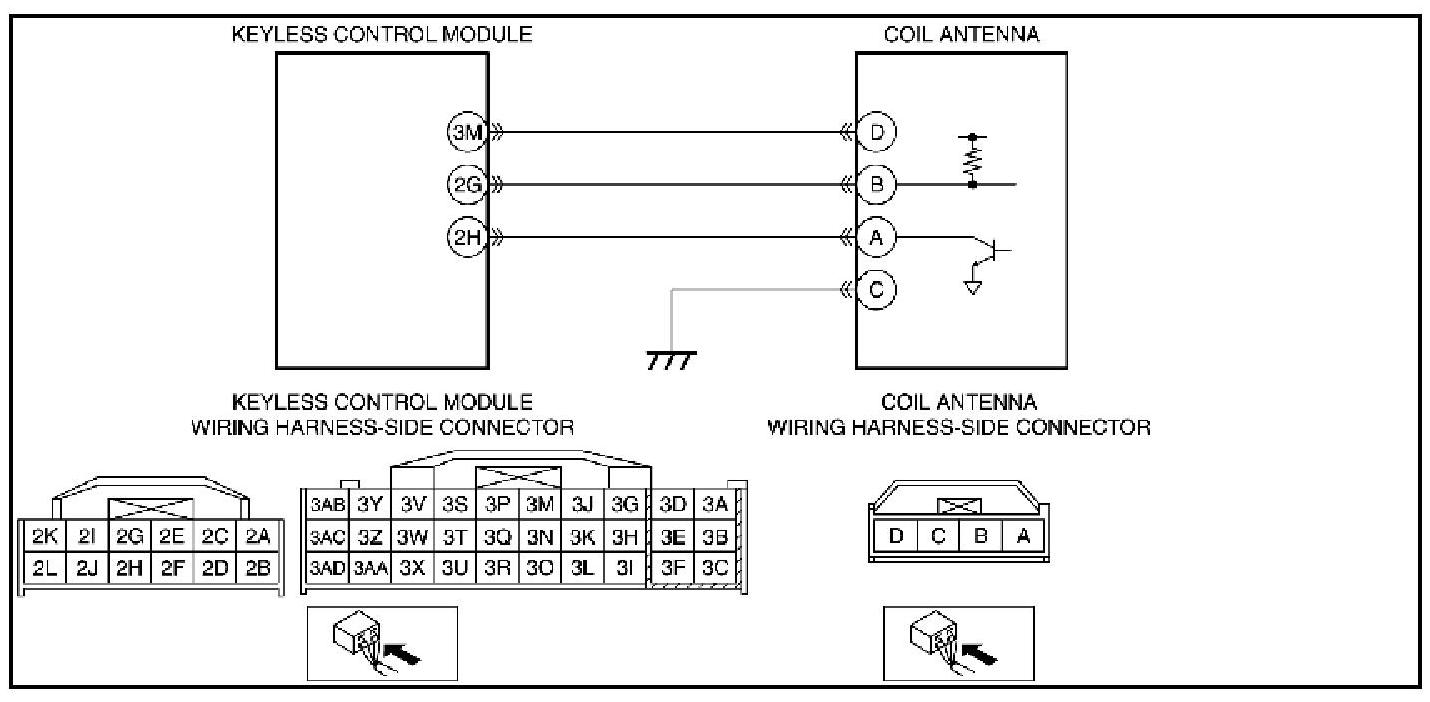

Detection Condition/Possible cause (Part 2):





Diagnostic Procedure

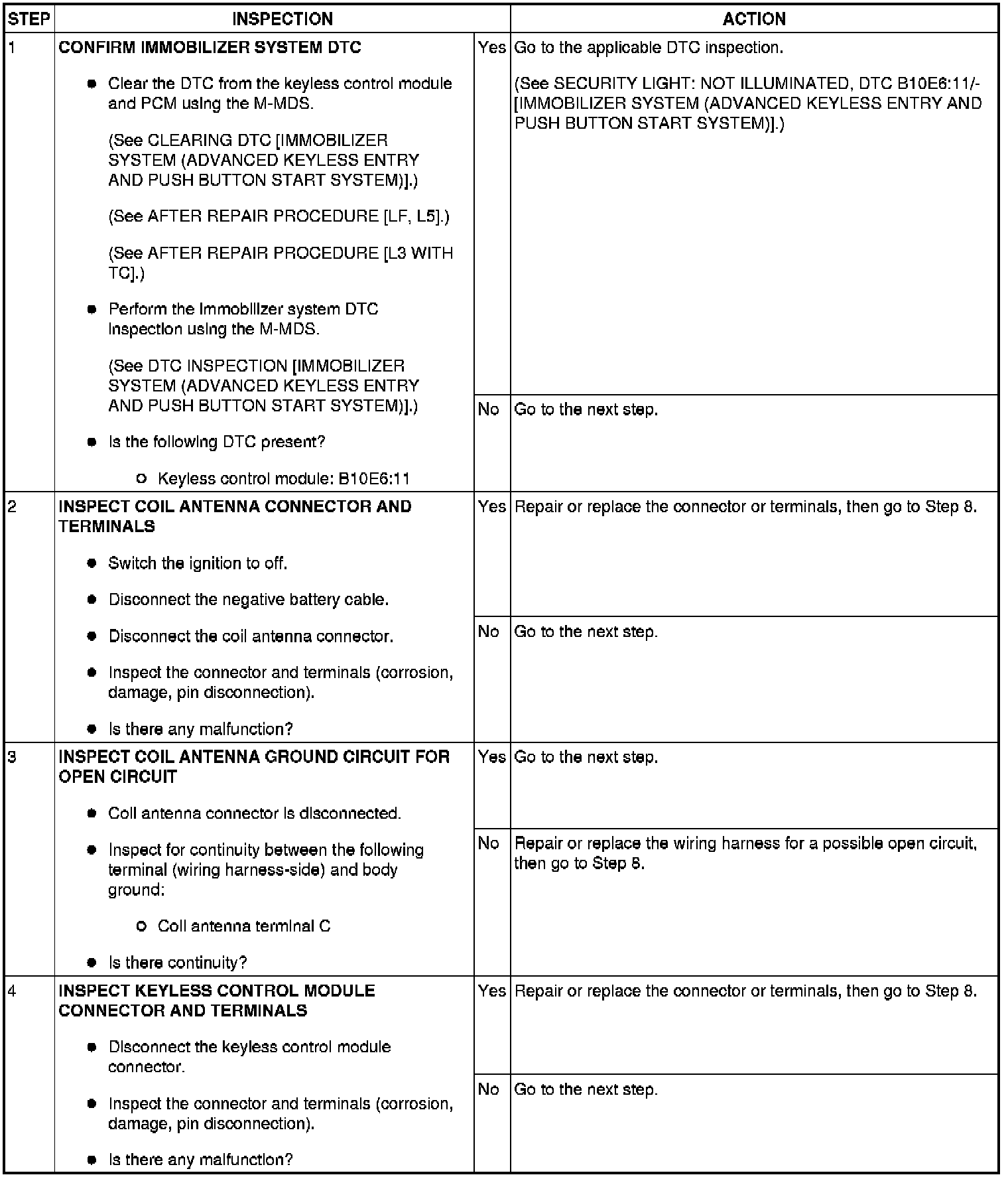

Step 1-Step 4:





Step 5-Step 6:

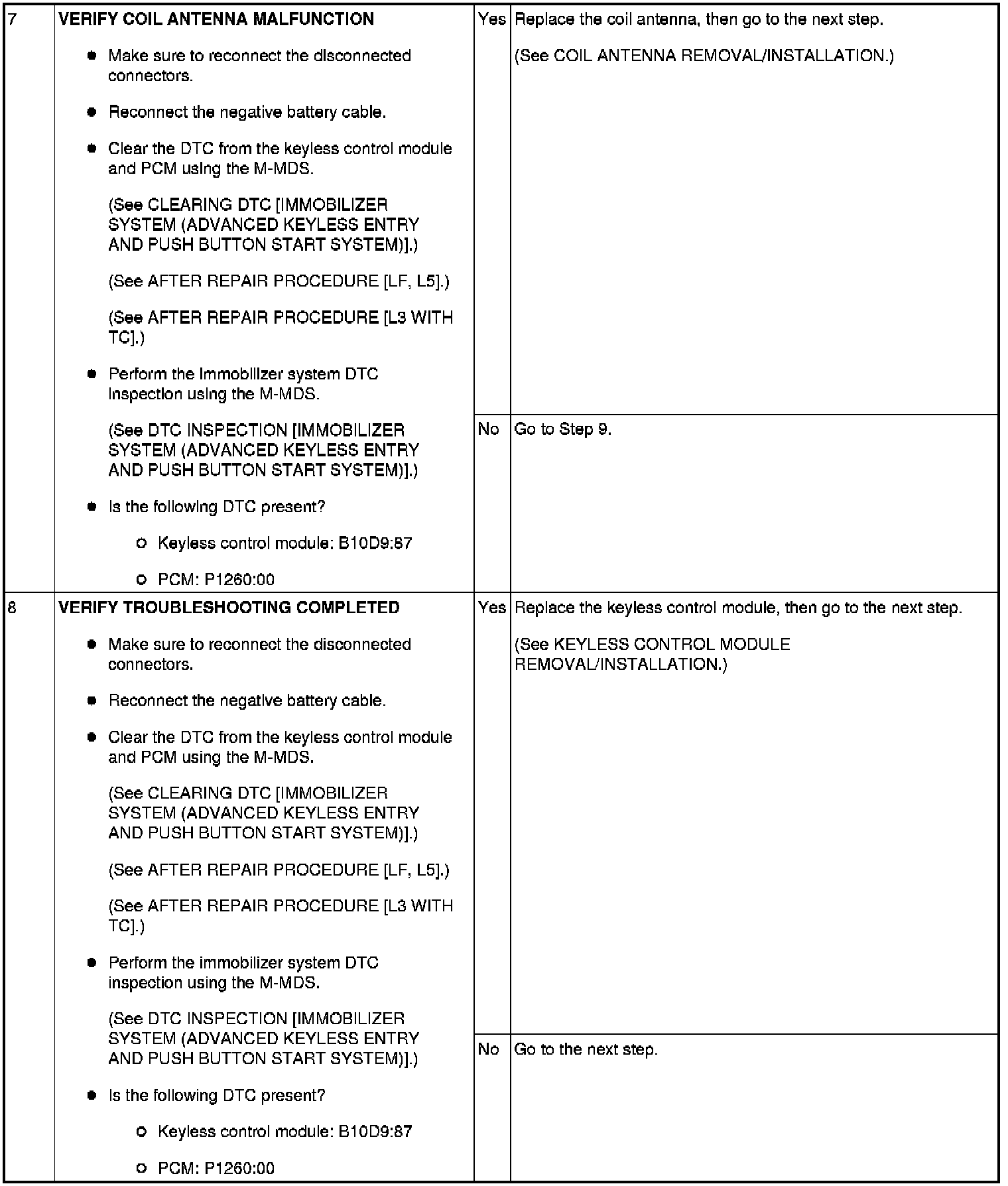

Step 7-Step 8:





Step 9:
