Immobilizer System (Advanced Keyless Entry And Push Button Start System)




SECURITY LIGHT: 12, DTC: B10D5:13/P1260:00 [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

Detection Condition/Possible Cause:





Diagnostic Procedure

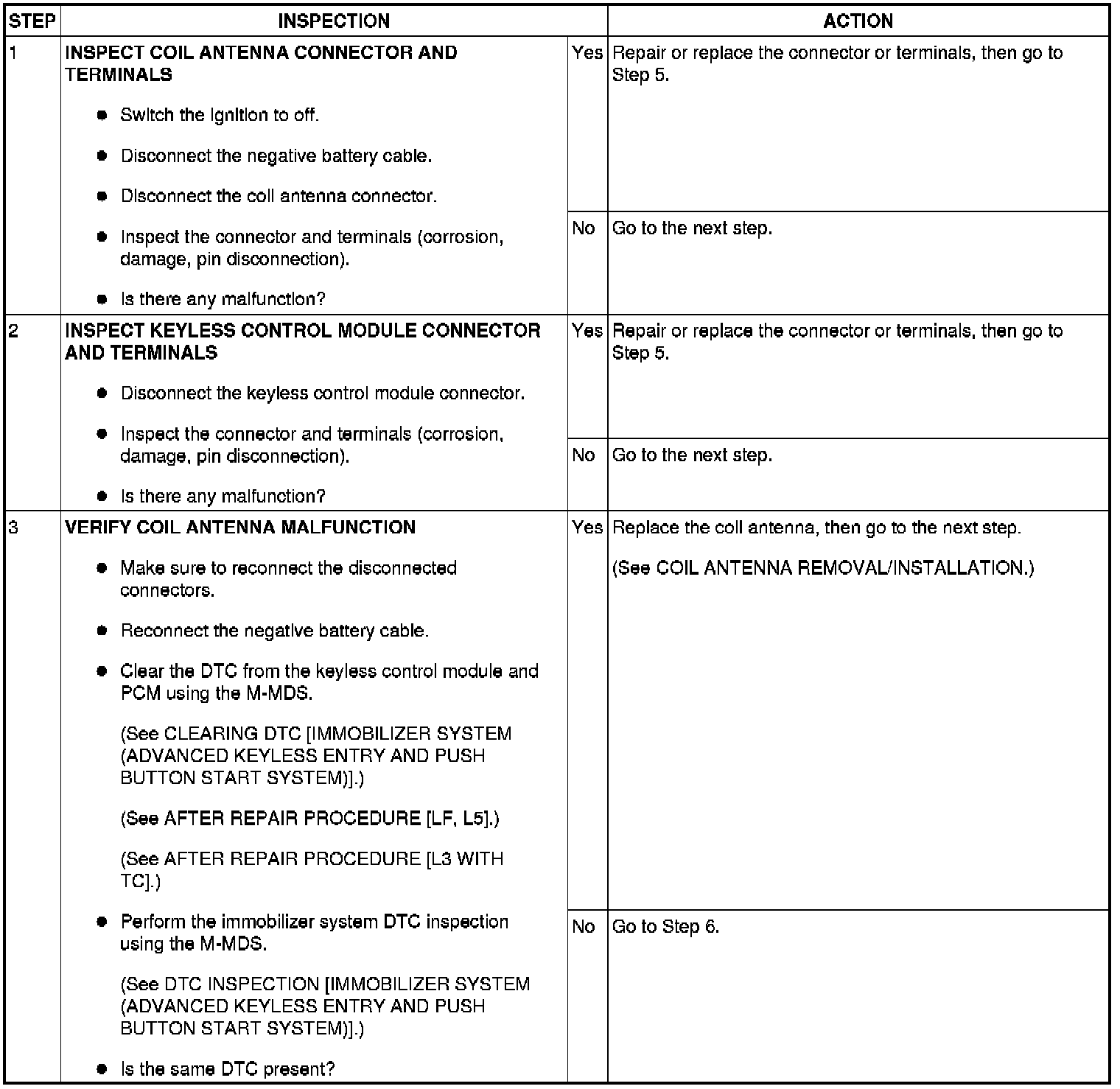

Step 1-Step 3:

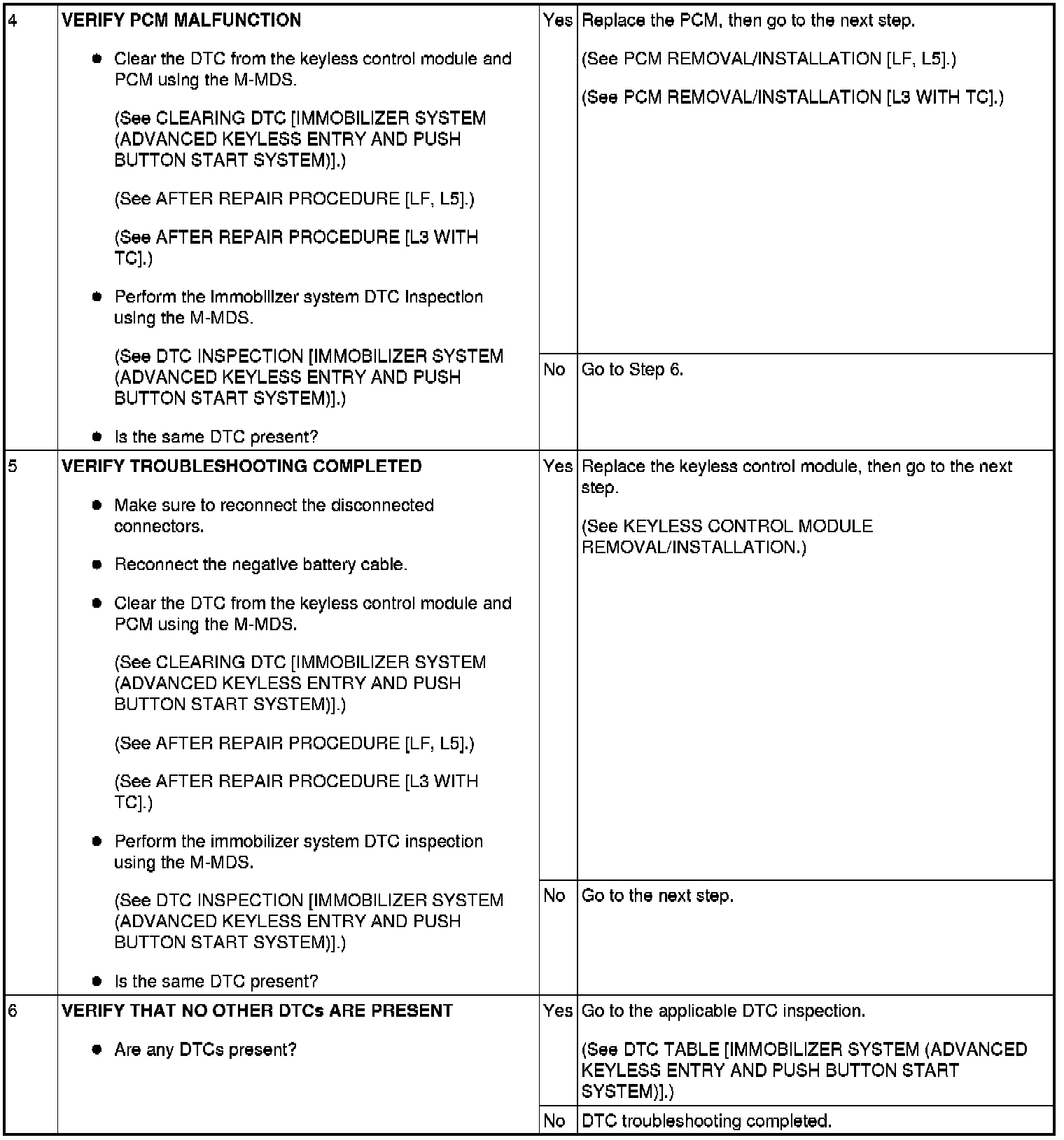

Step 4-Step 6:
