A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B10C9
B10C9
DTC B10C9:1F [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

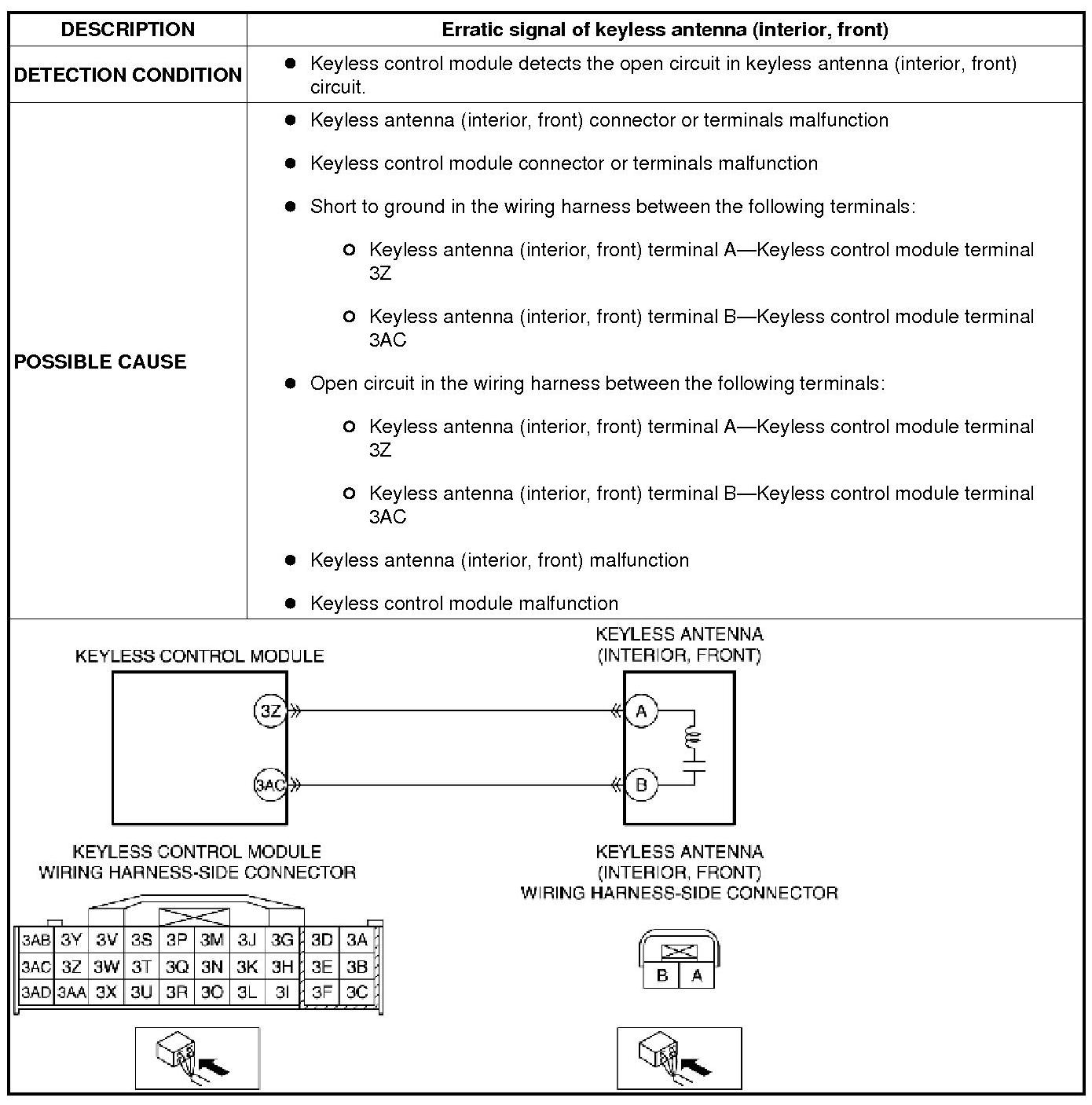

Detection Condition/Possible Cause:
Diagnostic Procedure

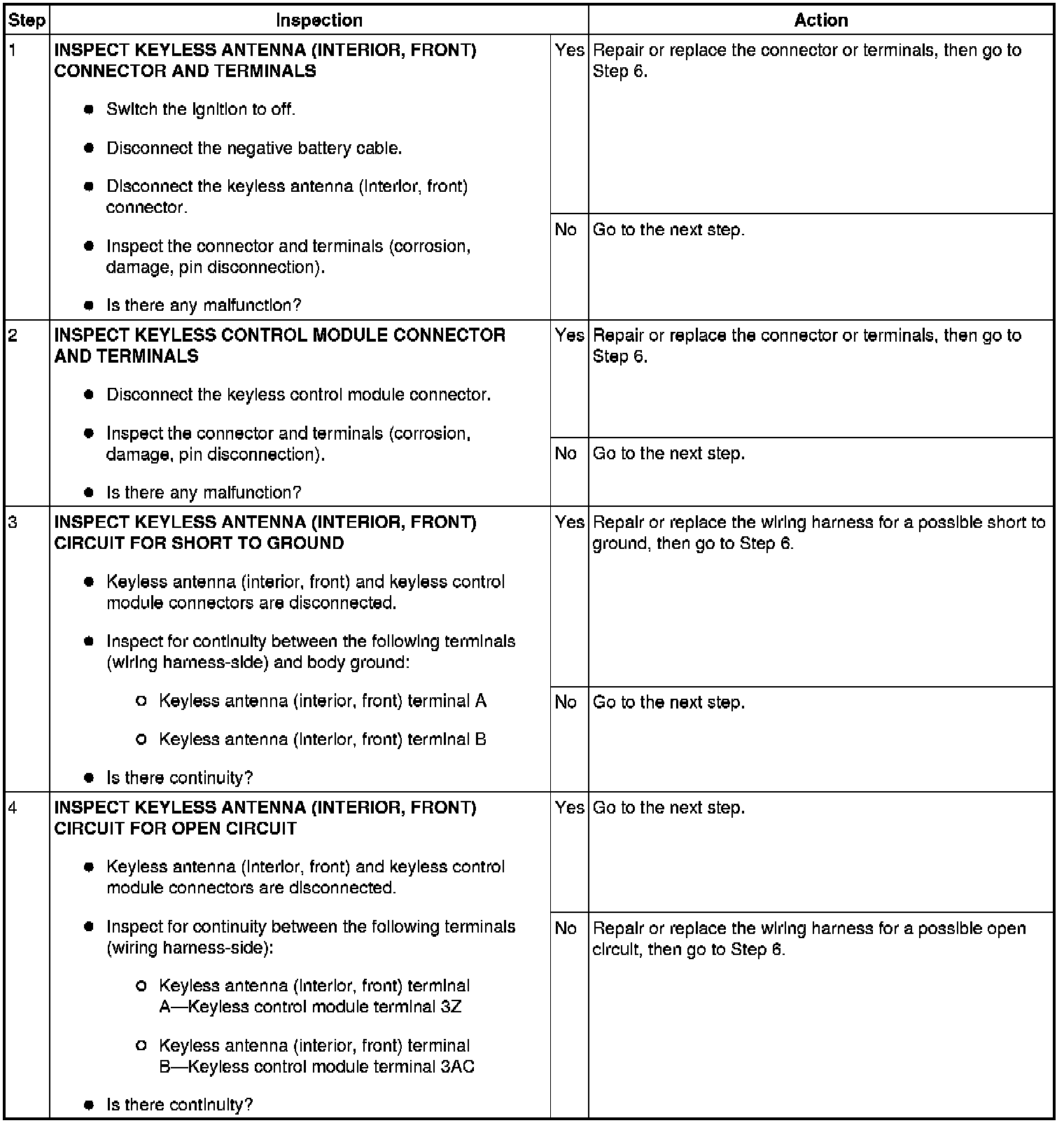

Step 1-Step 4:

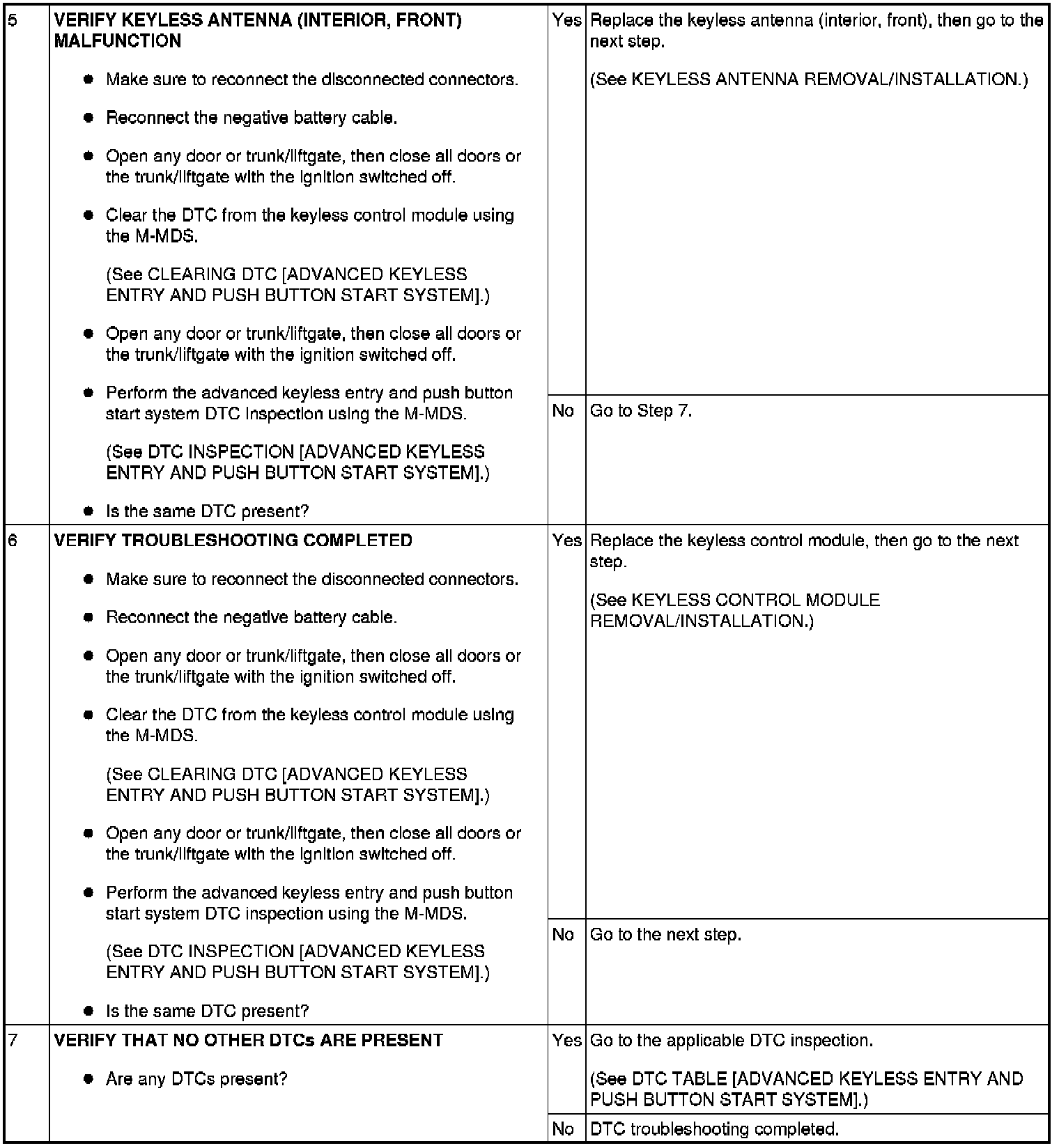

Step 5-Step 7:
