B109E:87
DTC B109E:87 [BCM]
Vehicles Without Advanced Keyless Entry And Push Button Start System

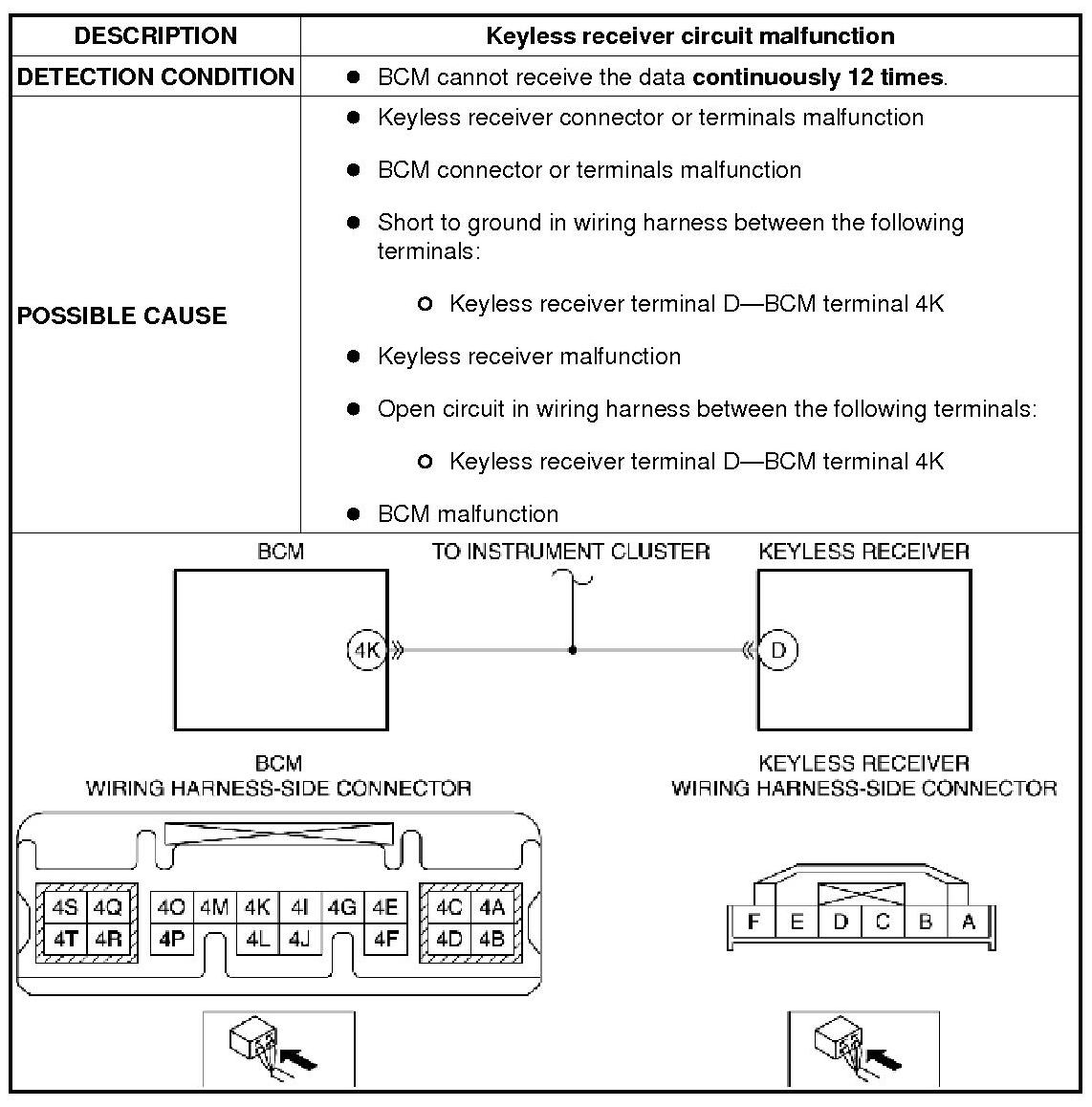

Detection Condition/Possible cause:
Diagnostic Procedure

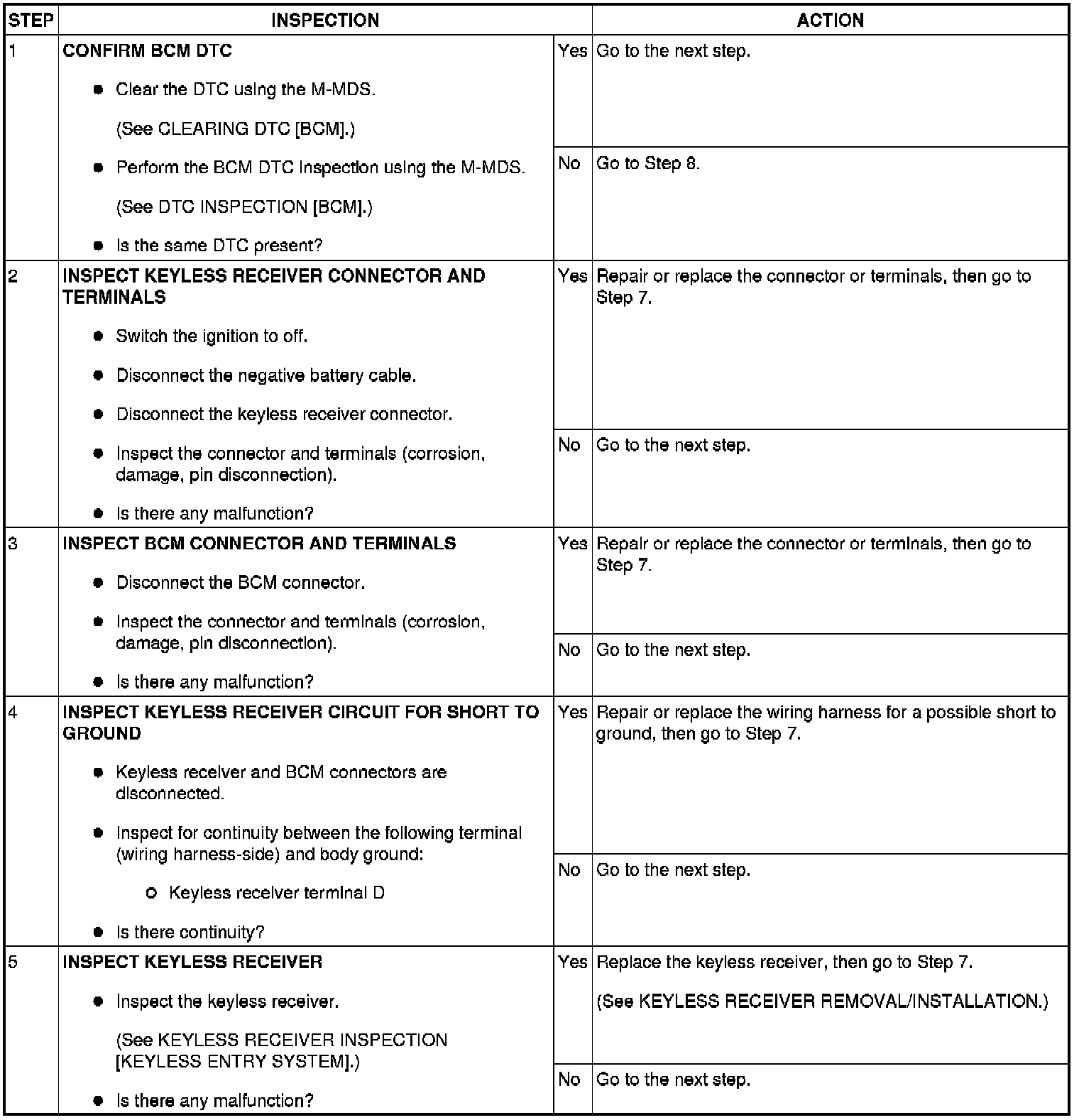

Step 1-Step 5:
Step 6-Step 8:
Vehicles With Advanced Keyless Entry And Push Button Start System

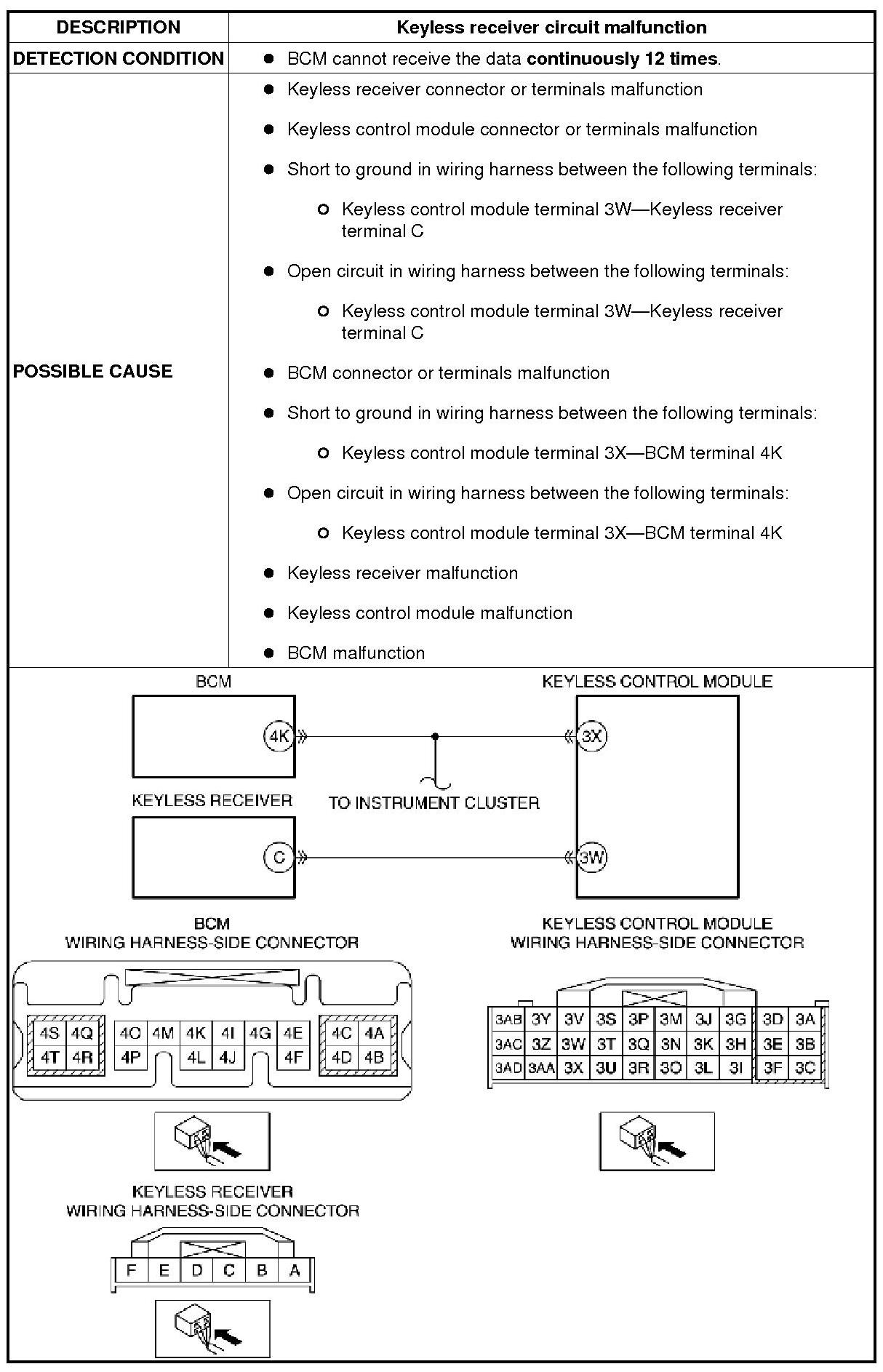

Detection Condition/Possible cause:

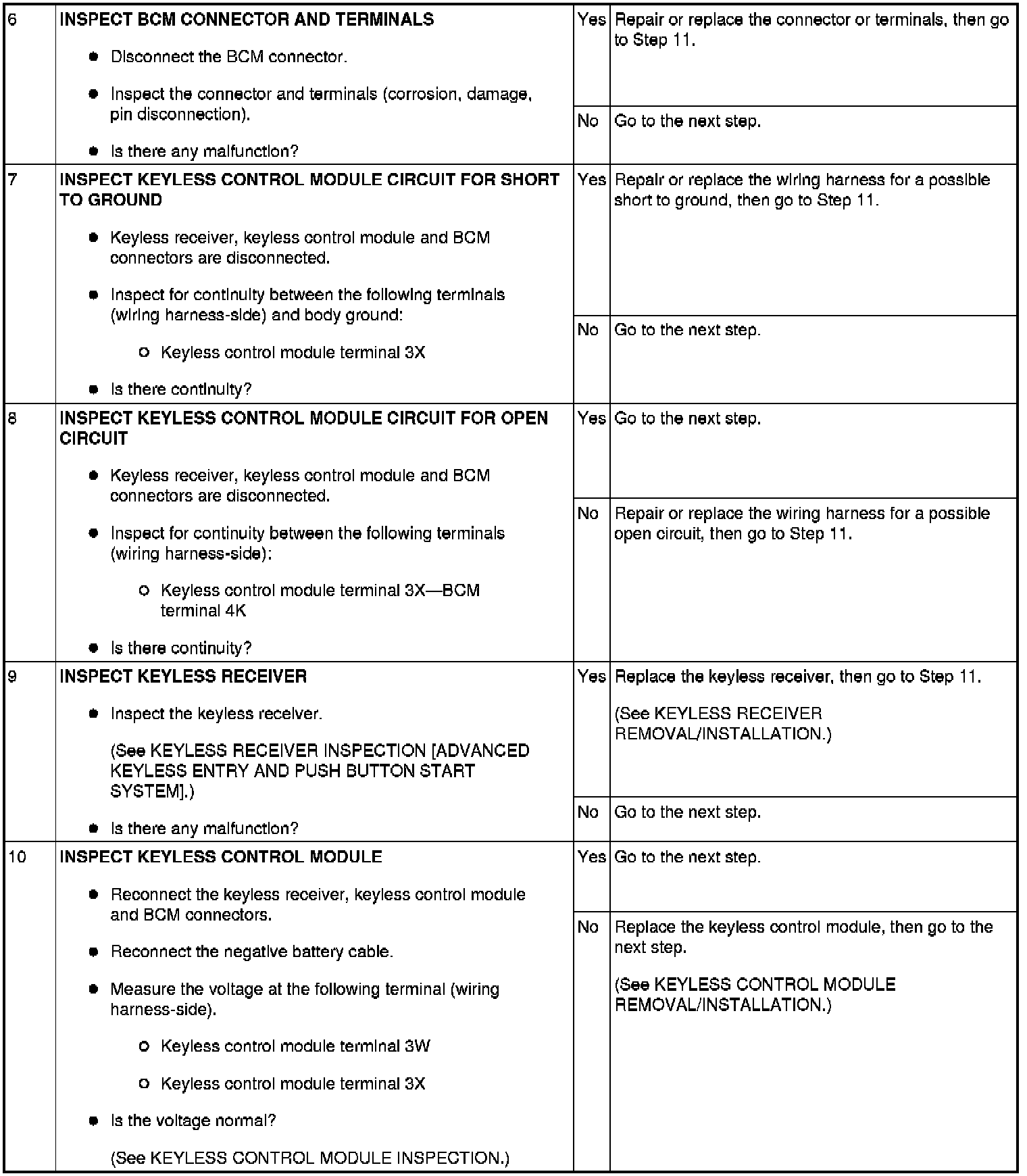

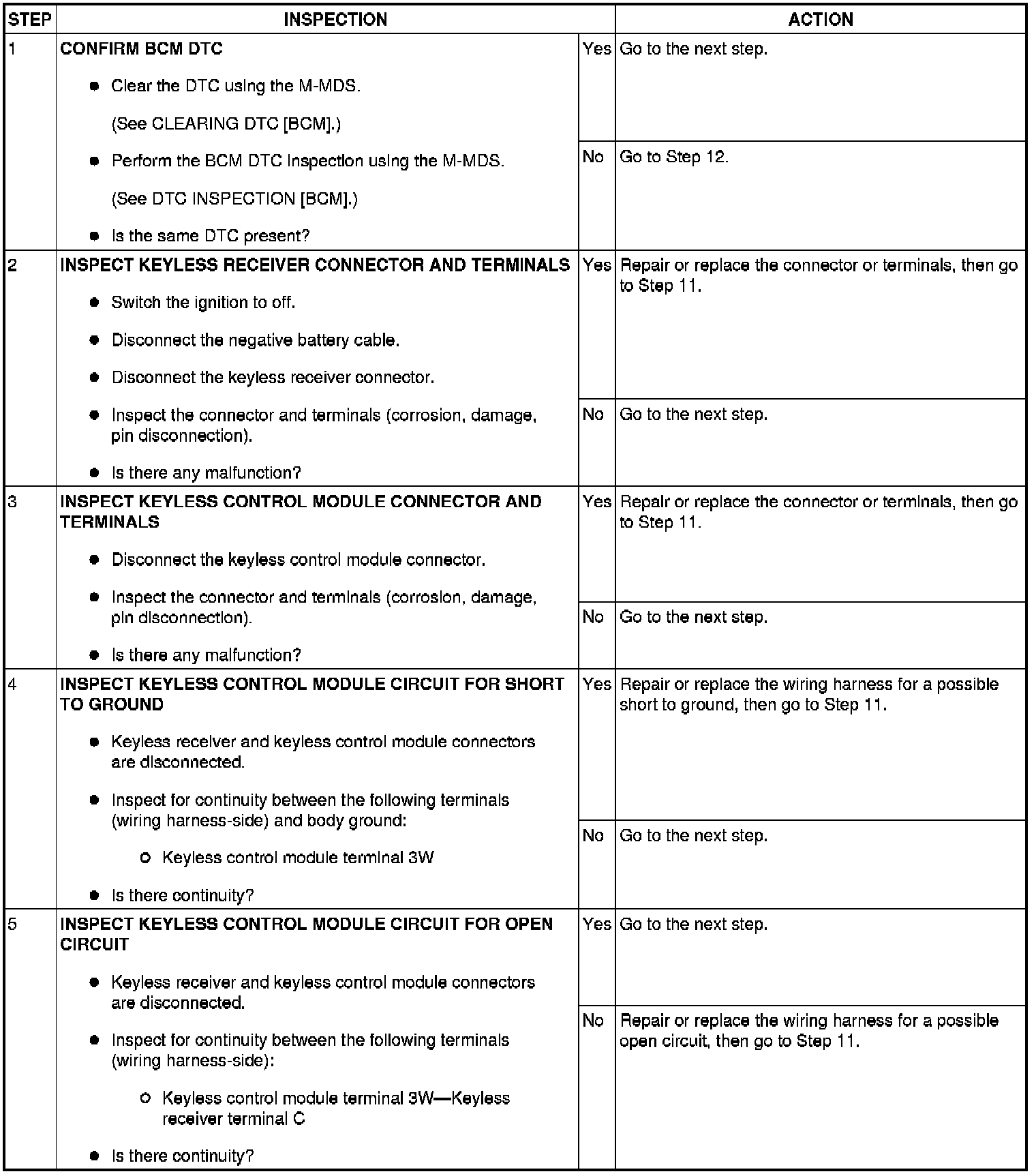

Diagnostic Procedure
