A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
B Code Charts
>>
B108C
B108C

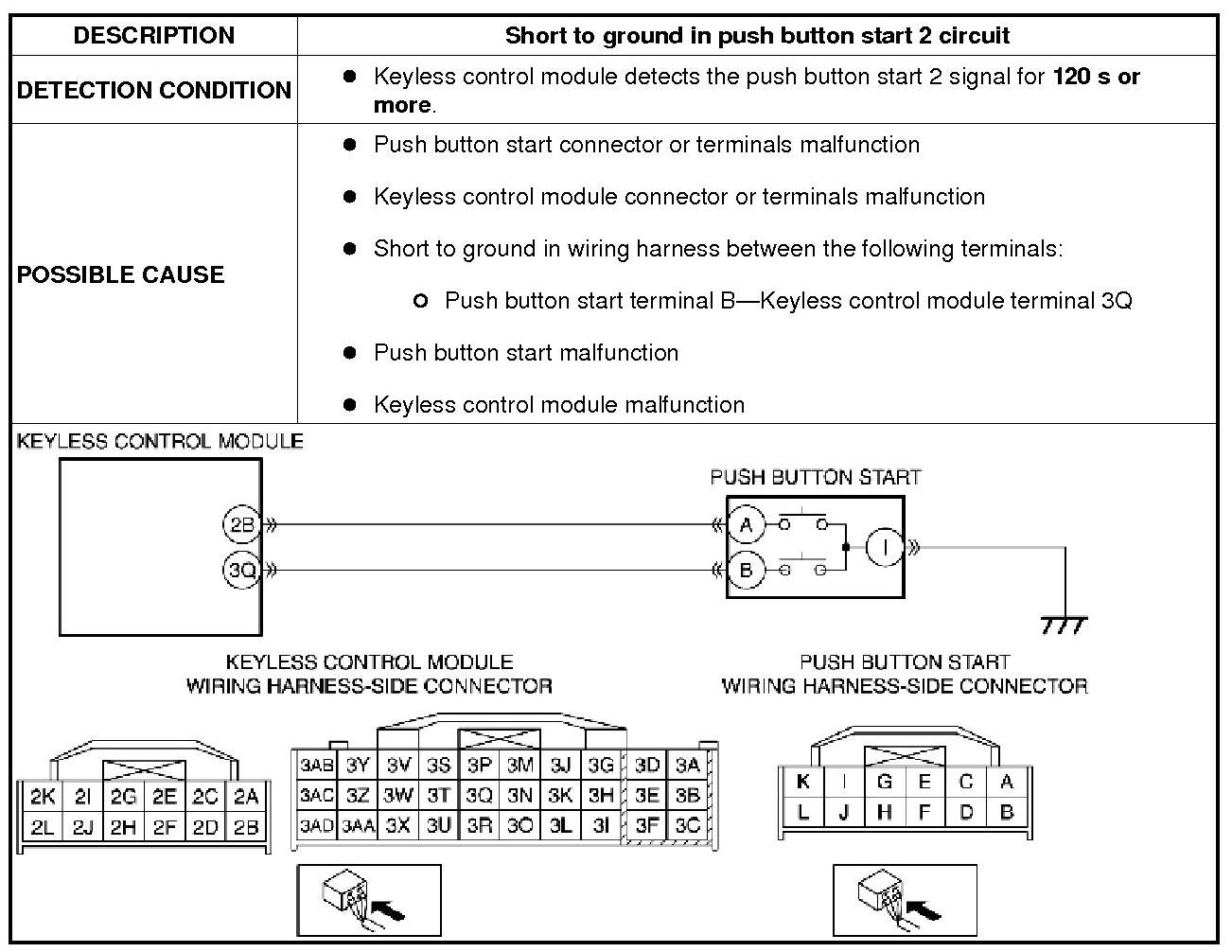

DTC B108C:23 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]
Detection Condition/Possible cause:
Diagnostic Procedure

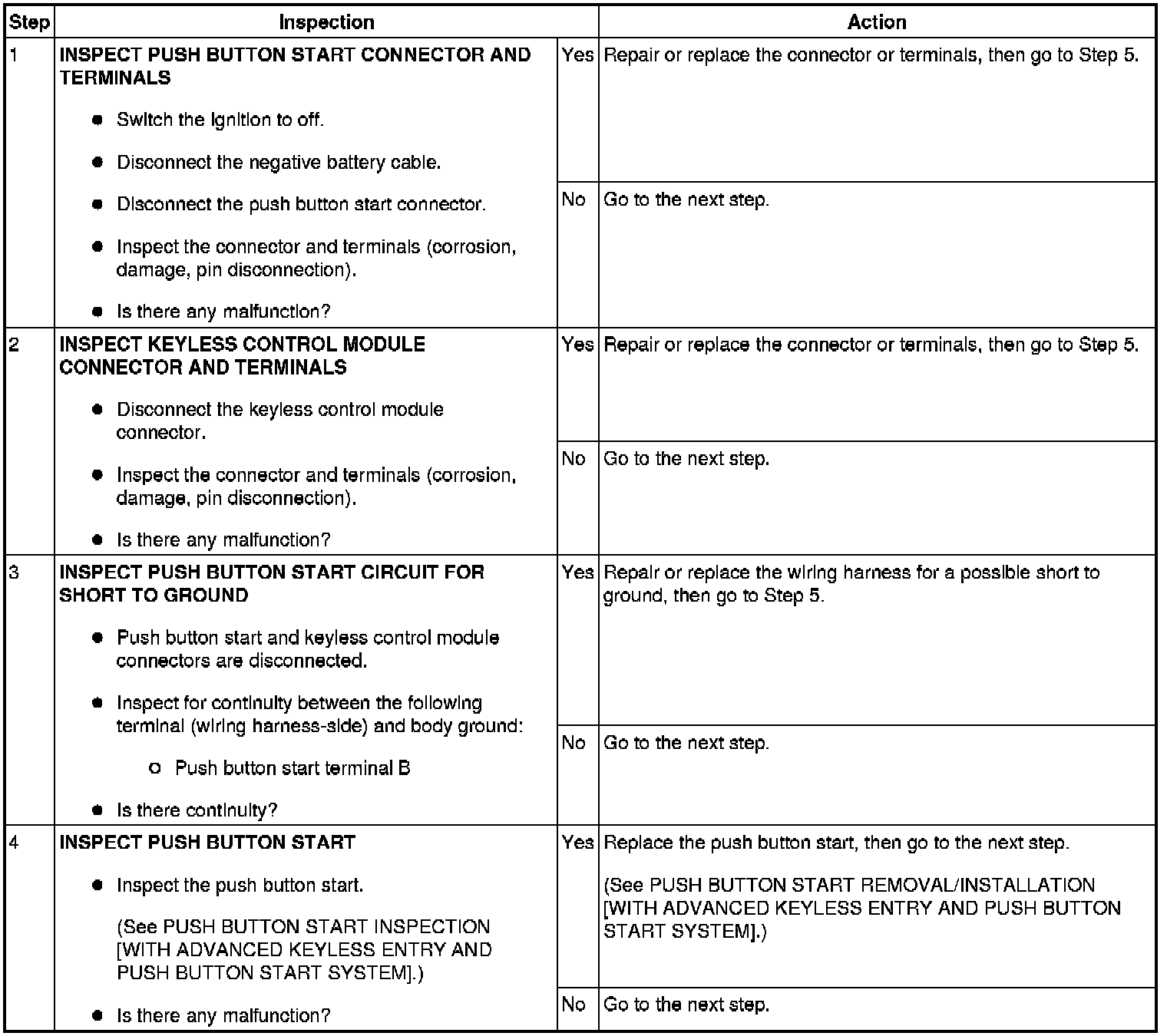

Step 1-Step 4:
Step 5-Step 6:
