B1043
B1043
DTC B1043:01 [AFS (ADAPTIVE FRONT LIGHTING SYSTEM)]

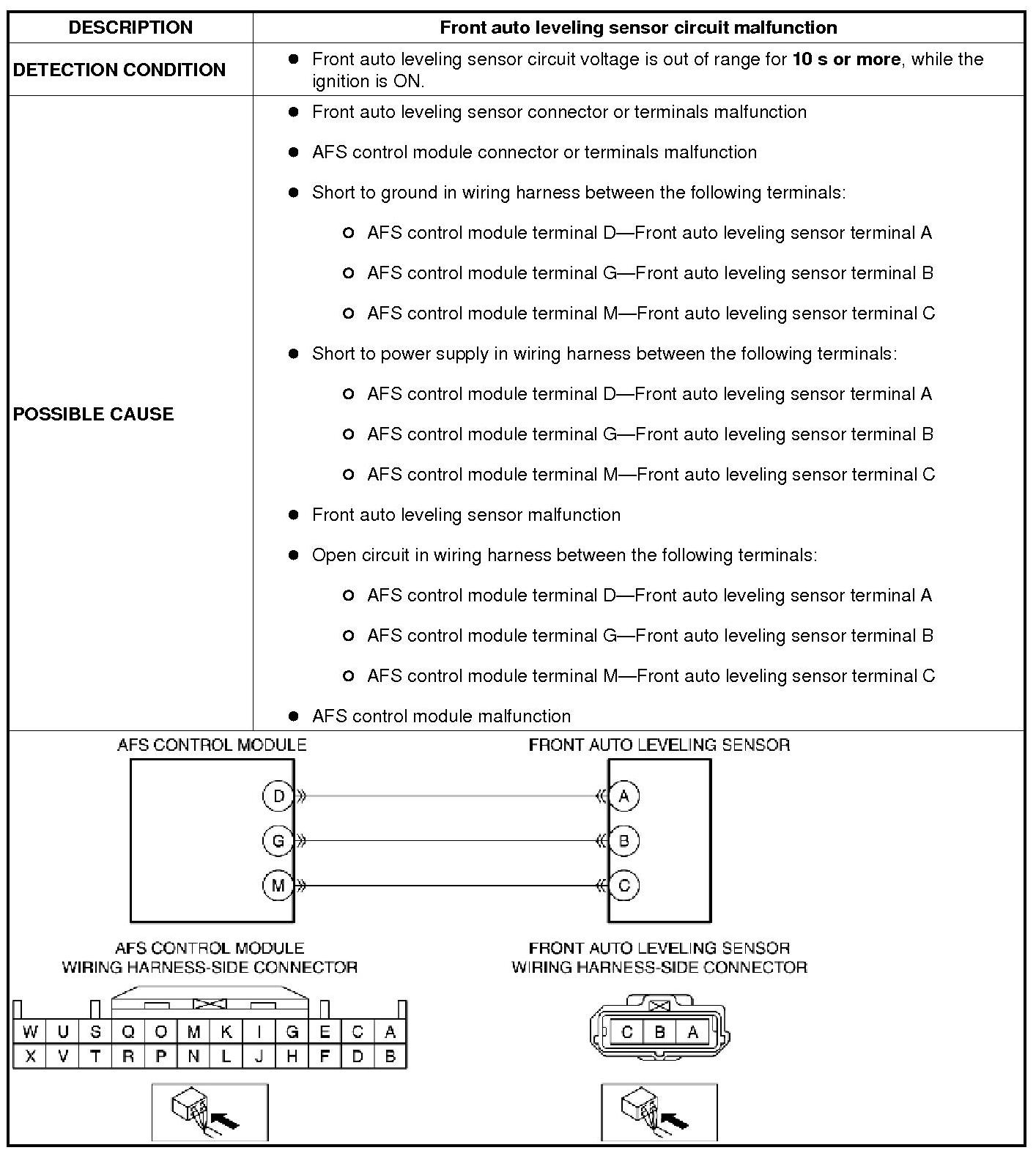

Detection Condition/Possible Cause:
Diagnostic Procedure

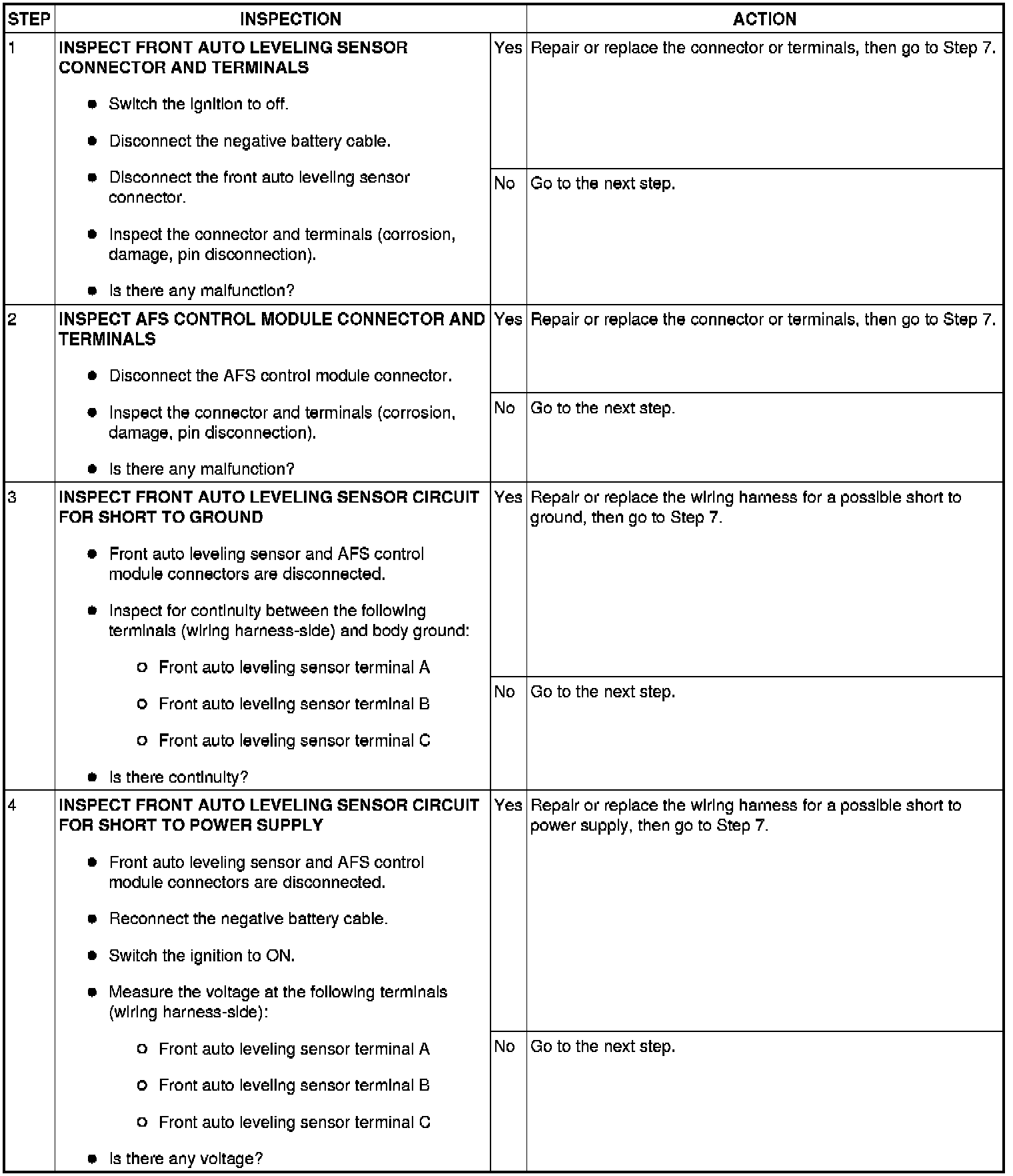

Step 1-Step 4:

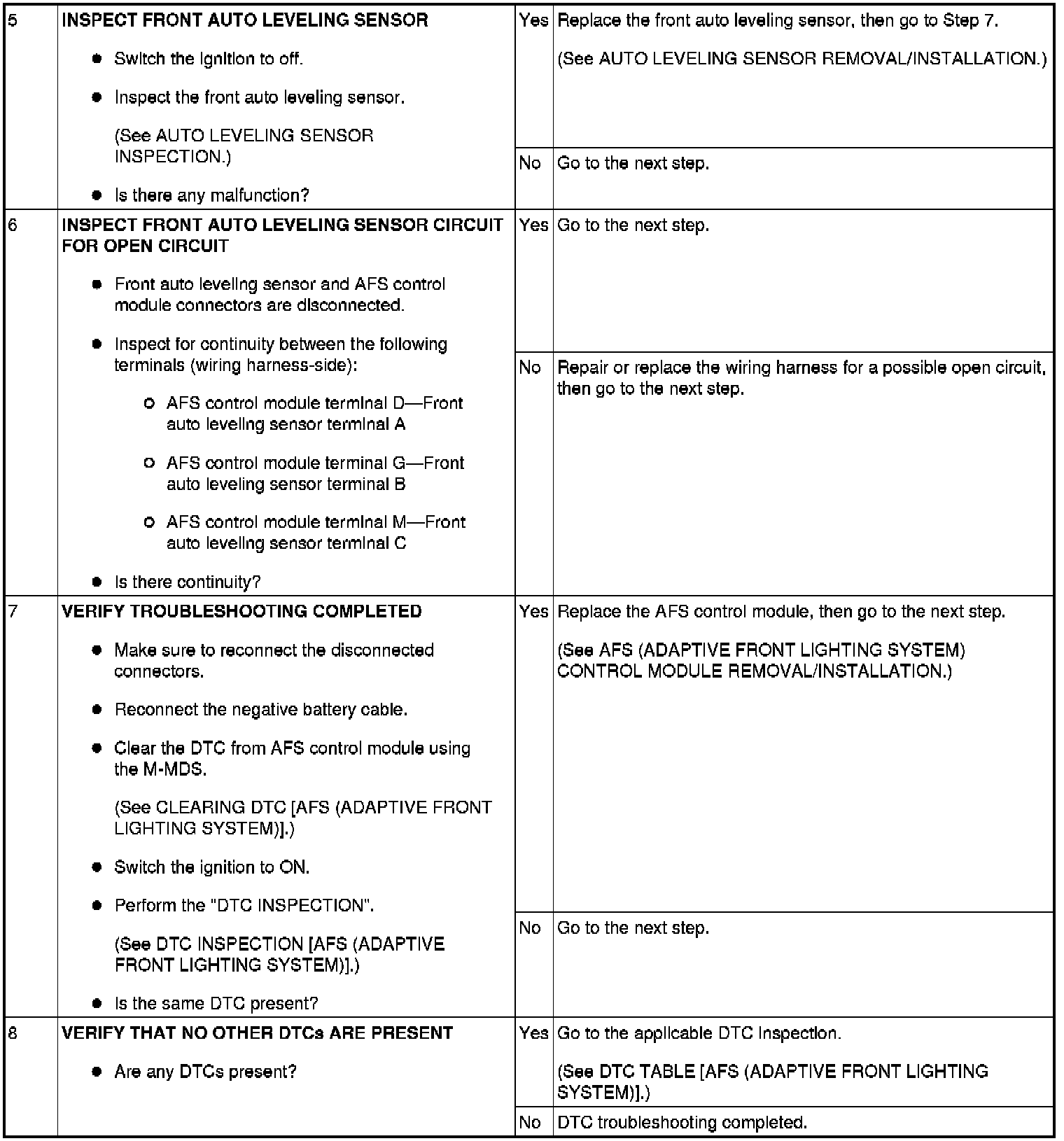

Step 5-Step 8:
