Home >> Mazda >> 2010 >> 3 L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1008

B1008




DTC B1008:11 [BCM]

Vehicles Without Auto Wiper System

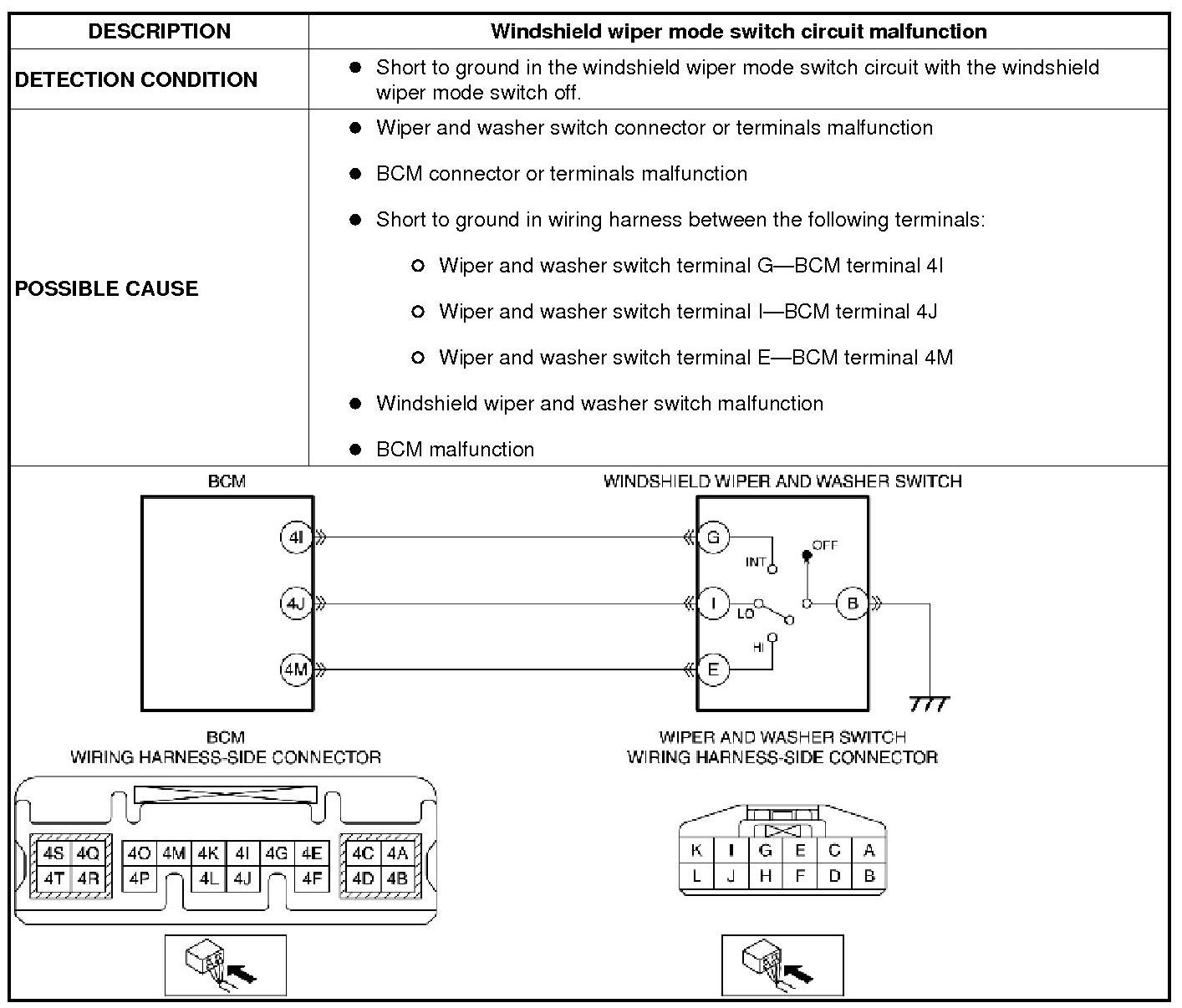

Detection Condition/Possible cause:





Diagnostic Procedure

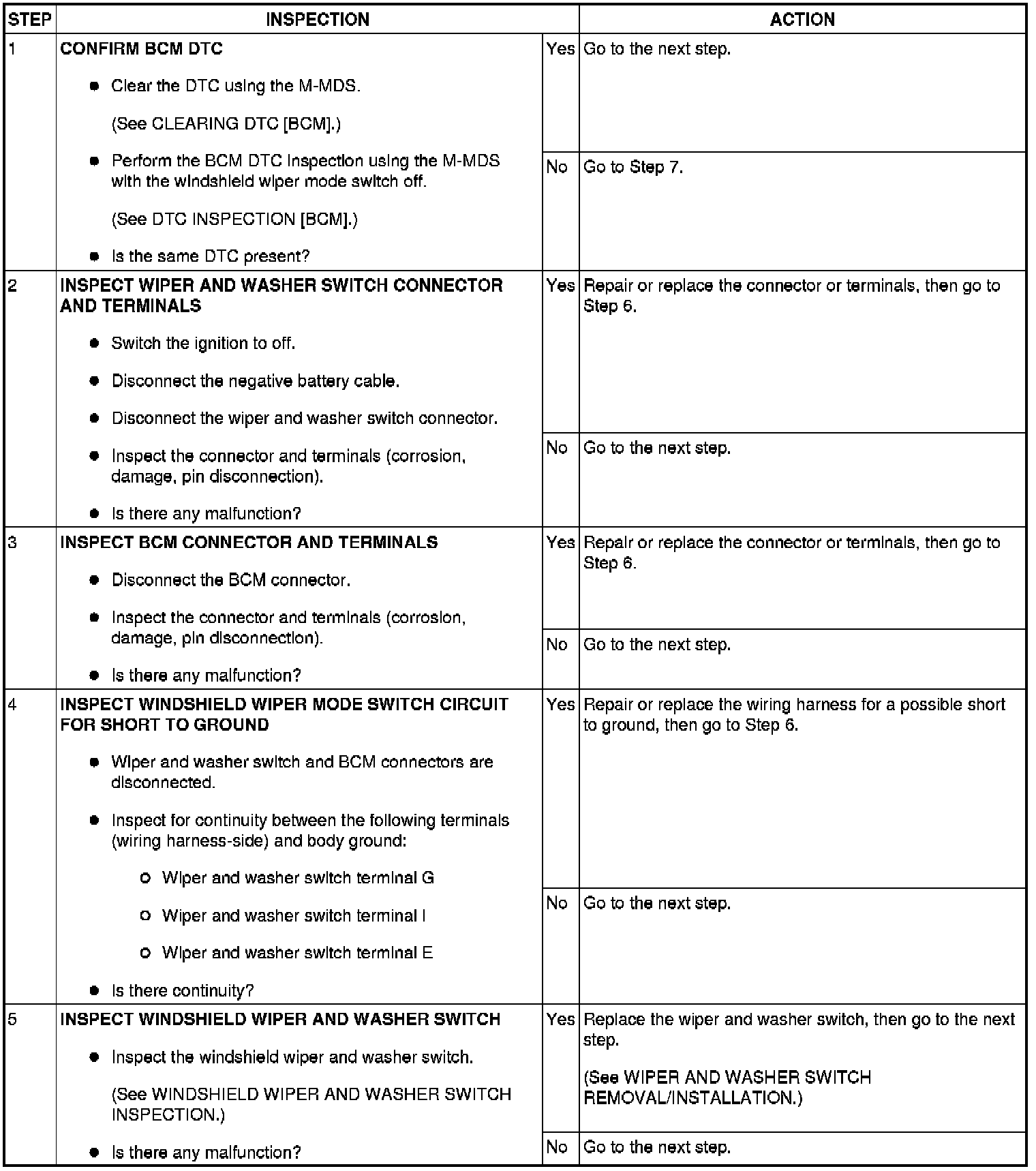

Step 1-Step 5:





Step 6-Step 7:





Vehicles With Auto Wiper System

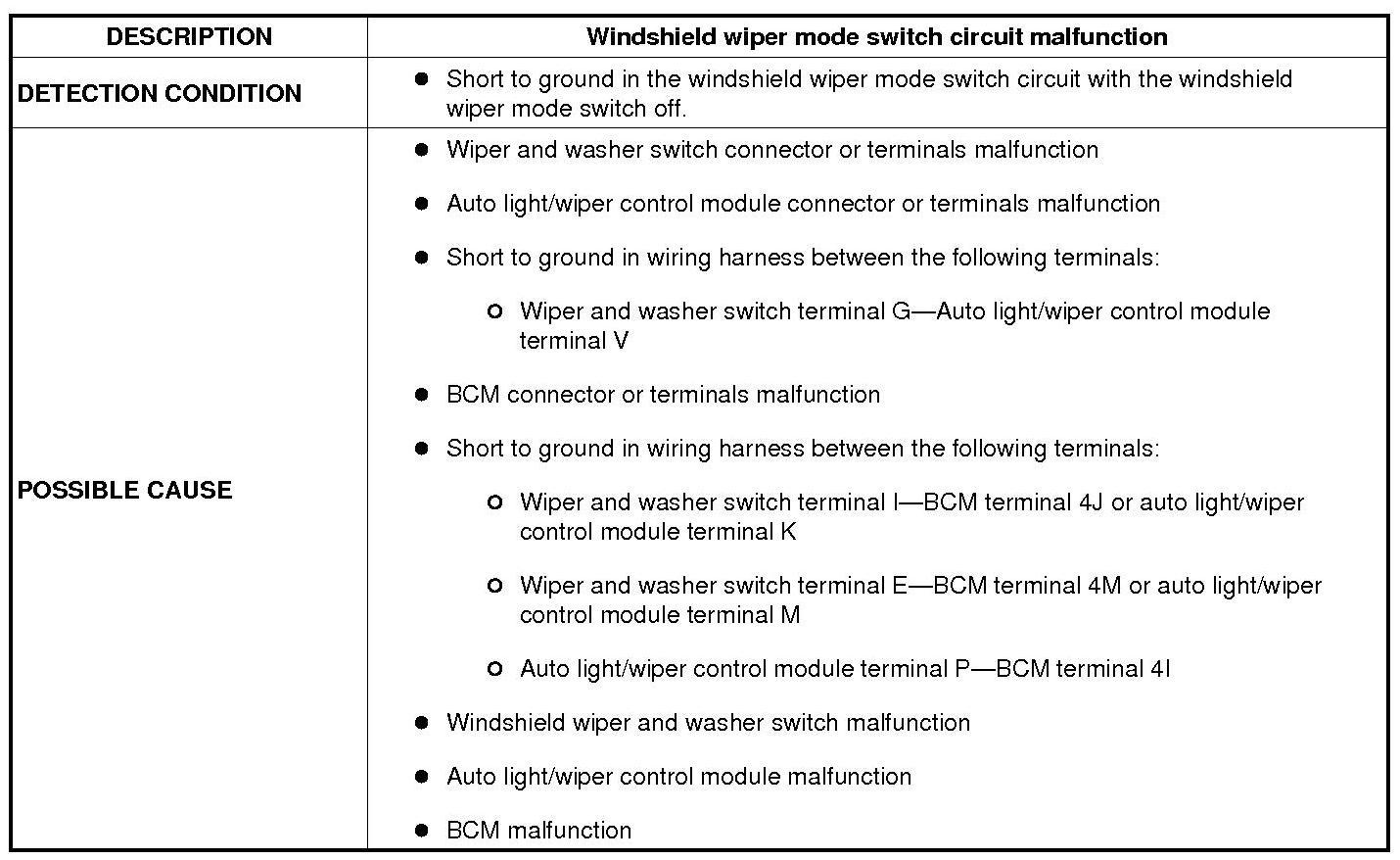

Detection Condition/Possible cause (Part 1):

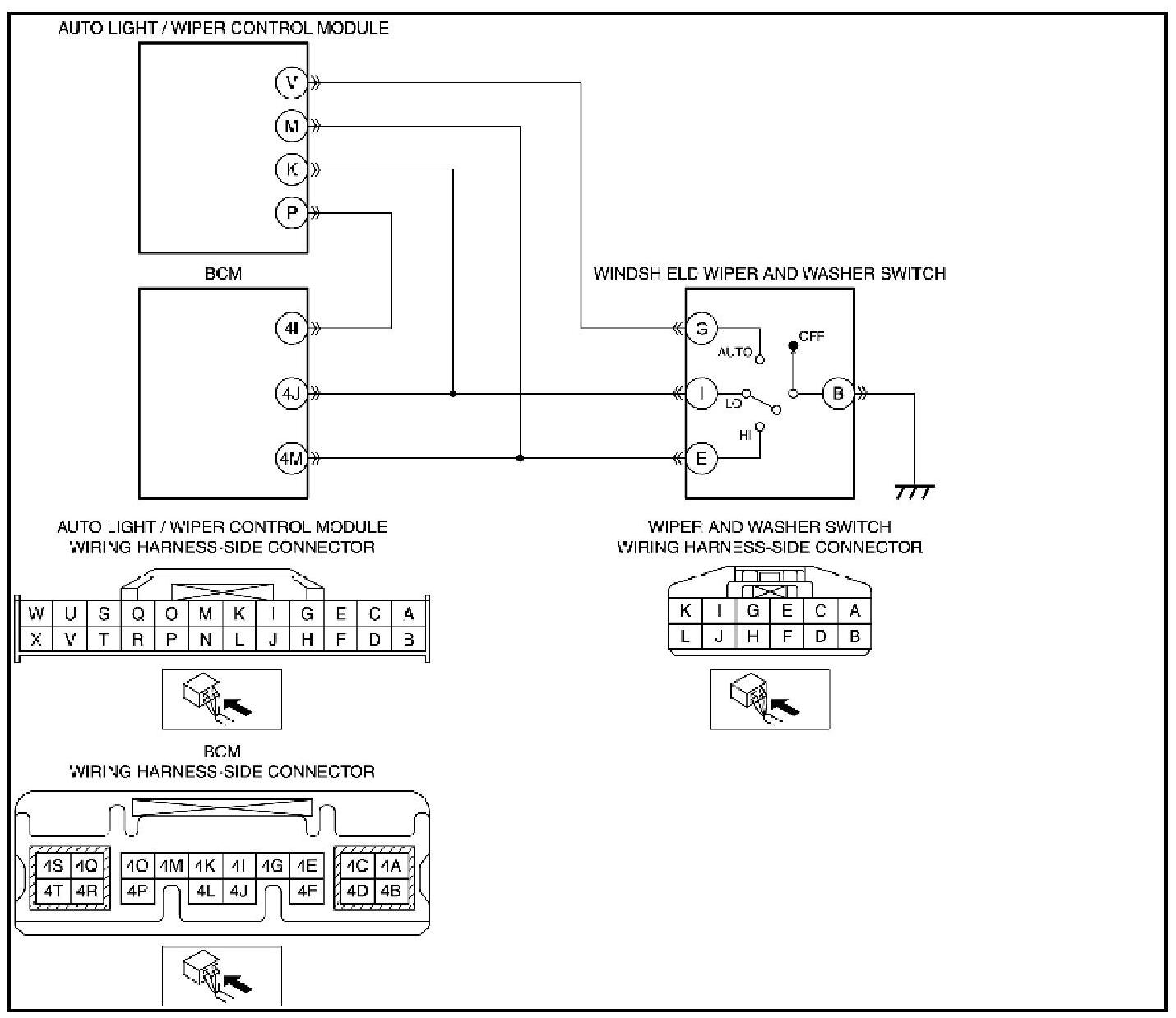

Detection Condition/Possible cause (Part 2):





Diagnostic Procedure

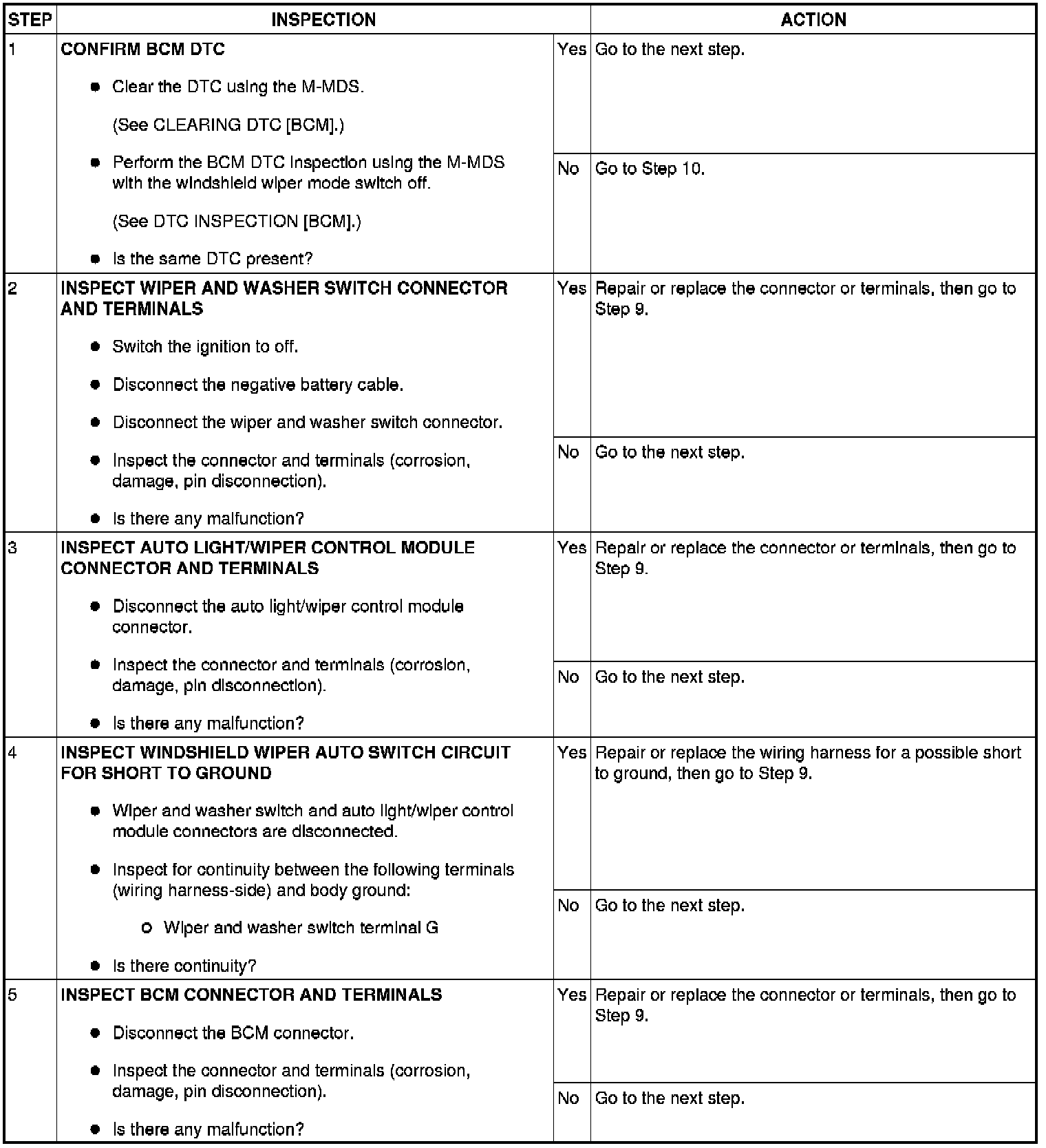

Step 1-Step 5:

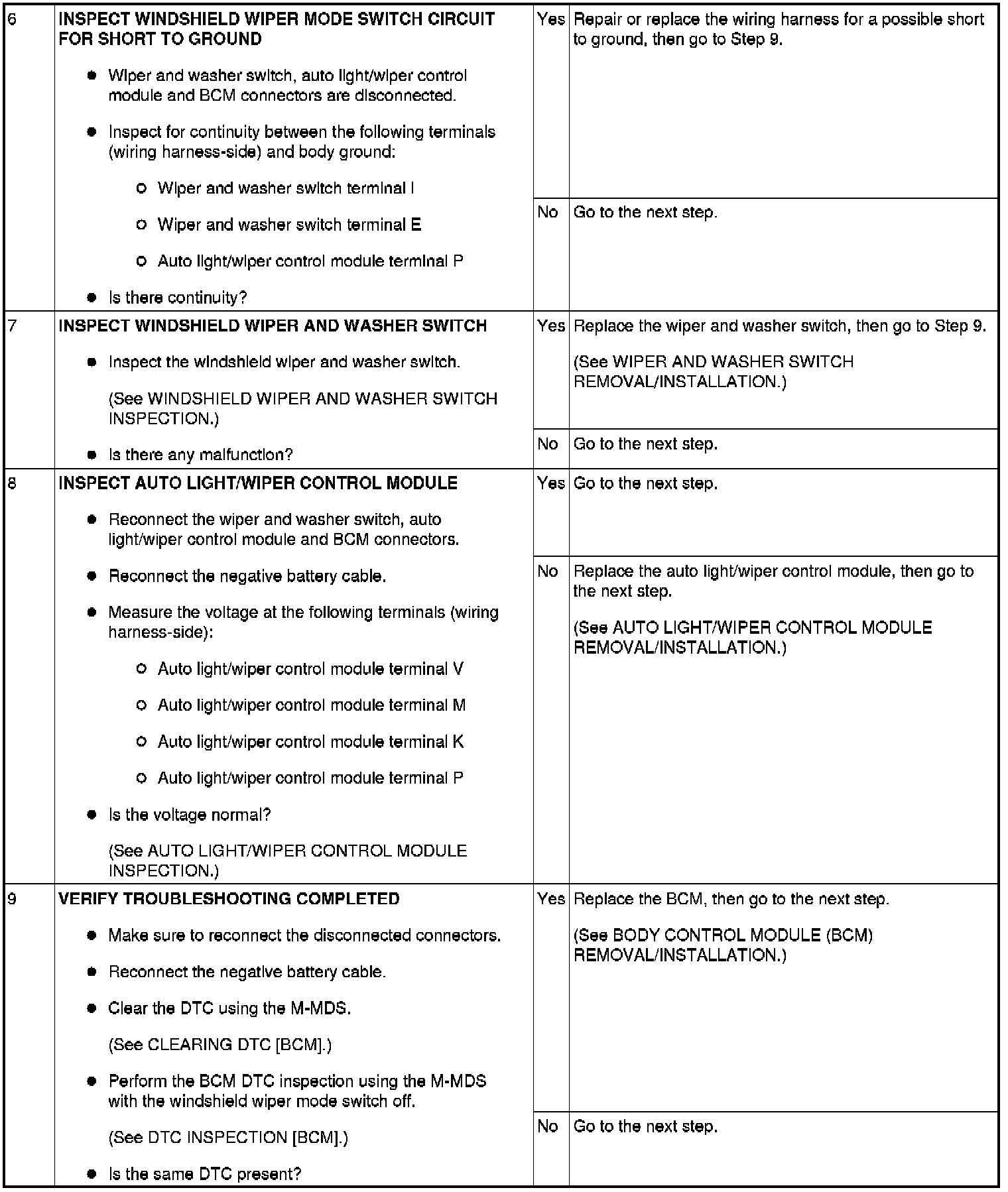

Step 6-Step 9:





Step 10:
