Connector End Views - Horn

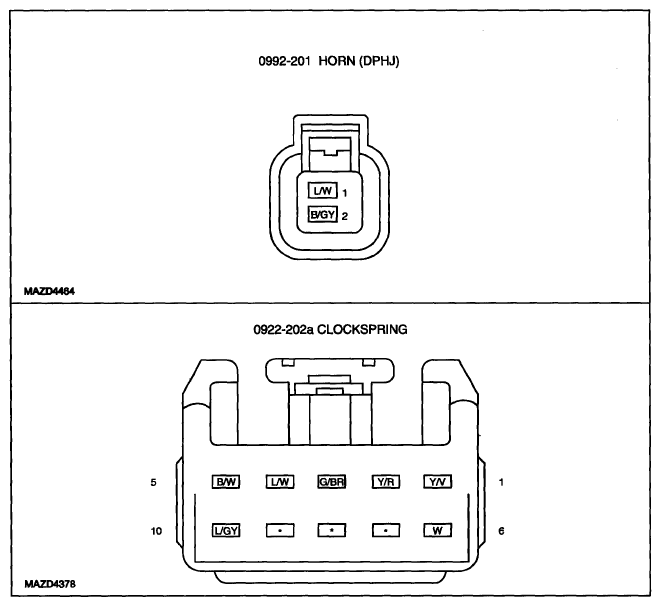

Fig 1: Identifying Horn Connector End Views (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Identifying Horn Connector End Views (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
