Connector Locations

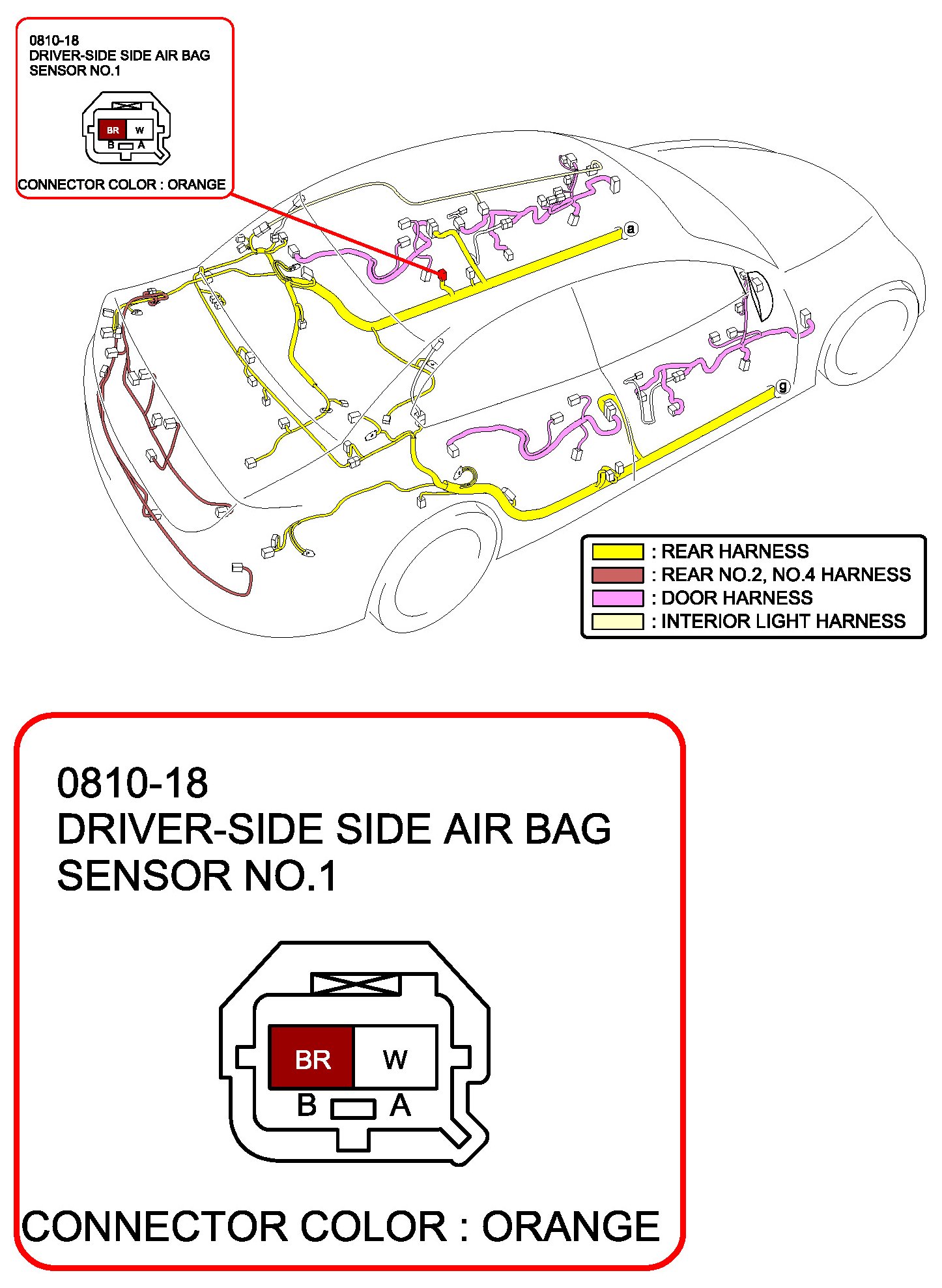

Driver-Side Side Air Bag Sensor No.1:

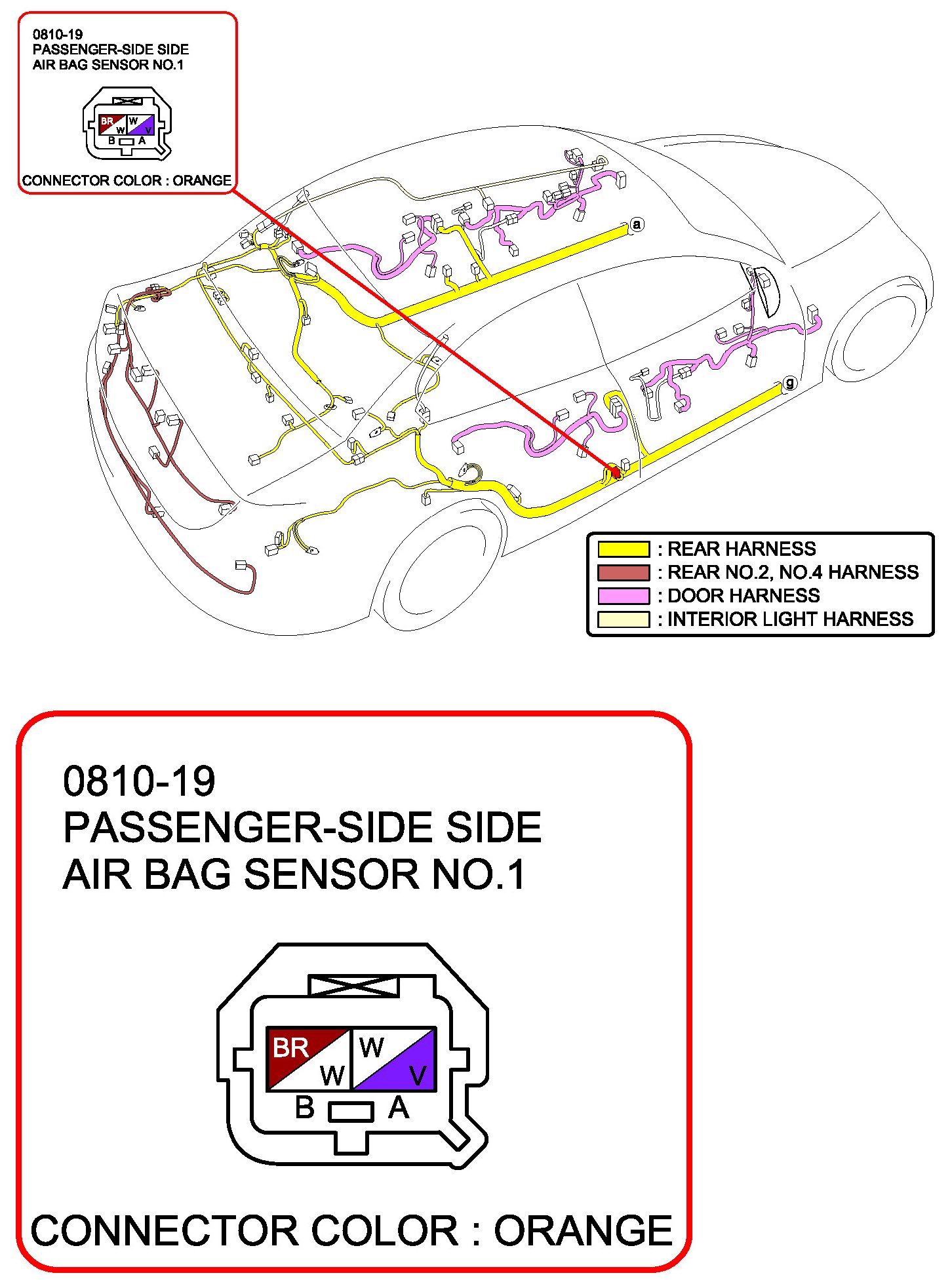

Passenger-Side Side Air Bag Sensor No.1:

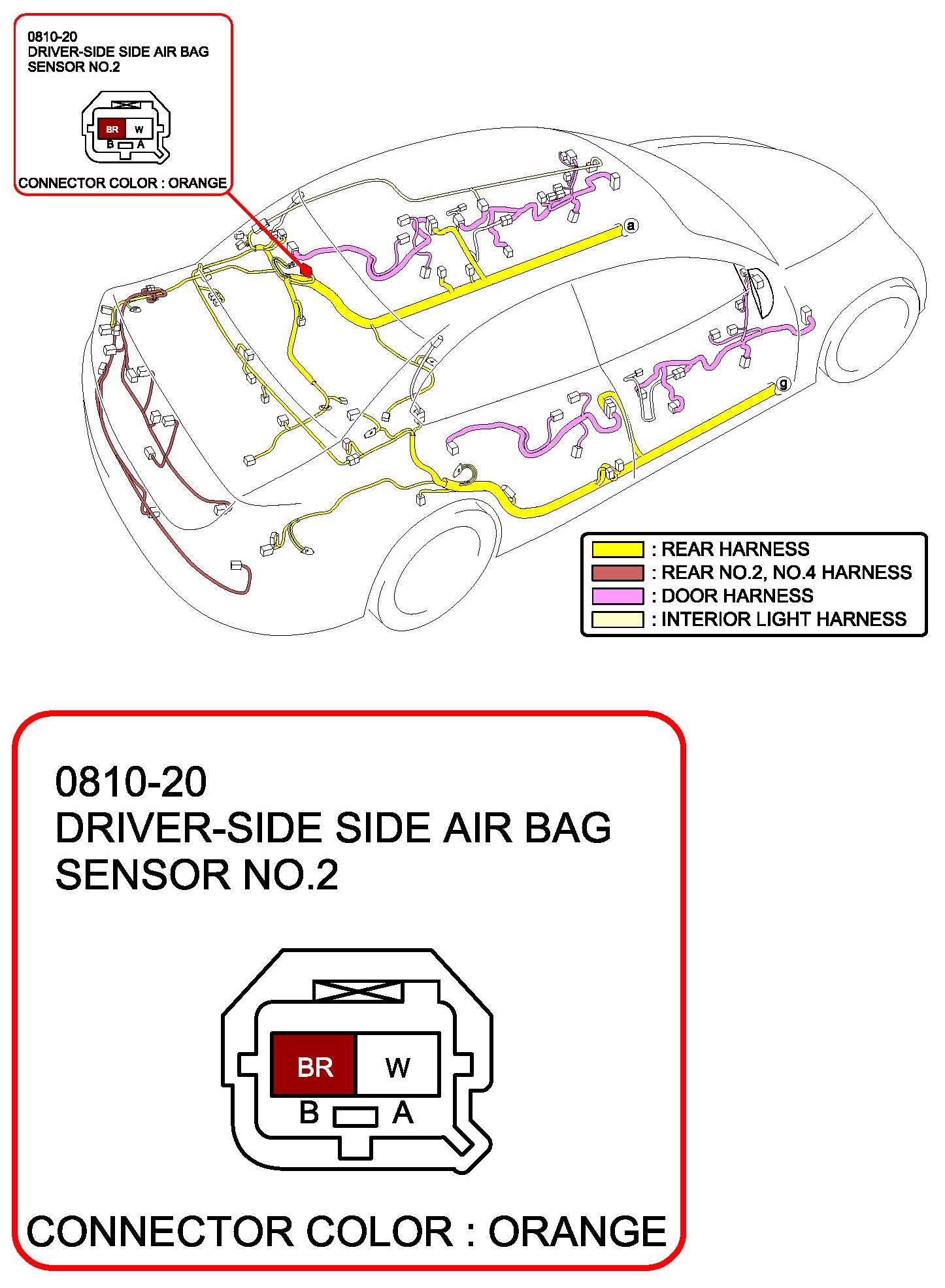

Driver-Side Side Air Bag Sensor No.2:

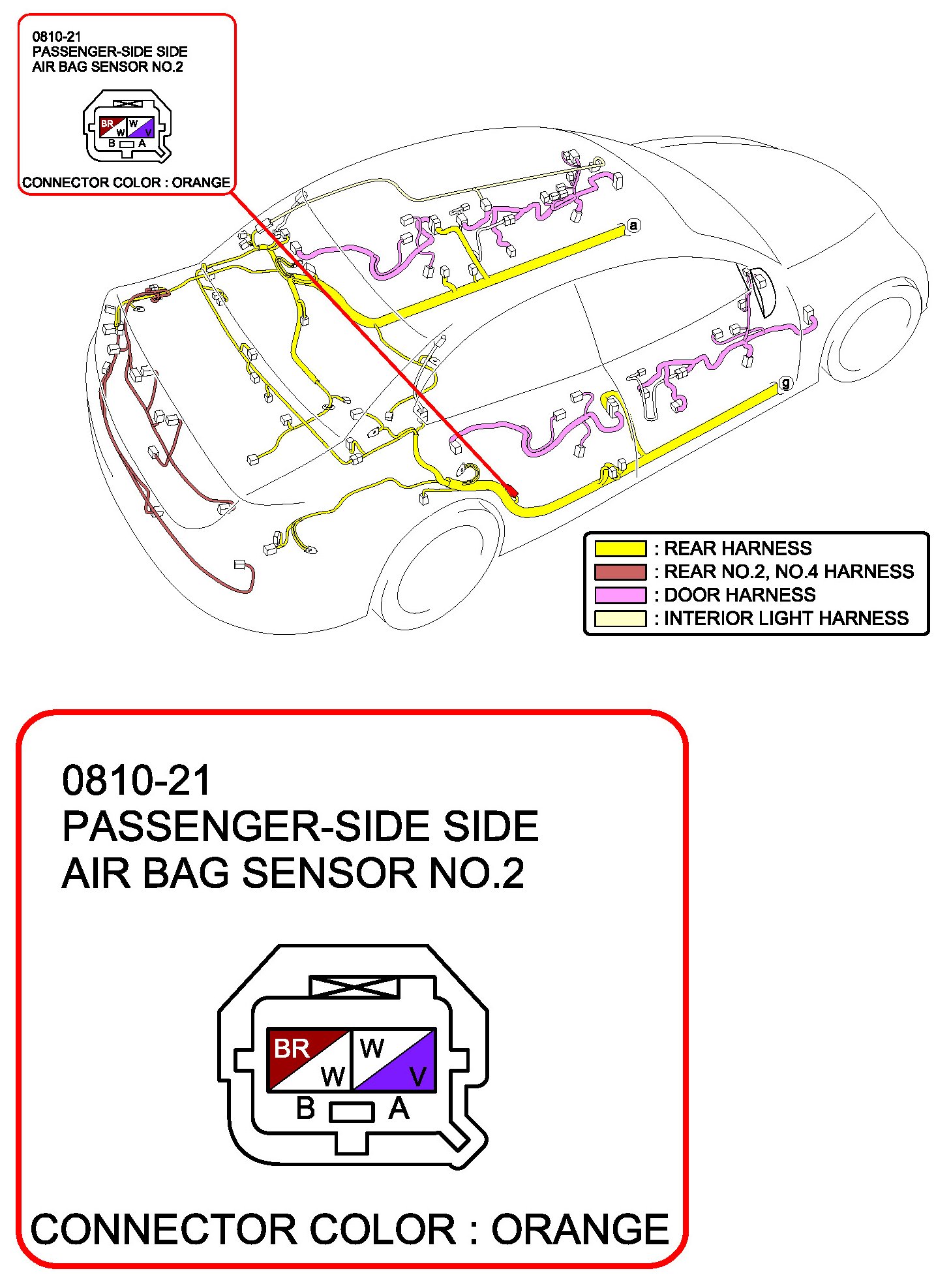

Passenger-Side Side Air Bag Sensor No.2:



Crash Zone Sensor:
