Connector Locations

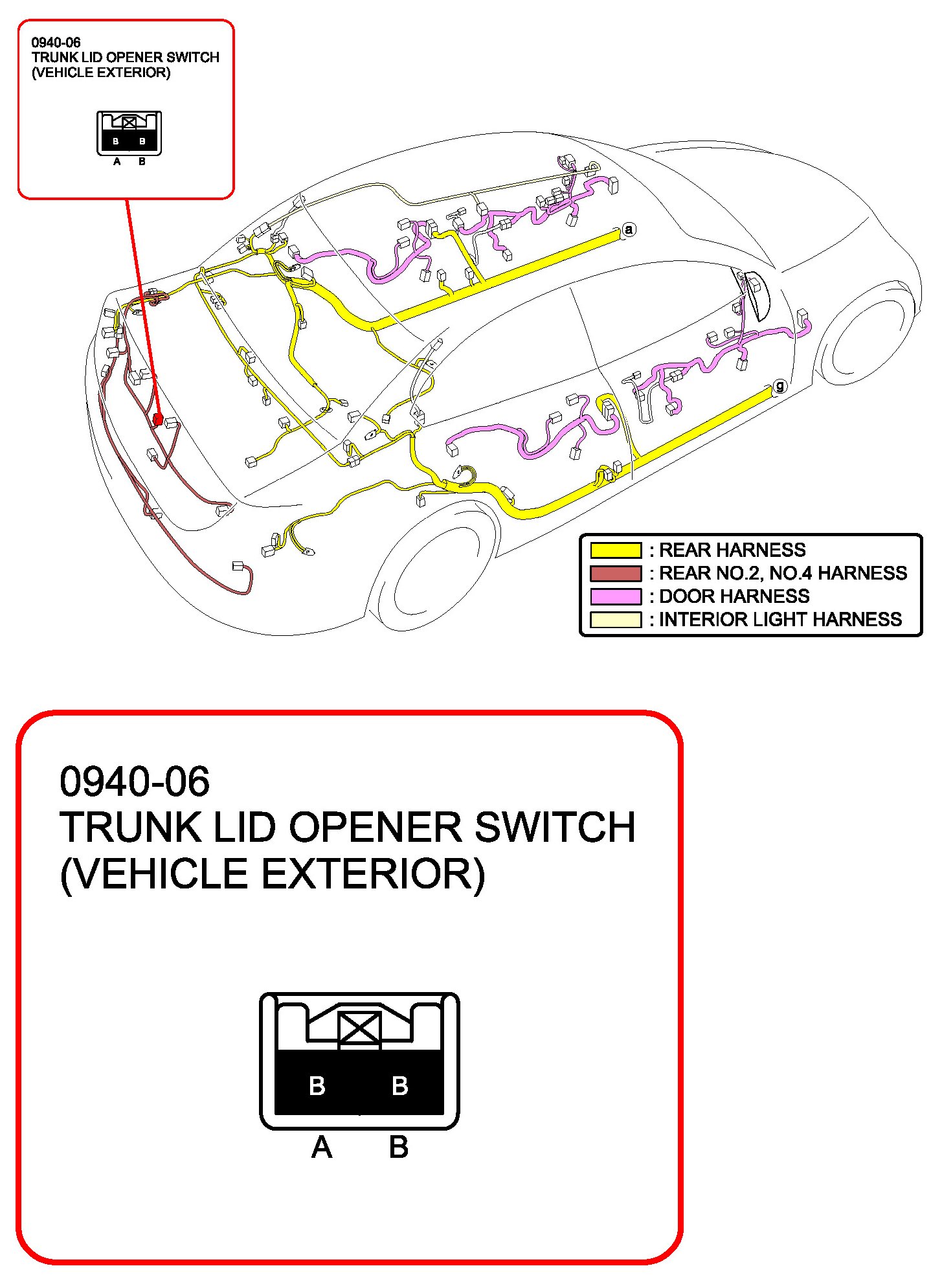

Trunk Lid Opener Switch (Vehicle Exterior):

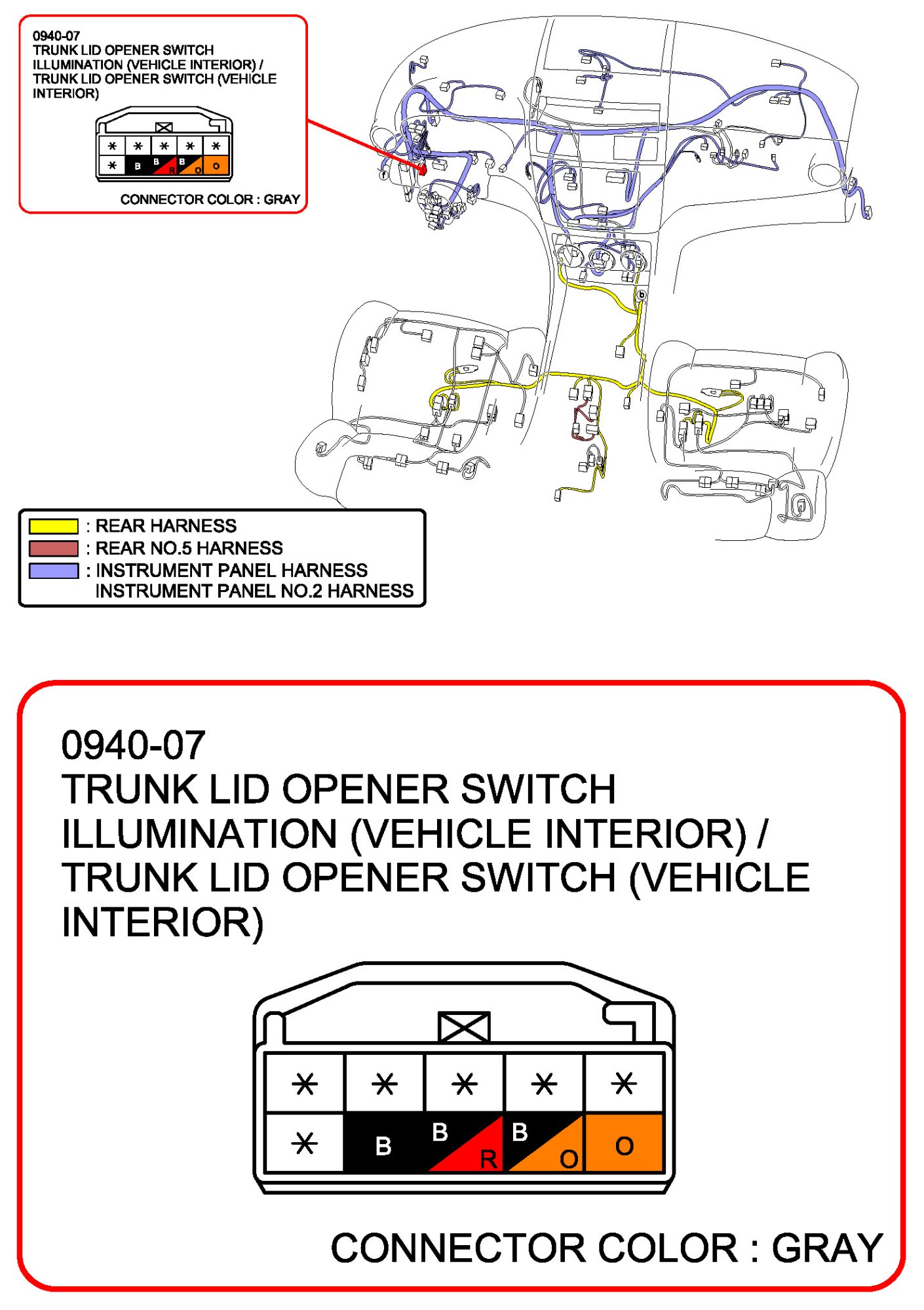

Trunk Lid Opener Switch Illumination (Vehicle Interior)/Trunk Lid Opener Switch (Vehicle Interior):
