Fuel Pump Relay: Service and Repair

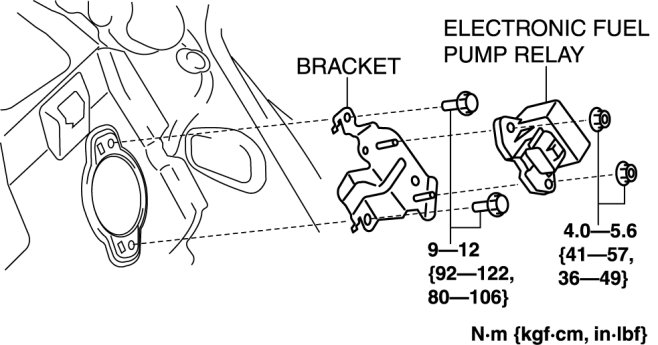

ELECTRONIC FUEL PUMP RELAY REMOVAL/INSTALLATION [MZI-3.7]

1. Complete the "BEFORE SERVICE PRECAUTION". Before Service Precaution

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the rear side seat back. Rear Side Seat Back Removal/Installation

4. Disconnect the electronic fuel pump relay connector.

5. Remove the electronic fuel pump relay.






6. Install in the reverse order of removal.

7. Complete the "AFTER SERVICE PRECAUTION". After Service Precaution
