Fuel Gauge Sender

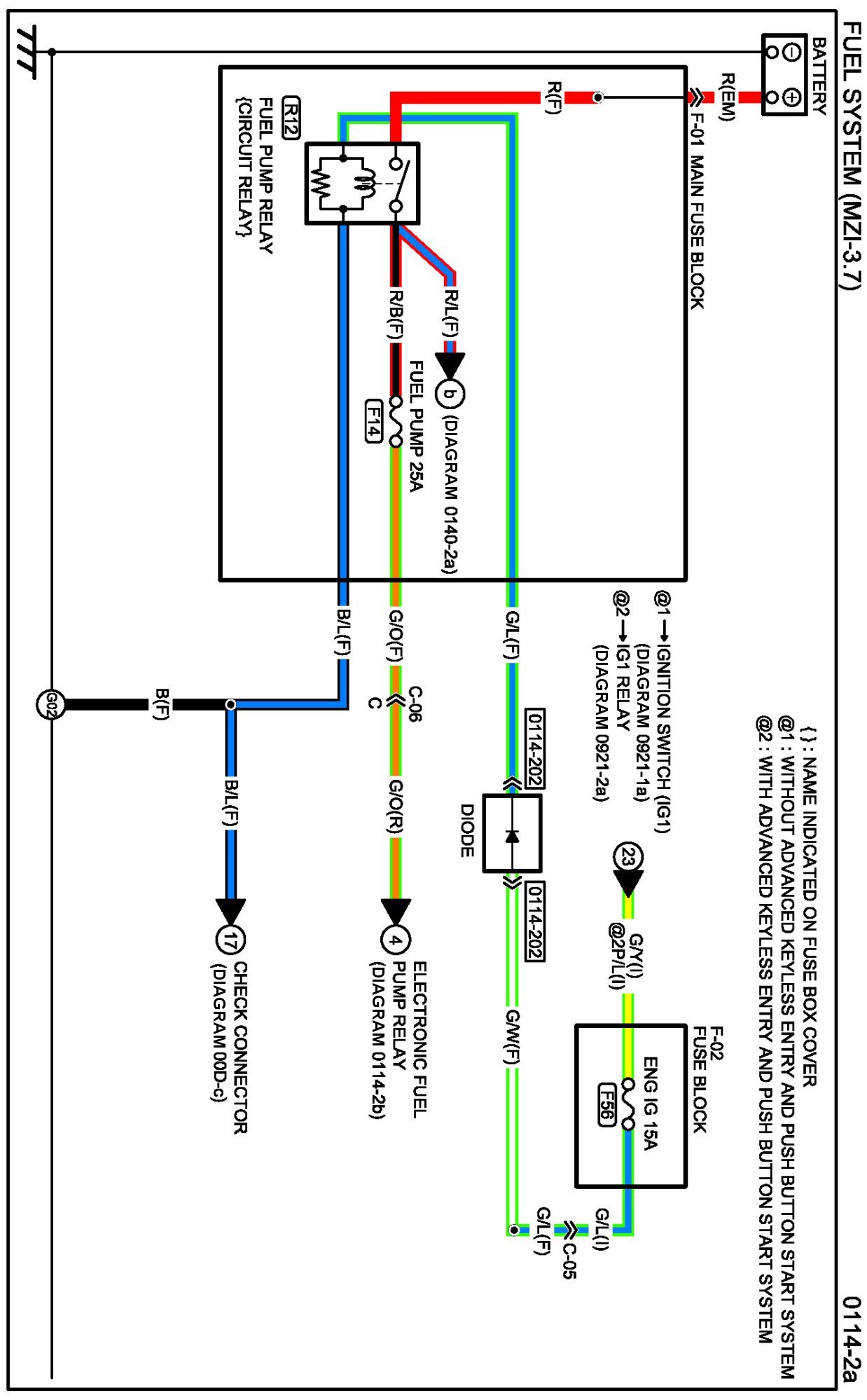

Diagram 0114-2a:

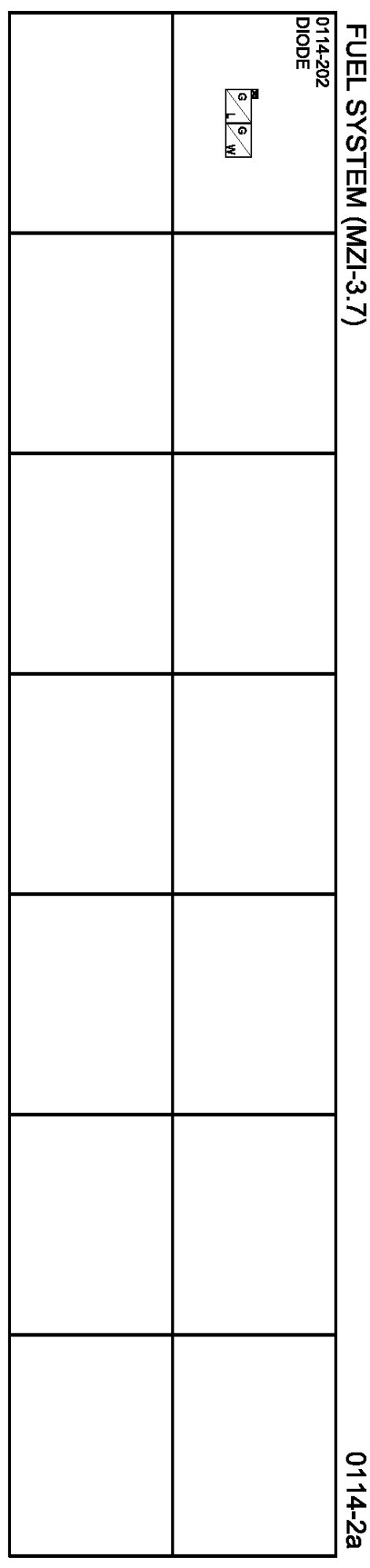

Connectors 0114-2a:

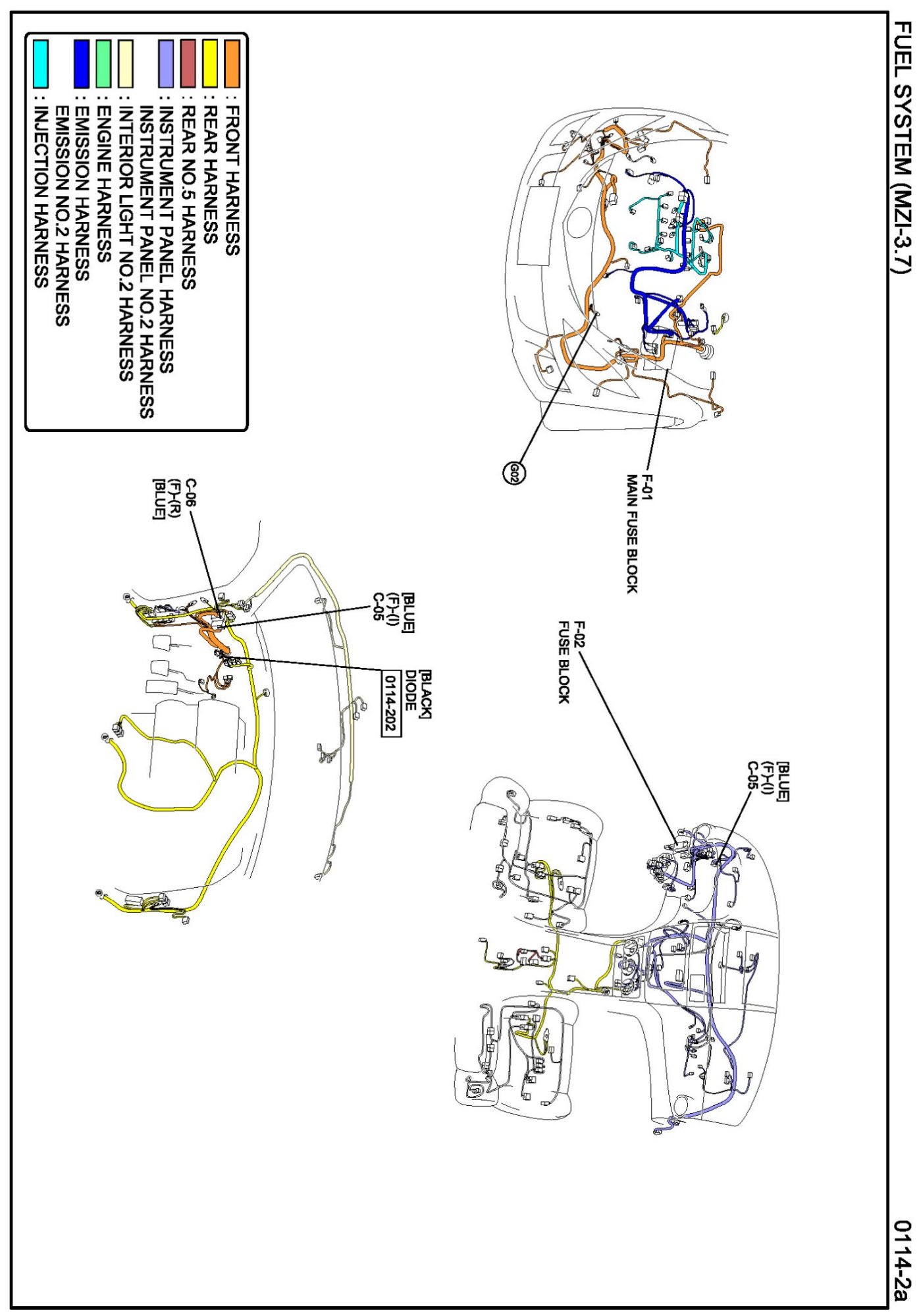

Routing View 0114-2a:

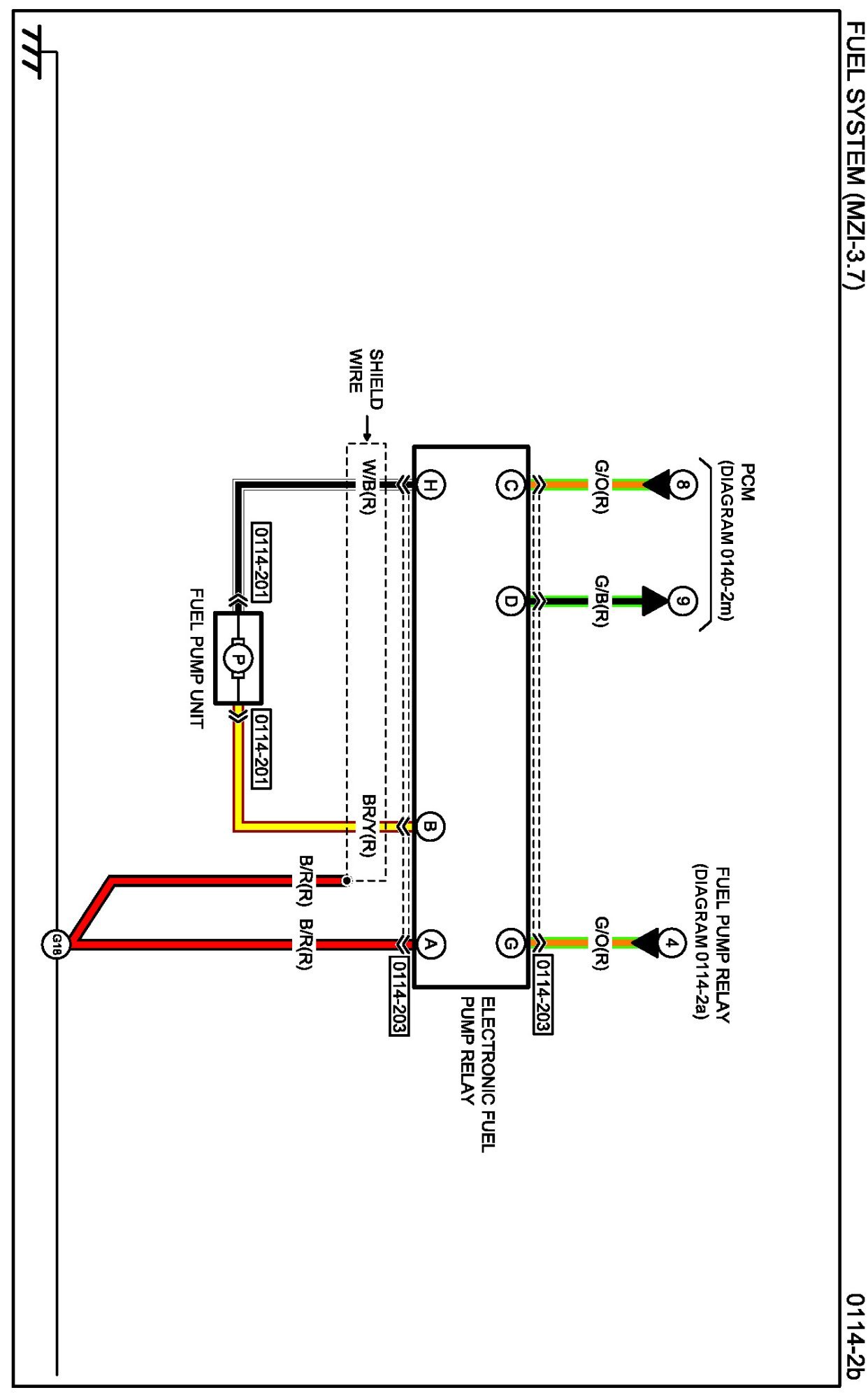

Diagram 0114-2b:

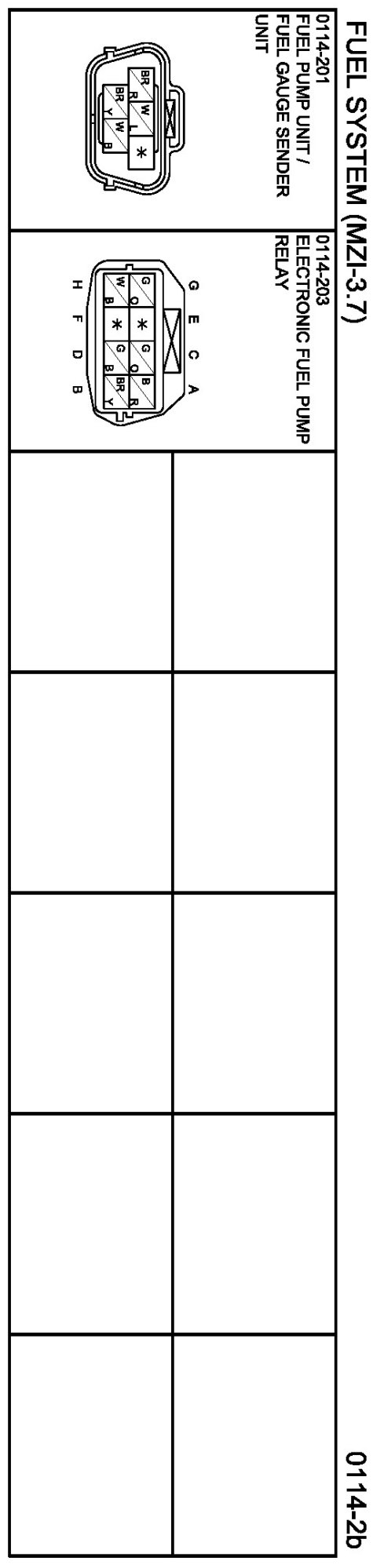

Connectors 0114-2b:

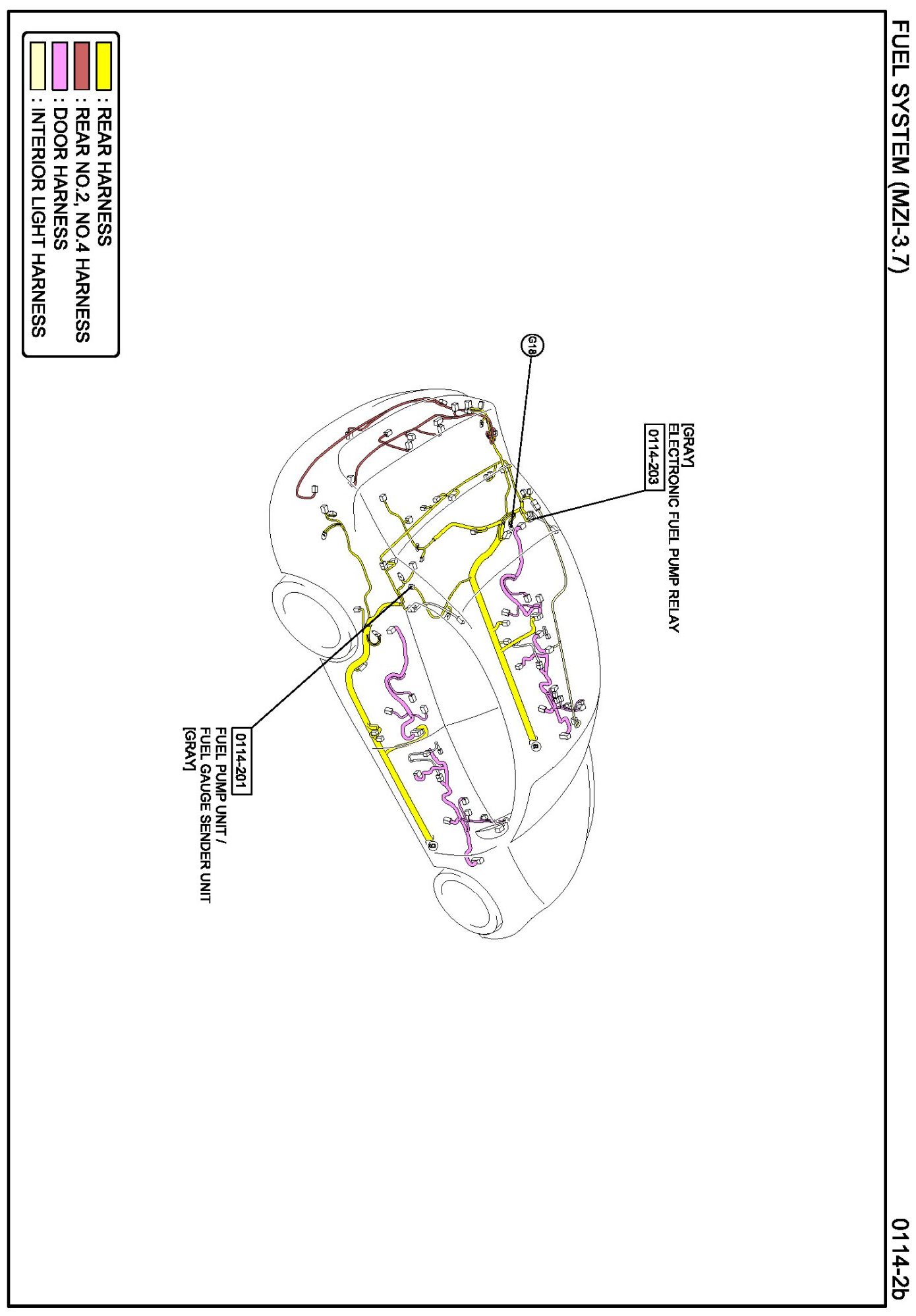

Routing View 0114-2b:






Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
