Home >> Mazda >> 2009 >> 6 V6-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0922-3b (Information Display)

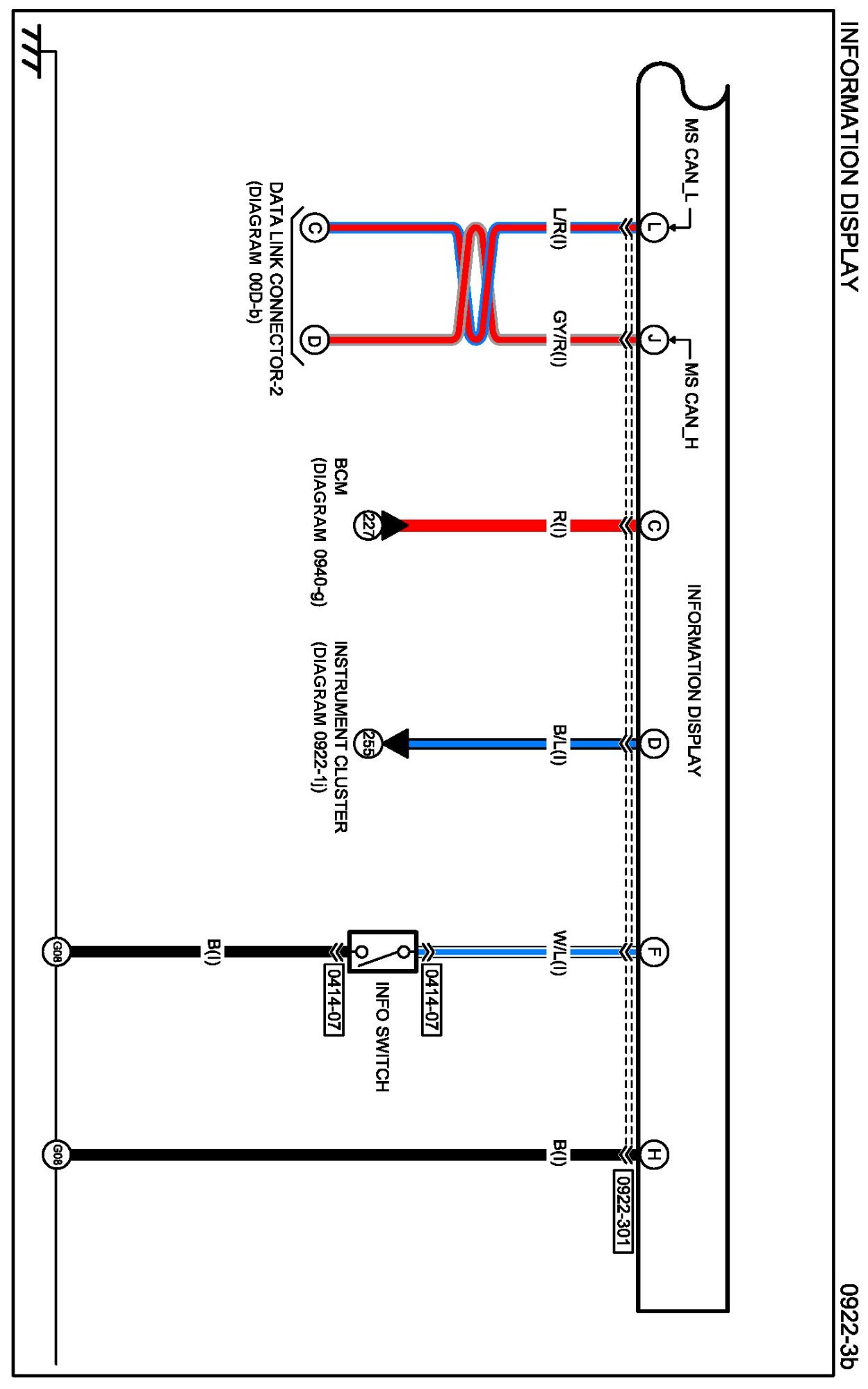

Diagram 0922-3b (Information Display)

Diagram 0922-3b:
