Side Panel Removal/Installation

SIDE PANEL REMOVAL/INSTALLATION

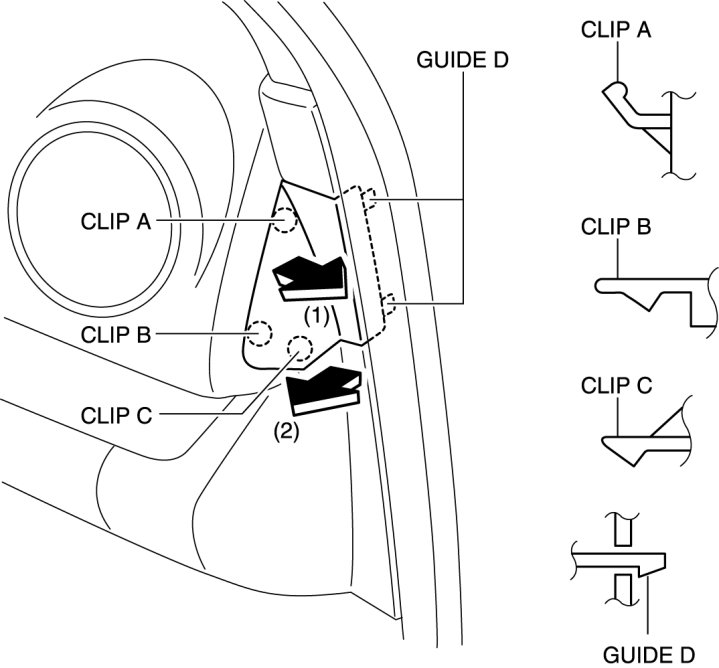

1. Pull the side panel in the direction of the arrow in the order of (1) and (2), then remove it while detaching the clips A, B, C and guide.






2. Install in the reverse order of removal.
