U3004:16 Advanced Keyless Entry And Push Button Start System




DTC U3004:16 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

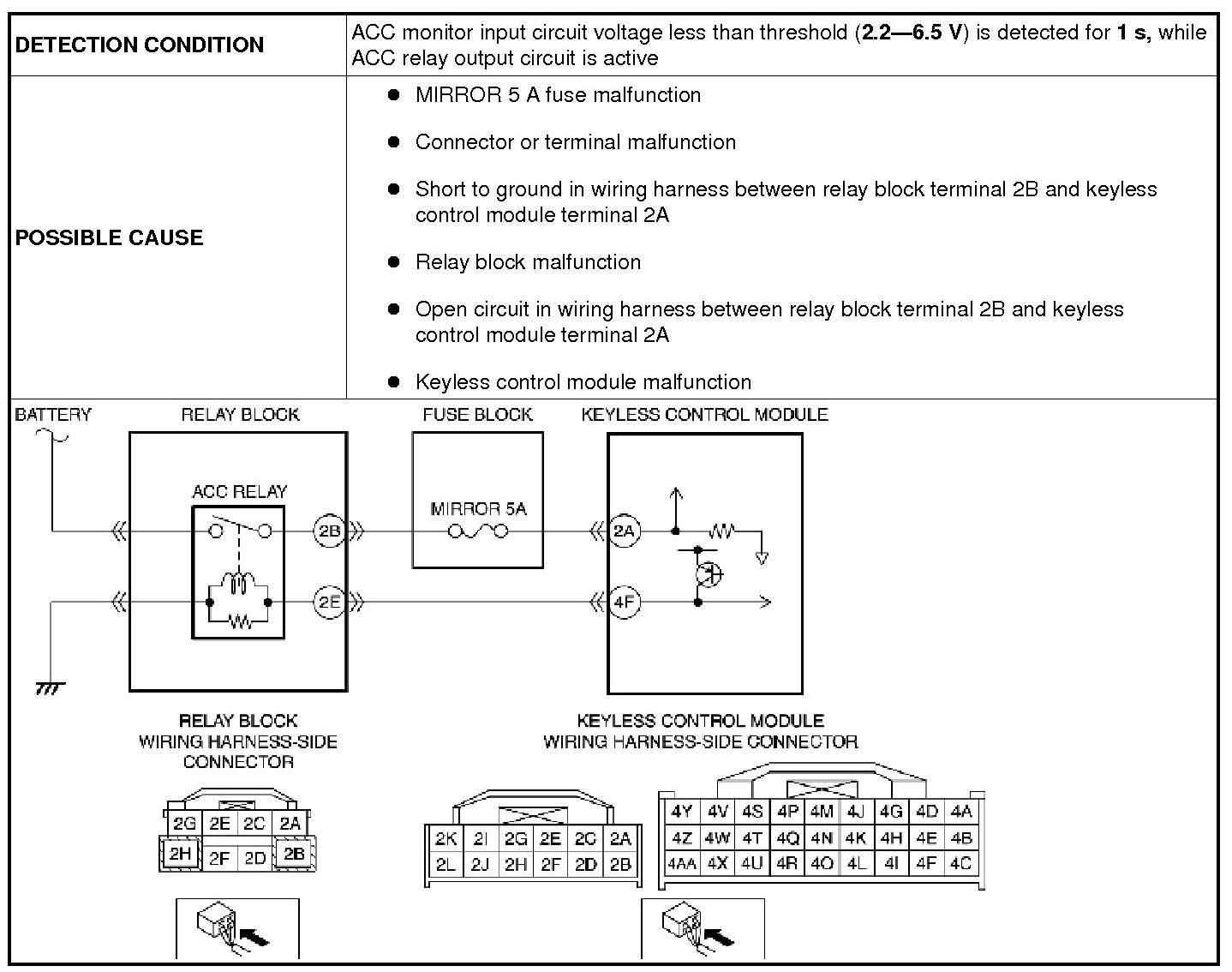

Detection Condition/Possible Cause:





Diagnostic Procedure

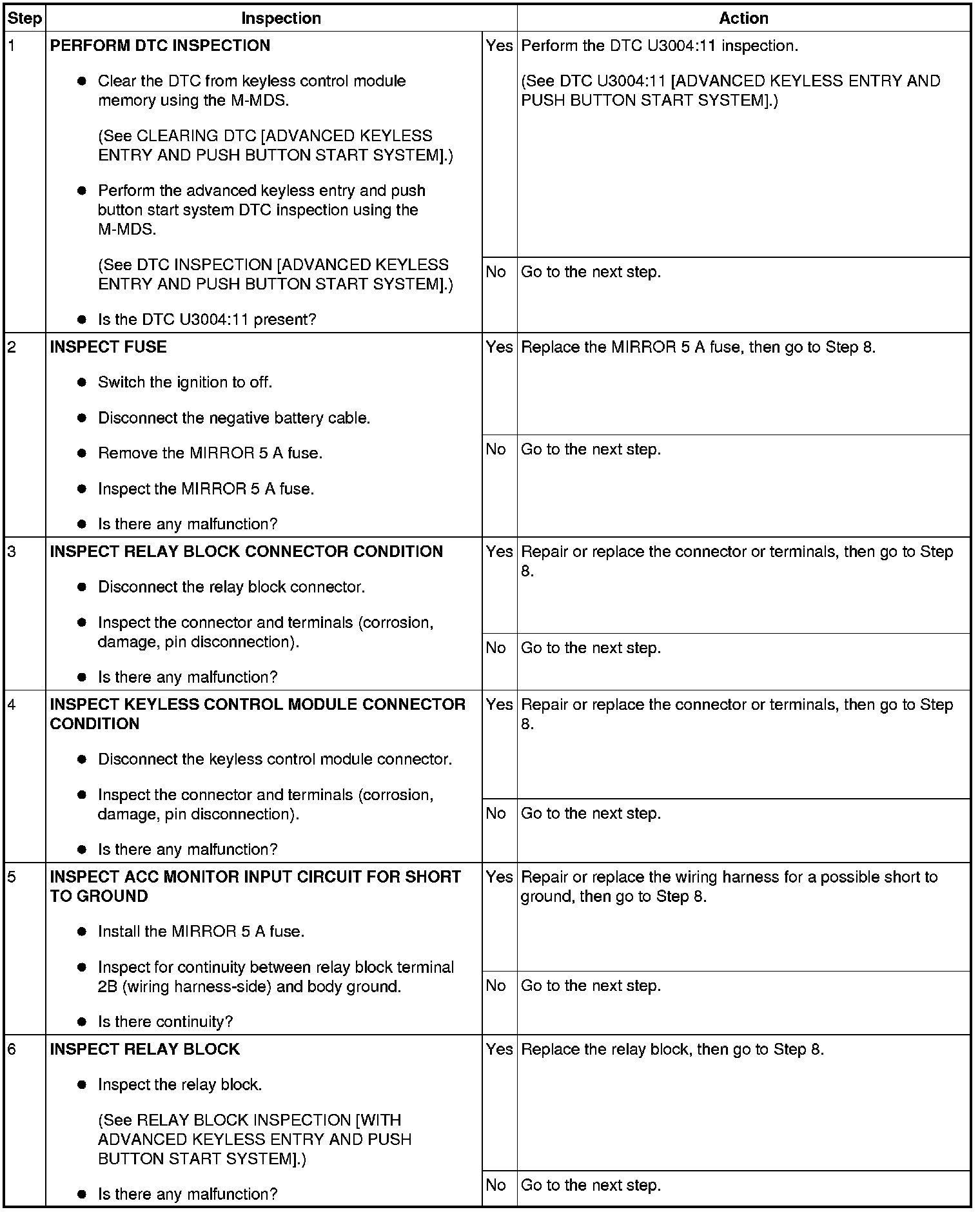

Step 1-Step 6:

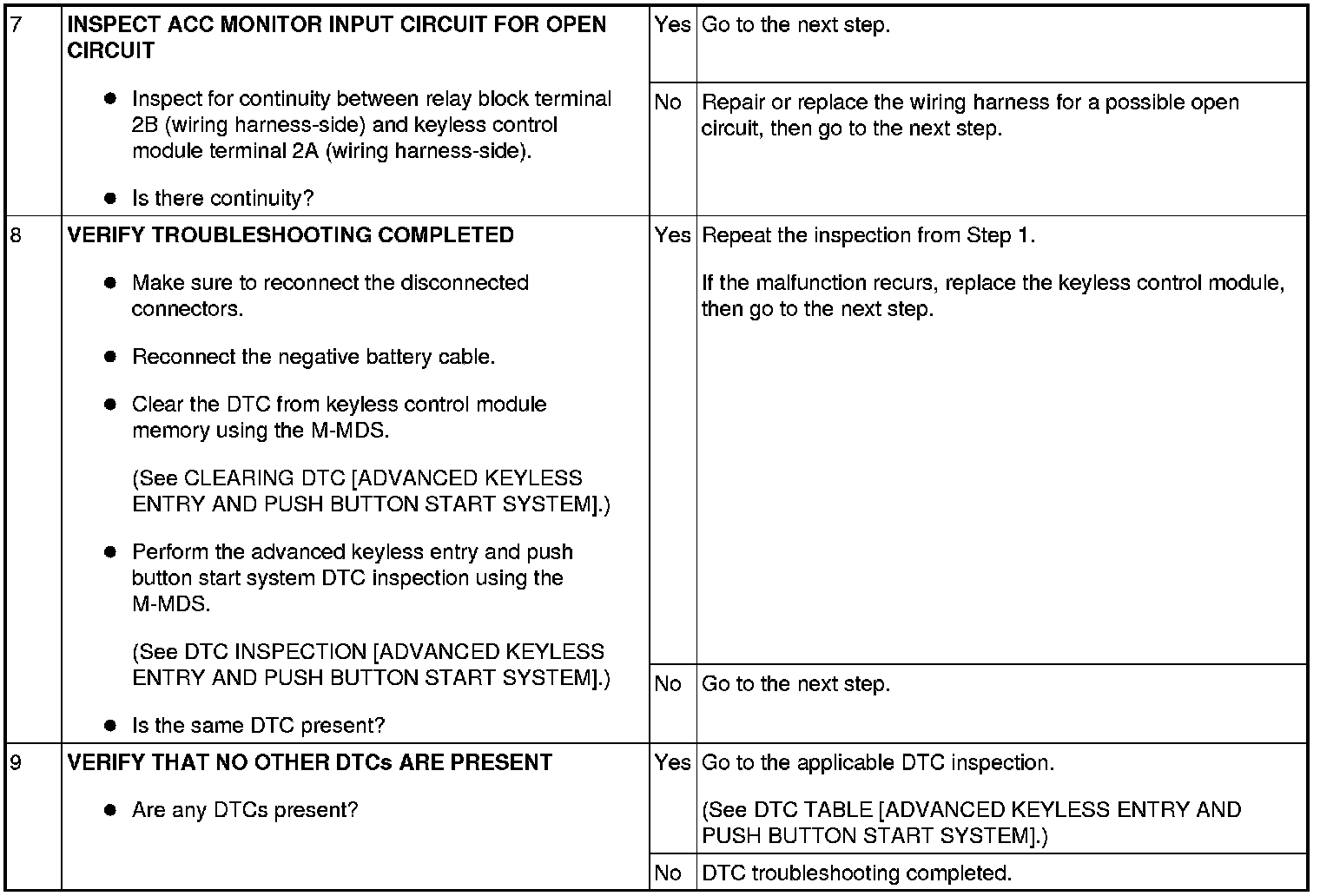

Step 7-Step 9:
