U3003
>>
U3003:17 BCM
U3003:17 BCM
DTC U3003:16/U3003:17 [BCM]

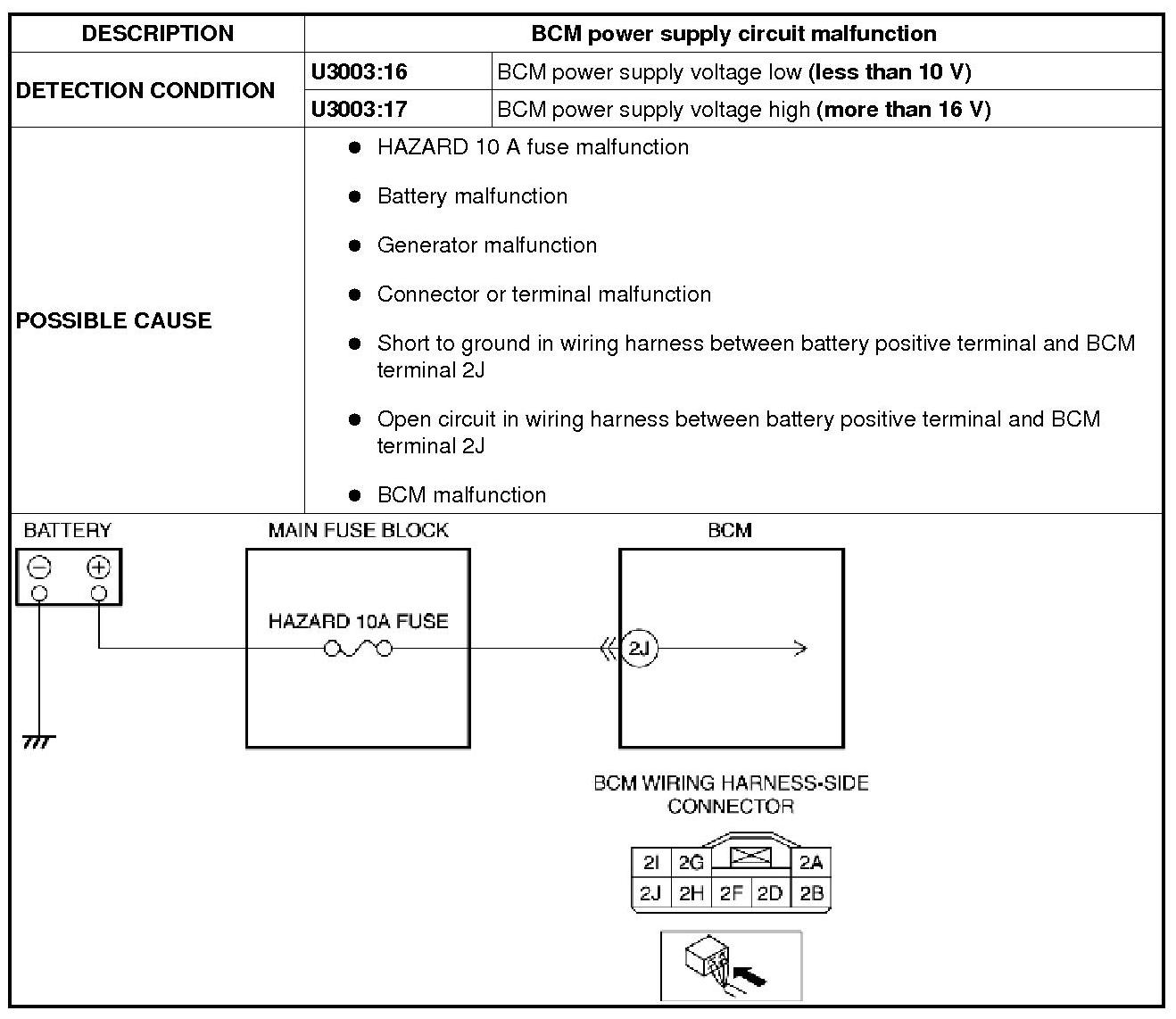

Detection Condition/Possible Cause:
Diagnostic Procedure

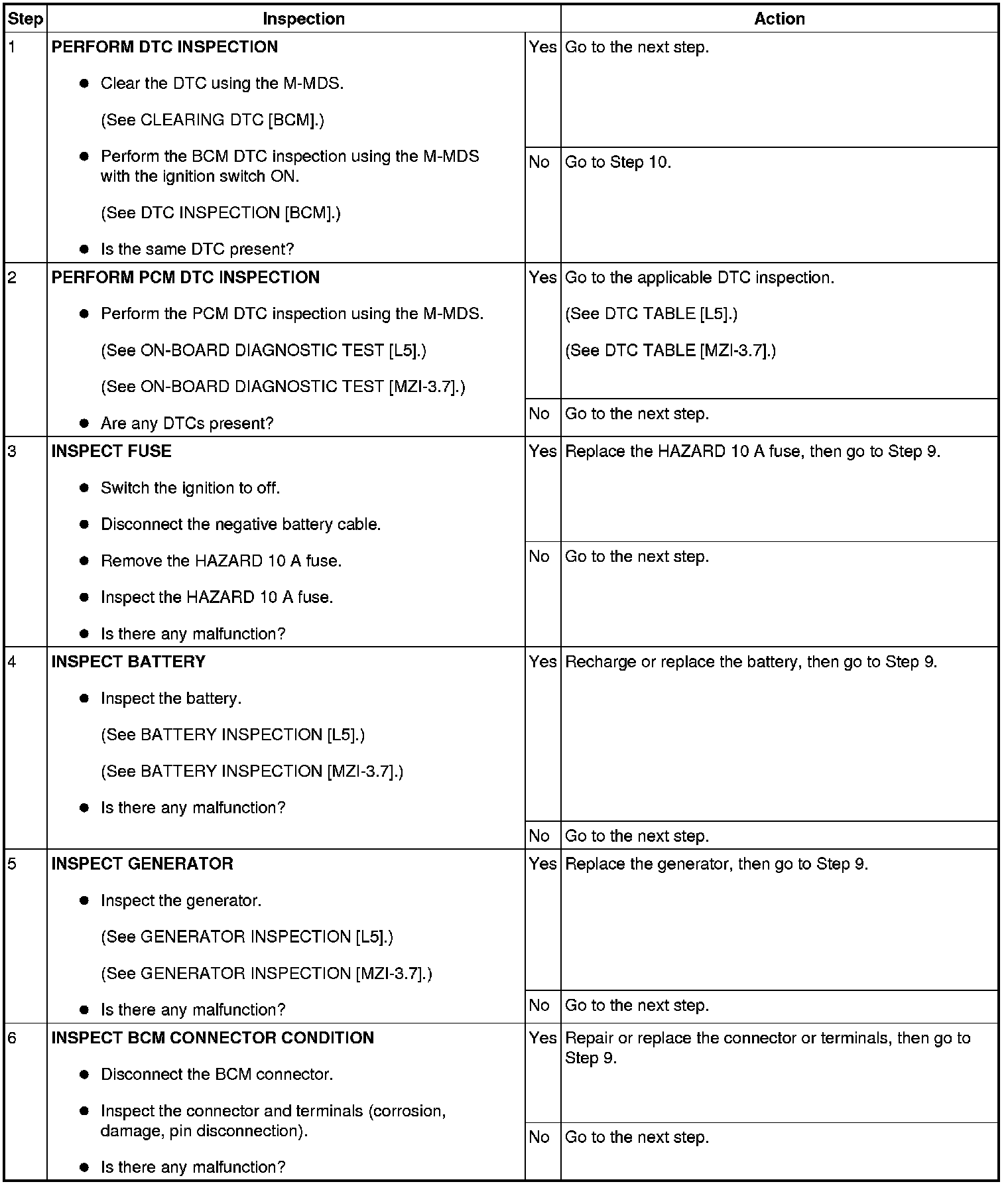

Step 1-Step 6:

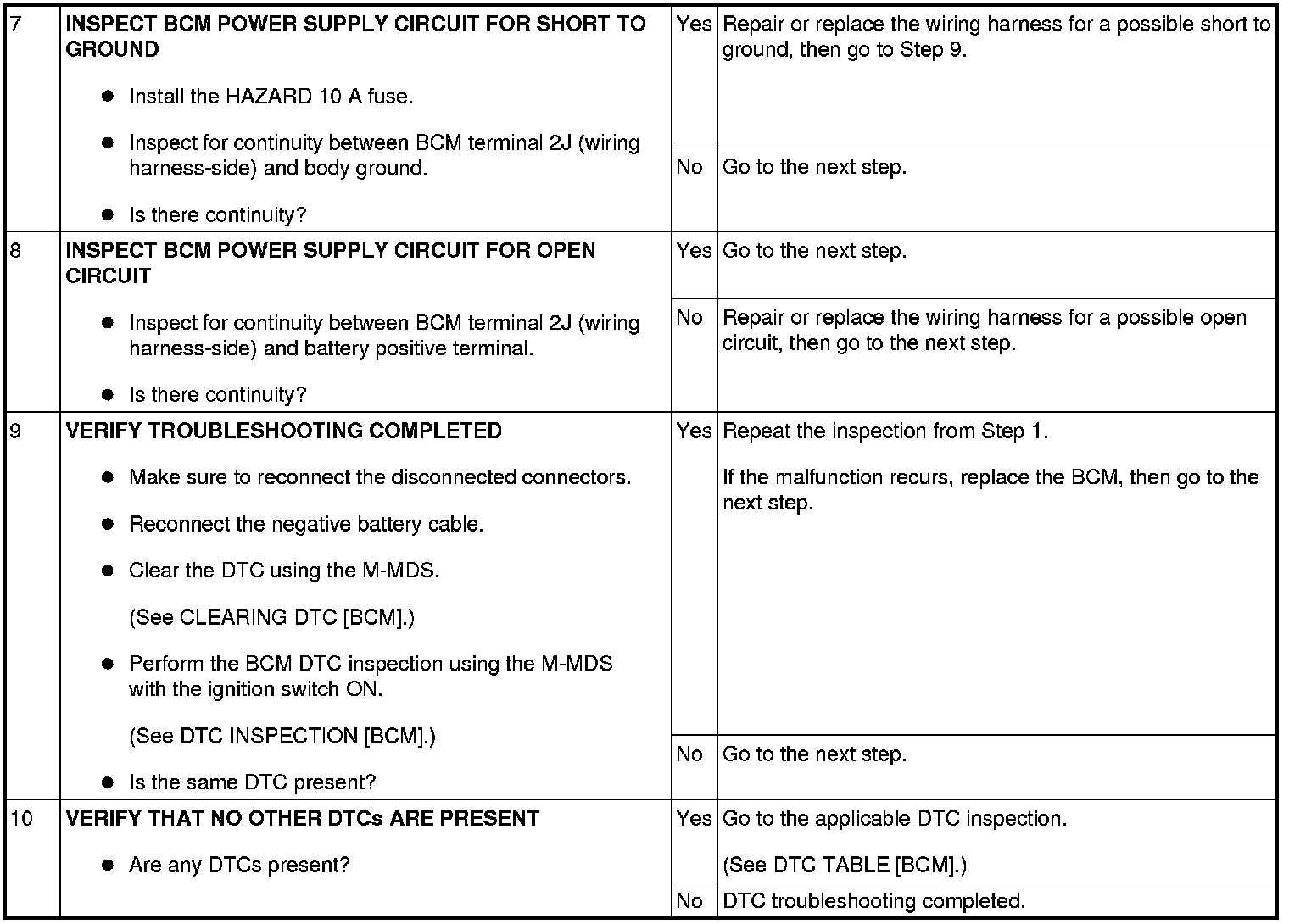

Step 7-Step 10:
