U3003:16 Advanced Keyless Entry And Push Button Start System




DTC U3003:16, U3003:17 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

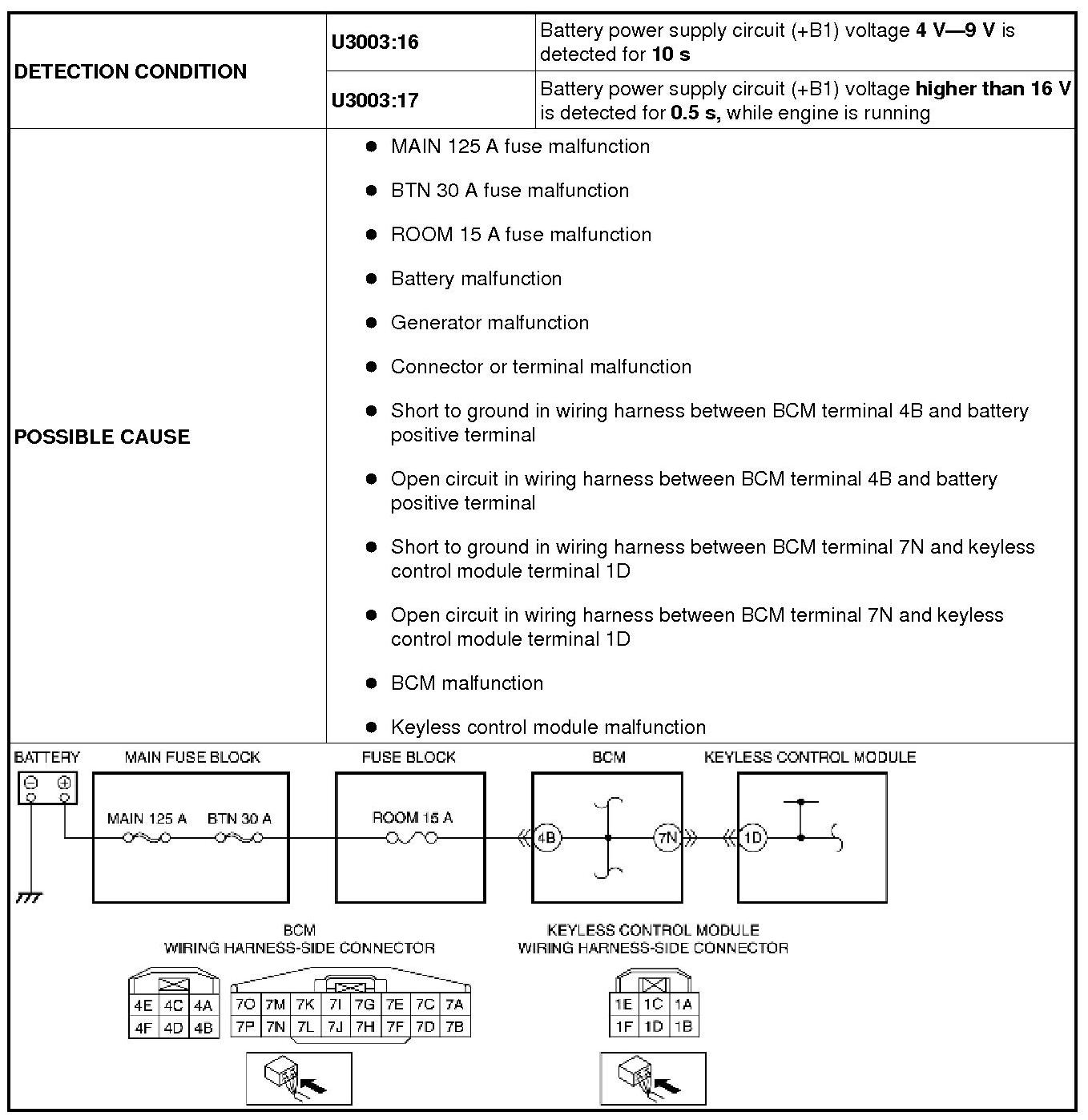

Detection Condition/Possible Cause:





Diagnostic Procedure

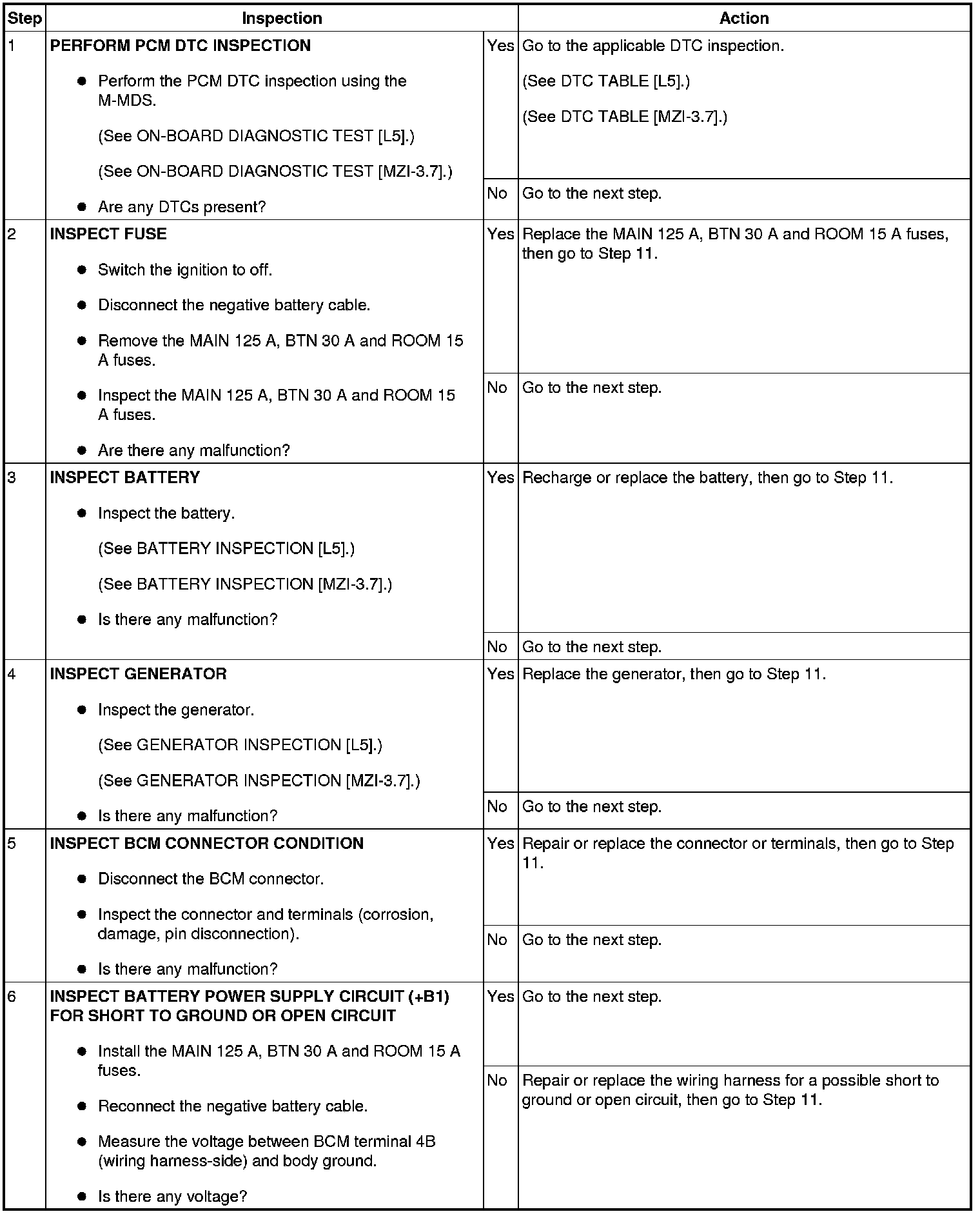

Step 1-Step 6:

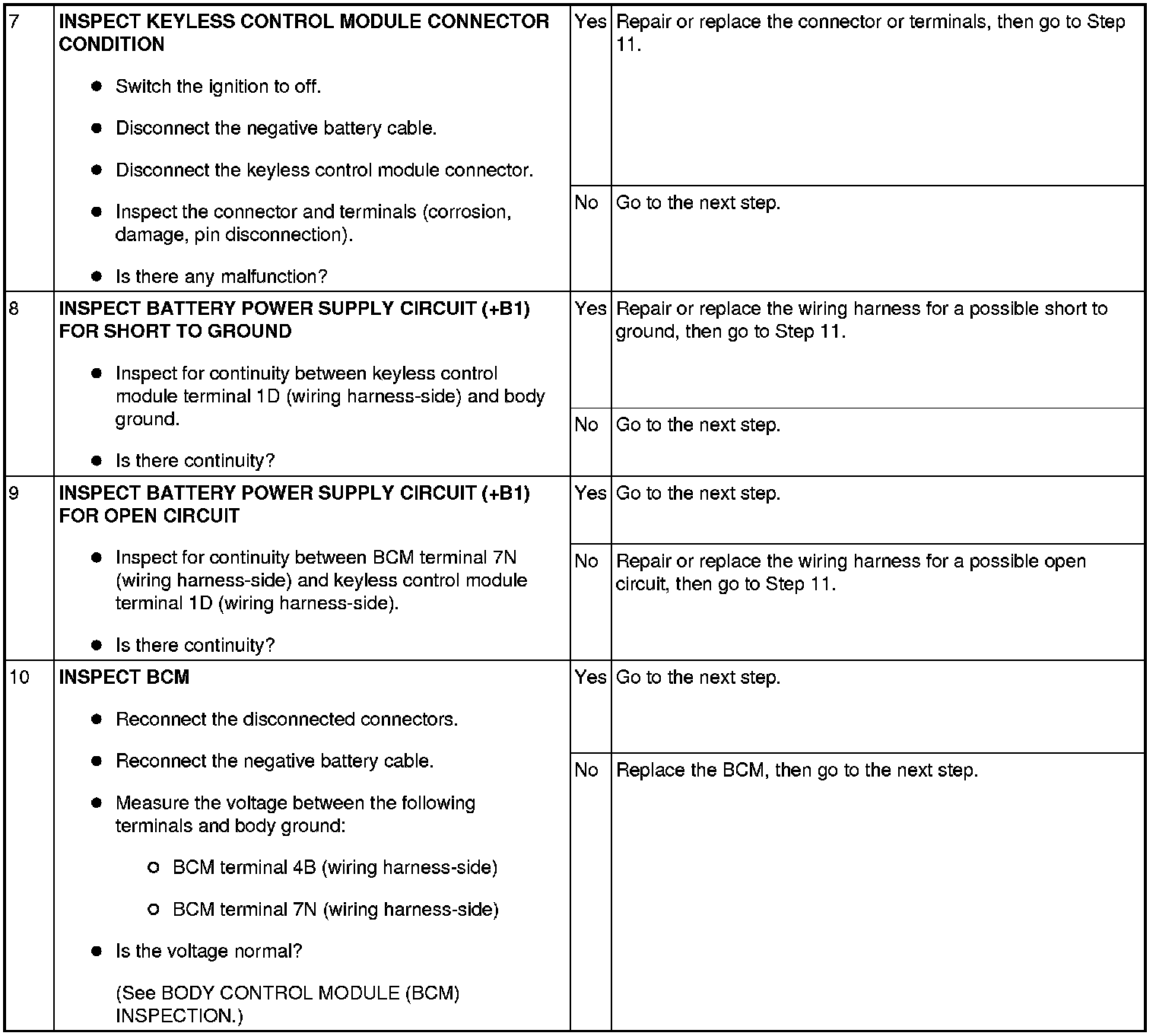

Step 7-Step 10:

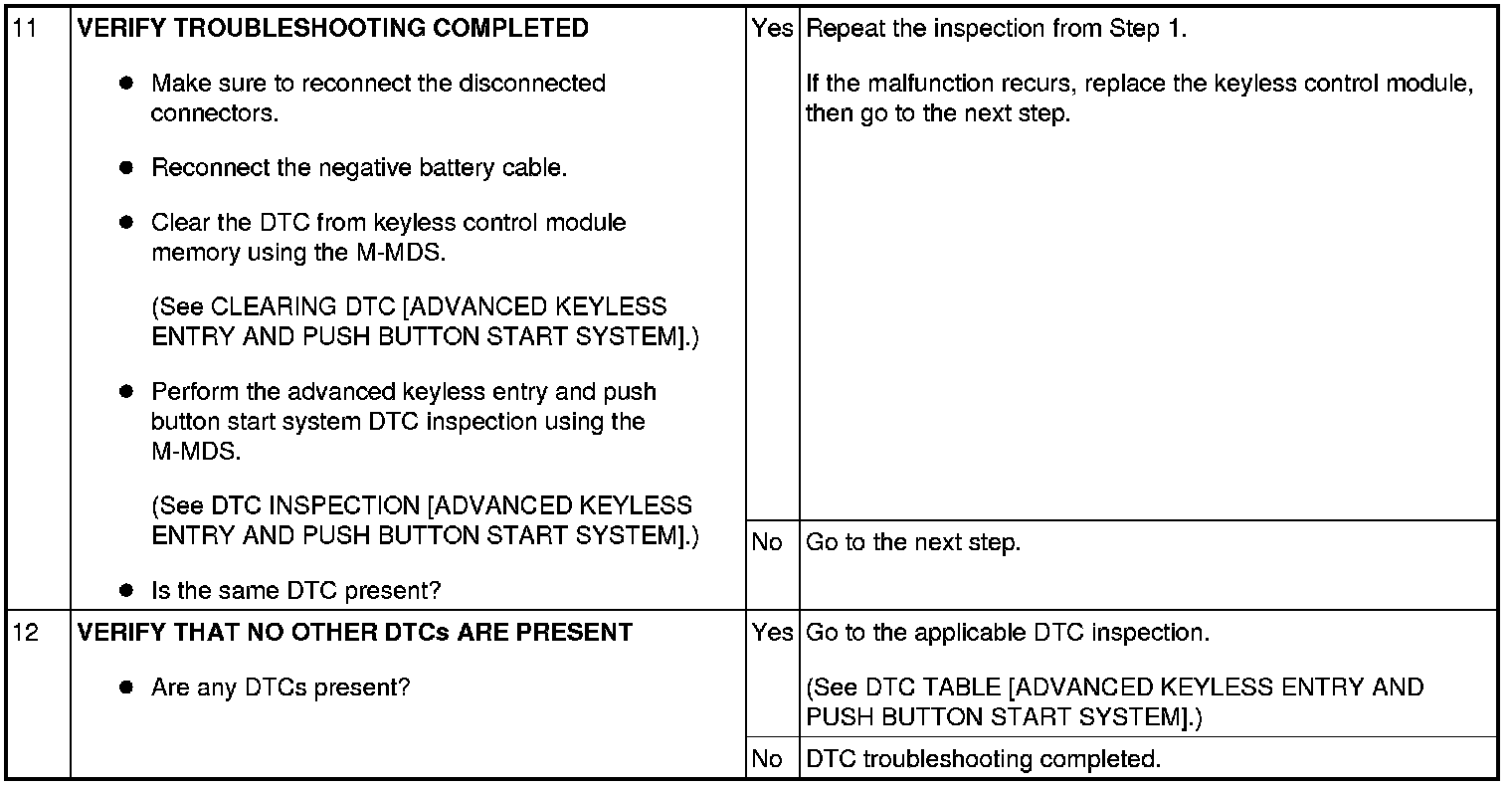

Step 11-Step 12:
