Home >> Mazda >> 2009 >> 6 V6-3.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P2270

P2270




DTC P2270:00, P2272:00 [MZI-3.7]

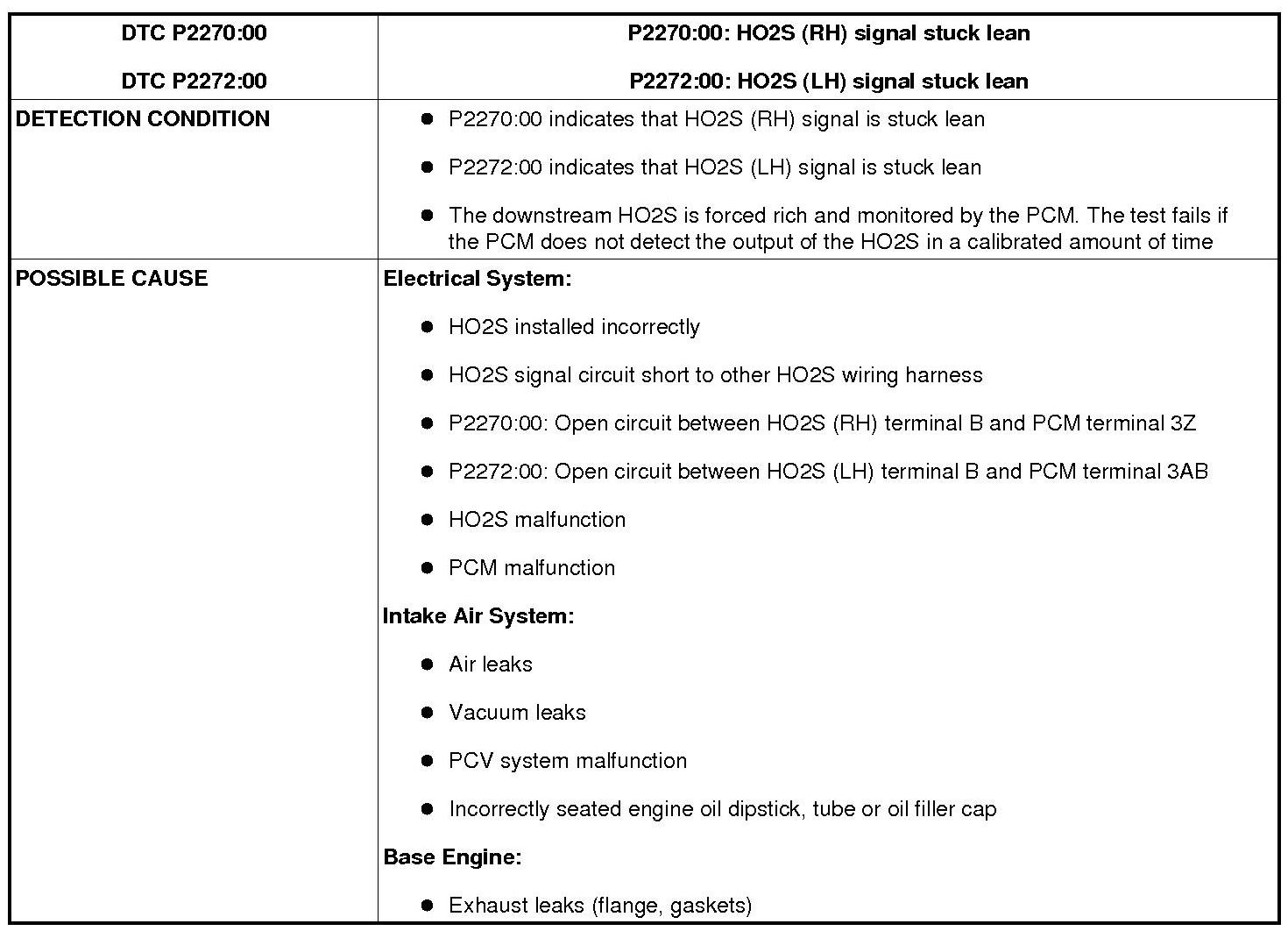

Detection Condition/Possible Cause (Part 1):





Detection Condition/Possible Cause (Part 2):






Diagnostic procedure

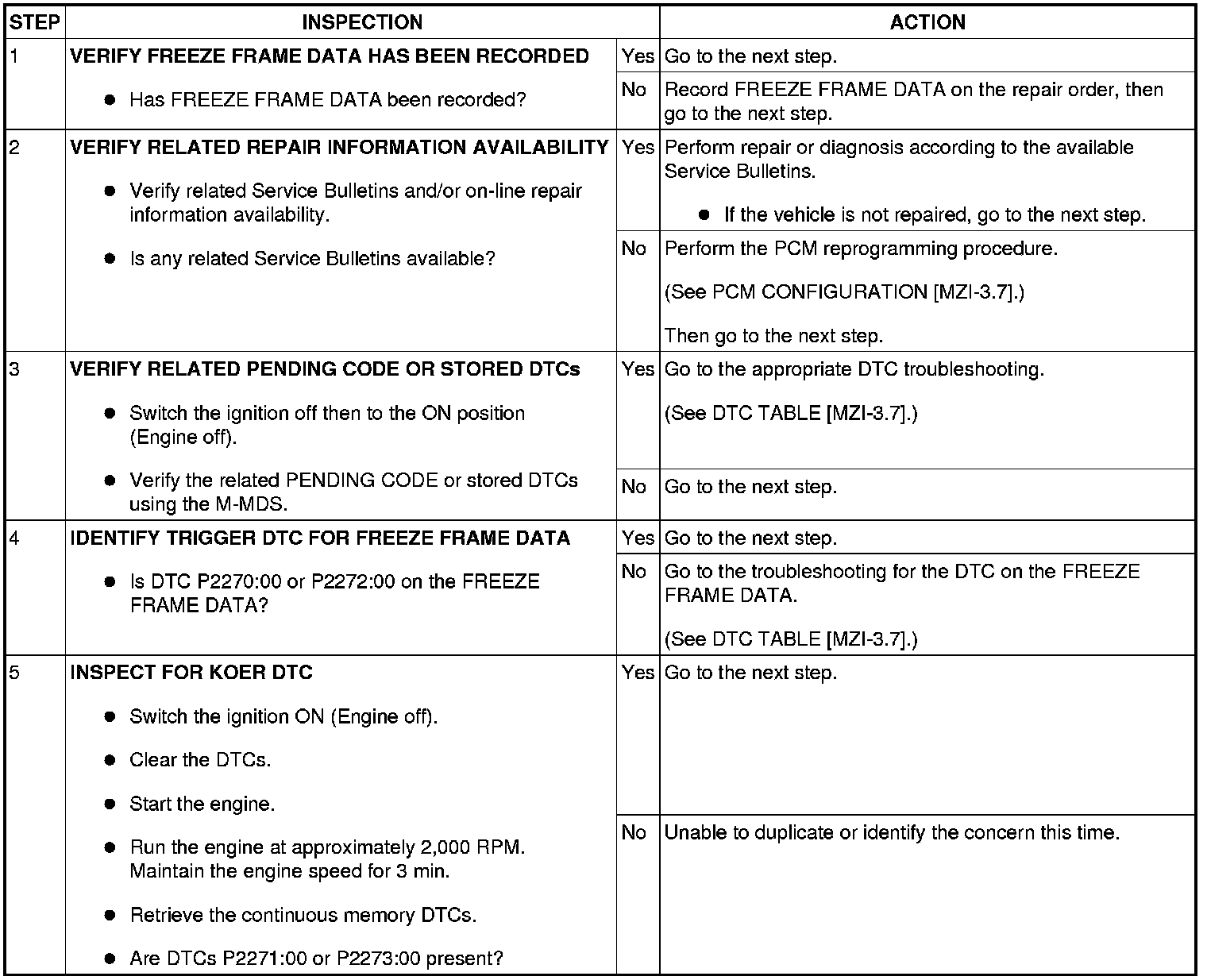

Step 1-Step 5:

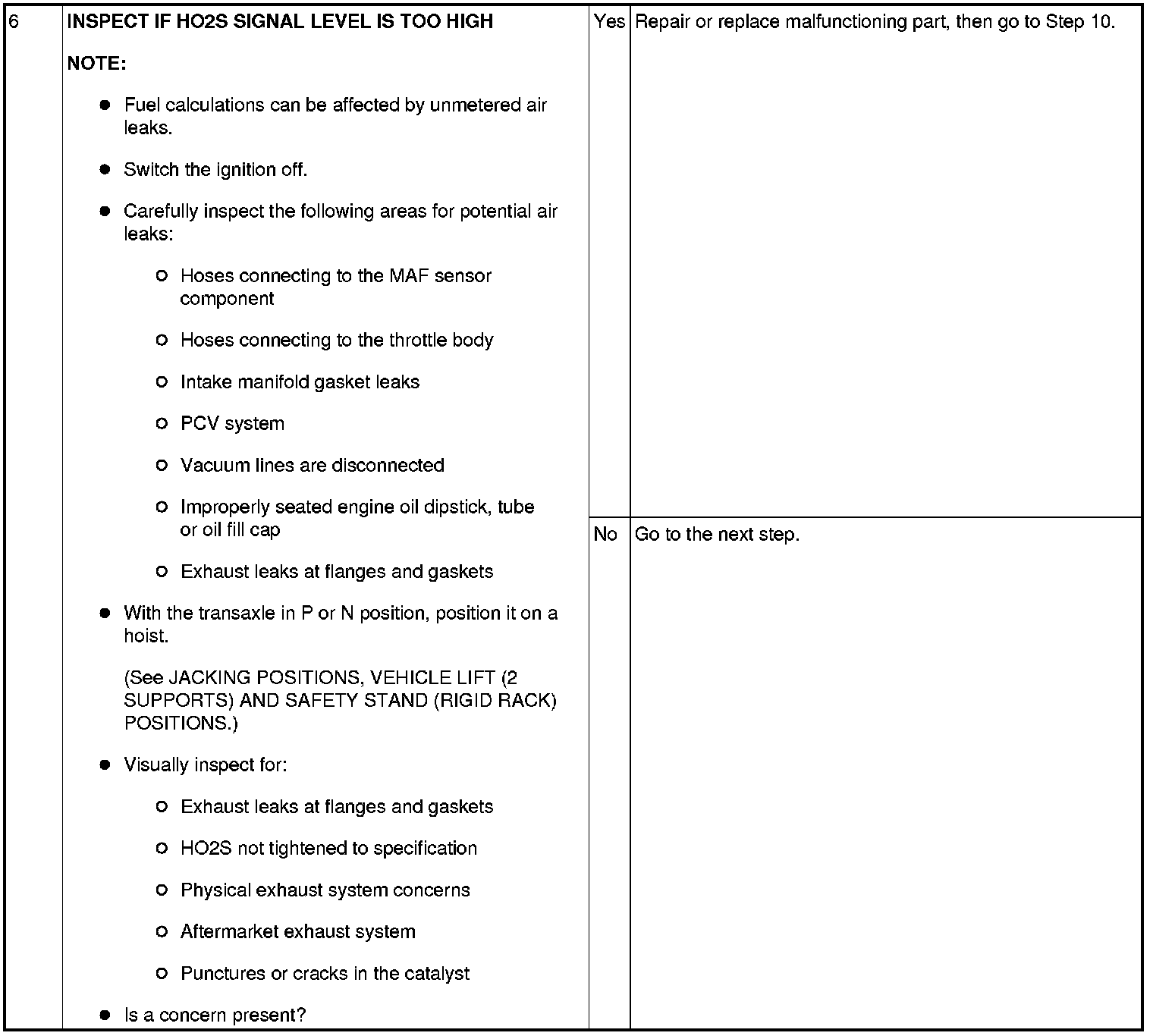

Step 6:

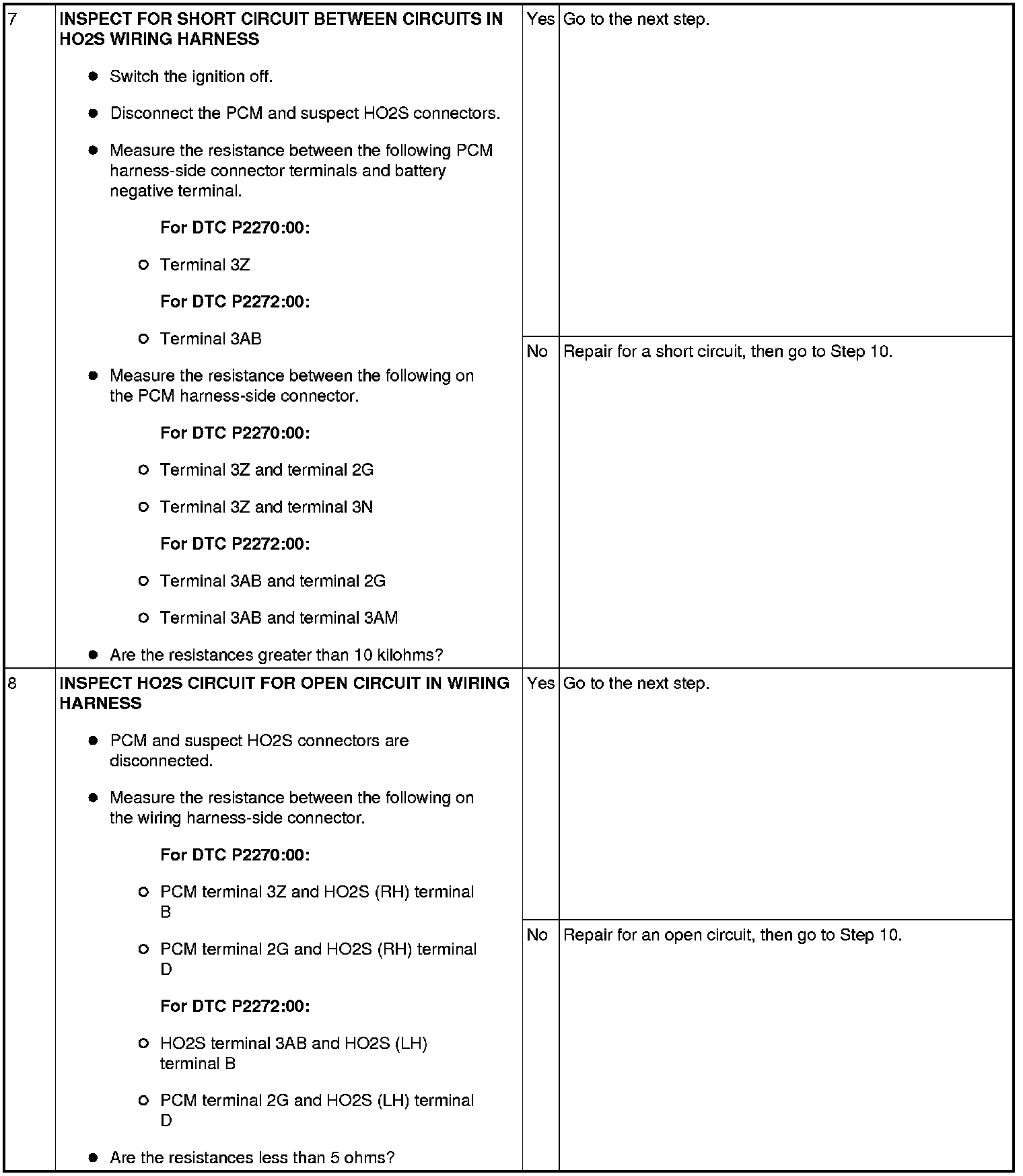

Step 7-Step 8:

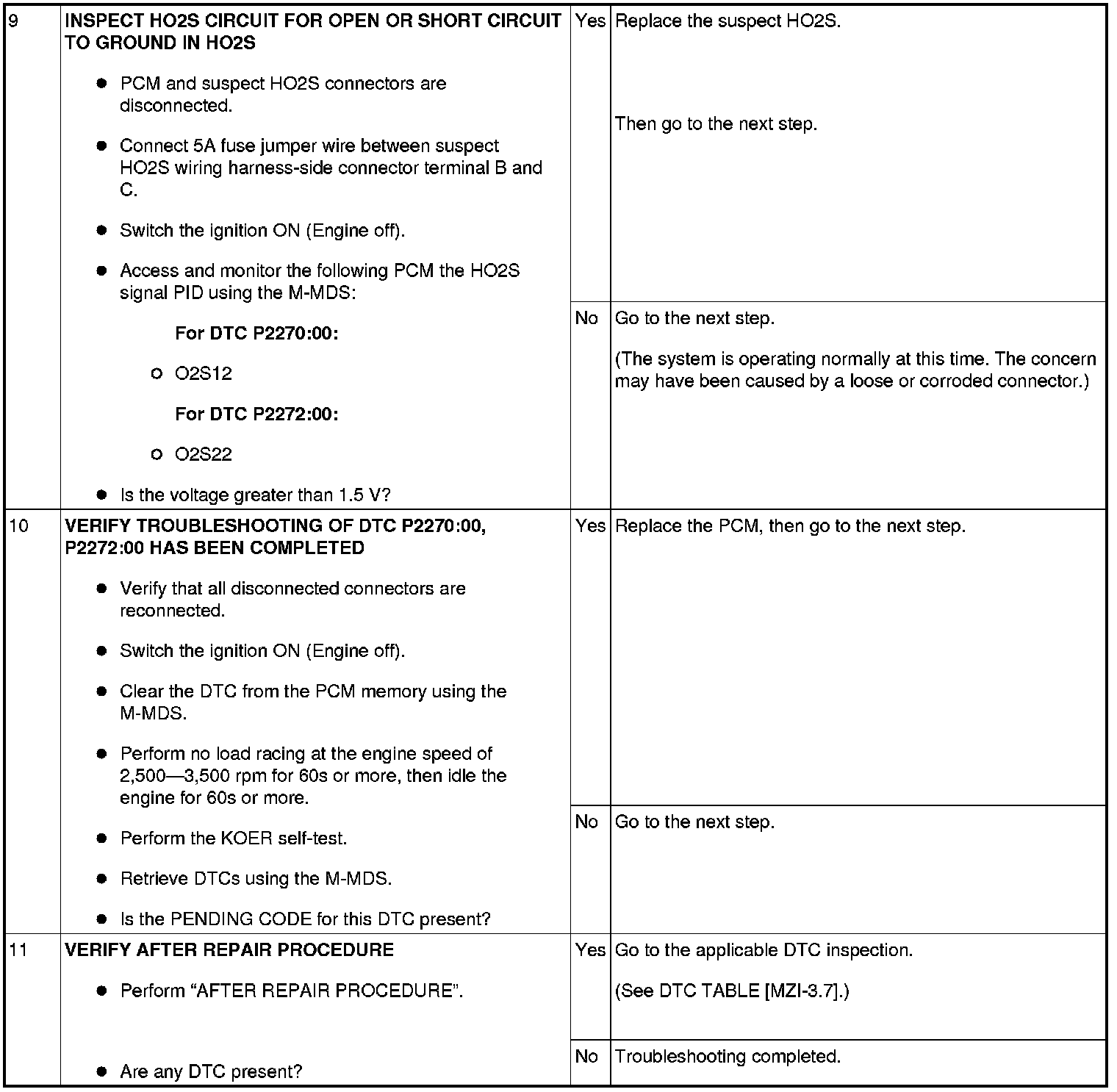

Step 9-Step 11:
