P0615:12 Advanced Keyless Entry And Push Button Start System




DTC P0615:12 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

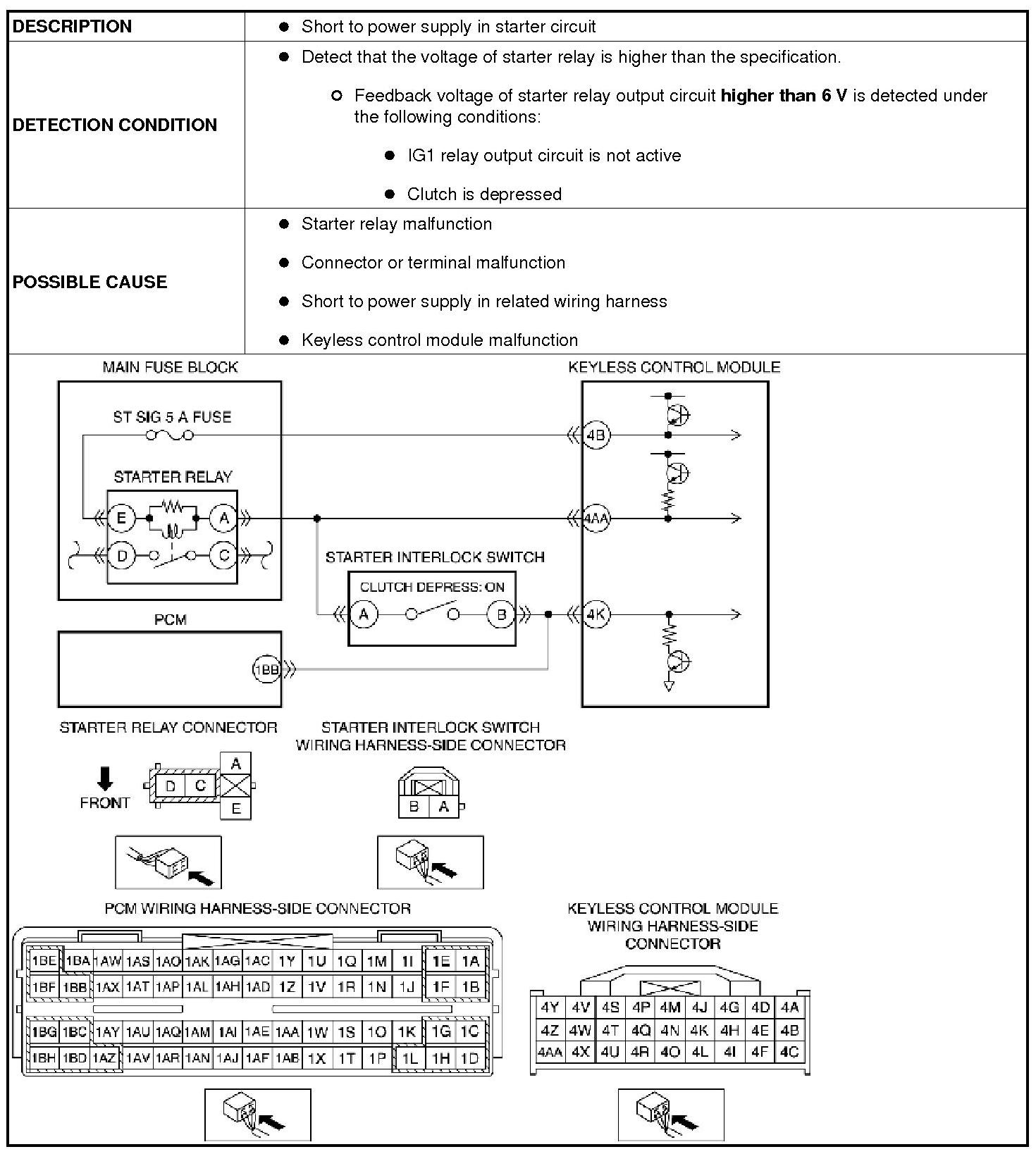

Detection Condition/Possible Cause:





Diagnostic Procedure

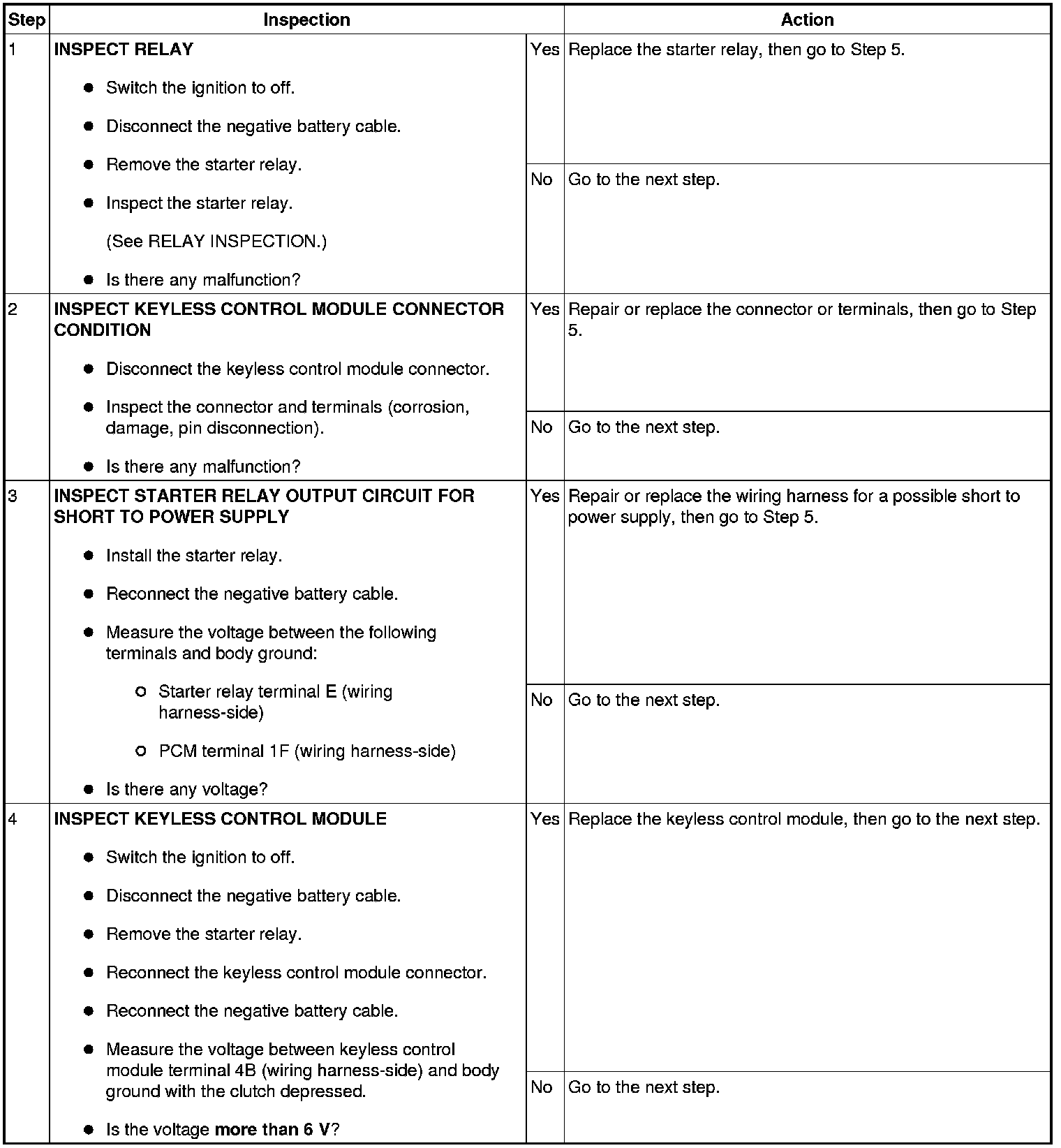

Step 1-Step 4:

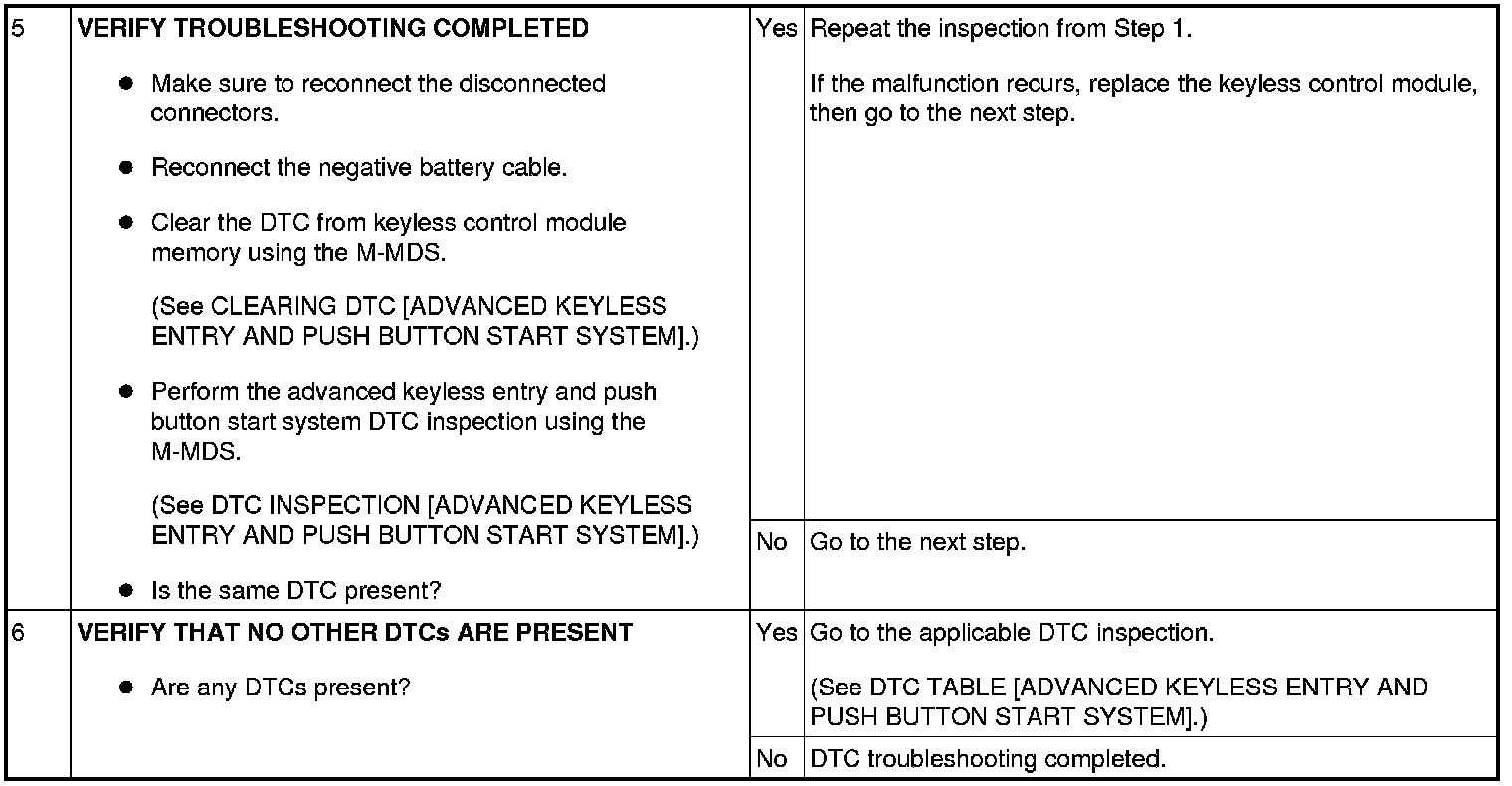

Step 5-Step 6:
