DTC P0442:00, P0455:00, P0456:00 [MZI-3.7]

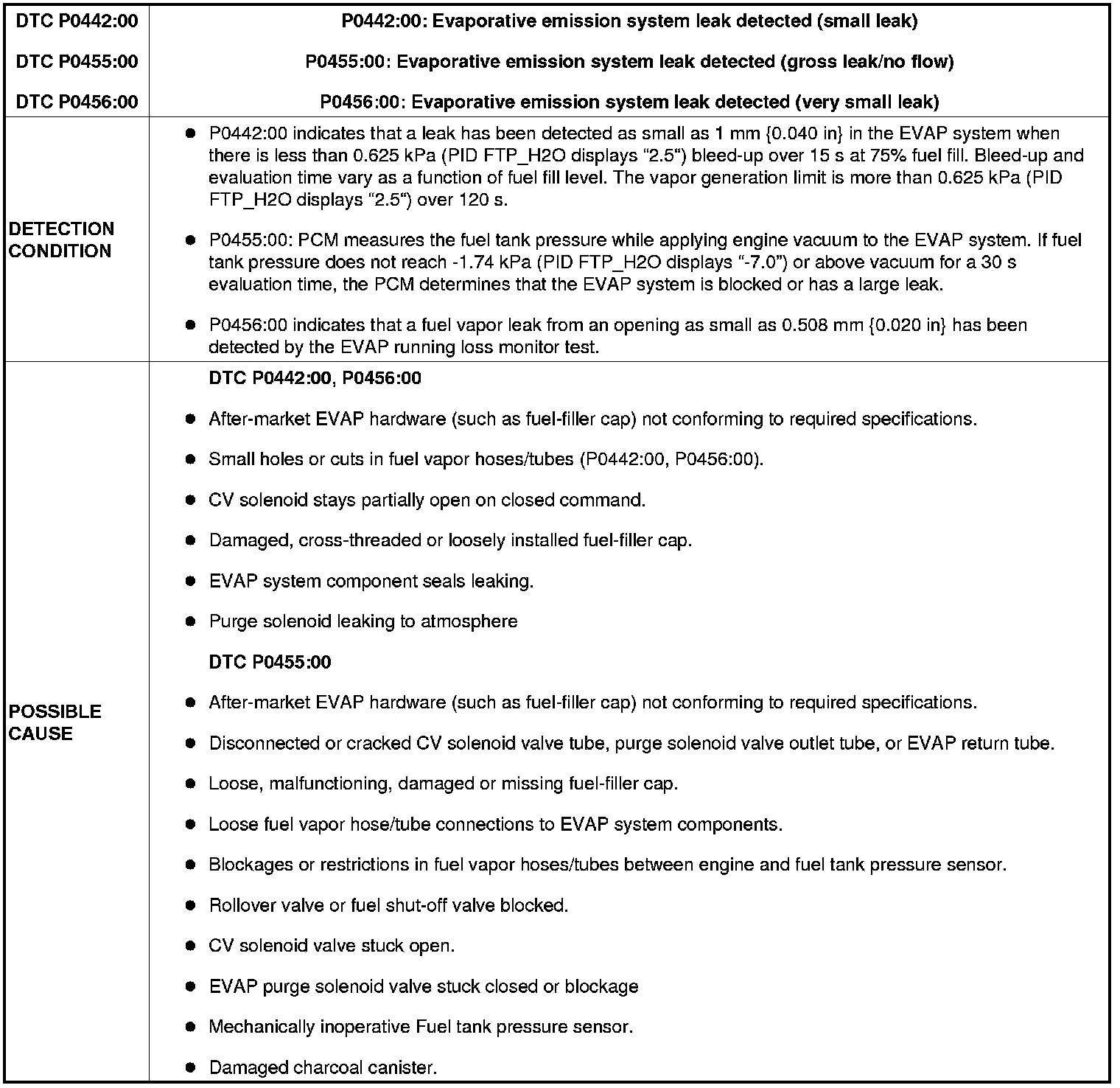

Detection Condition/Possible Cause:
Diagnostic procedure

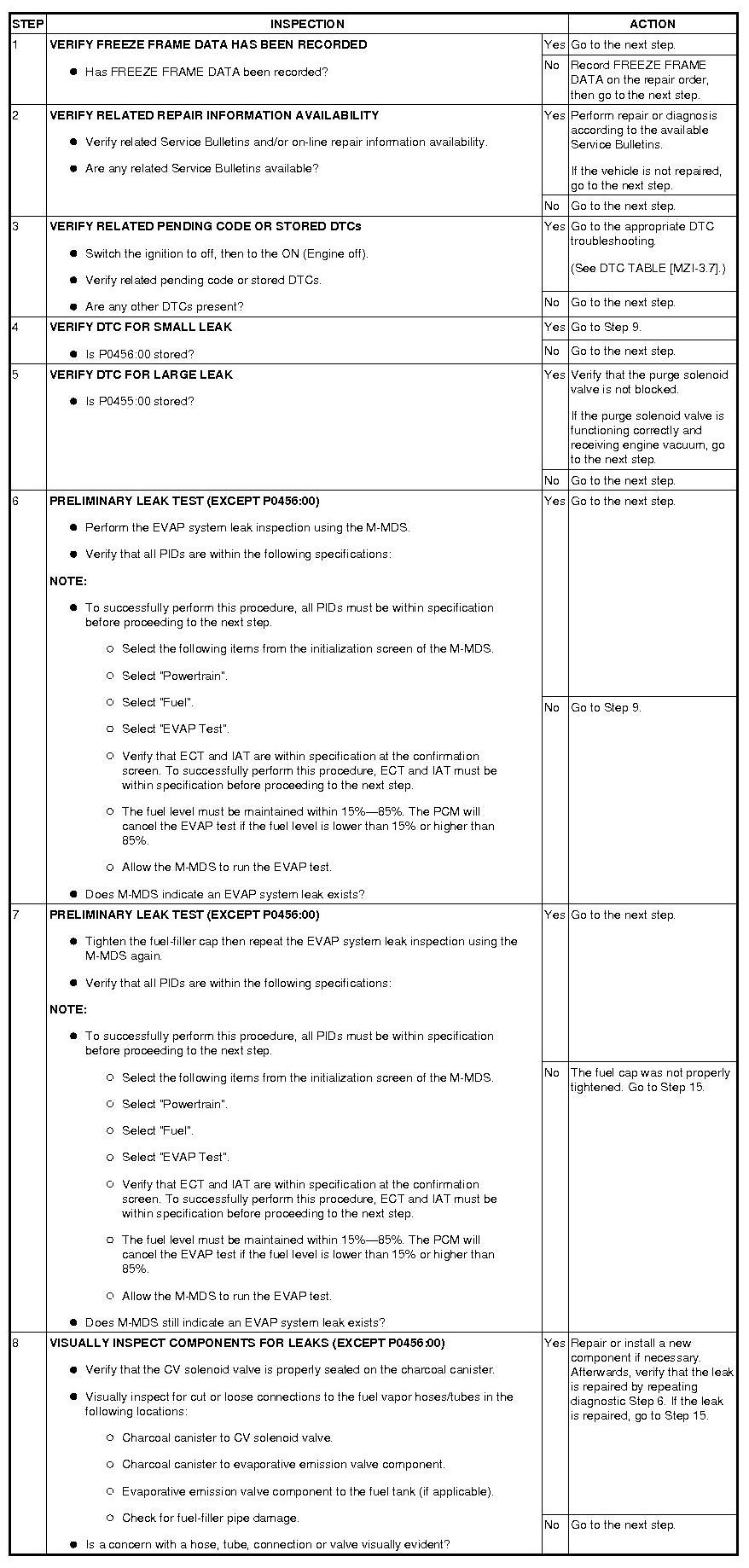

Step 1-Step 8:

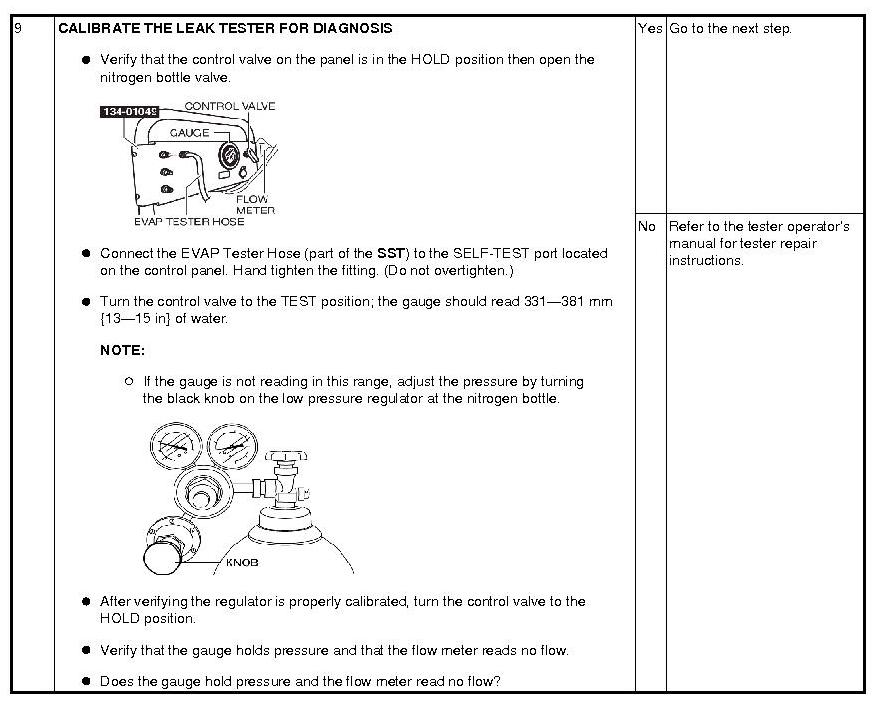

Step 9:

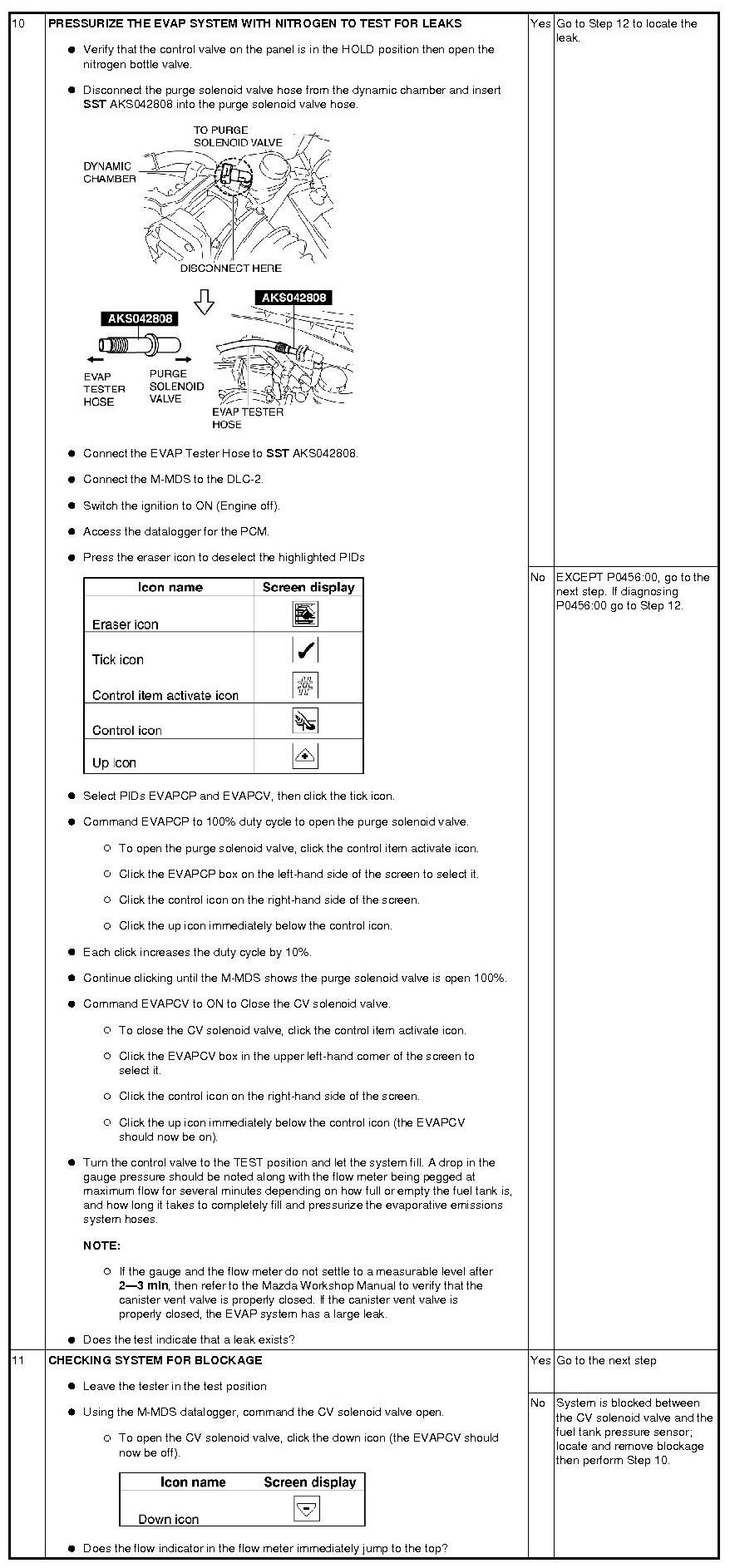

Step 10-Step 11:

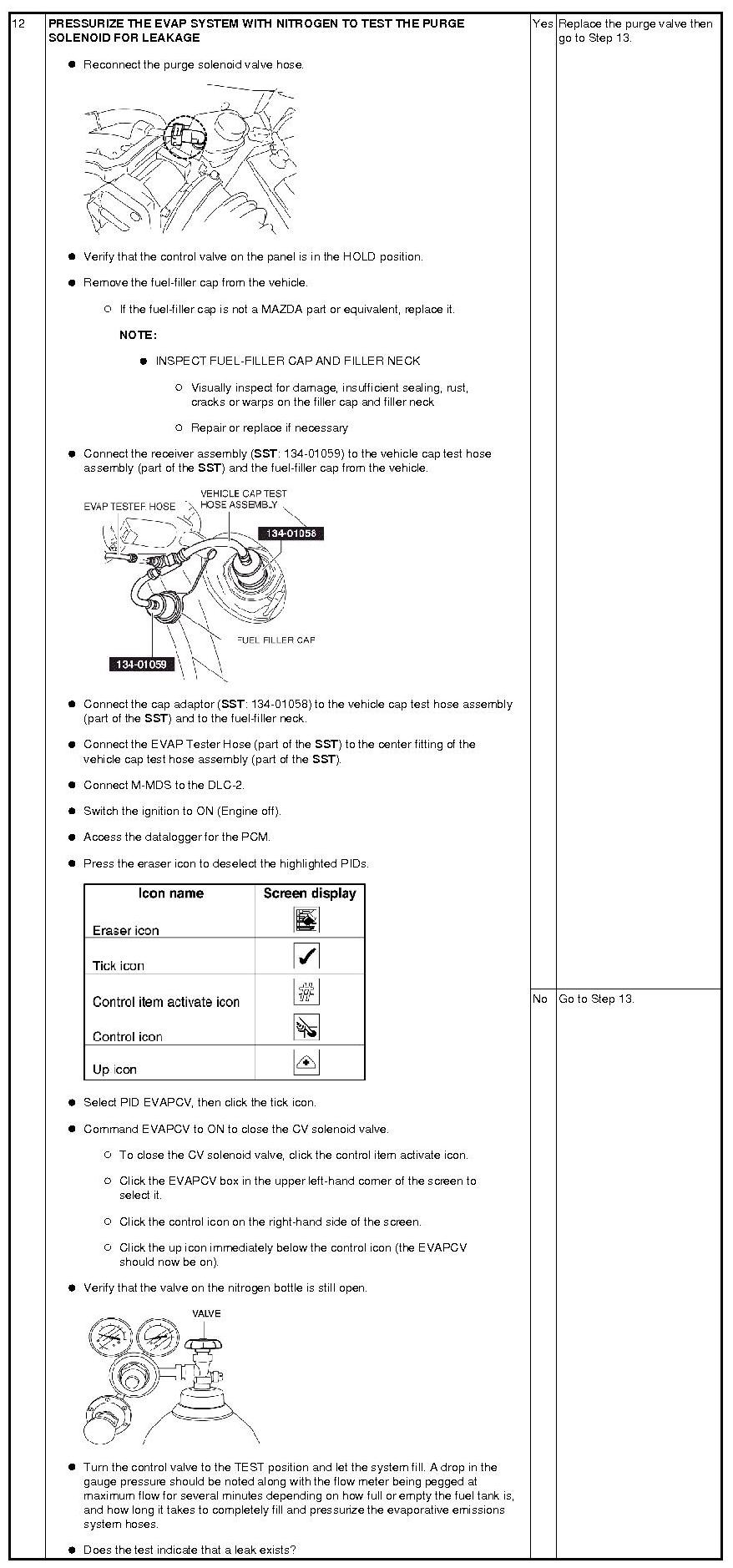

Step 12:

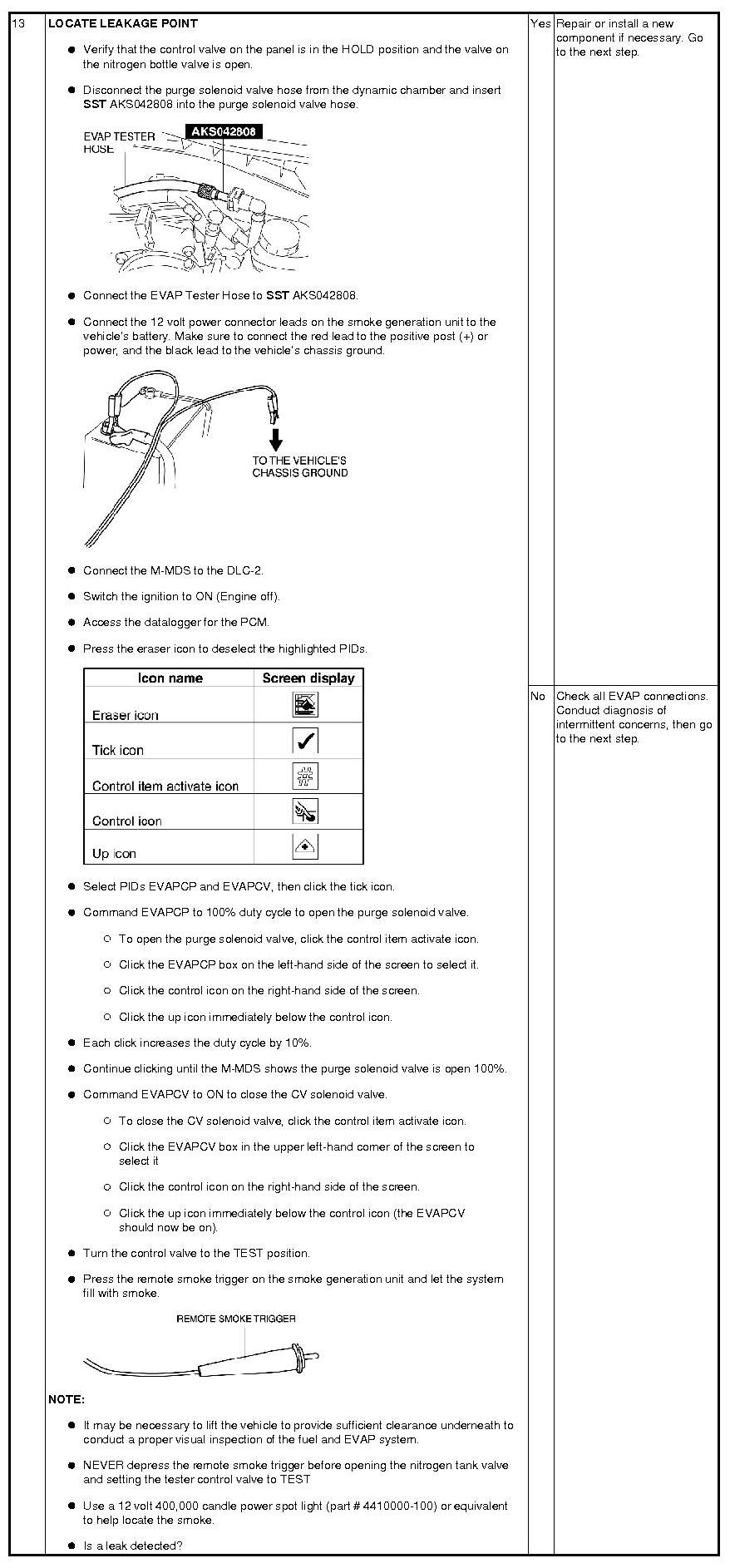

Step 13:

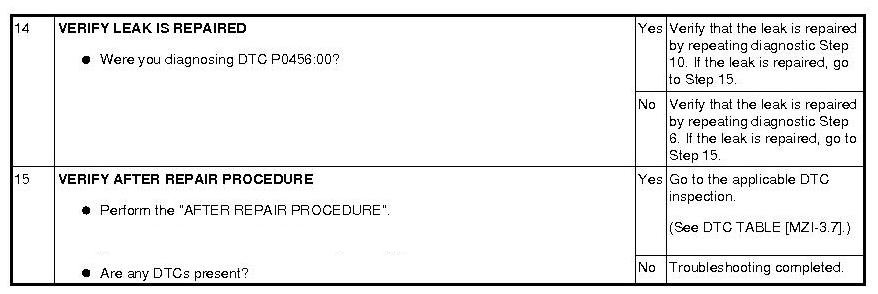

Step 14-Step 15:
