B113E:11 Advanced Keyless Entry And Push Button Start System




DTC B113E:11 [ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM]

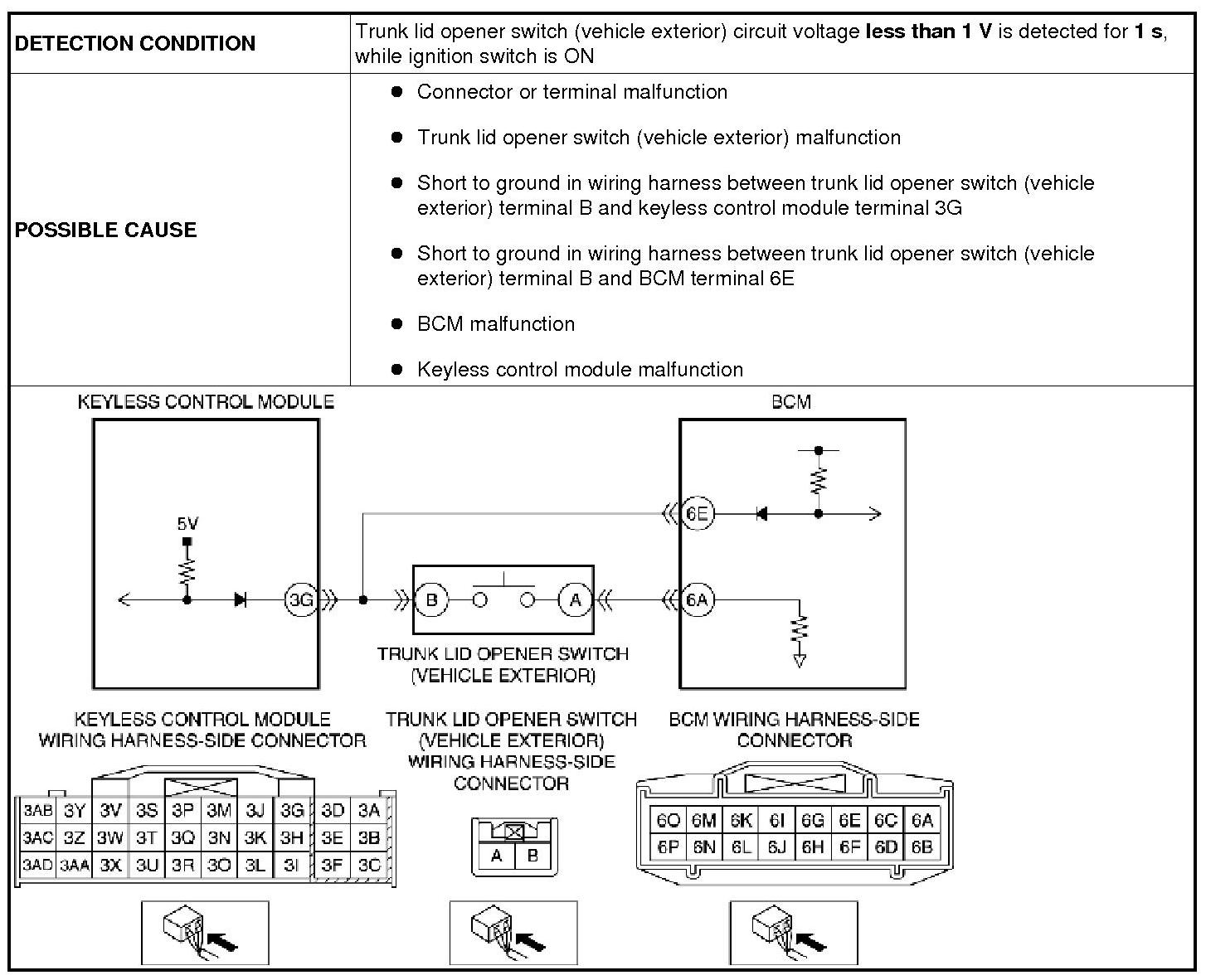

Detection Condition/Possible Cause:





Diagnostic Procedure

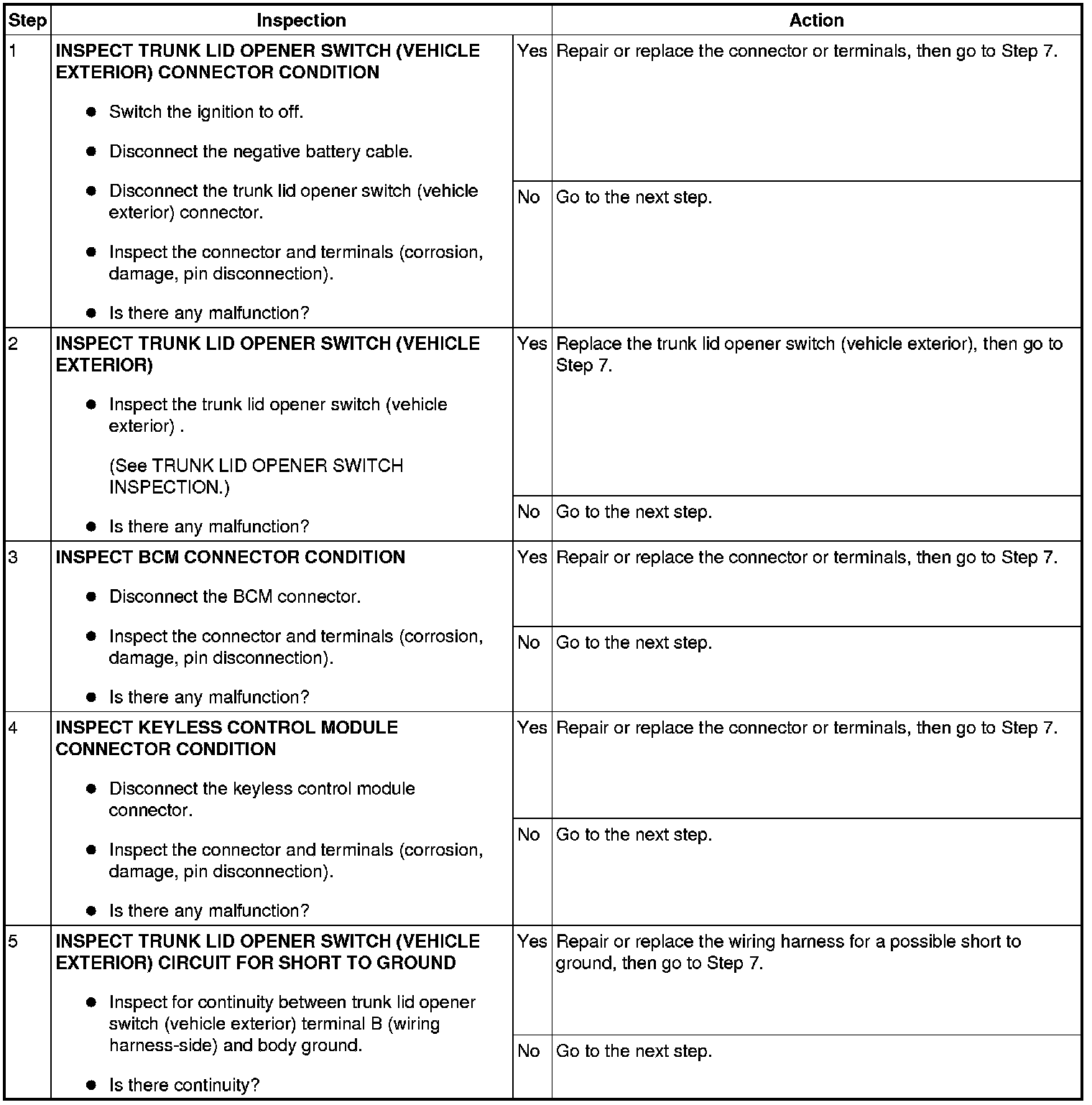

Step 1-Step 5:

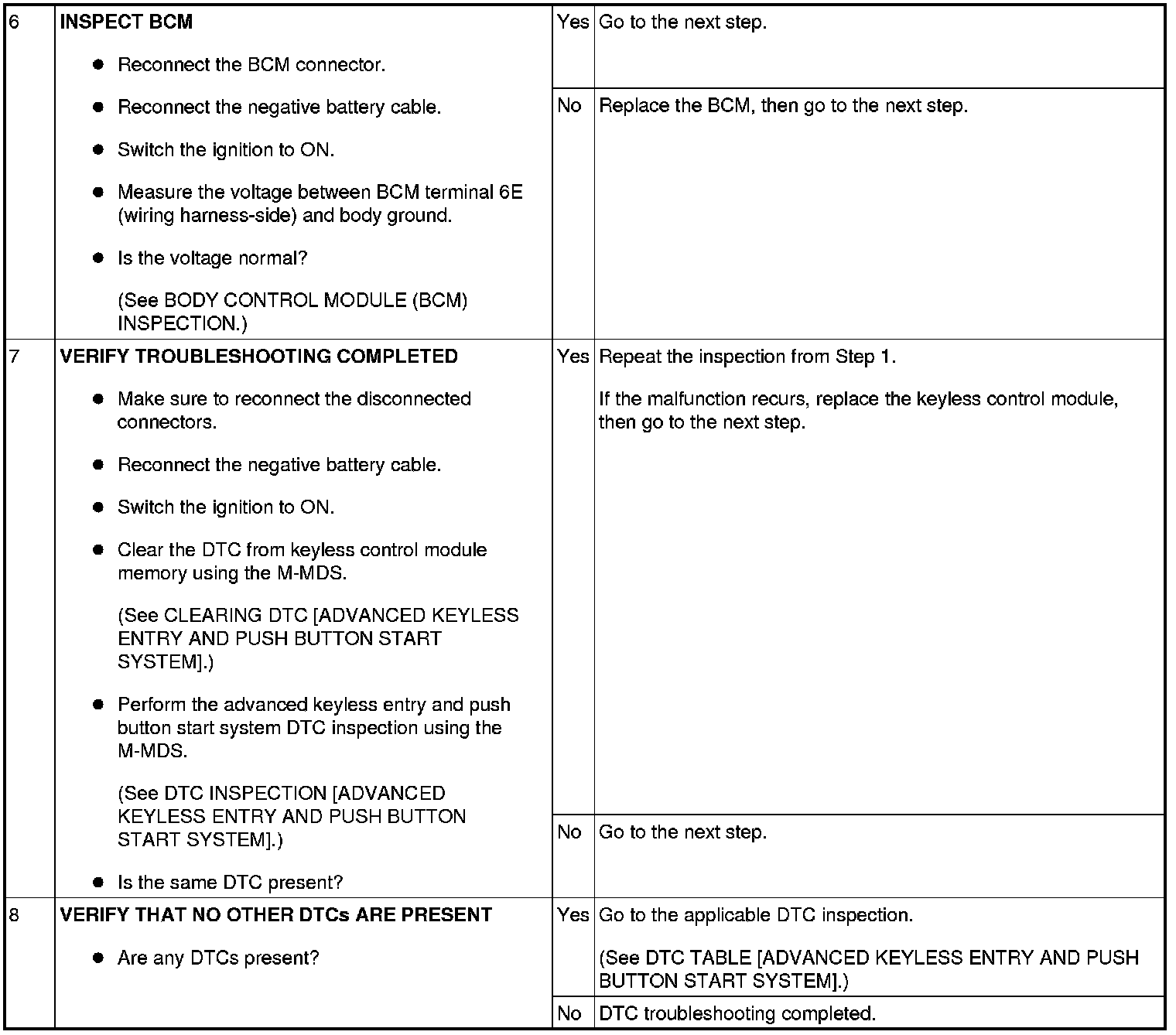

Step 6-Step 8:
