DTC B1048:11 [BCM]

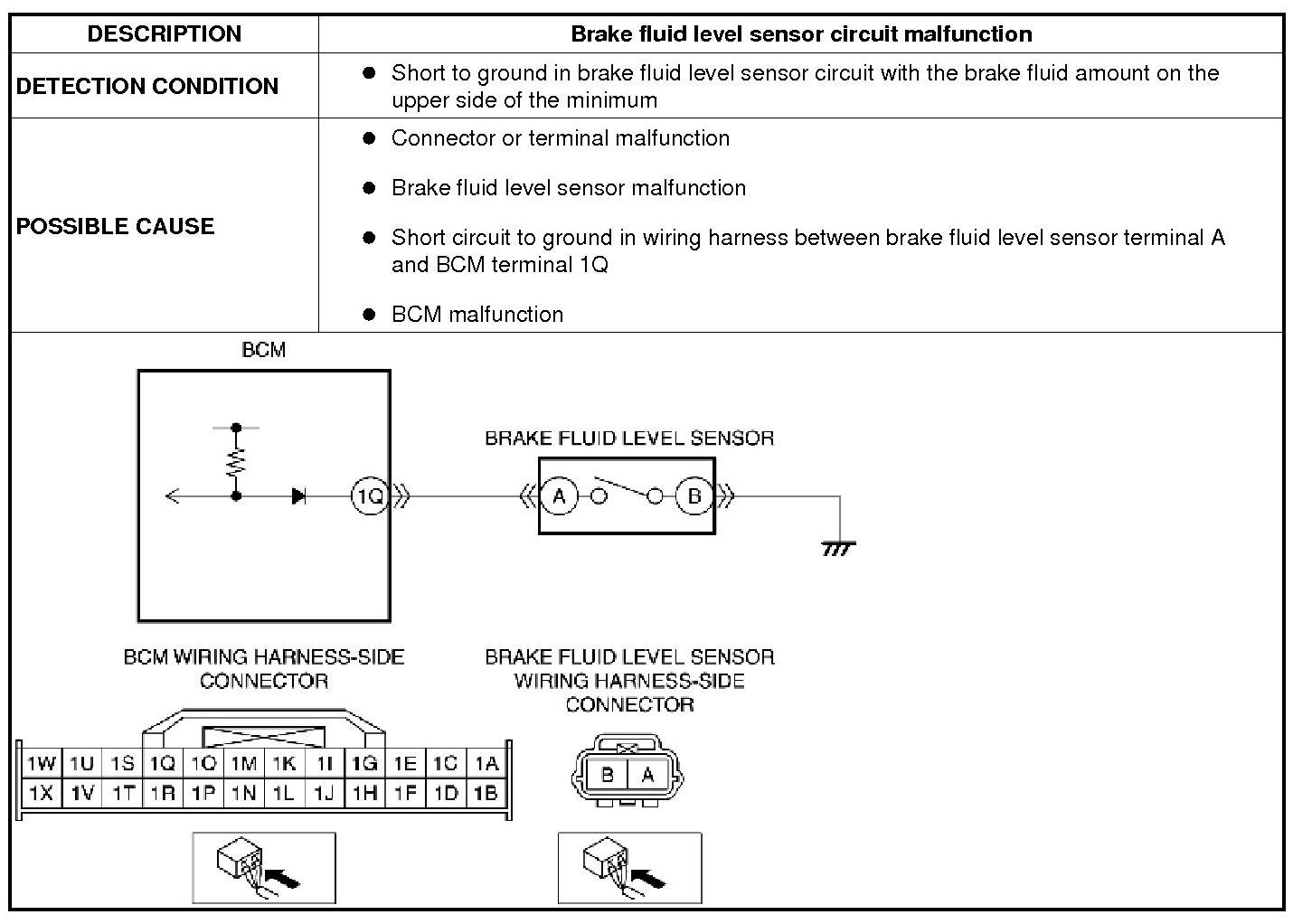

Detection Condition/Possible Cause:

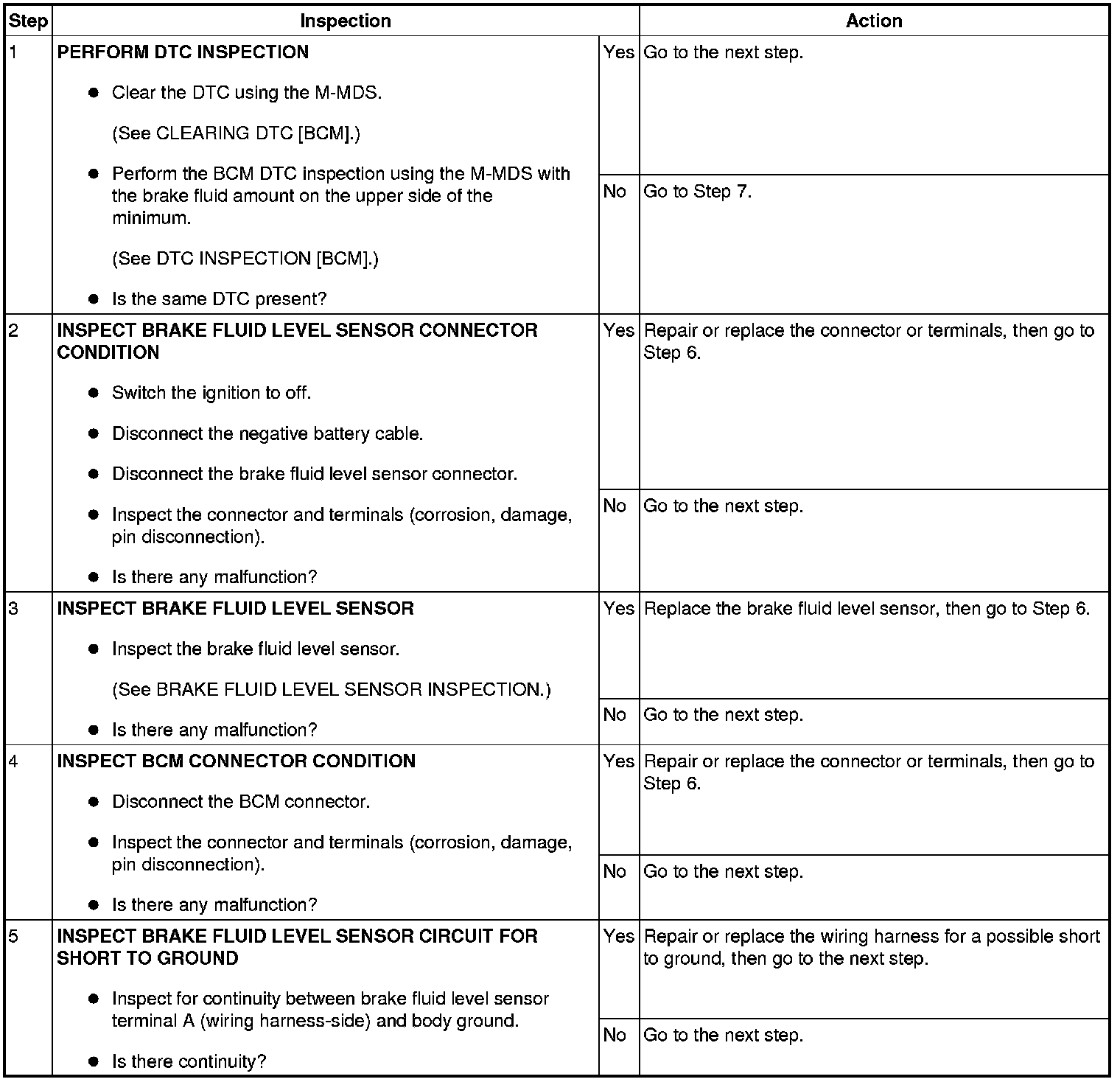

Diagnostic Procedure
Step 1-Step 5:
Step 6-Step 7:
