Connector Locations

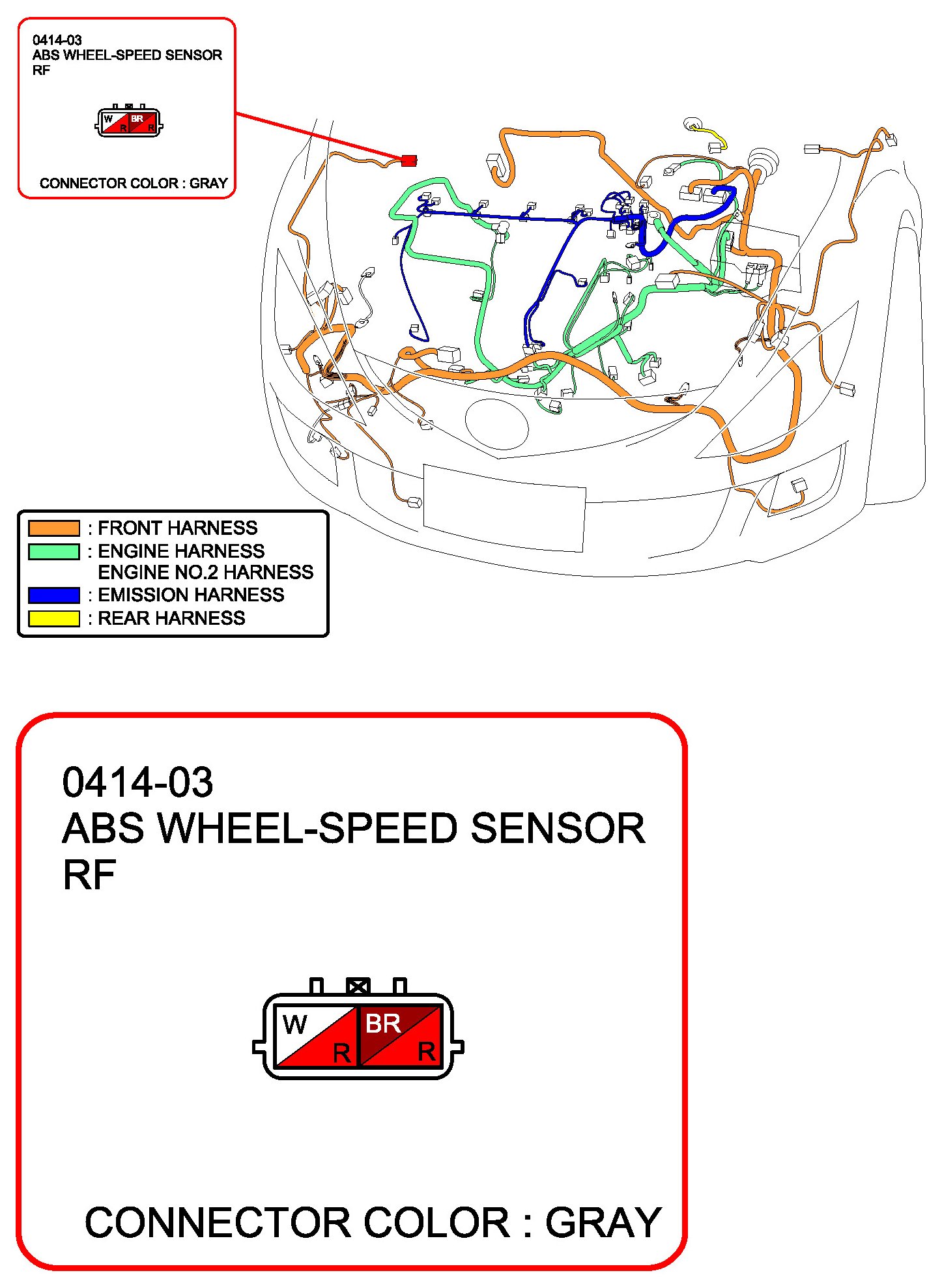

ABS wheel-Speed Sensor RF (Traction Control):

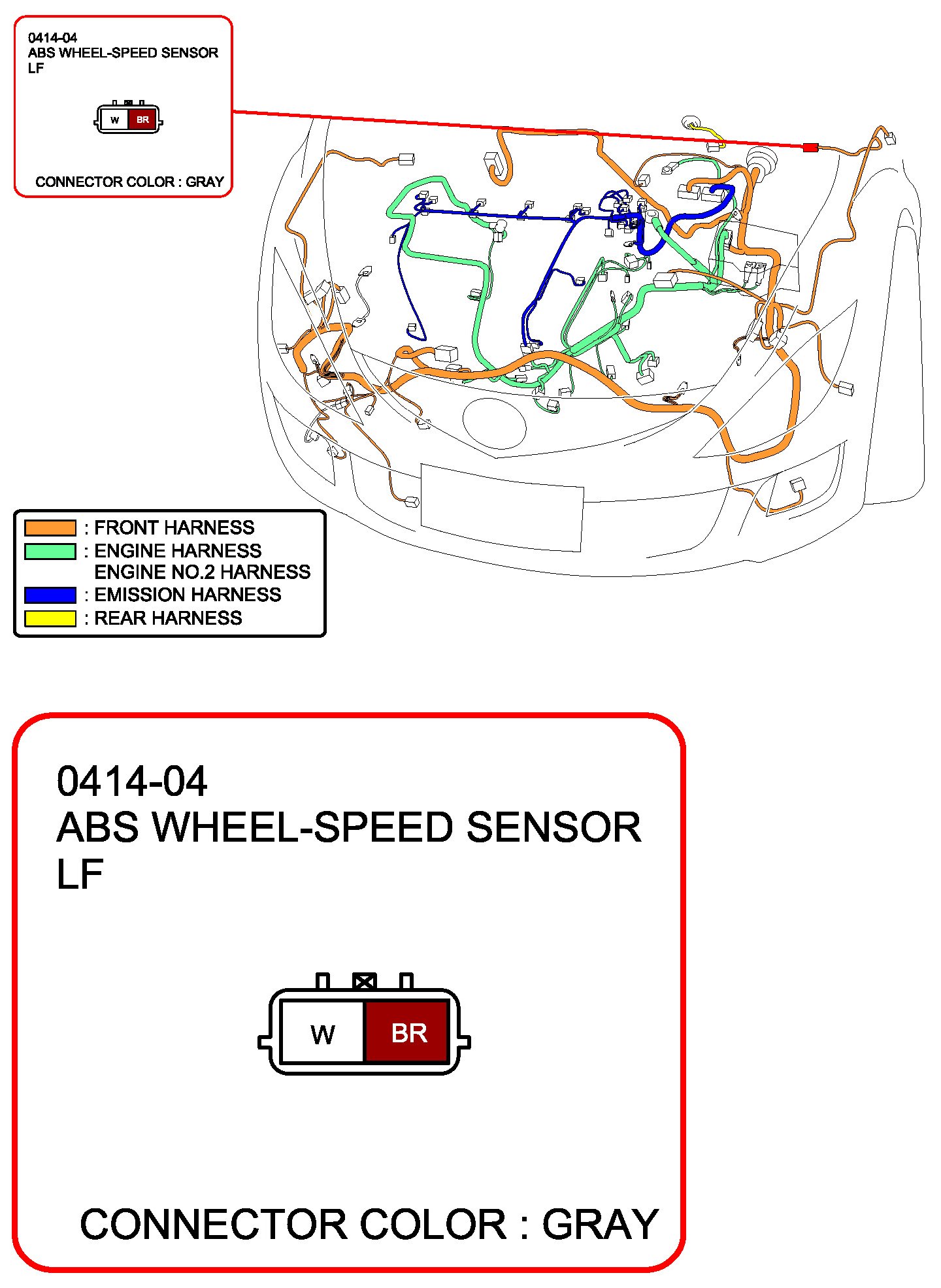

ABS wheel-Speed Sensor LF (Traction Control):

ABS wheel-Speed Sensor RR (Traction Control):

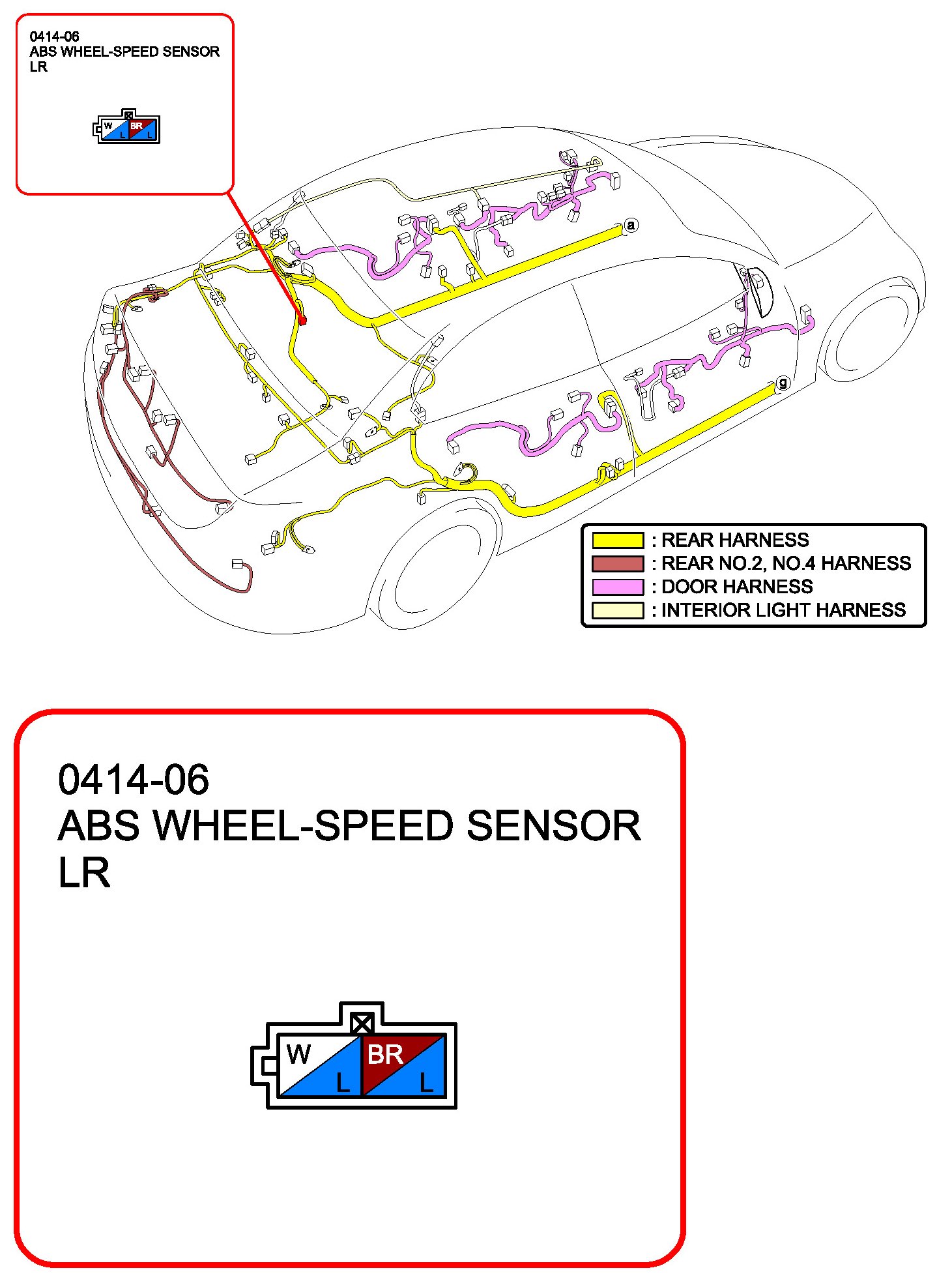

ABS wheel-Speed Sensor LR (Traction Control):

ABS wheel-Speed Sensor RF (Dynamic Stability Control, DSC):

ABS wheel-Speed Sensor RR (Dynamic Stability Control, DSC):

ABS wheel-Speed Sensor LR (Dynamic Stability Control, DSC):
