Seat Temperature Switch: Locations

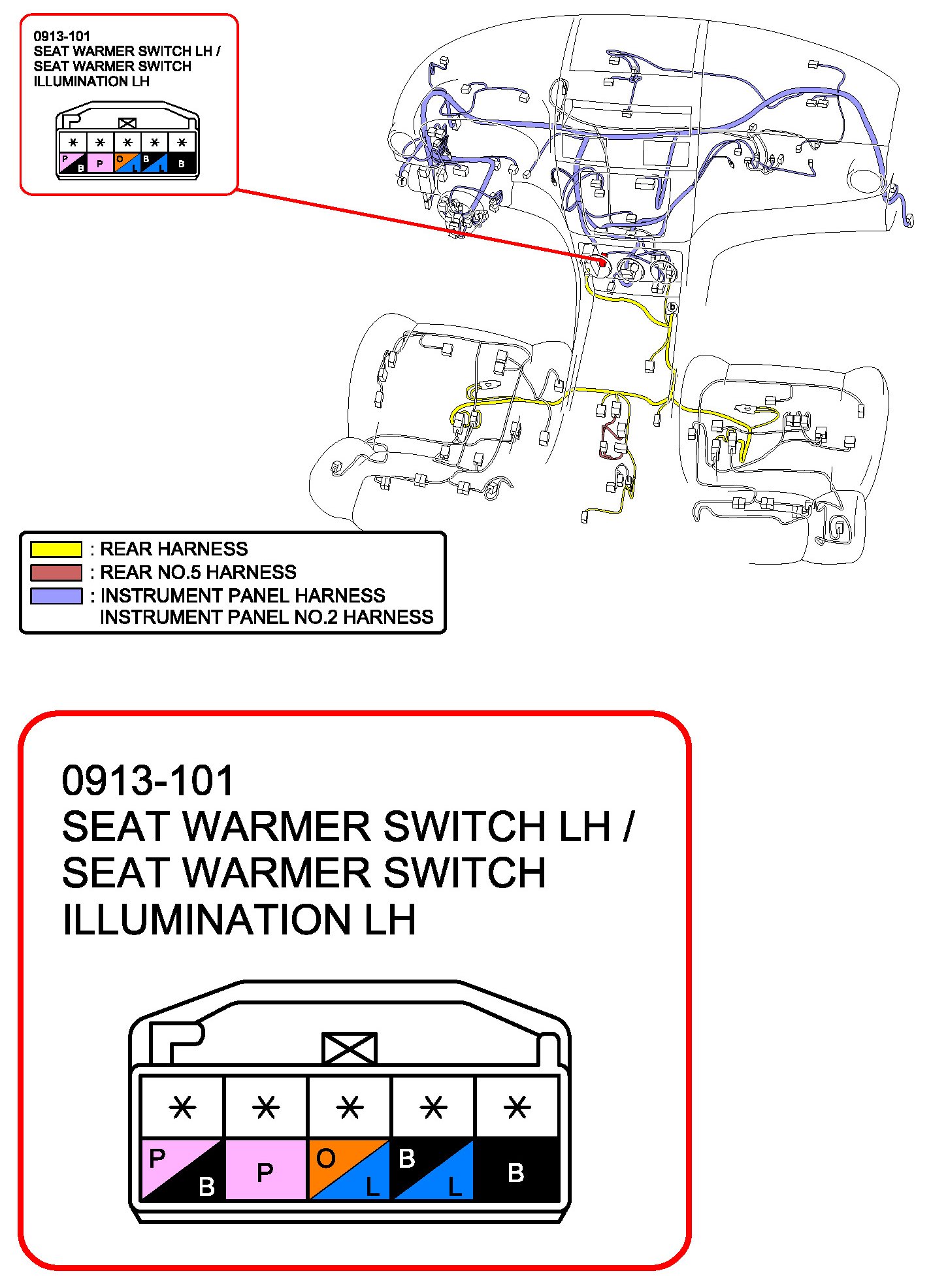

Seat Warmer Switch LH/Seat Warmer Switch Illumination LH:

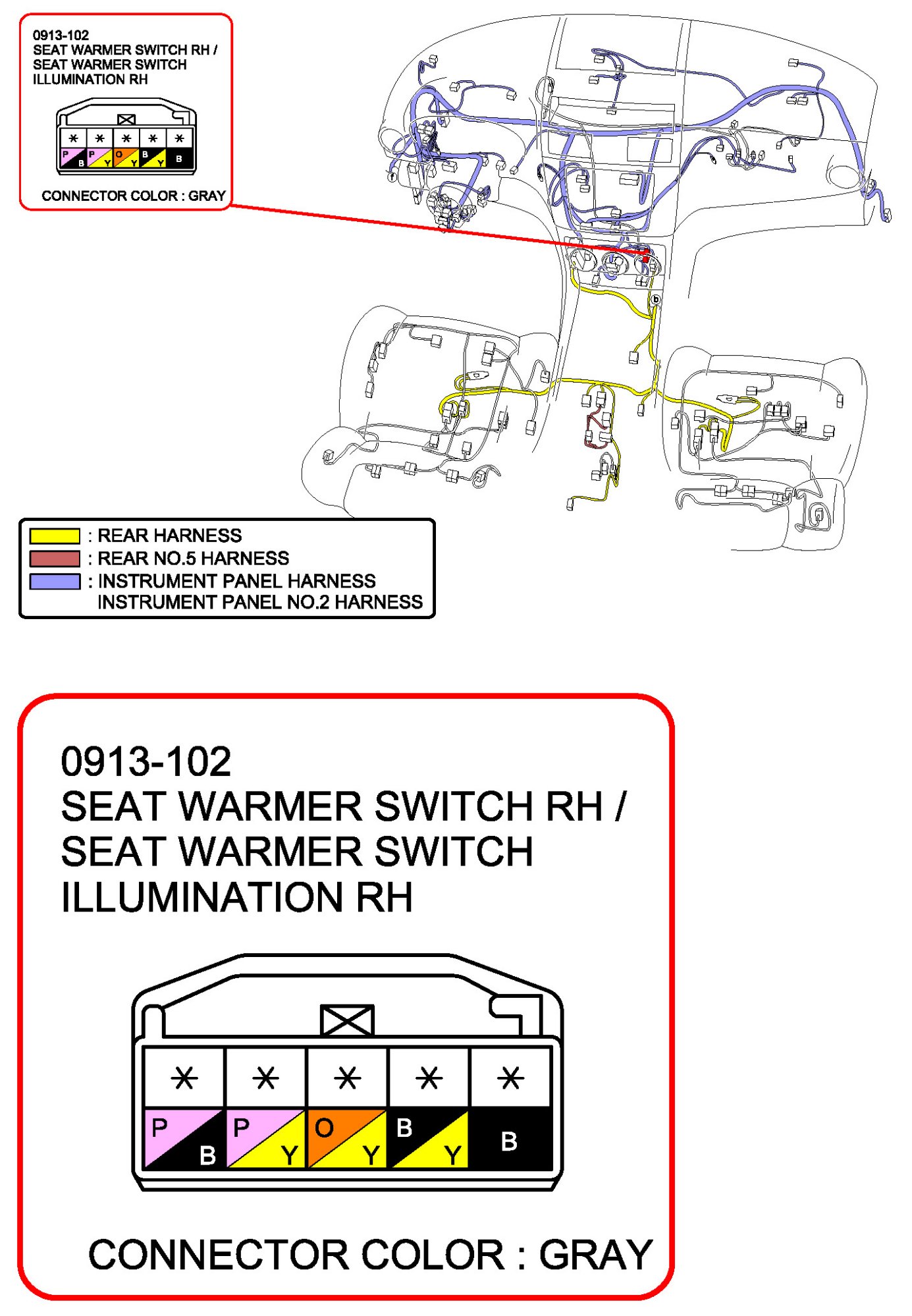

Seat Warmer Switch RH/Seat Warmer Switch Illumination RH:
