Power Seat Switch
>>
Locations
>>
Connector Locations
Connector Locations

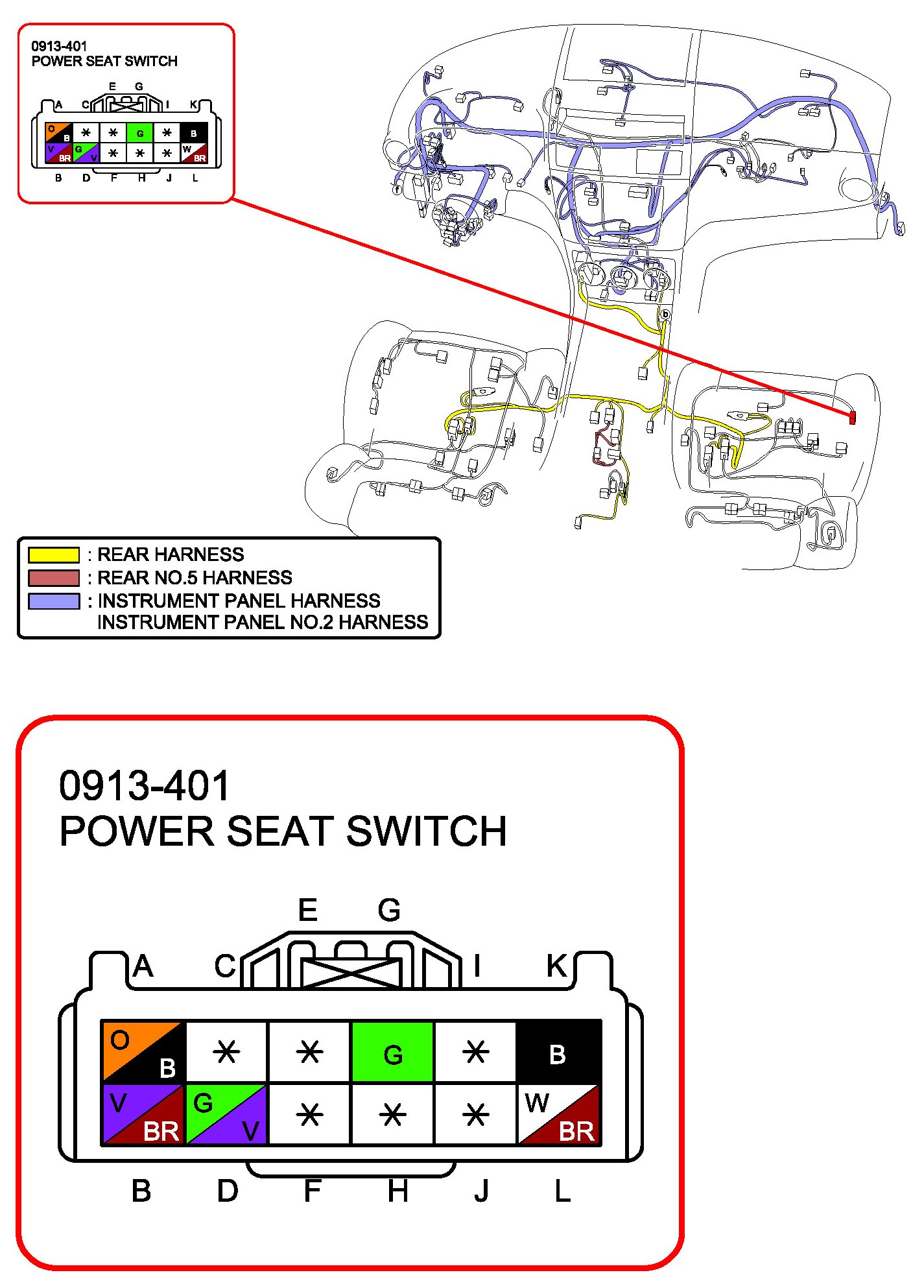

Power Seat Switch (Driver Side With Memory Power Seat):

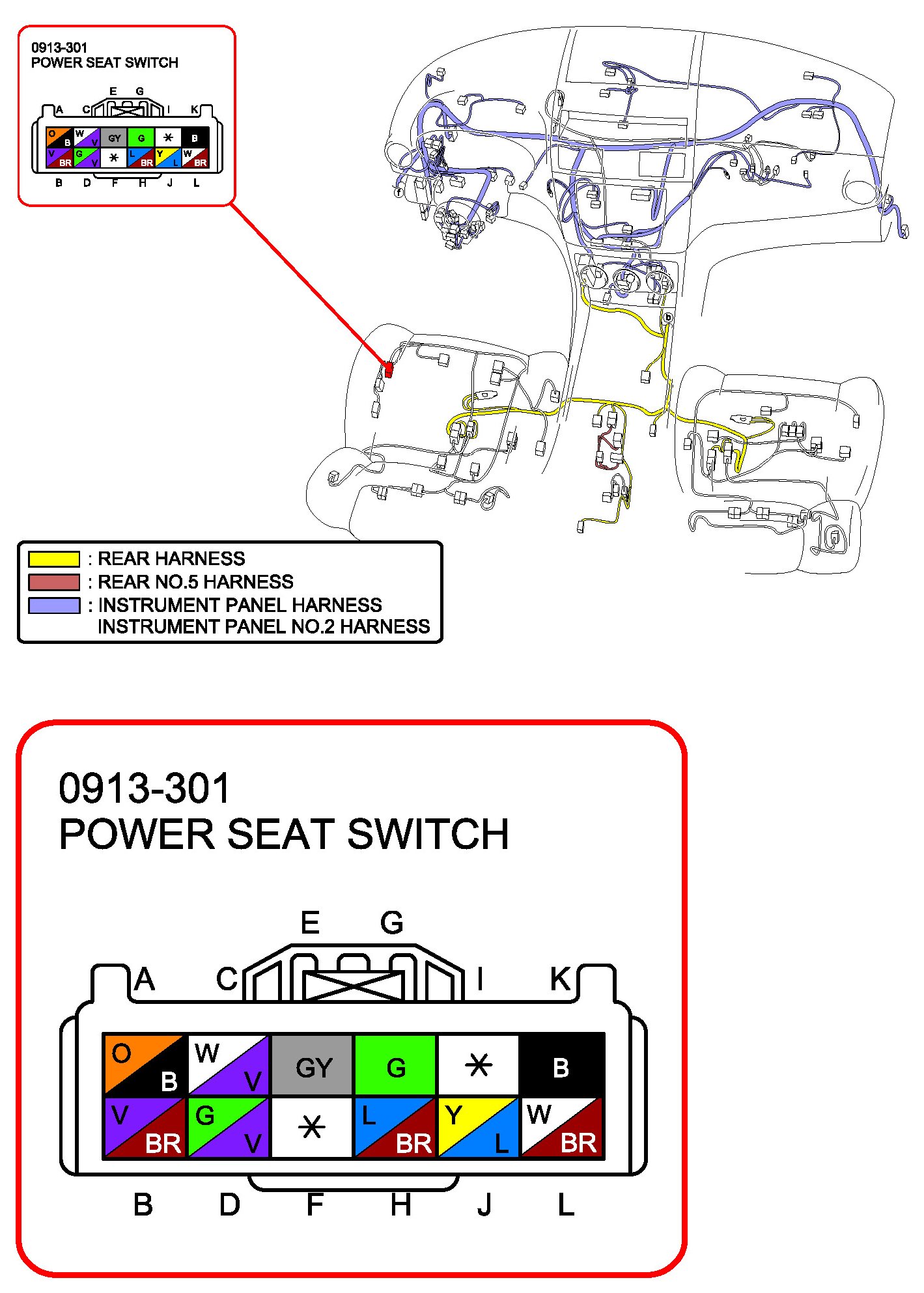

Power Seat Switch (Driver Side Without Memory Power Seat):

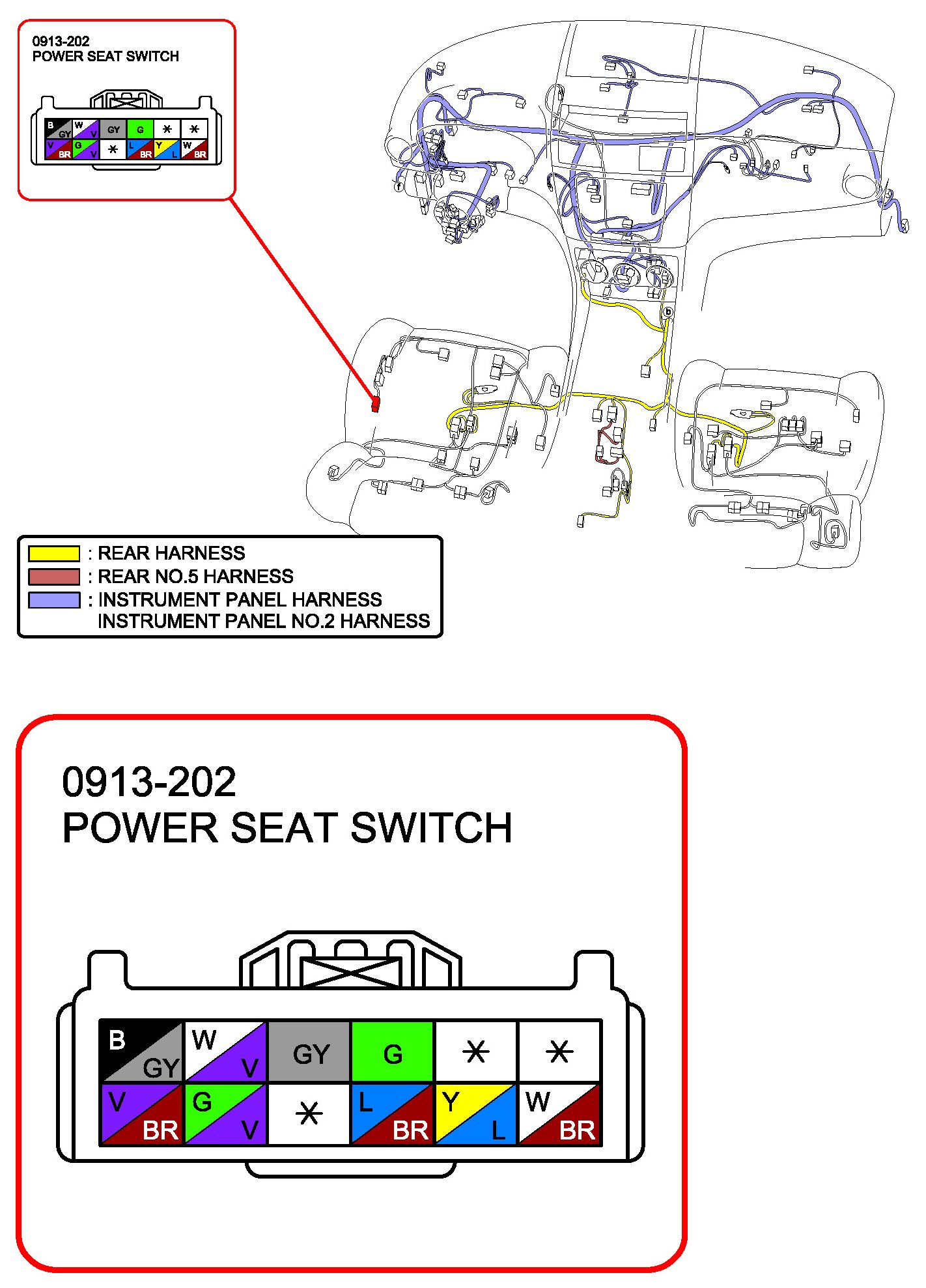

Power Seat Switch (Passenger Side):
