No.3 Amount Of Air Blown From Rear Vents Does Not Change [Full-Auto Air Conditioner]

NO.3 AMOUNT OF AIR BLOWN FROM REAR VENTS DOES NOT CHANGE [FULL-AUTO AIR CONDITIONER]

Description/Possible Cause:

- When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while performing the inspection to discover whether poor contact points are the cause of any intermittent malfunctions. If there is a problem, inspect to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.
Diagnostic procedure

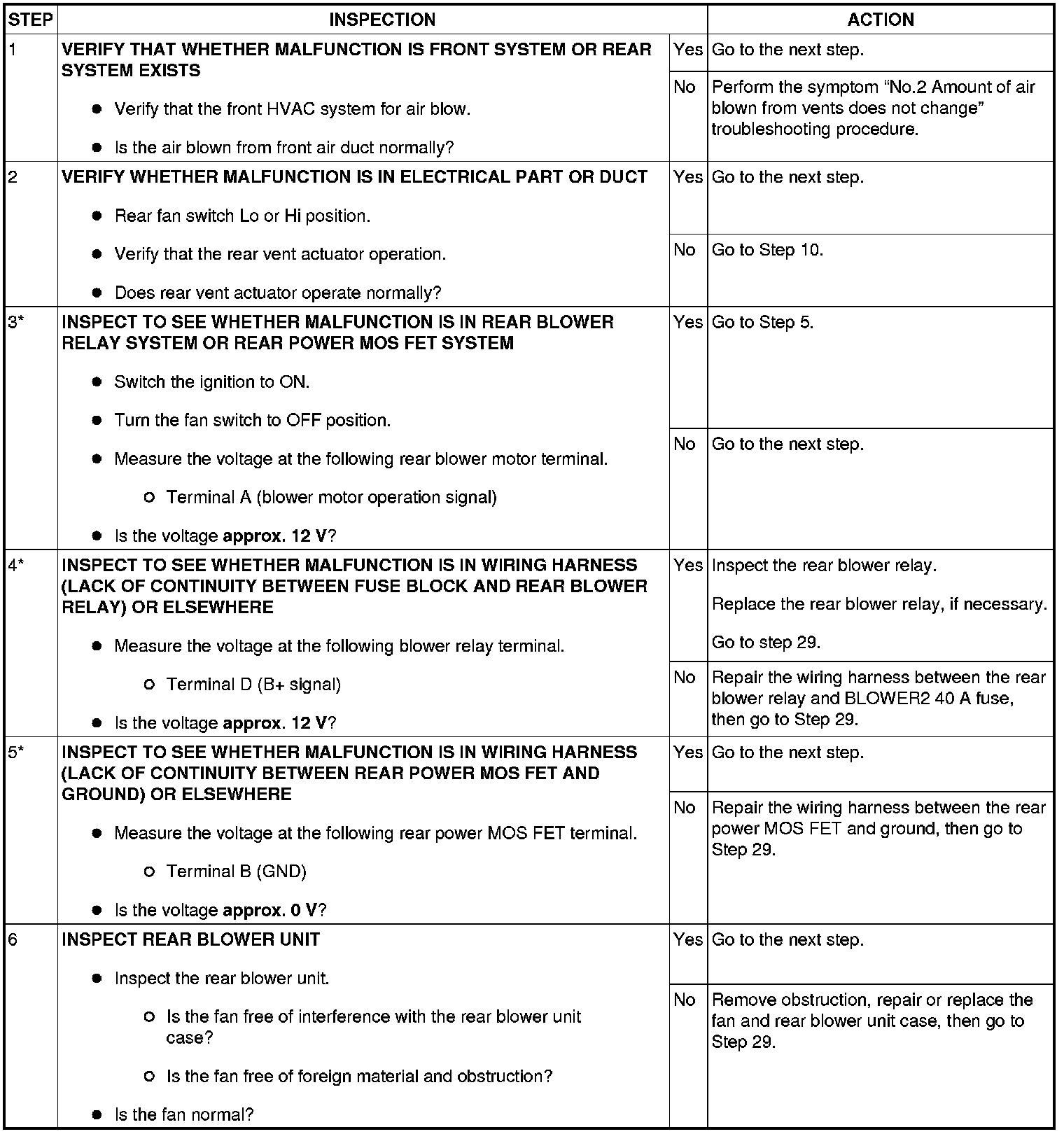

Step 1-Step 6:

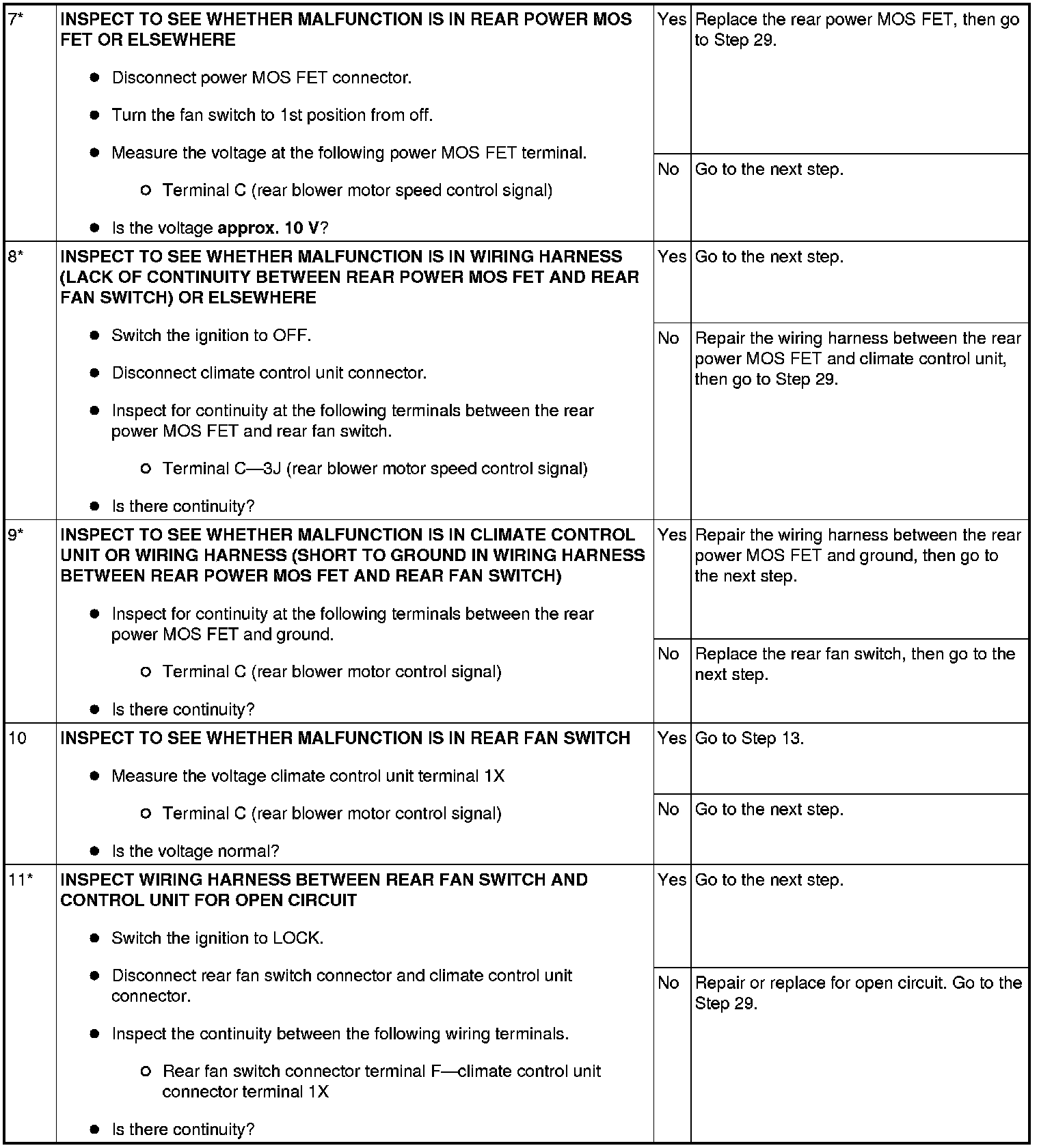

Step 7-Step 11:

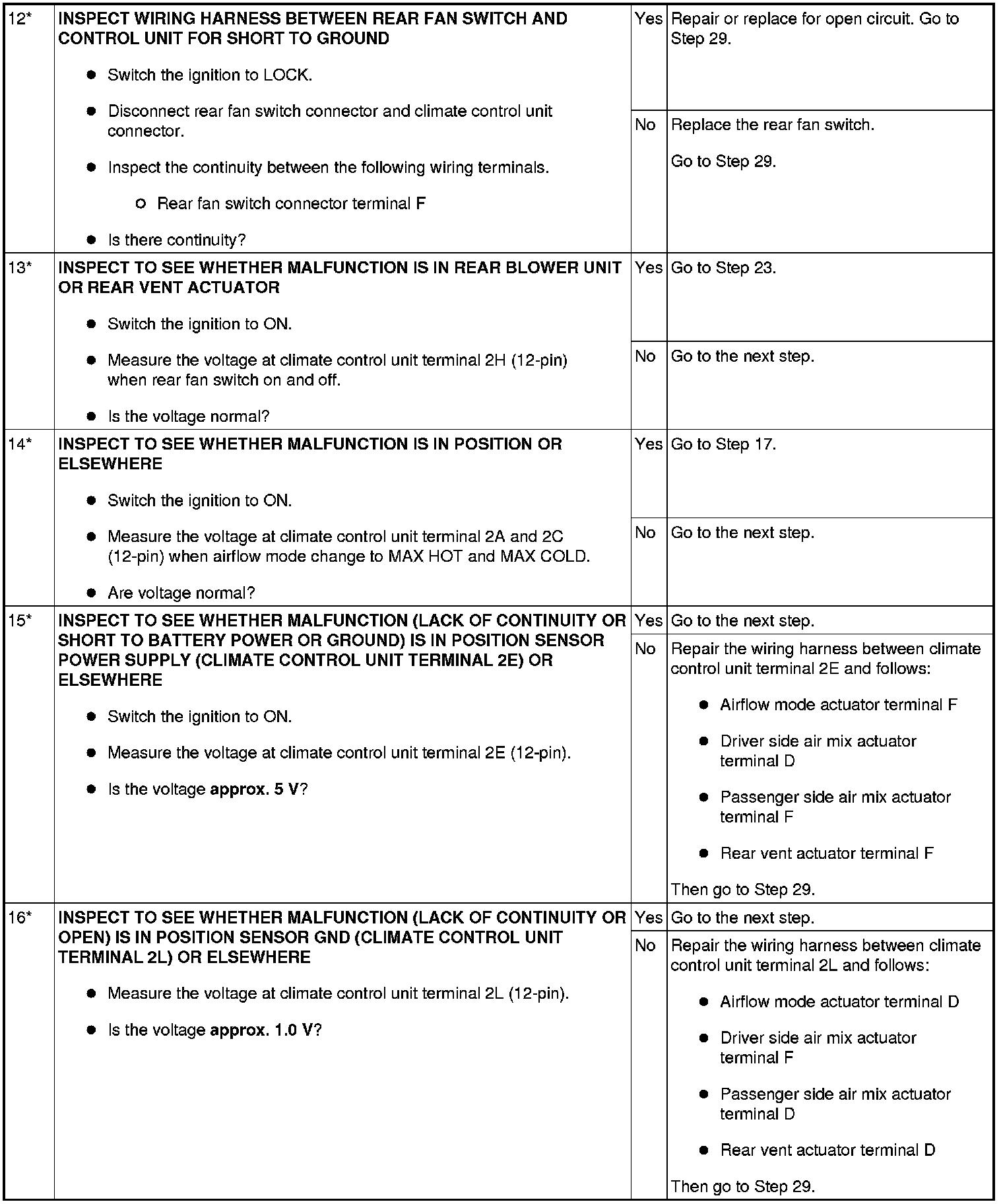

Step 12-Step 16:

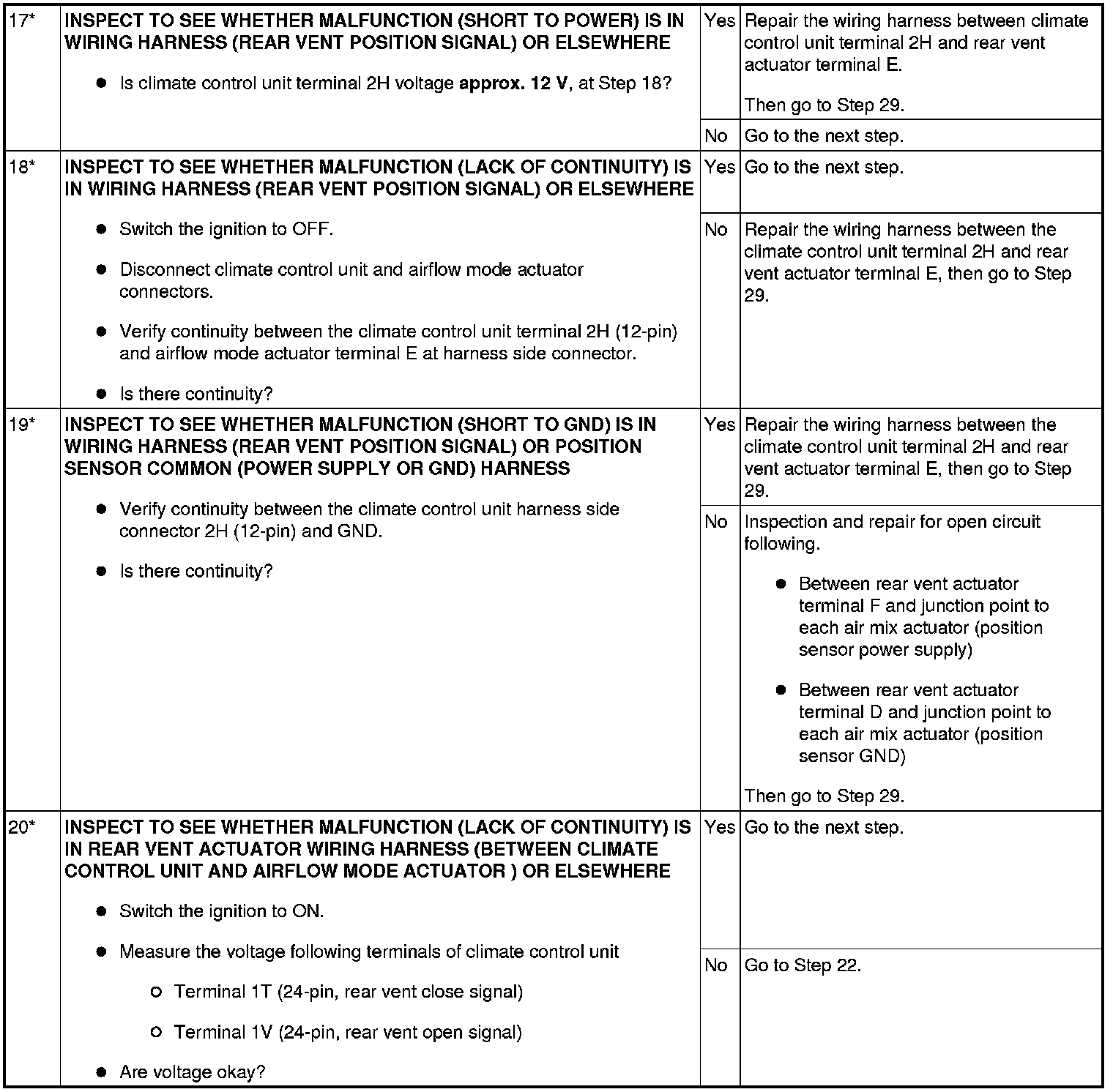

Step 17-Step 20:

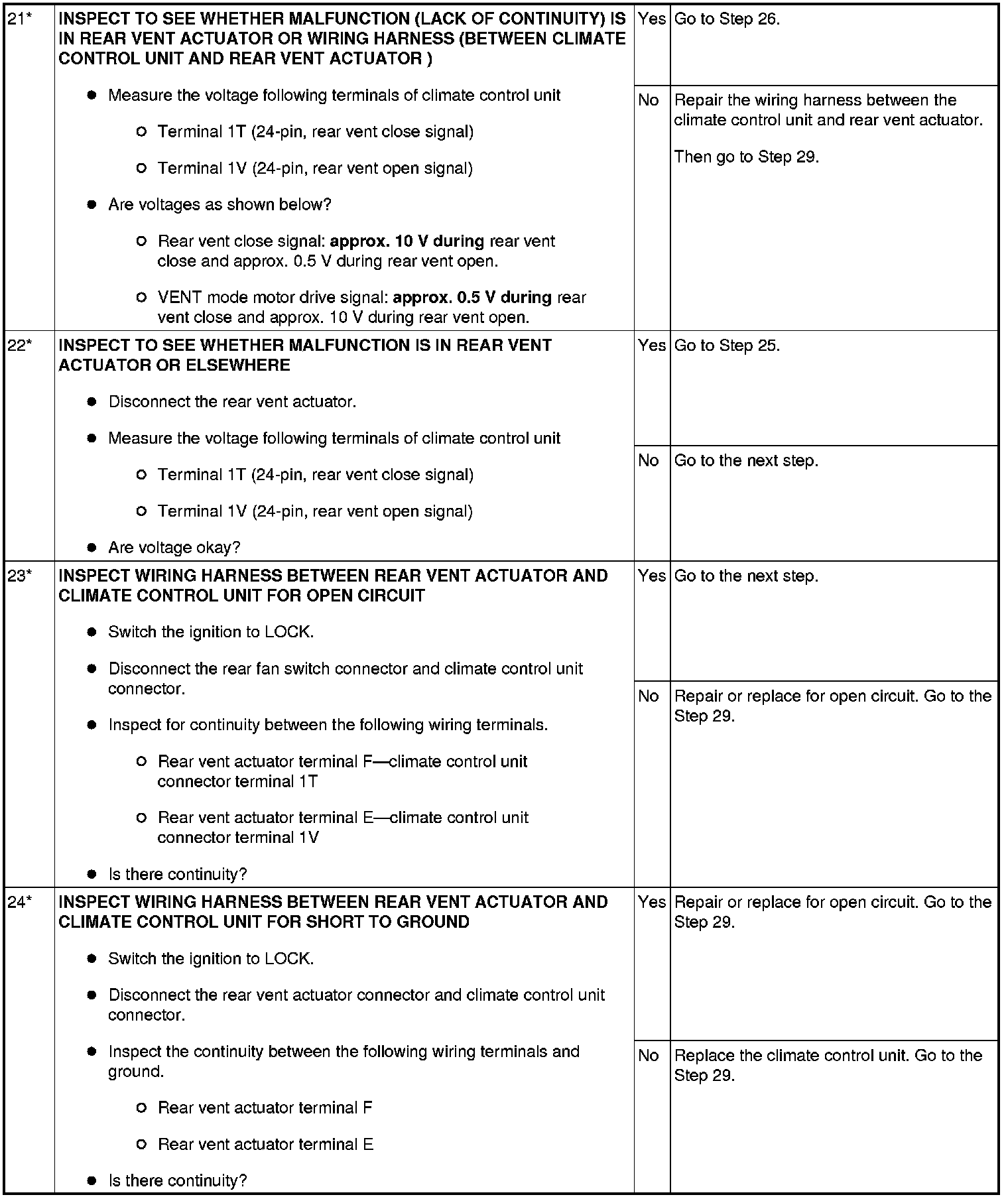

Step 21-Step 24:

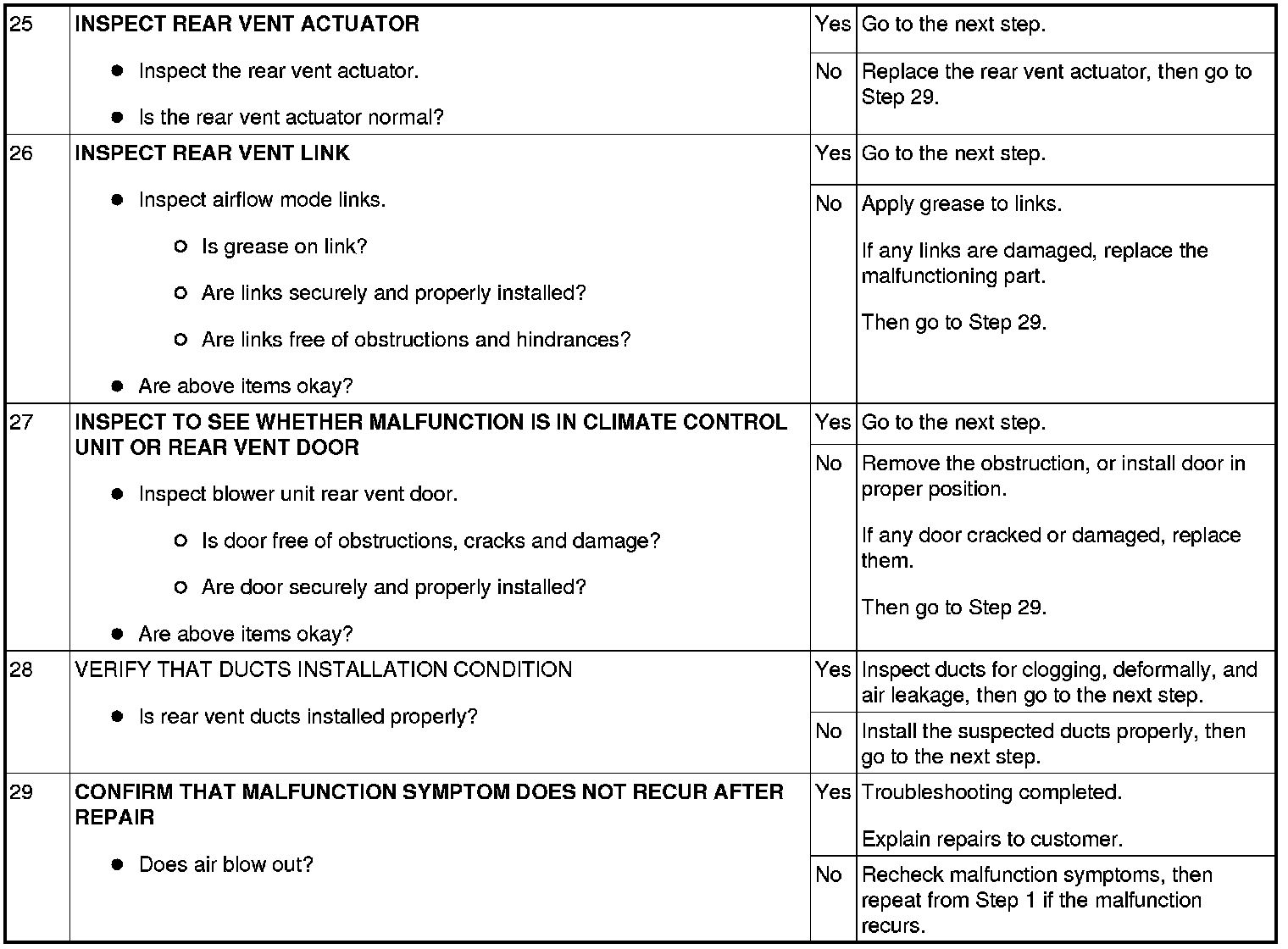

Step 26-Step 29:
