No.5 BSM Indicator Light Does Not Illuminate While Under BSM Indicator Light-Illumination Conditions [Blind Spot Monitoring (BS




NO.5 BSM INDICATOR LIGHT DOES NOT ILLUMINATE WHILE UNDER BSM INDICATOR LIGHT-ILLUMINATION CONDITIONS [BLIND SPOT MONITORING (BSM)]

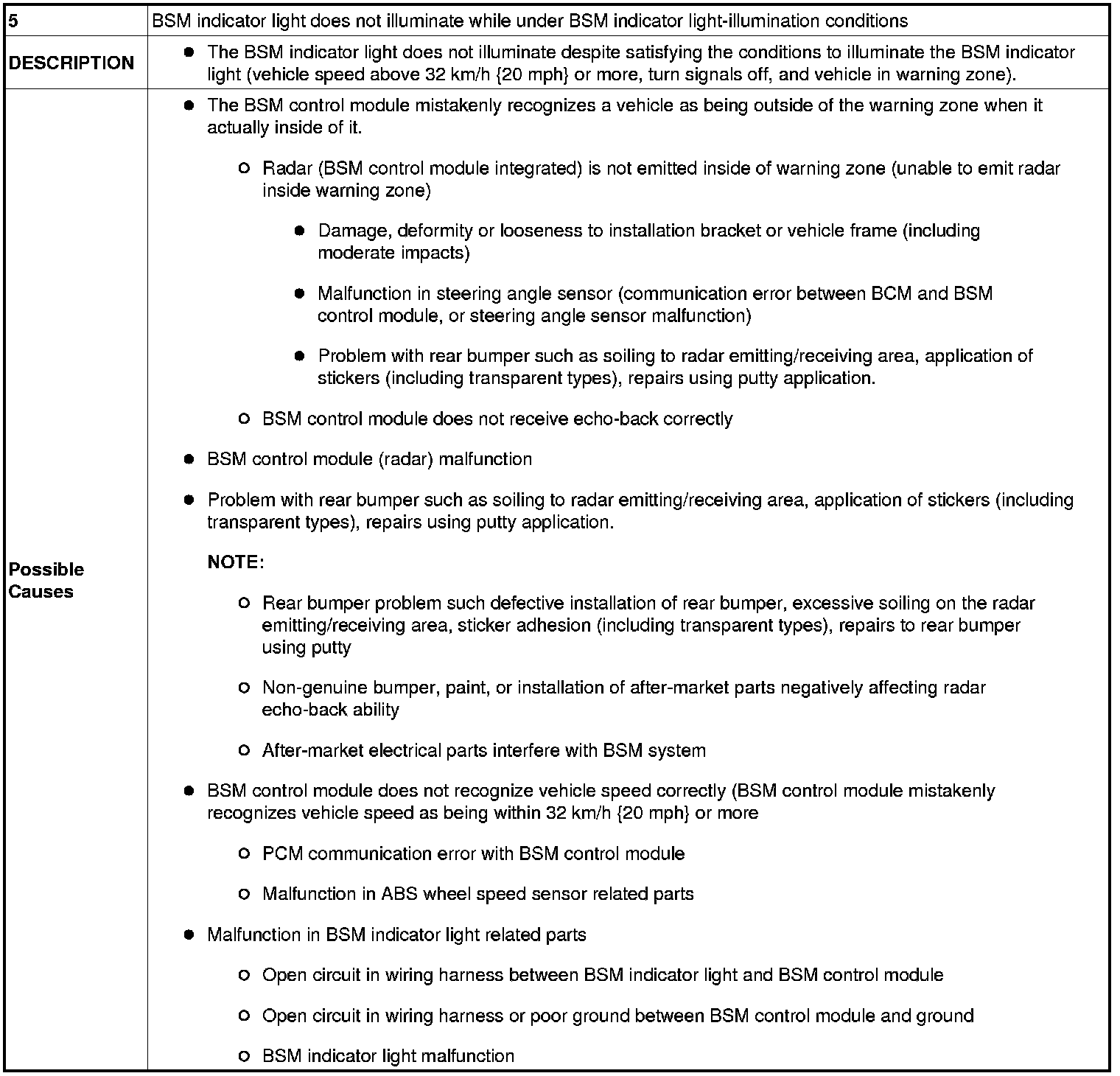

Description/Possible Cause:





Diagnostic Procedure

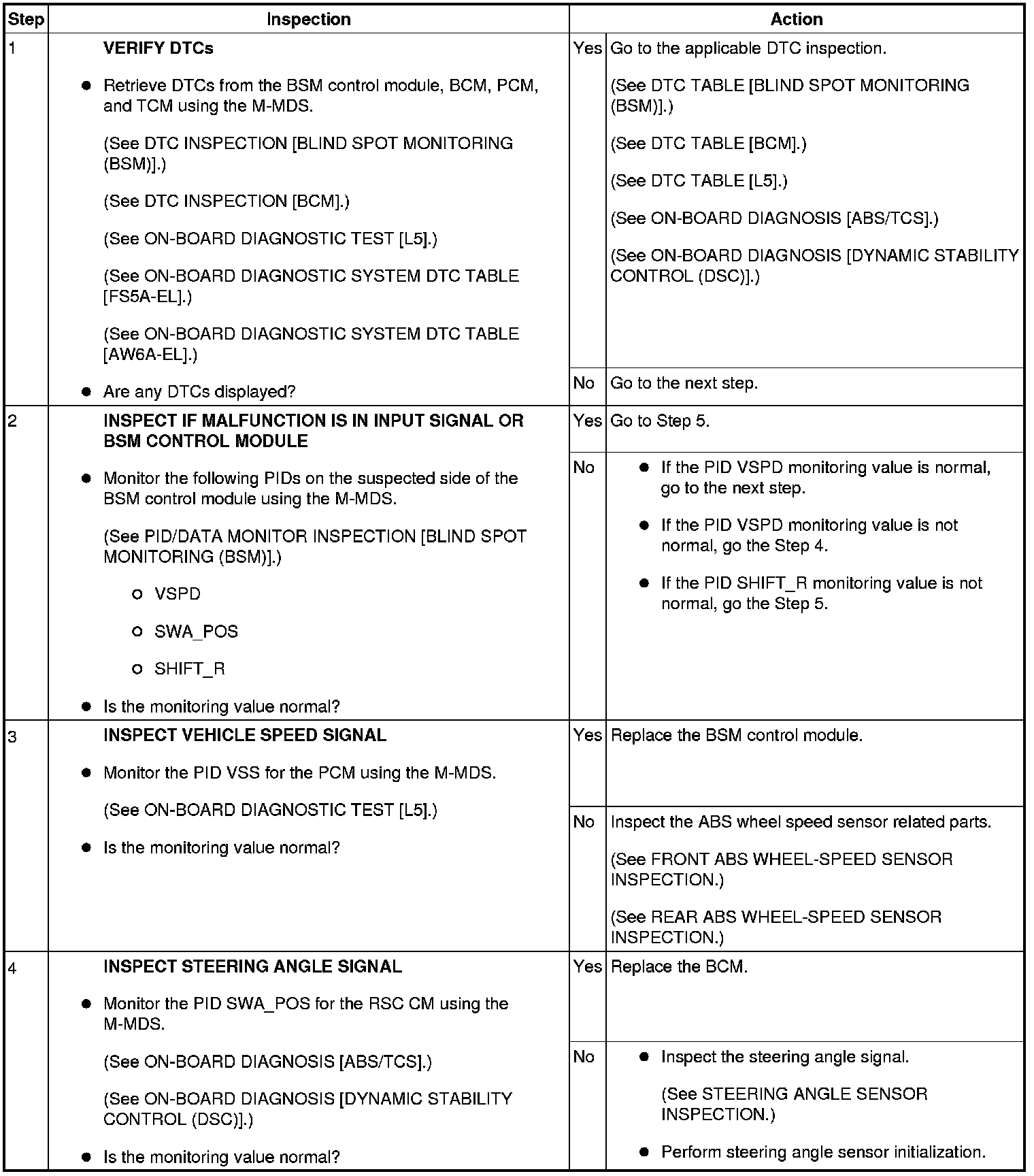

Step 1-Step 4:

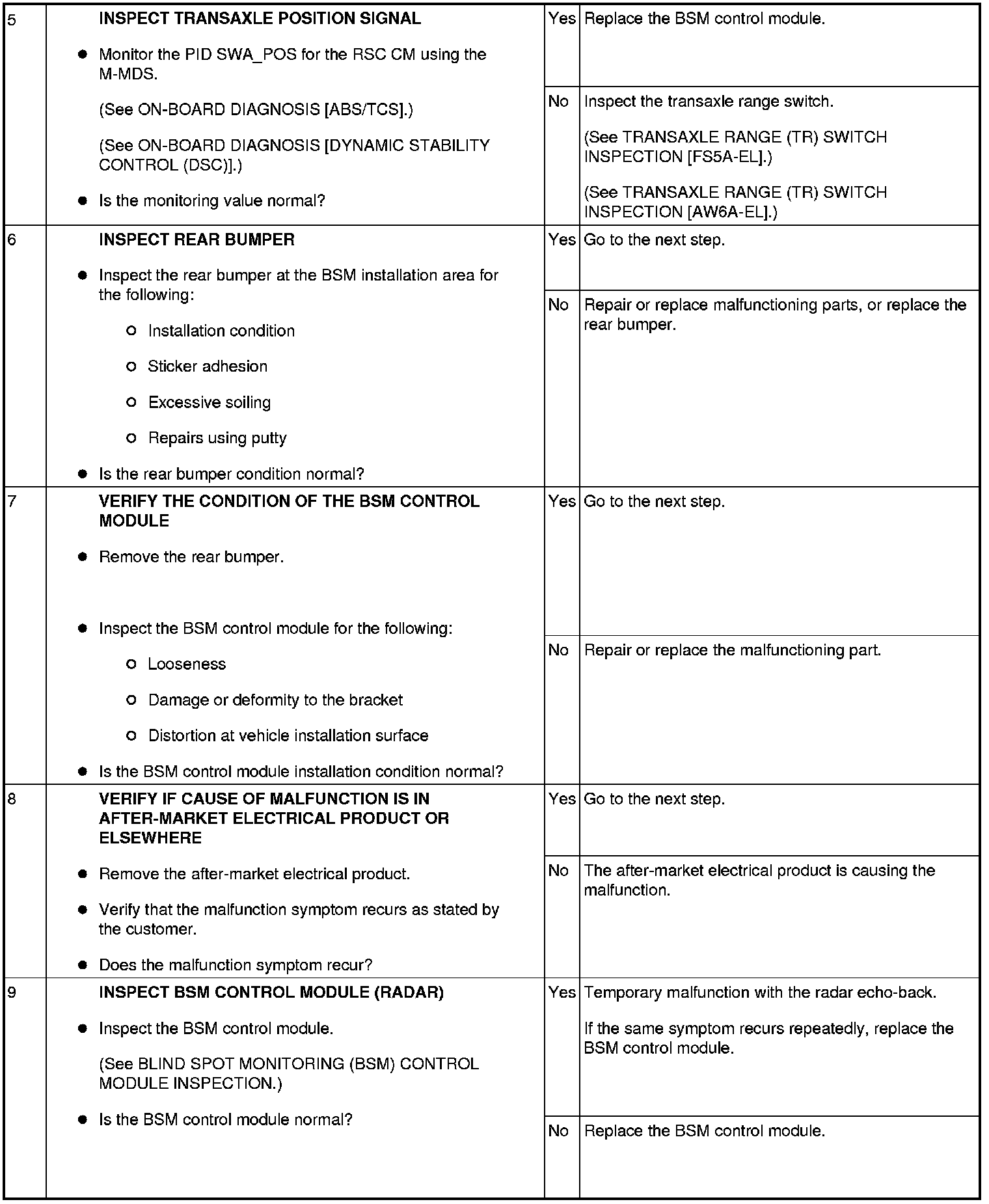

Step 5-Step 9:
