Home >> Mazda >> 2009 >> 6 L4-2.5L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Collision Avoidance and Parking Assist Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No.4 BSM Indicator Light Illuminates While Not Under Light-Illumination Conditions [Blind Spot Monitoring (BSM)]

No.4 BSM Indicator Light Illuminates While Not Under Light-Illumination Conditions [Blind Spot Monitoring (BSM)]




NO.4 BSM INDICATOR LIGHT ILLUMINATES WHILE NOT UNDER LIGHT-ILLUMINATION CONDITIONS [BLIND SPOT MONITORING (BSM)]

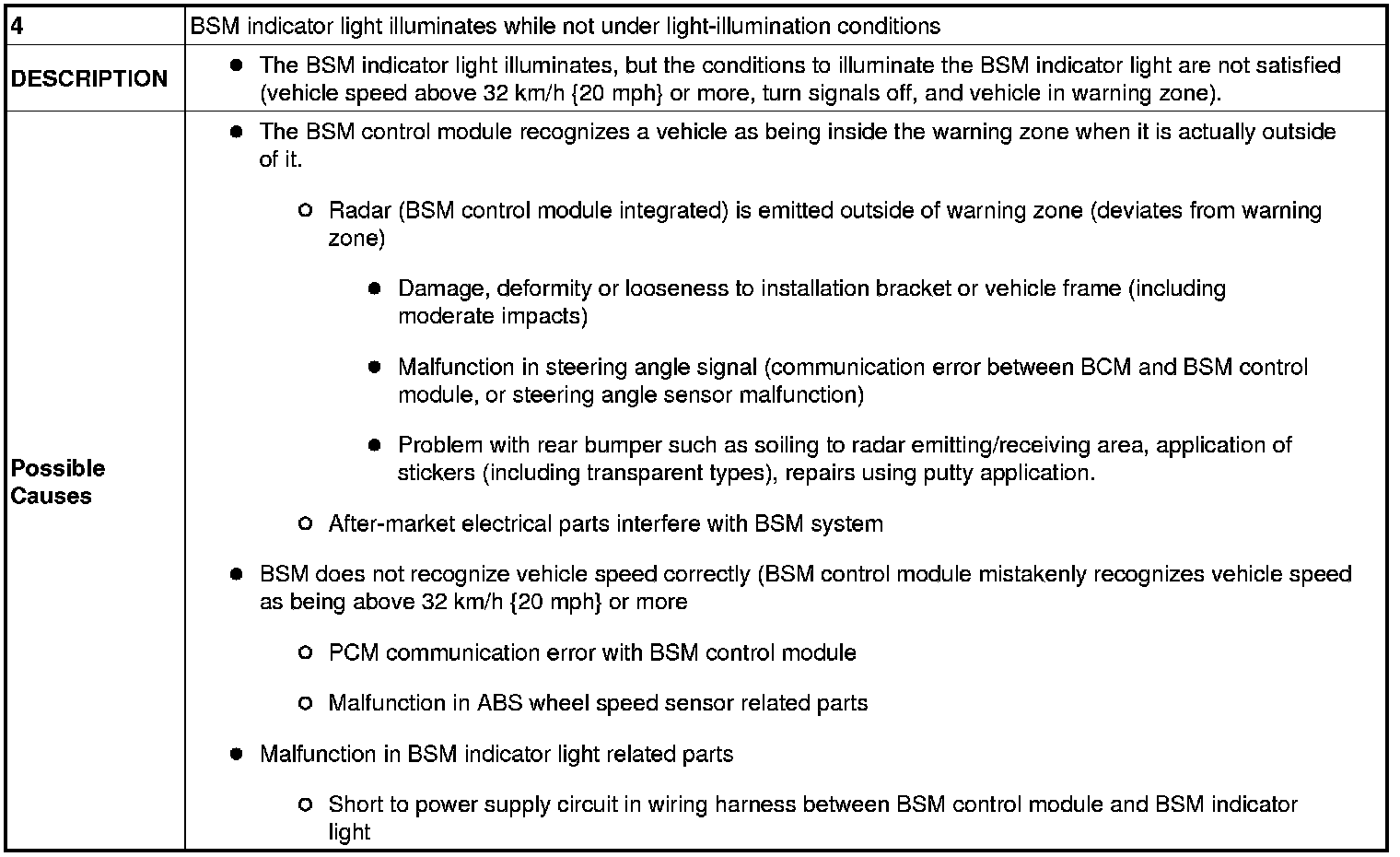

Description/Possible Cause:





Diagnostic Procedure

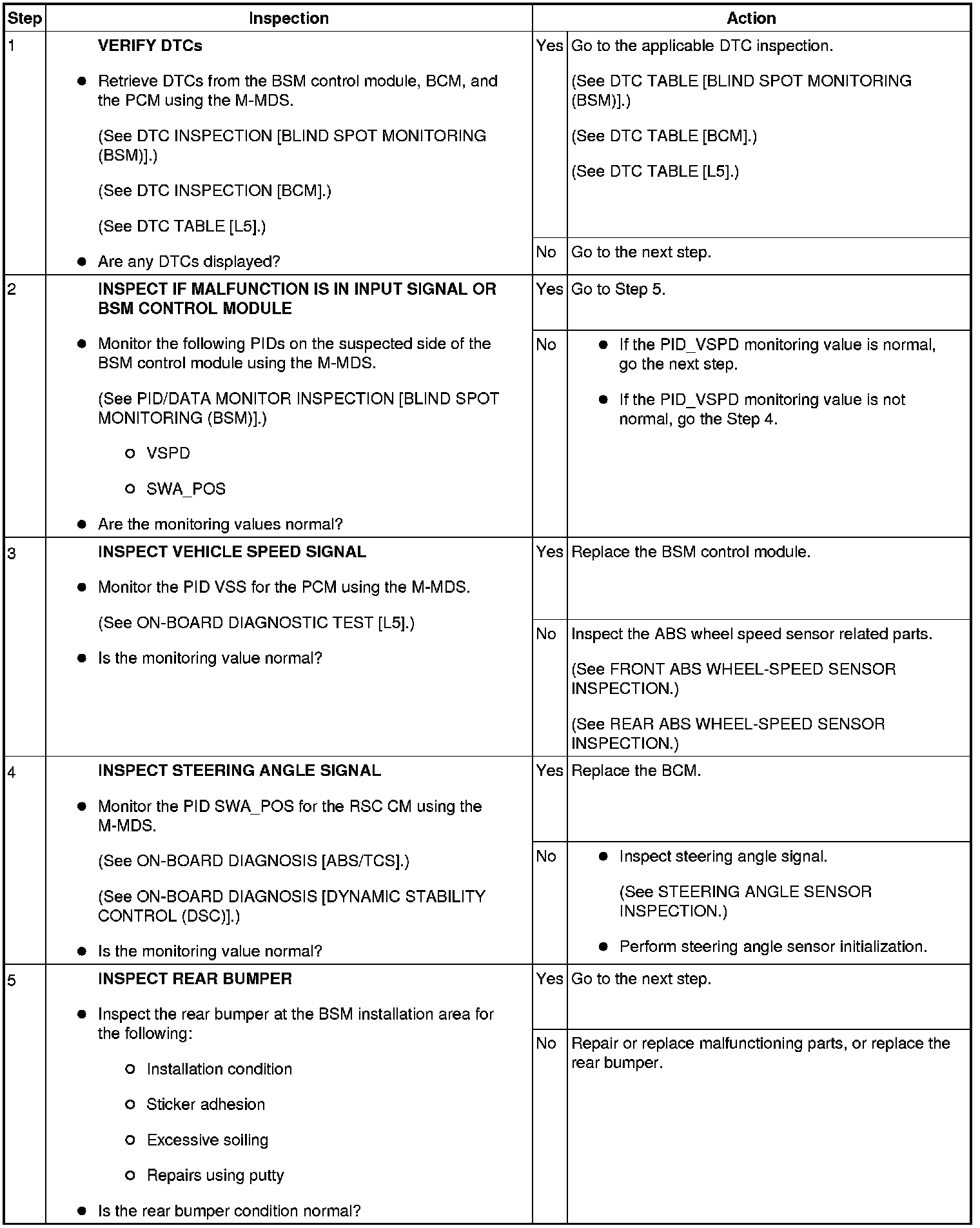

Step 1-Step 5:

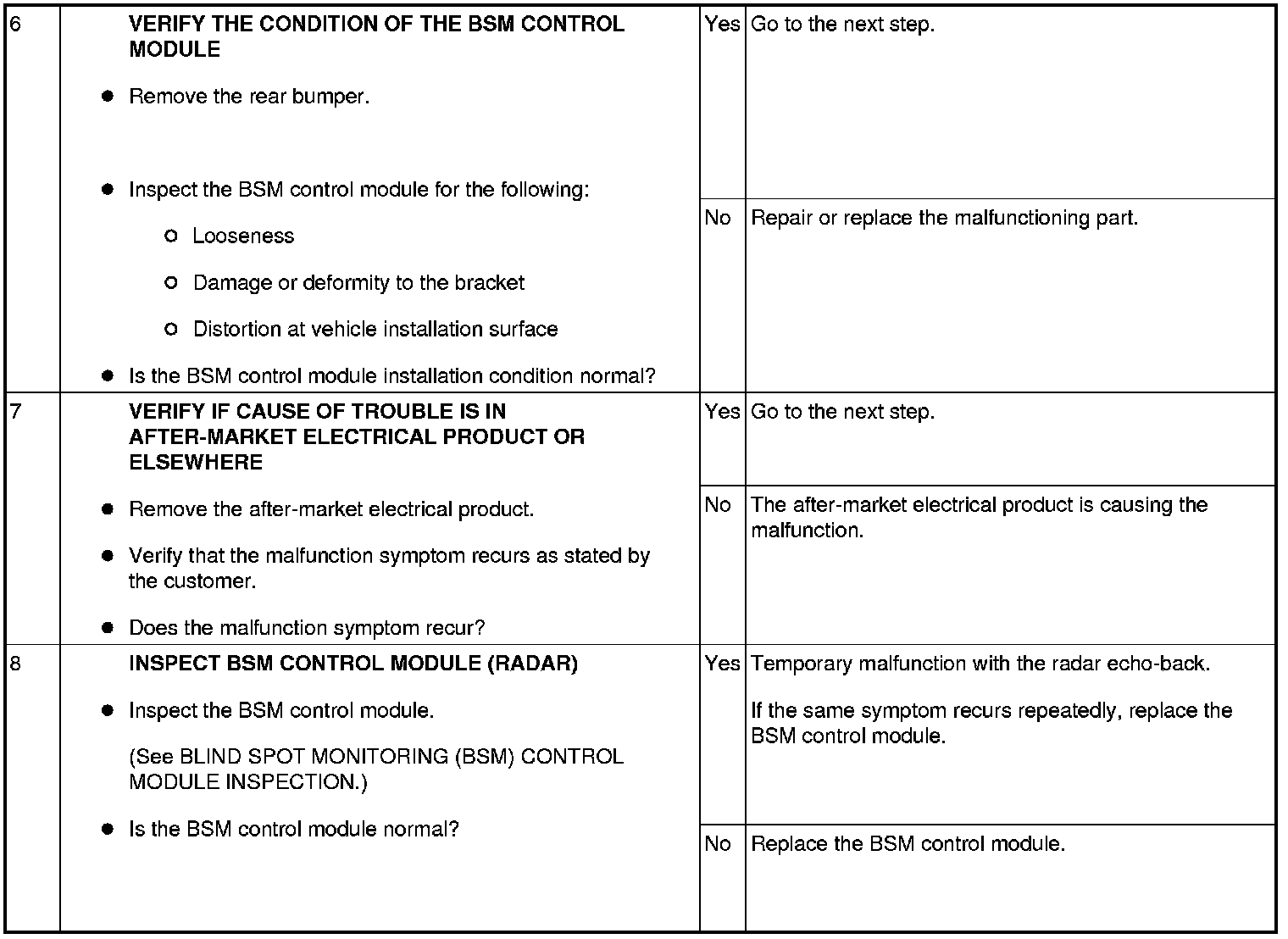

Step 6-Step 8:
