No.3 BSM Off Indicator Light Illuminates Continuously [Blind Spot Monitoring (BSM)]




NO.3 BSM OFF INDICATOR LIGHT ILLUMINATES CONTINUOUSLY [BLIND SPOT MONITORING (BSM)]

Description/Possible Cause:

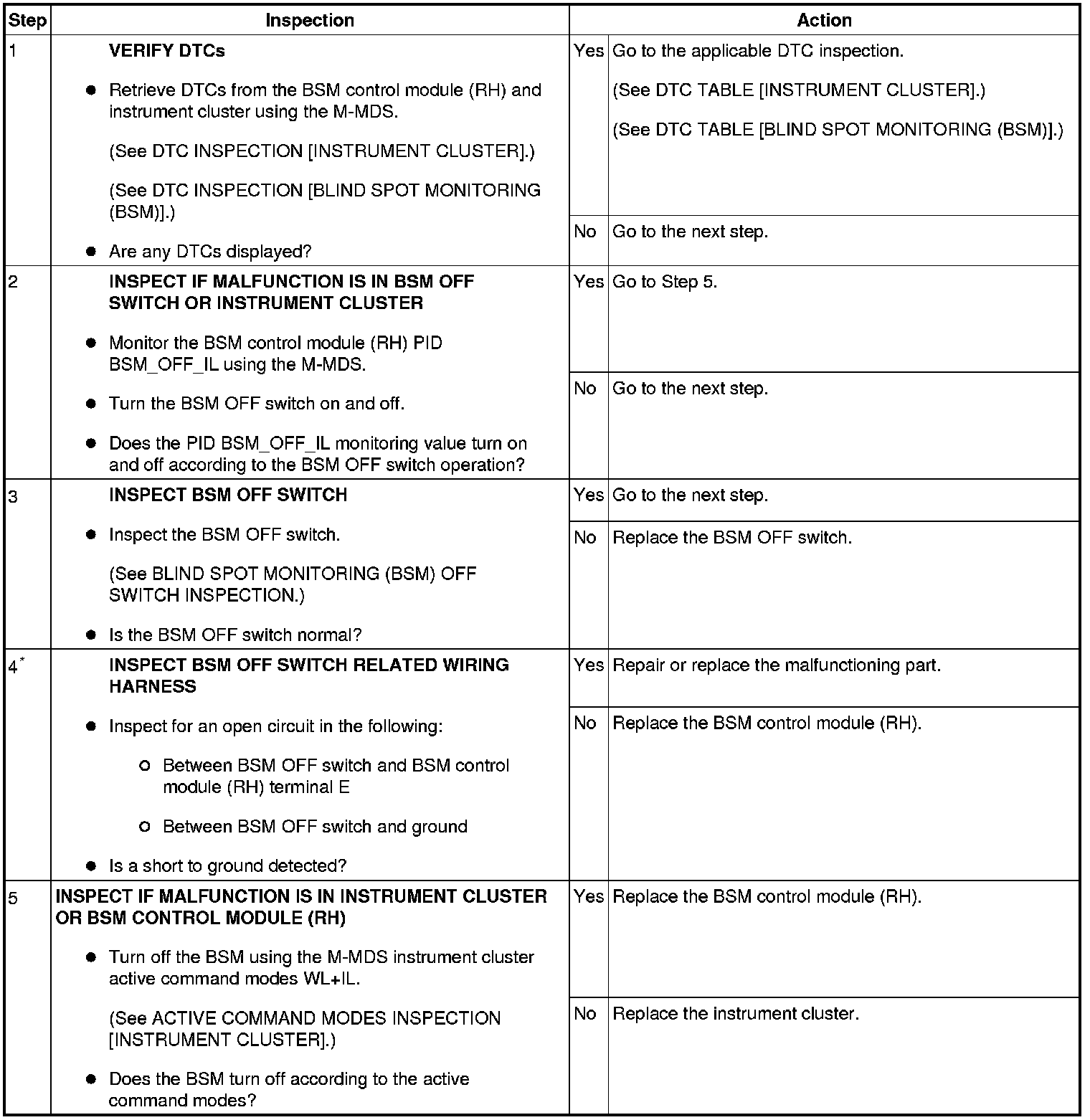

Diagnostic Procedure

Step 1-Step 5:
