U0109:01




DTC U0109:00, U0109:01, U0109:02 [MZI-3.7]

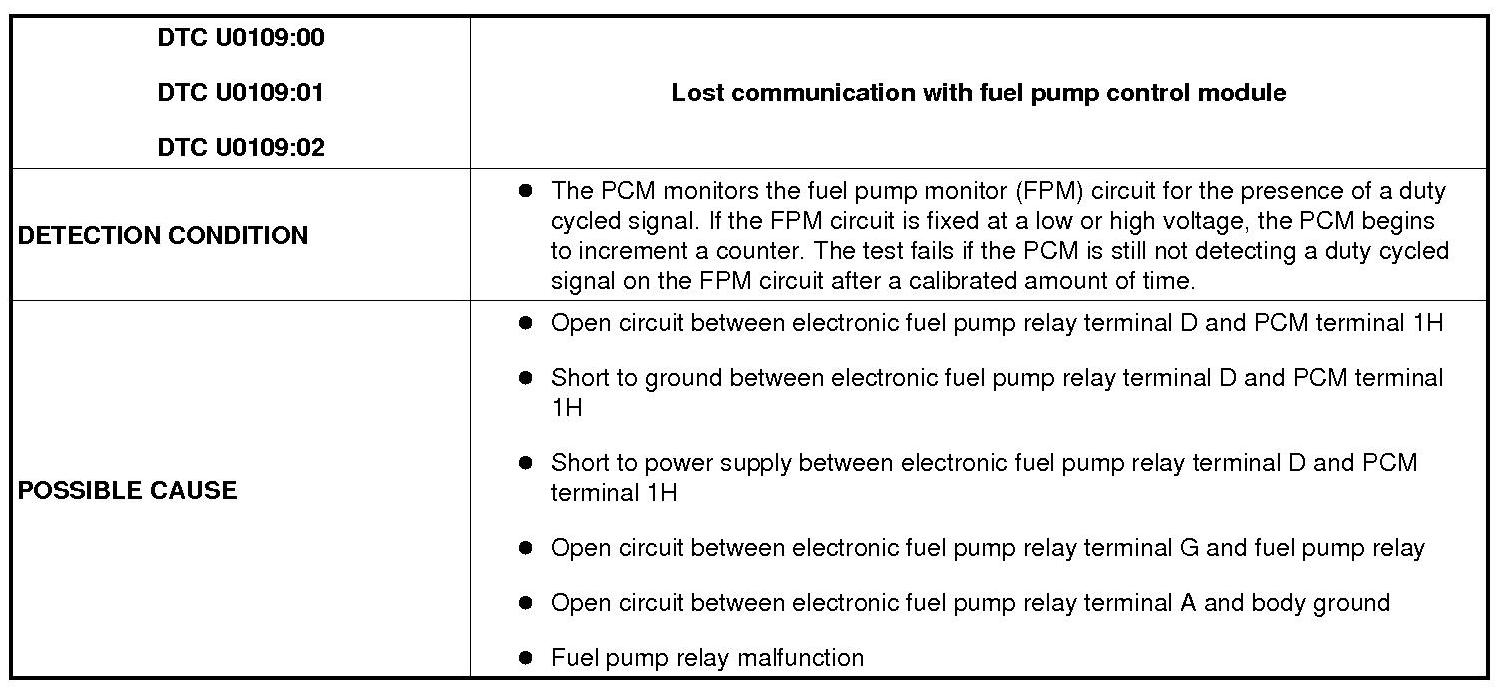

Detection Condition/Possible Cause (Part 1):





Detection Condition/Possible Cause (Part 2):





Diagnostic procedure

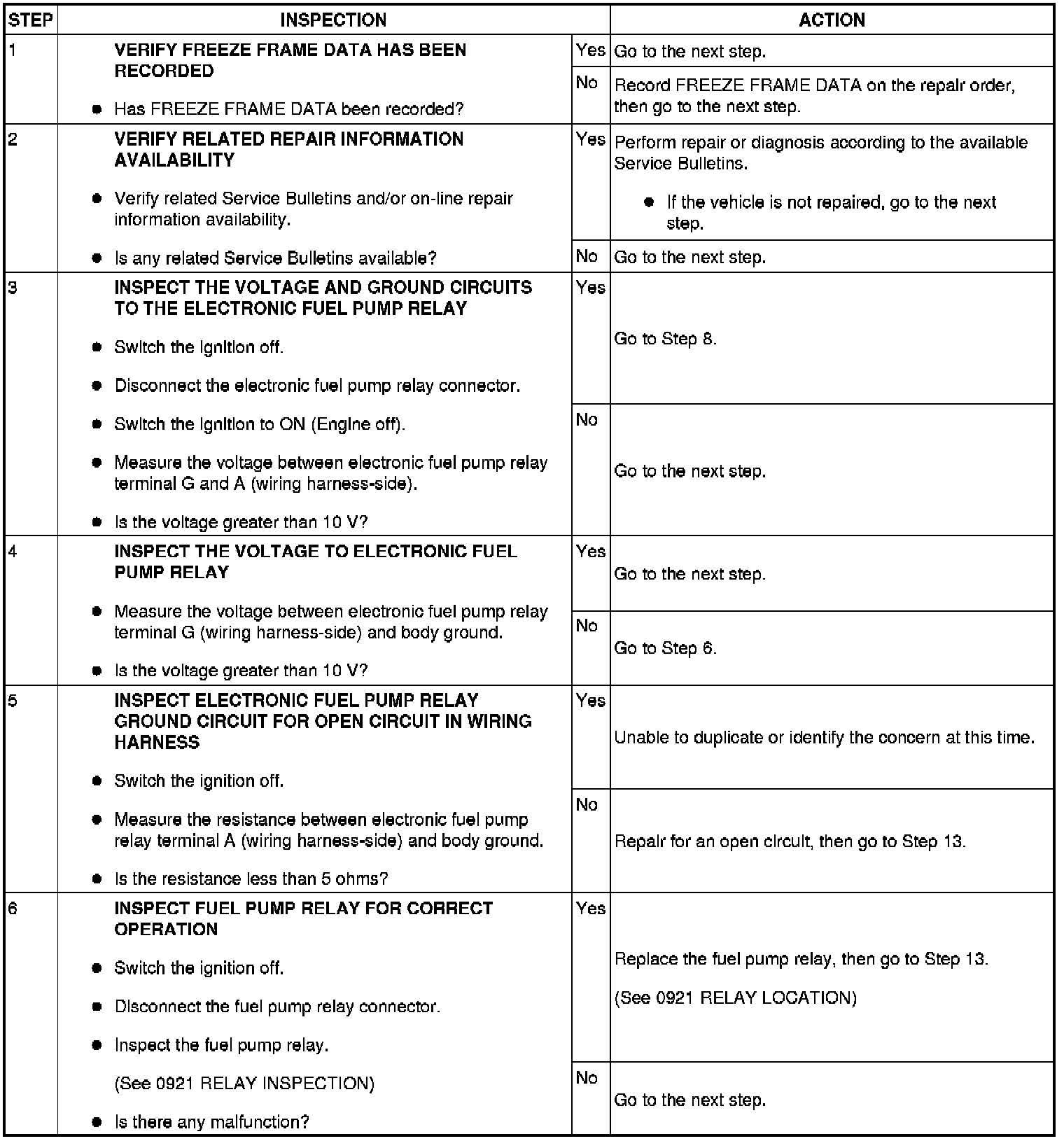

Step 1-Step 6:

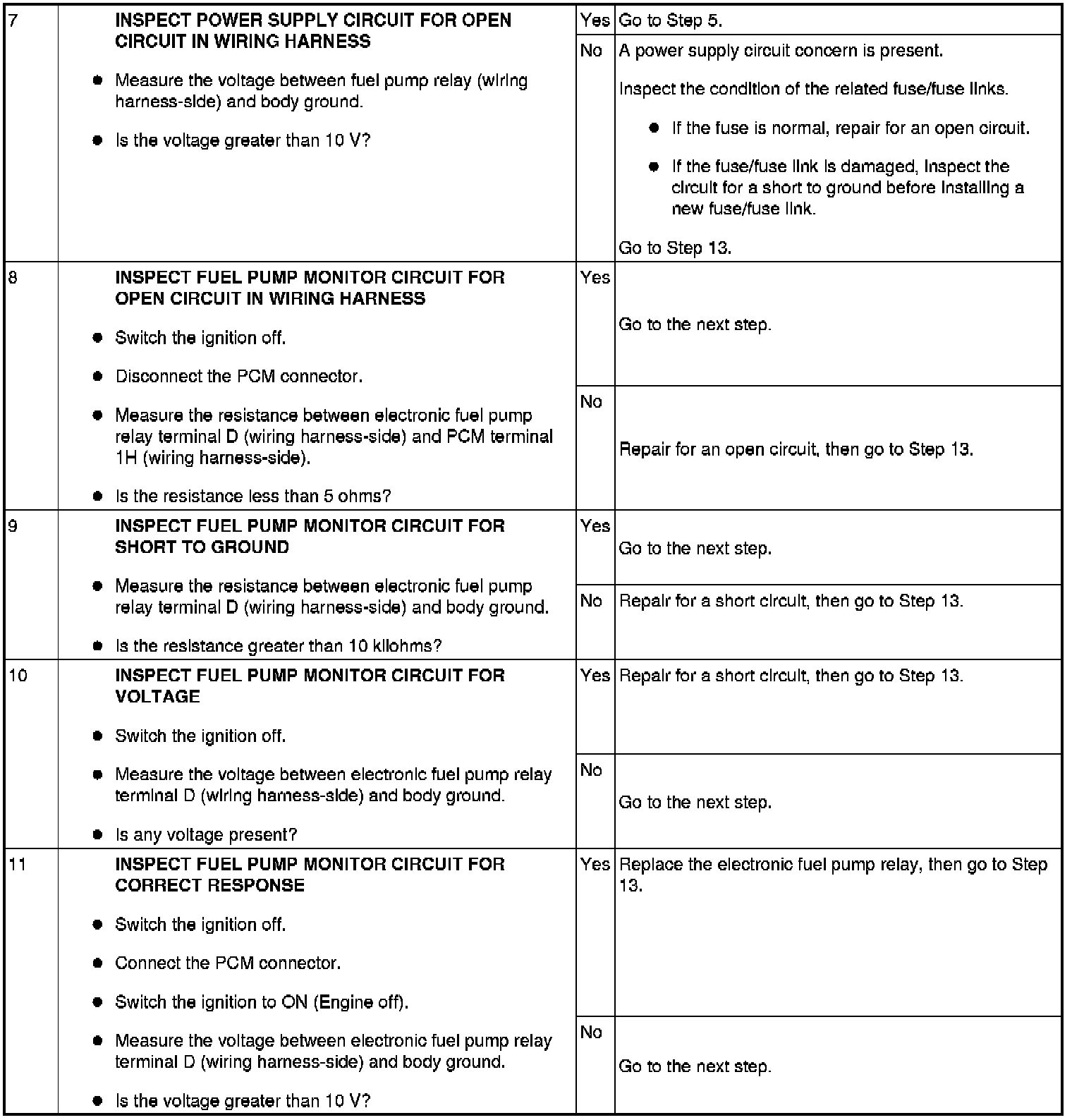

Step 7-Step 11:





Step 12-Step 14:
