U0073




DTC U0001:88, U0073:00 [MULTIPLEX COMMUNICATION SYSTEM]

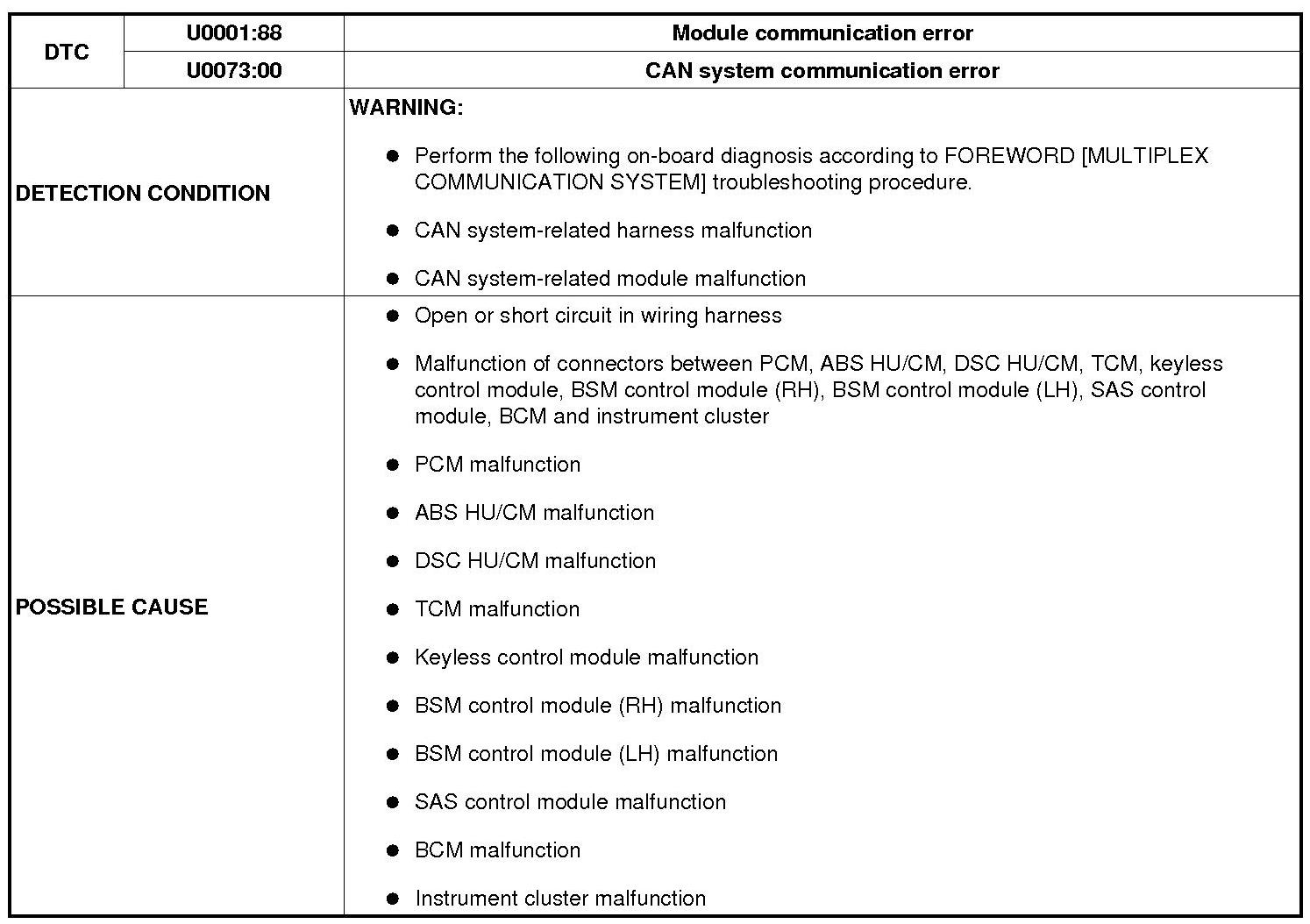

Detection Condition/Possible Cause (Part 1):





Detection Condition/Possible Cause (Part 2):






Diagnostic procedure

CAUTION:
- When disconnecting the connector, verify that there is no looseness, damage, deformation, corrosion, or poor connection of the connector terminals.

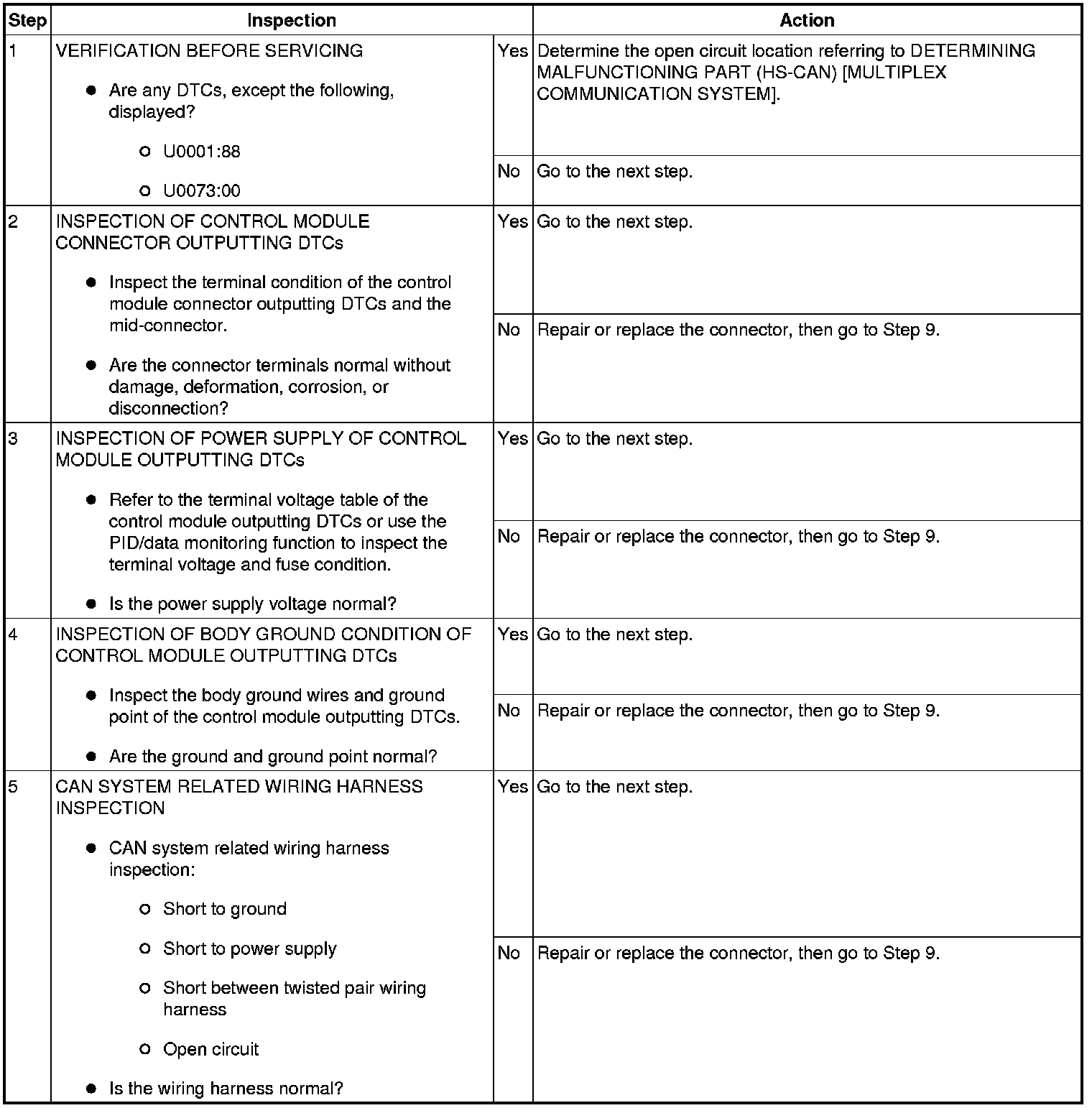

Step 1-Step 5:

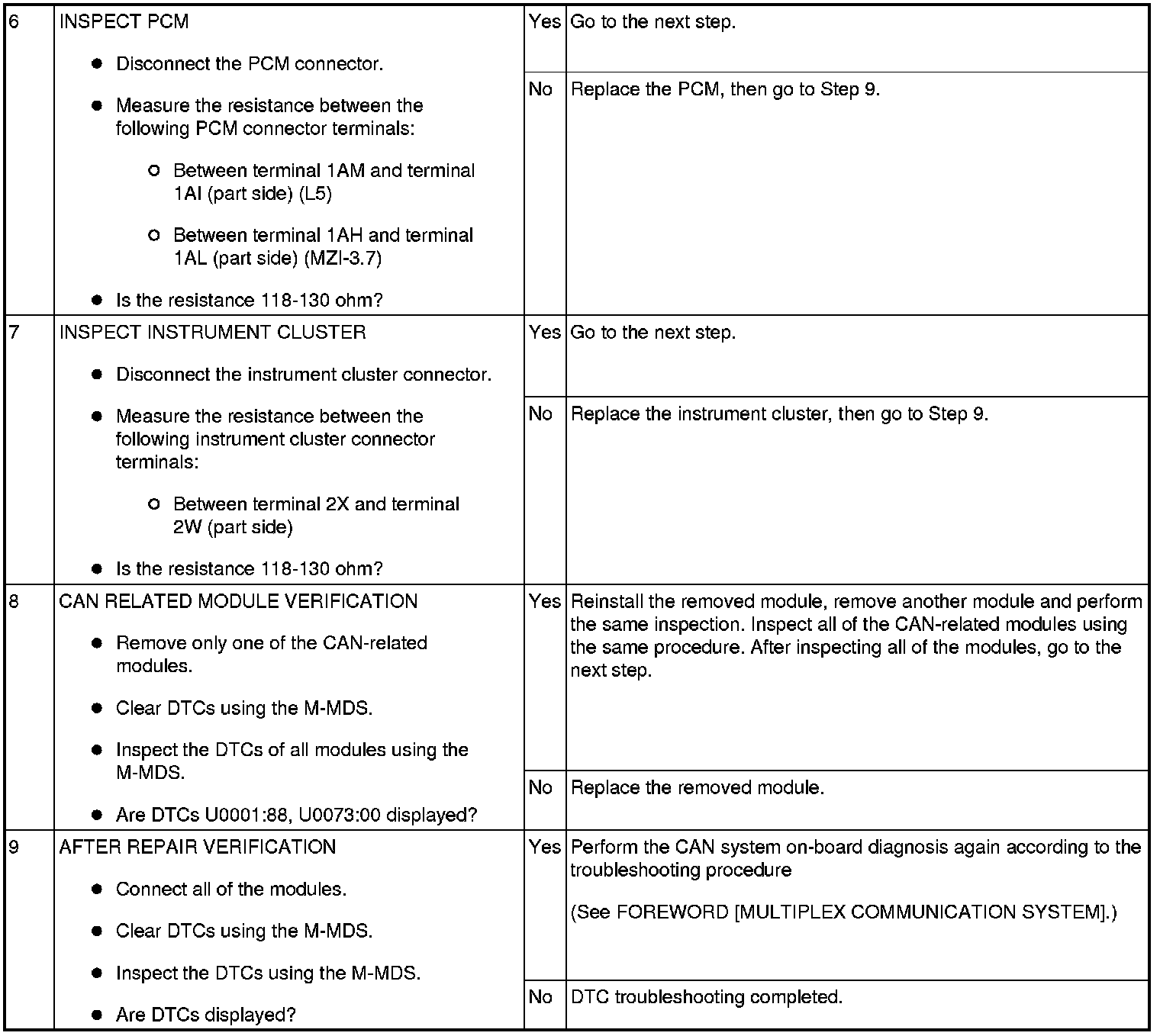

Step 6-Step 9:
