P2196
P2196
DTC P2196:00 [L5]

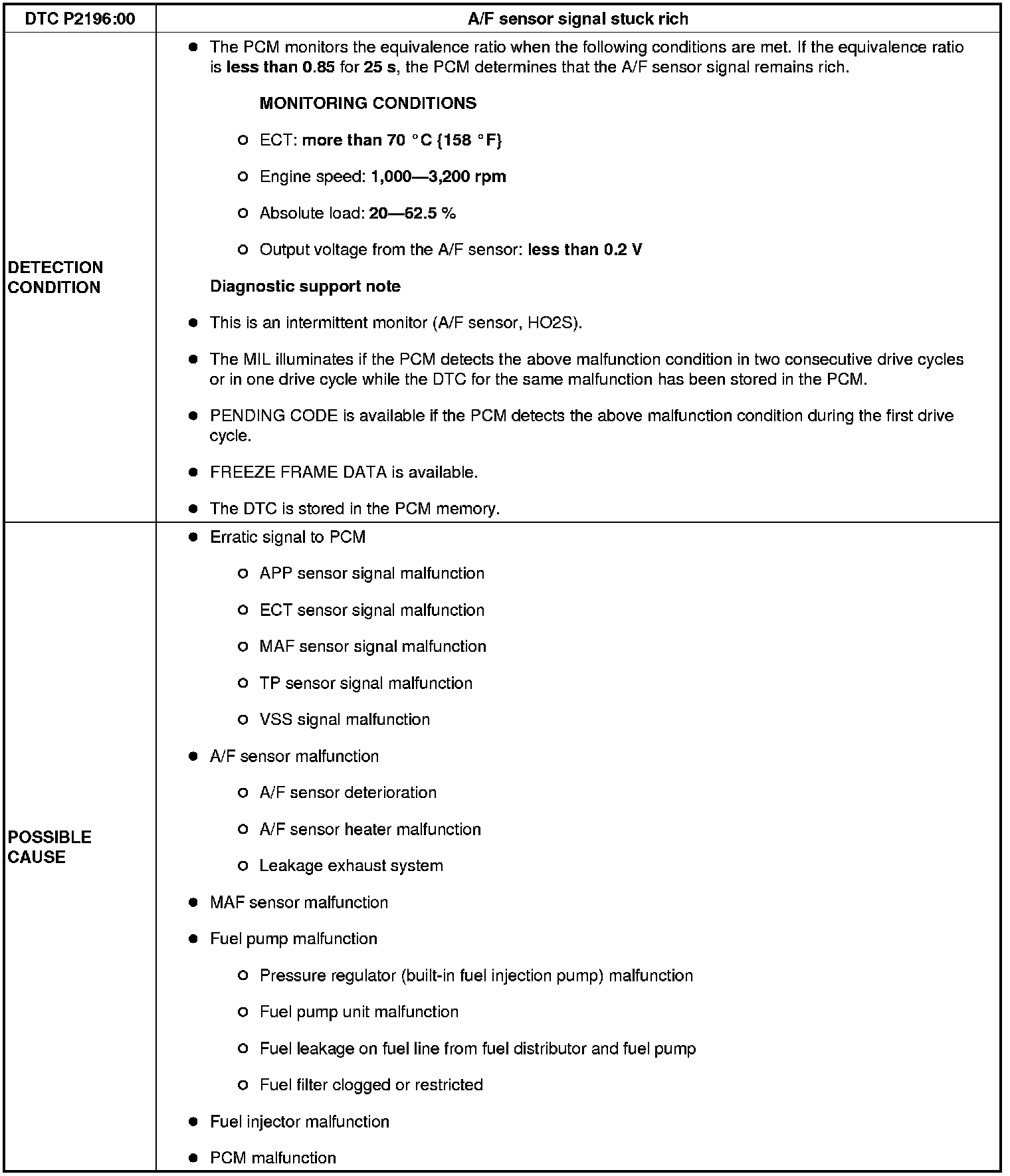

Detection Condition/Possible Cause:
Diagnostic procedure

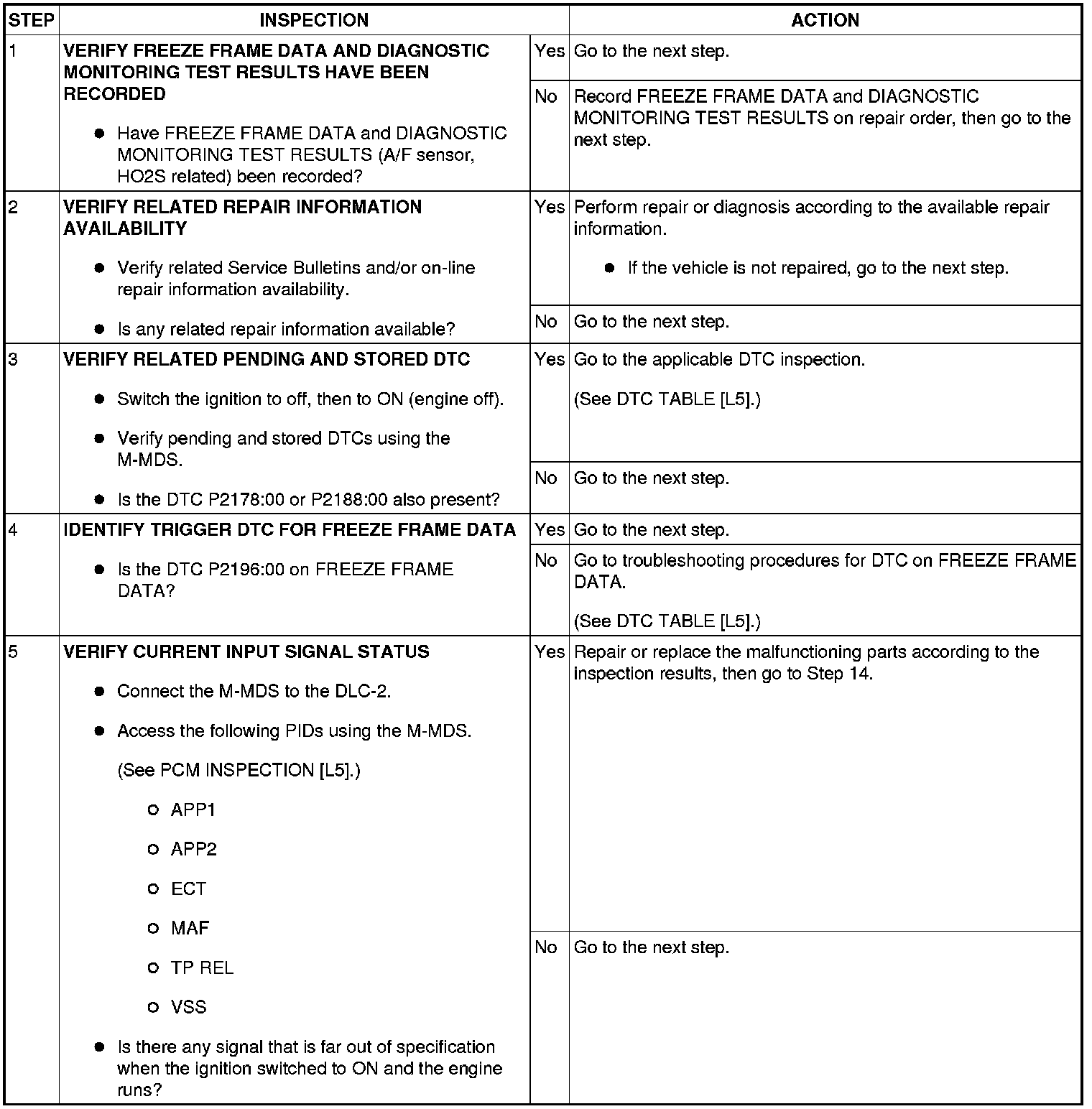

Step 1-Step 5:

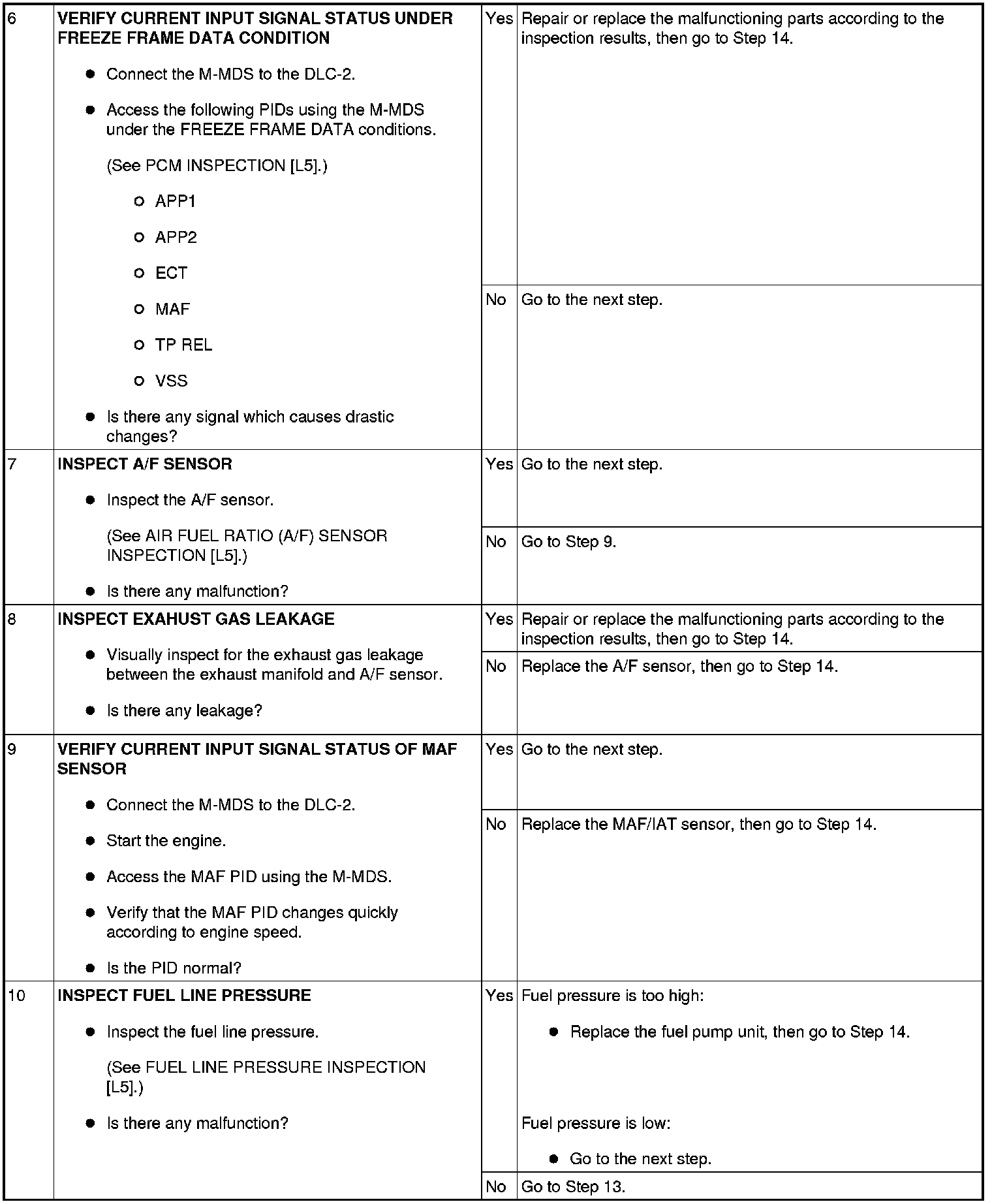

Step 6-Step 10:

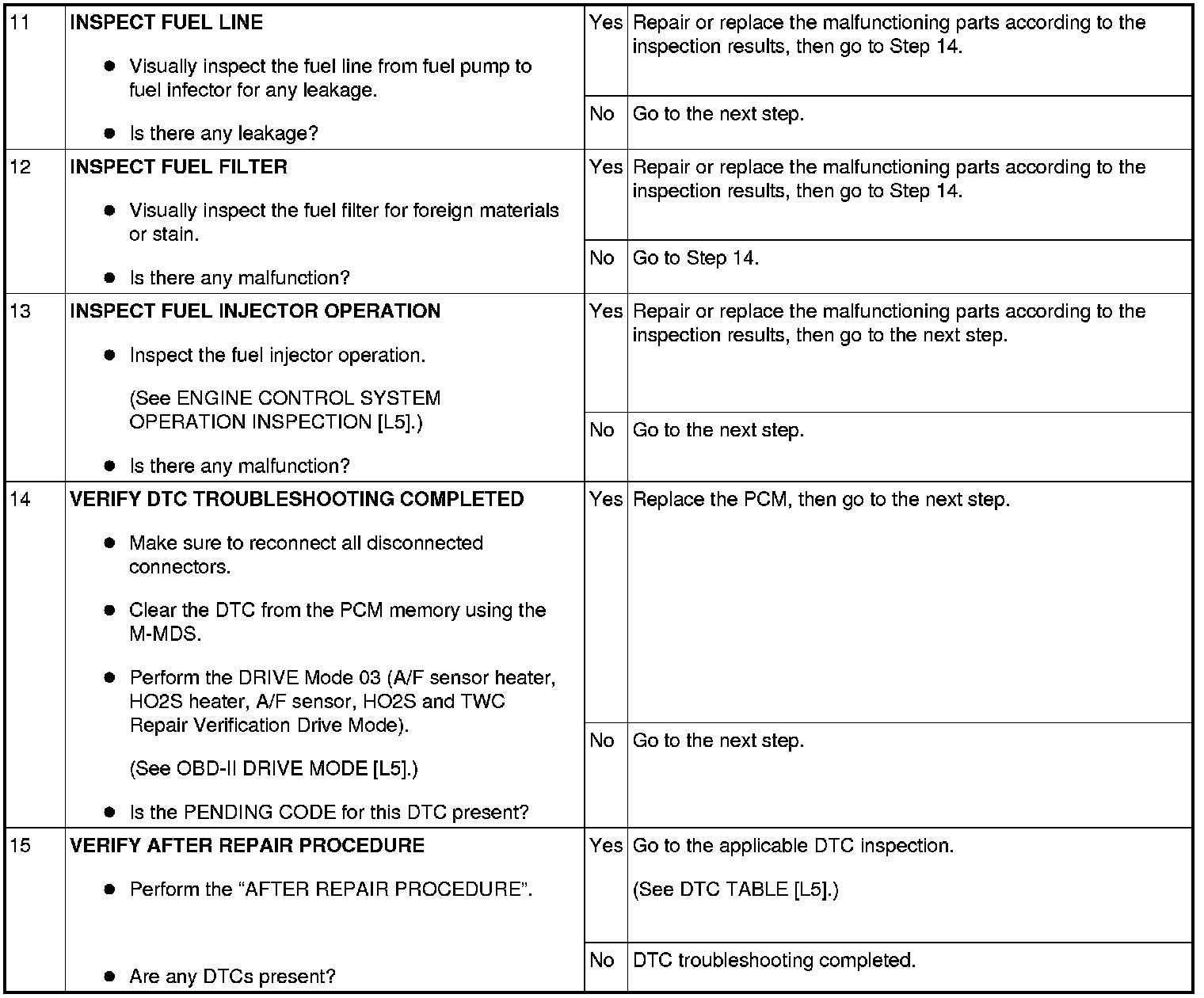

Step 11-Step 15:
