P2178
P2178
DTC P2178:00 [L5]
Detection Condition:

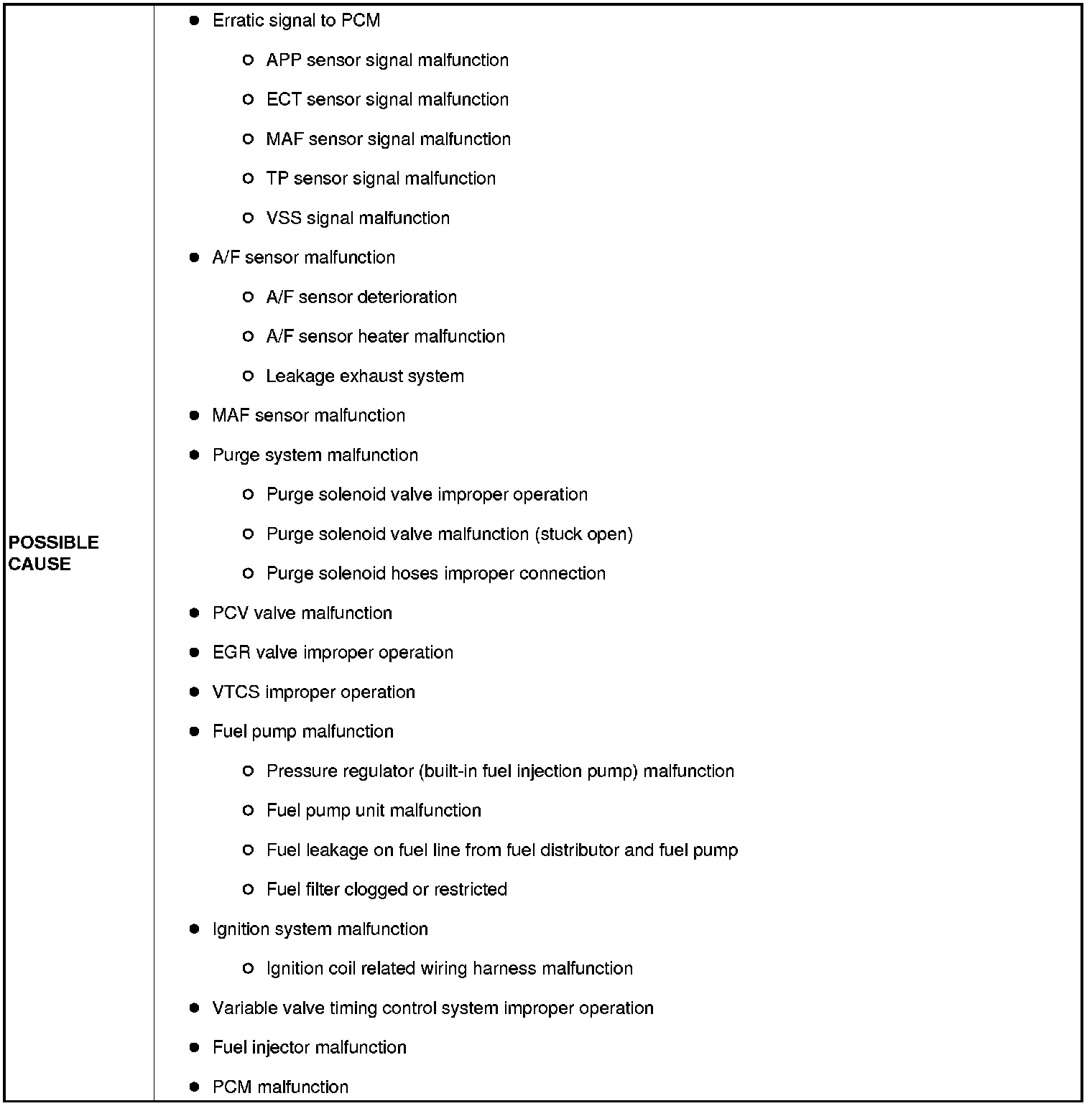

Possible Cause:
Diagnostic procedure

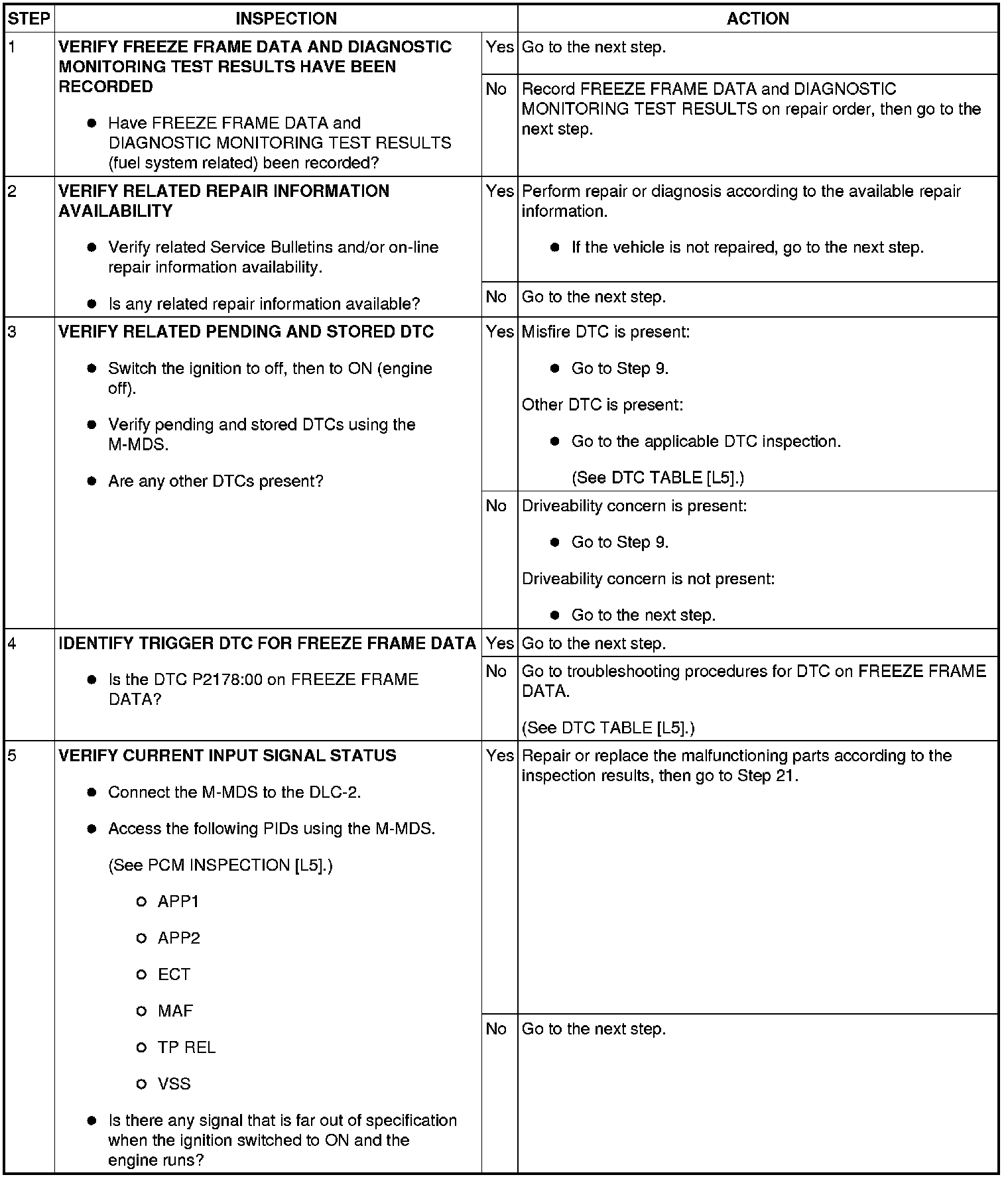

Step 1-Step 5:

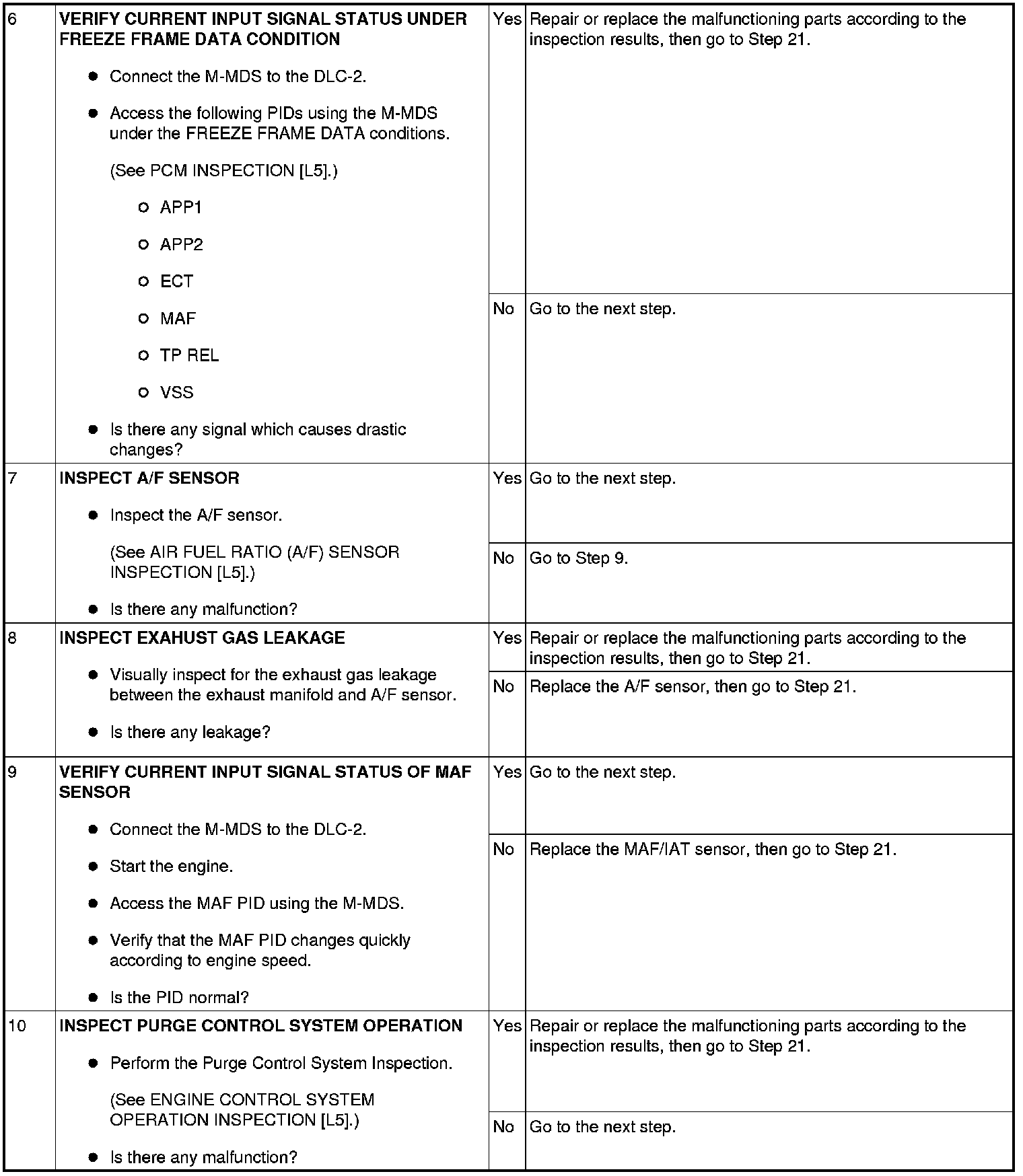

Step 6-Step 10:

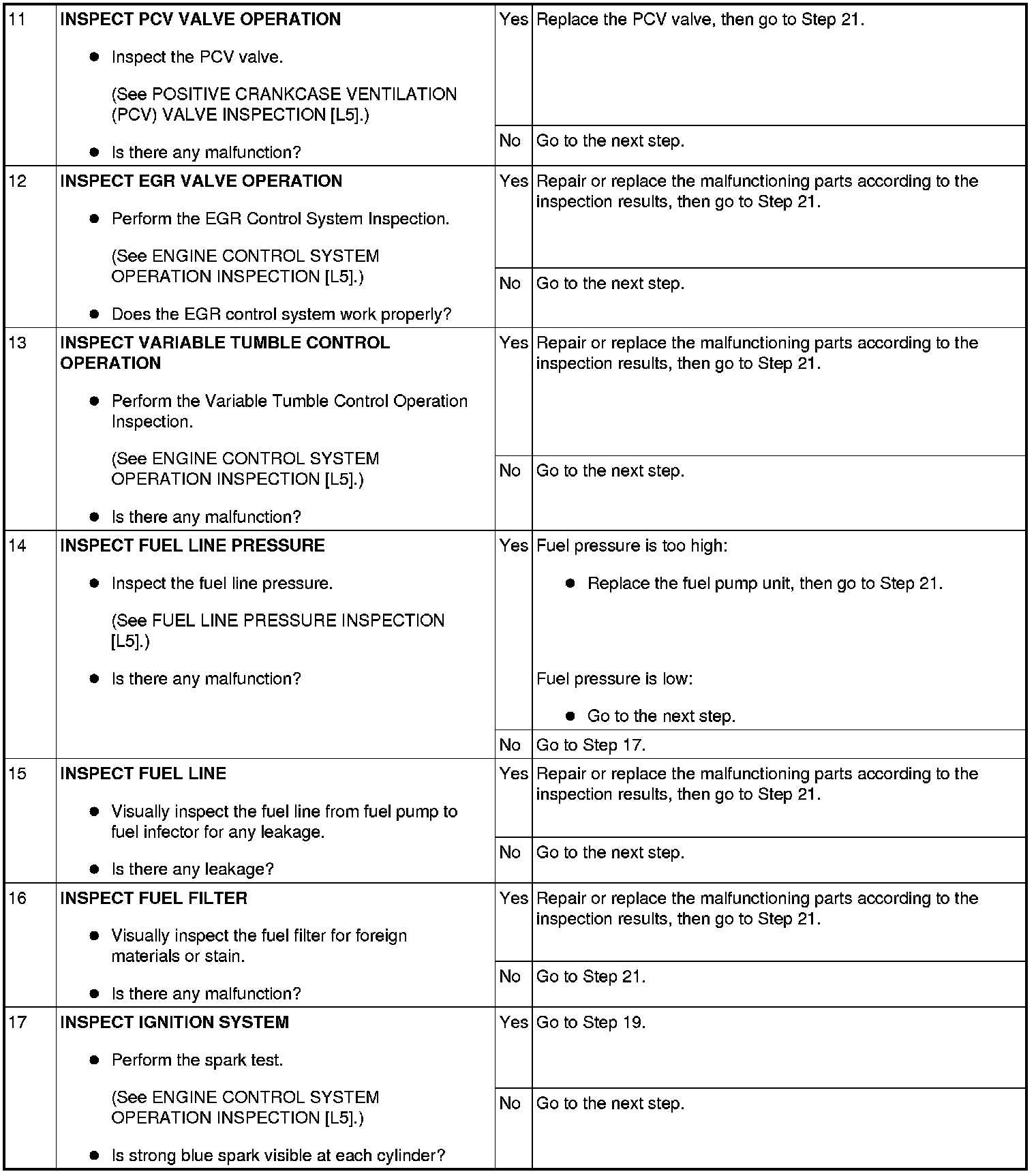

Step 11-Step 17:

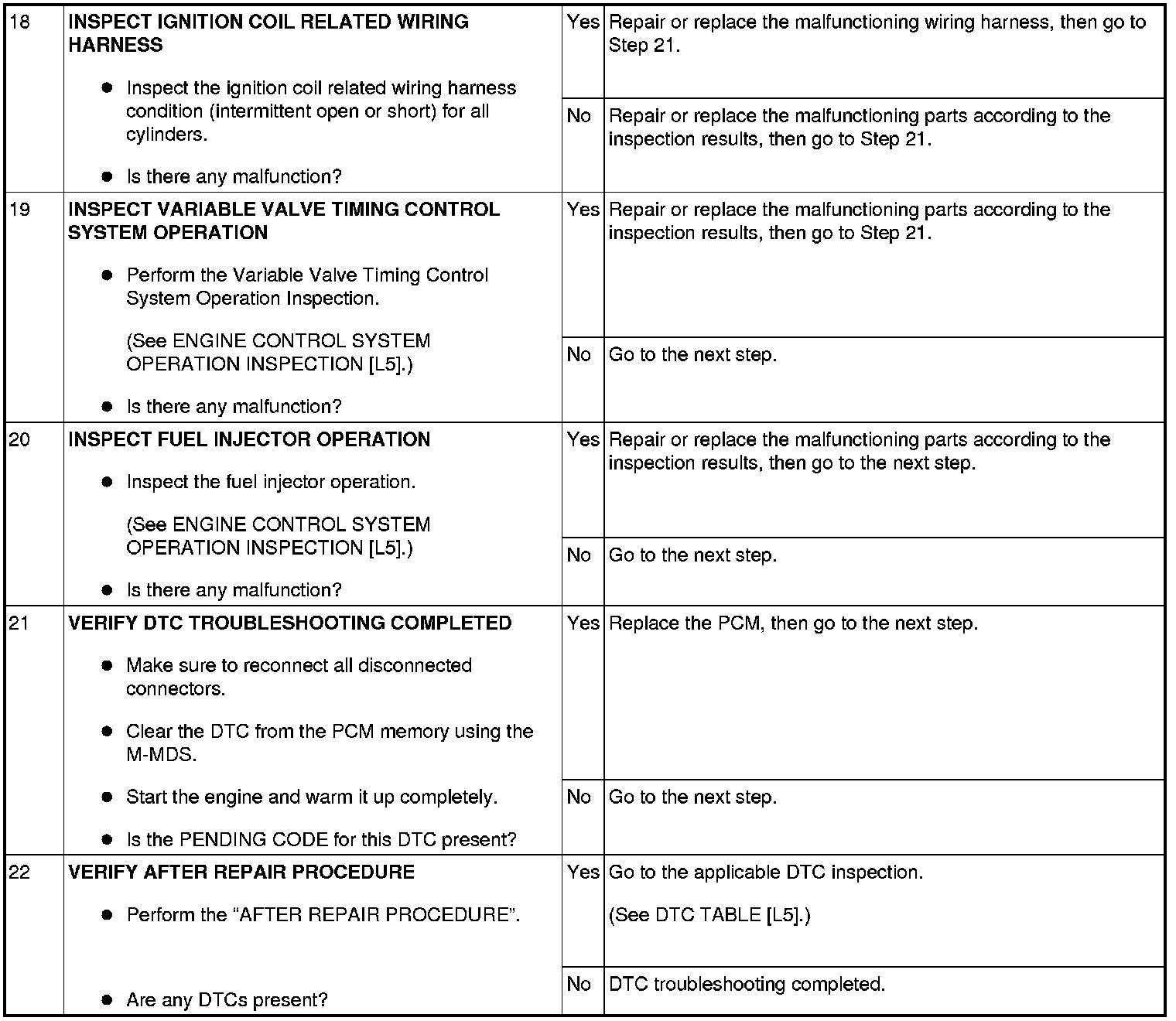

Step 18-Step 22:
