P2096
P2096
DTC P2096:00 [L5]

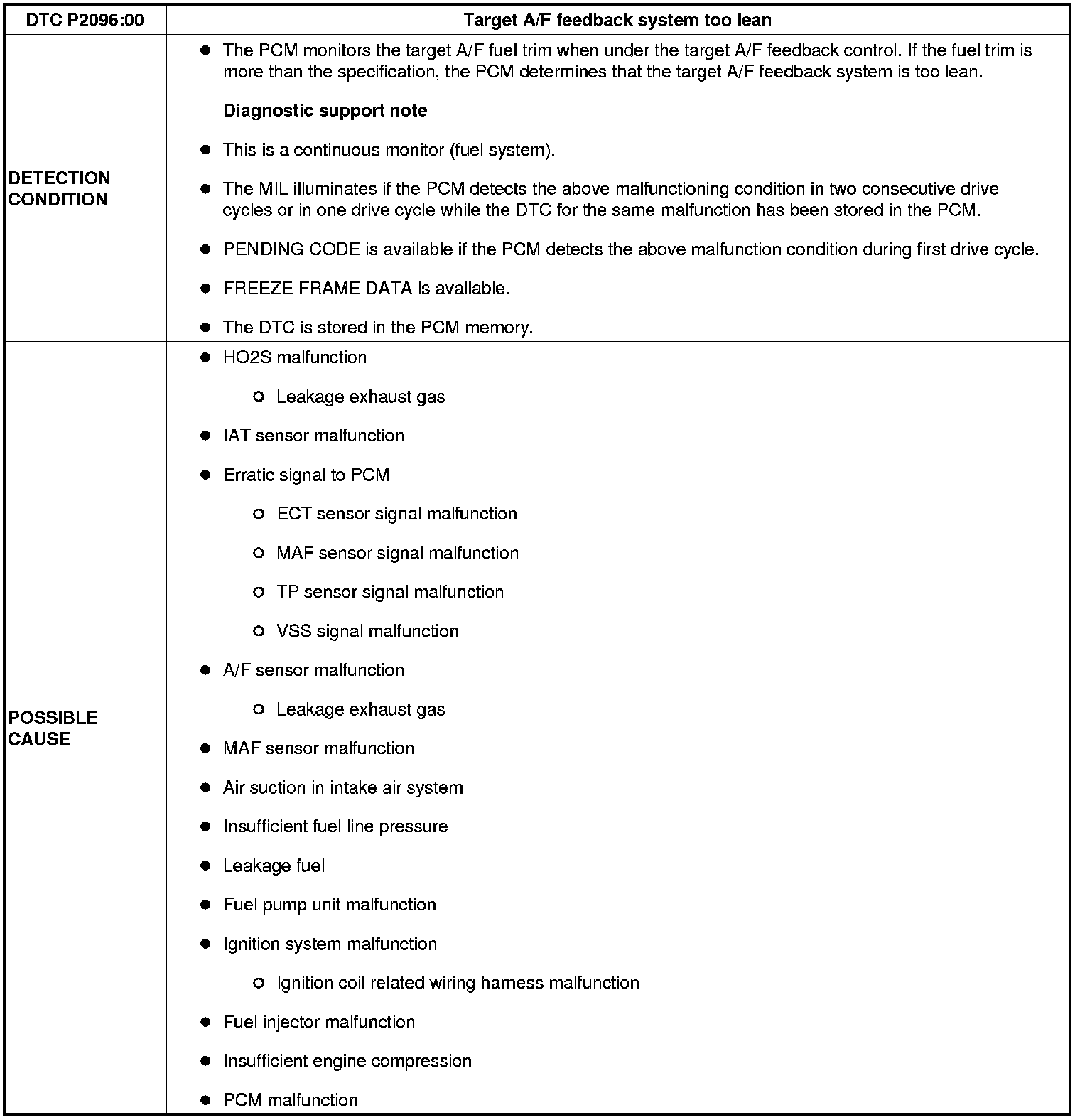

Detection Condition/Possible Cause:
Diagnostic procedure

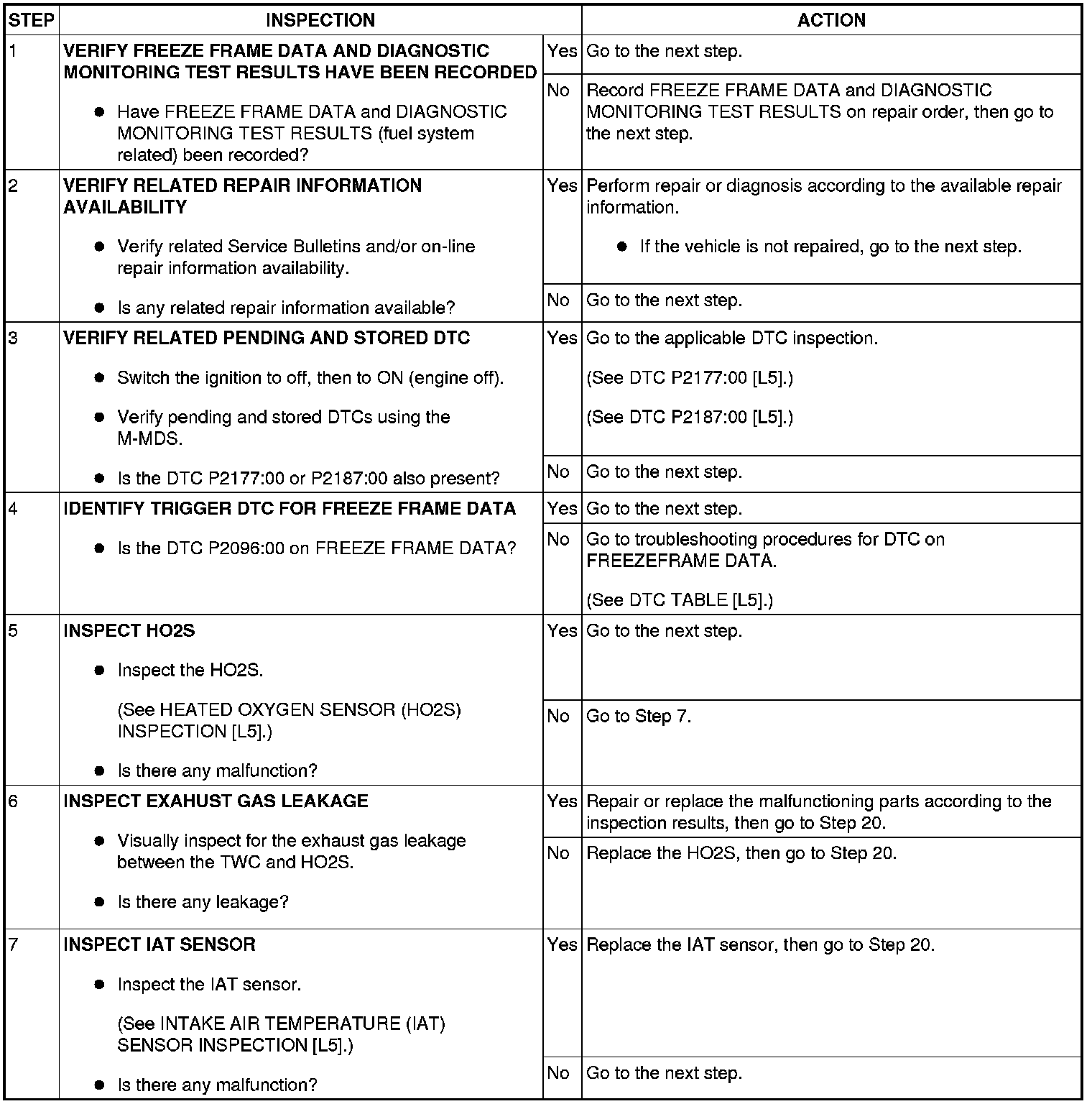

Step 1-Step 7:

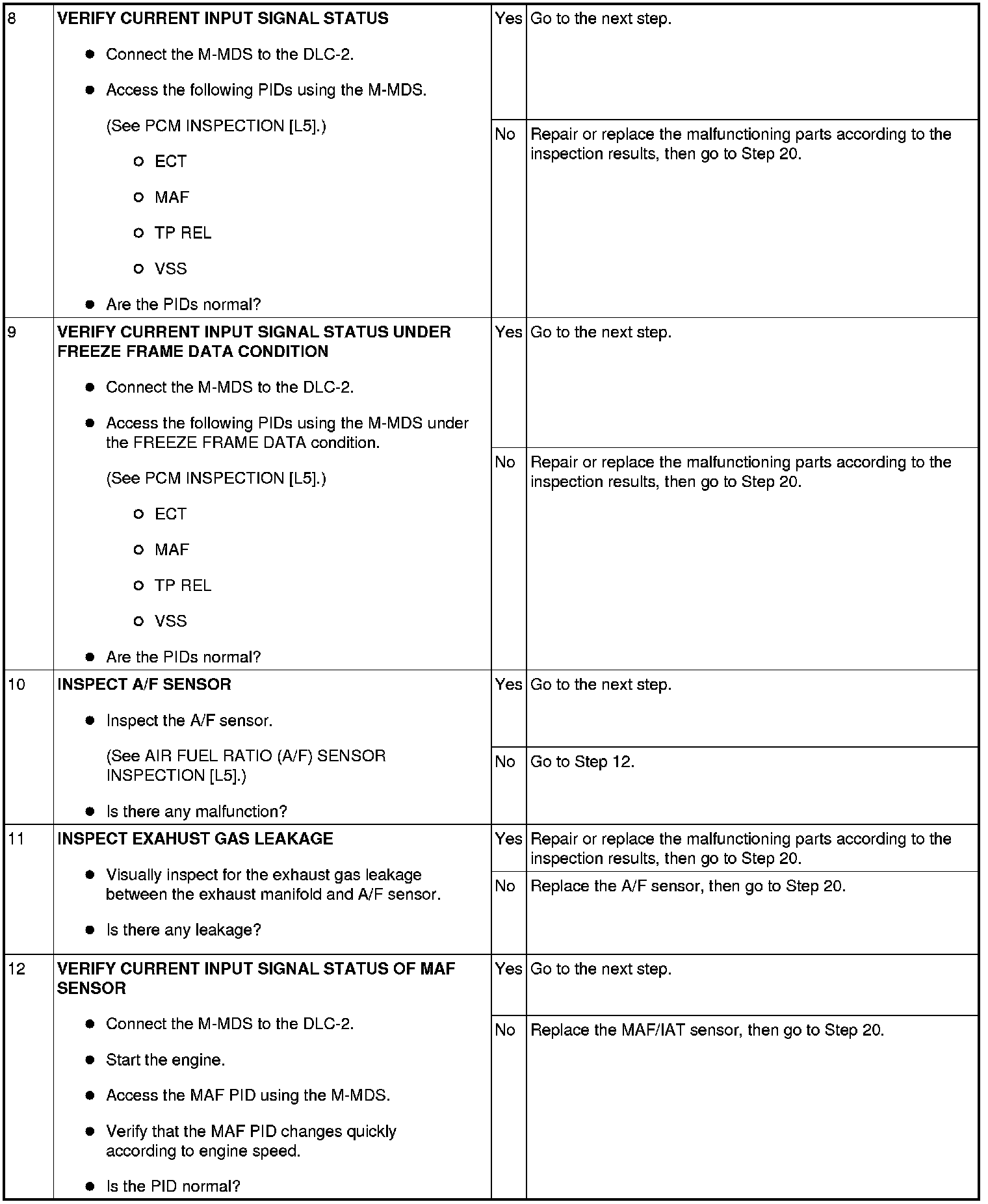

Step 8-Step 12:

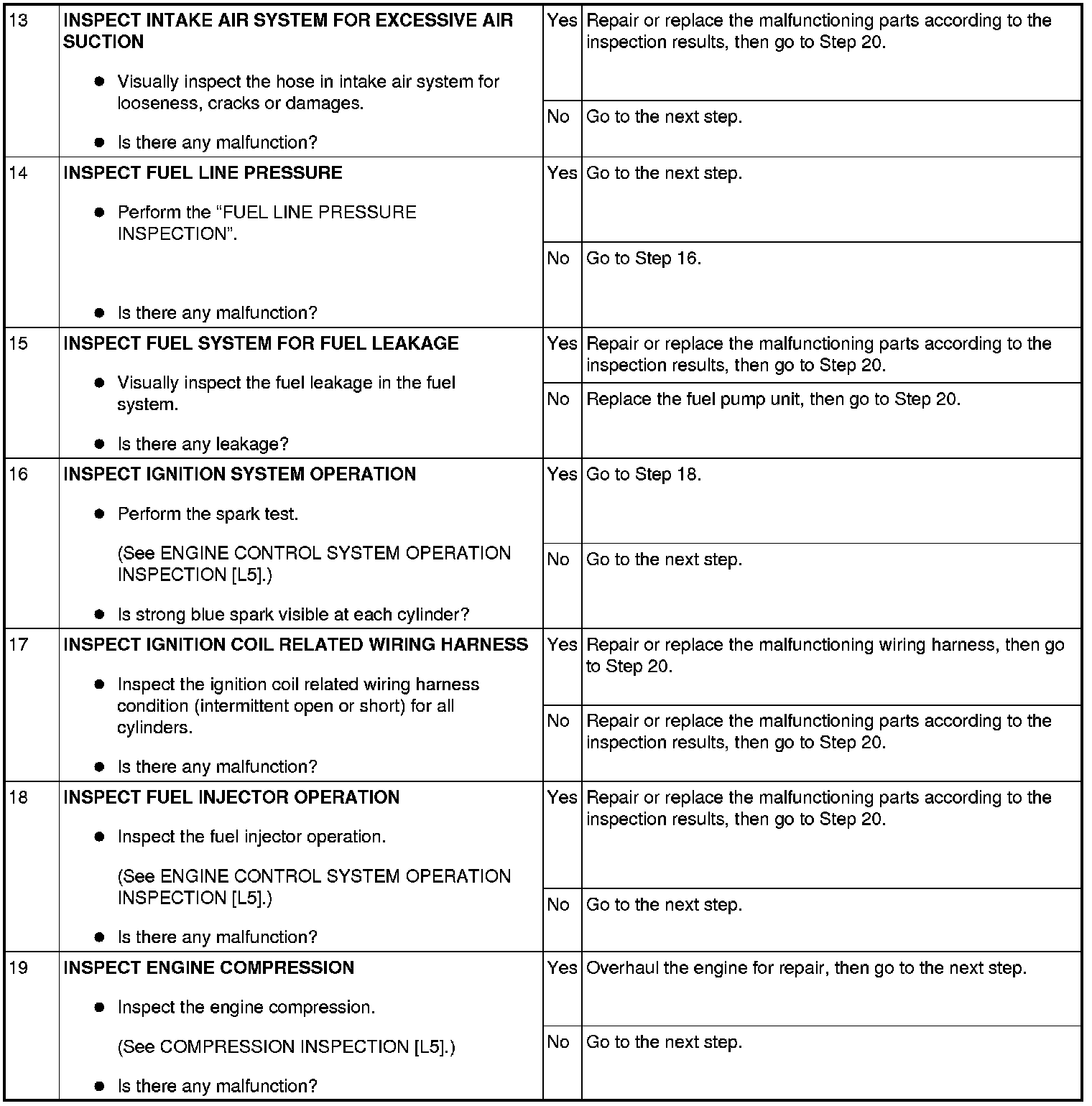

Step 13-Step 19:
Step 20-Step 21:
