Security Light: 23




SECURITY LIGHT: 23, DTC: B10DA:62/P1260:00 [IMMOBILIZER SYSTEM (ADVANCED KEYLESS ENTRY AND PUSH BUTTON START SYSTEM)]

Possible Cause:





Diagnostic Procedure

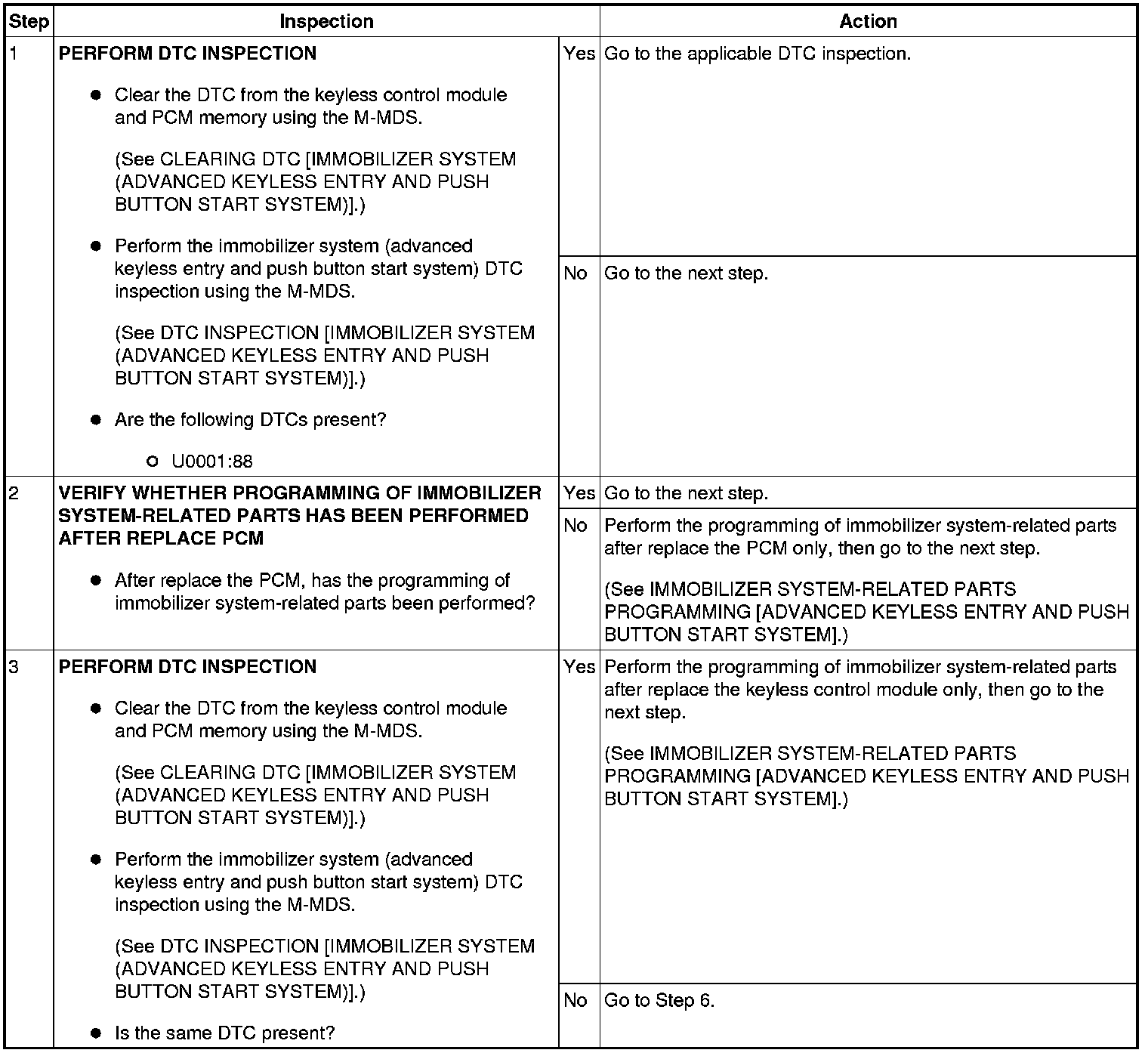

Step 1-Step 3:

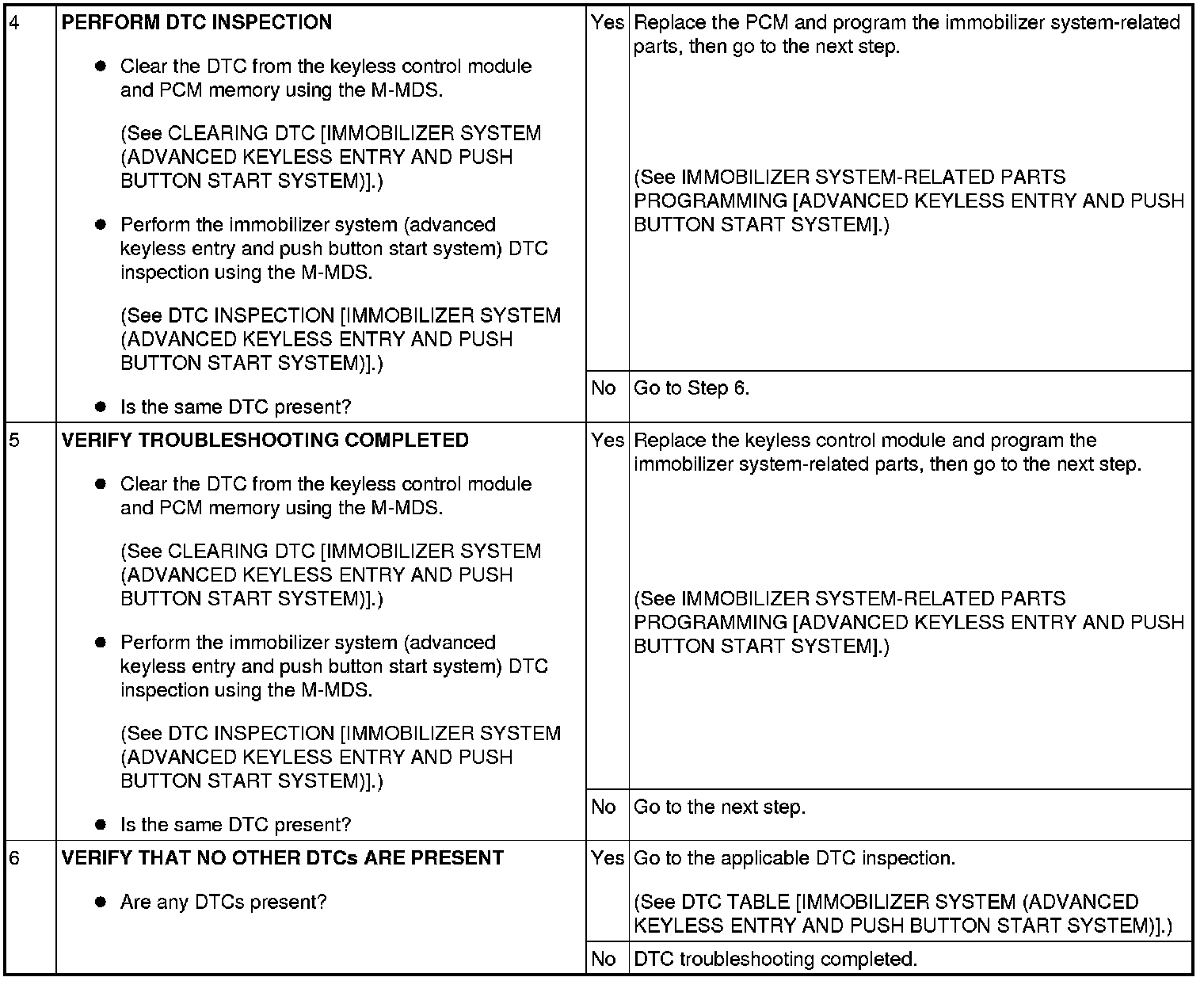

Step 4-Step 6:
