P0480
DTC P0480:00 [L5]

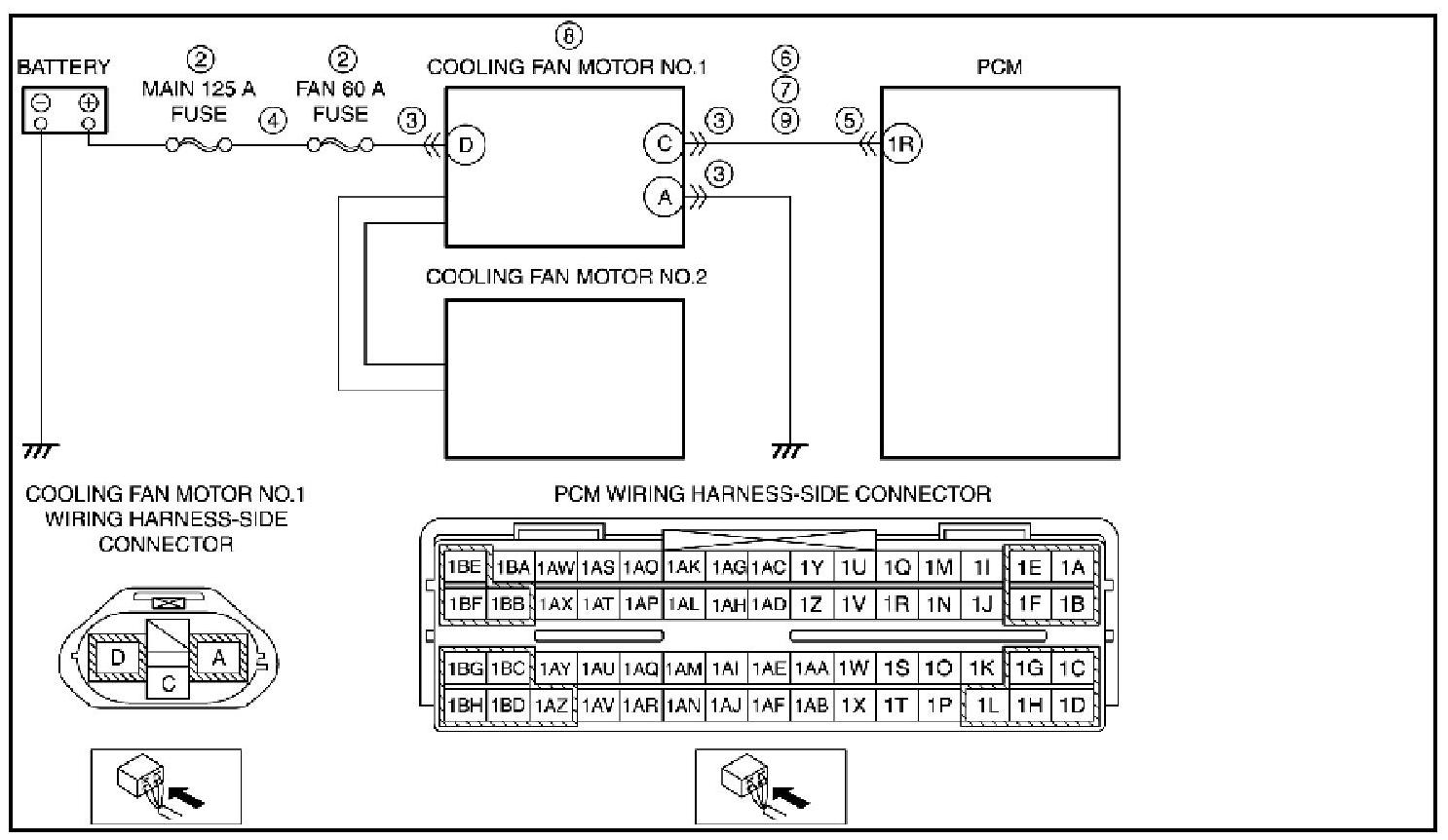

Without Fan Control Module Relay

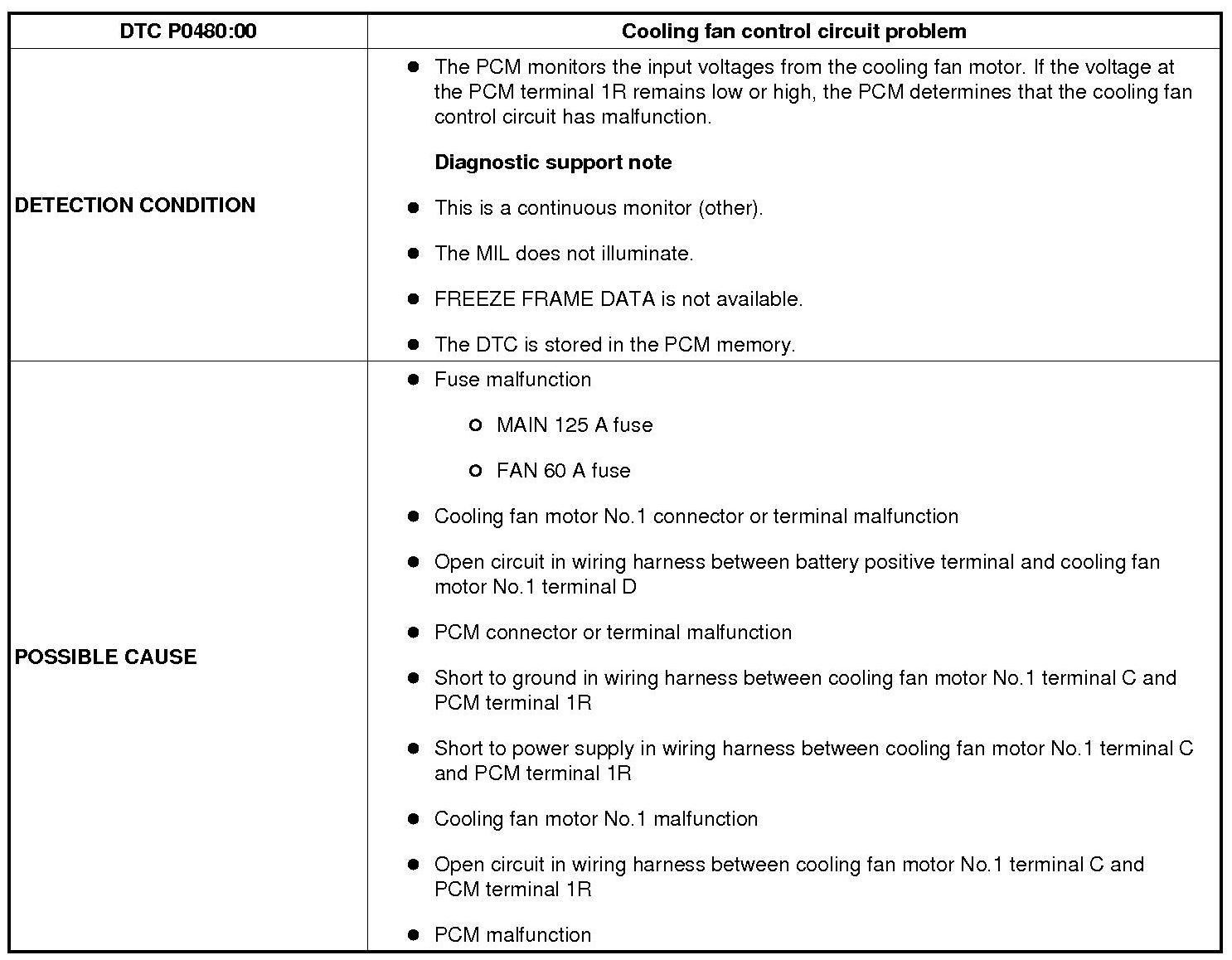

Detection Condition/Possible Cause (Part 1):
Detection Condition/Possible Cause (Part 2):
Diagnostic procedure

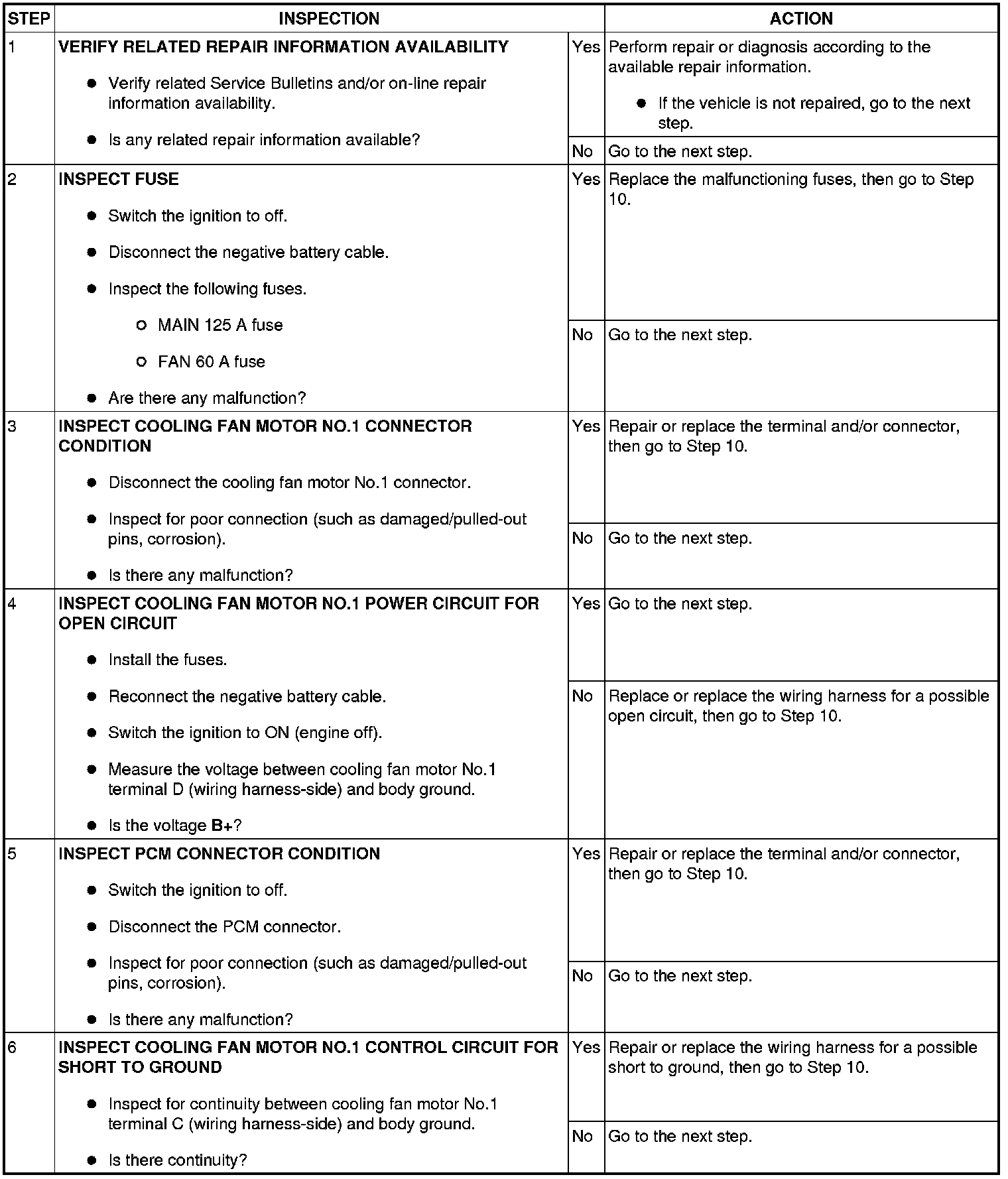

Step 1-Step 6:

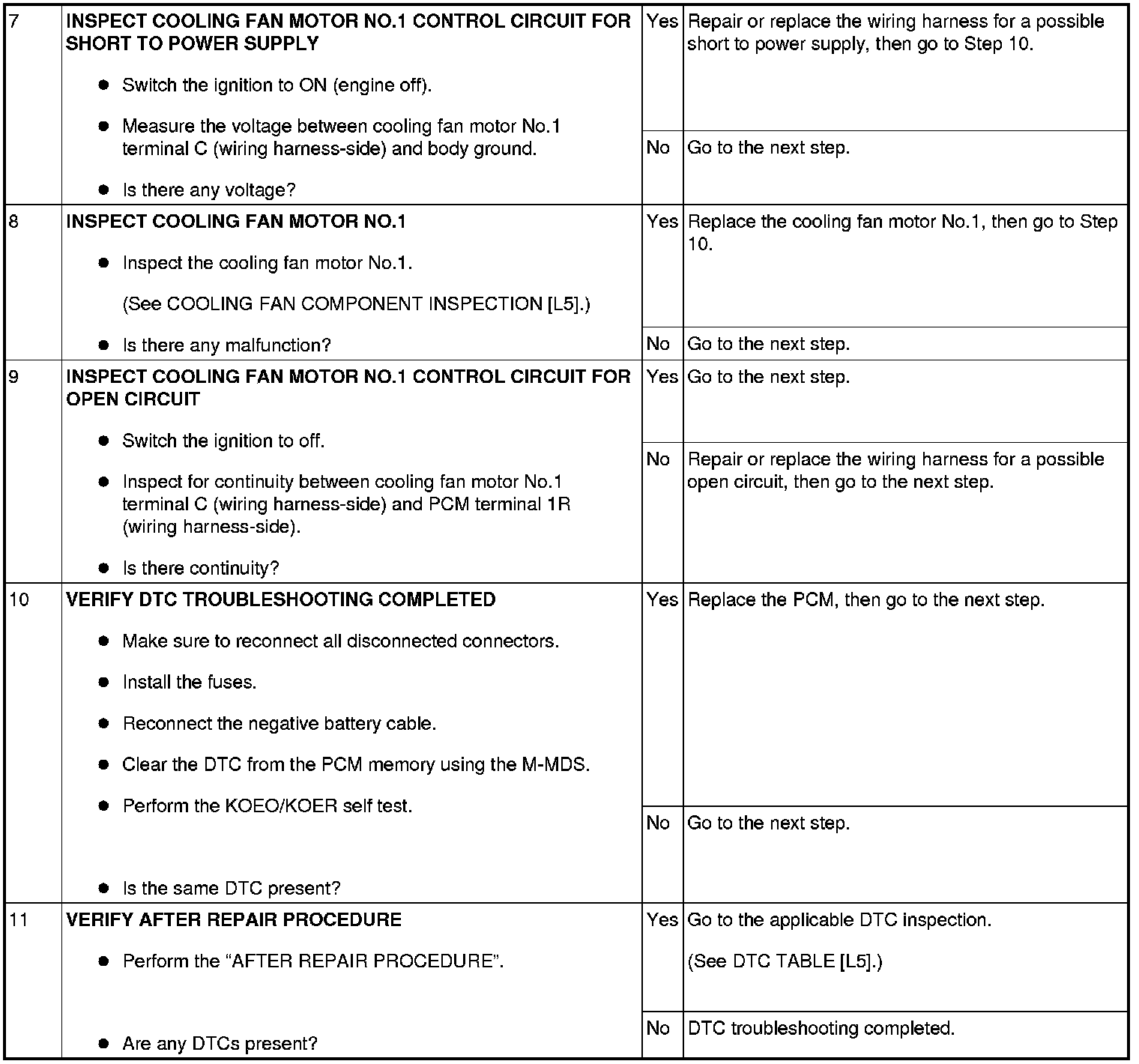

Step 7-Step 11:

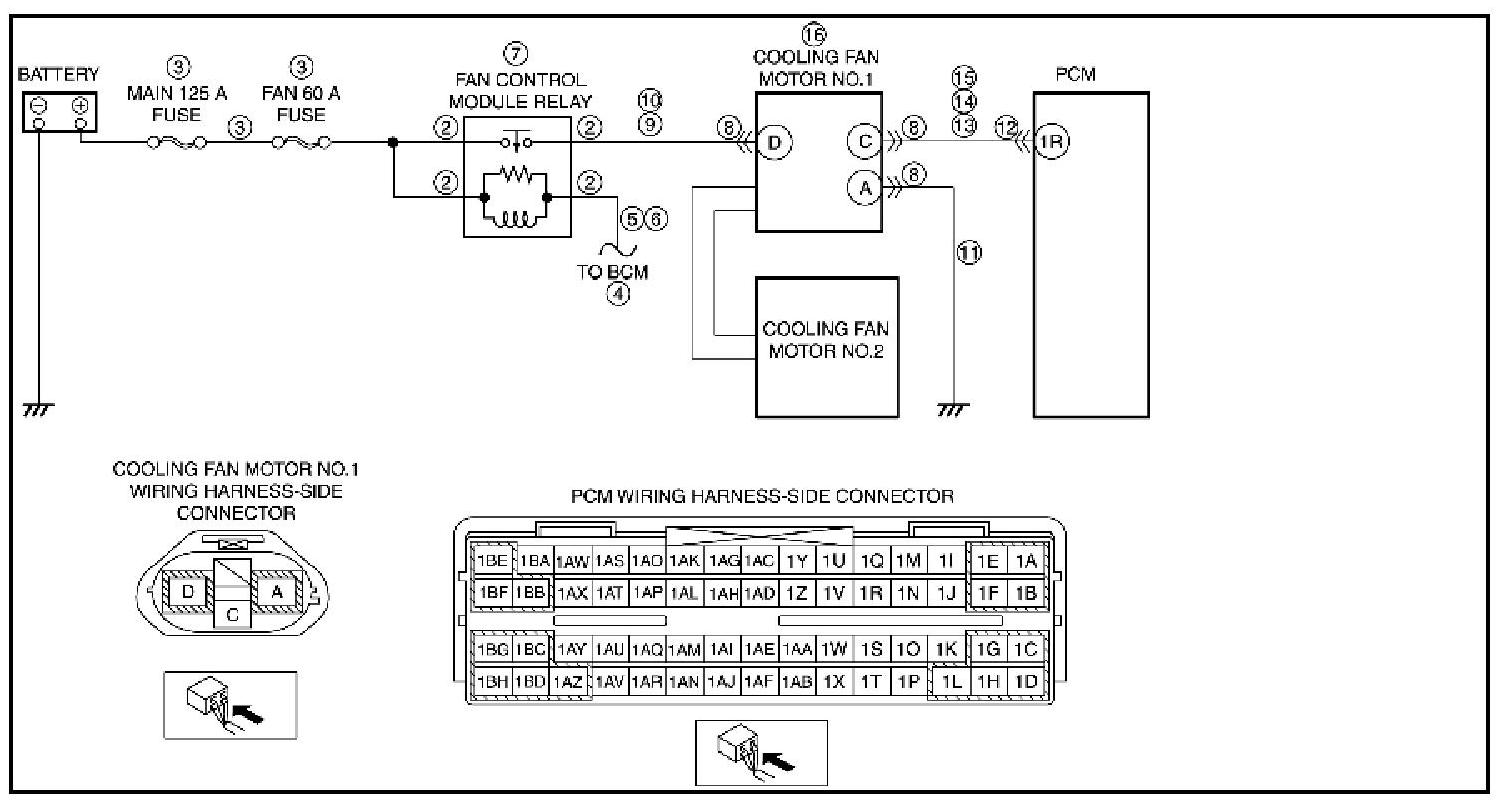

With Fan Control Module Relay

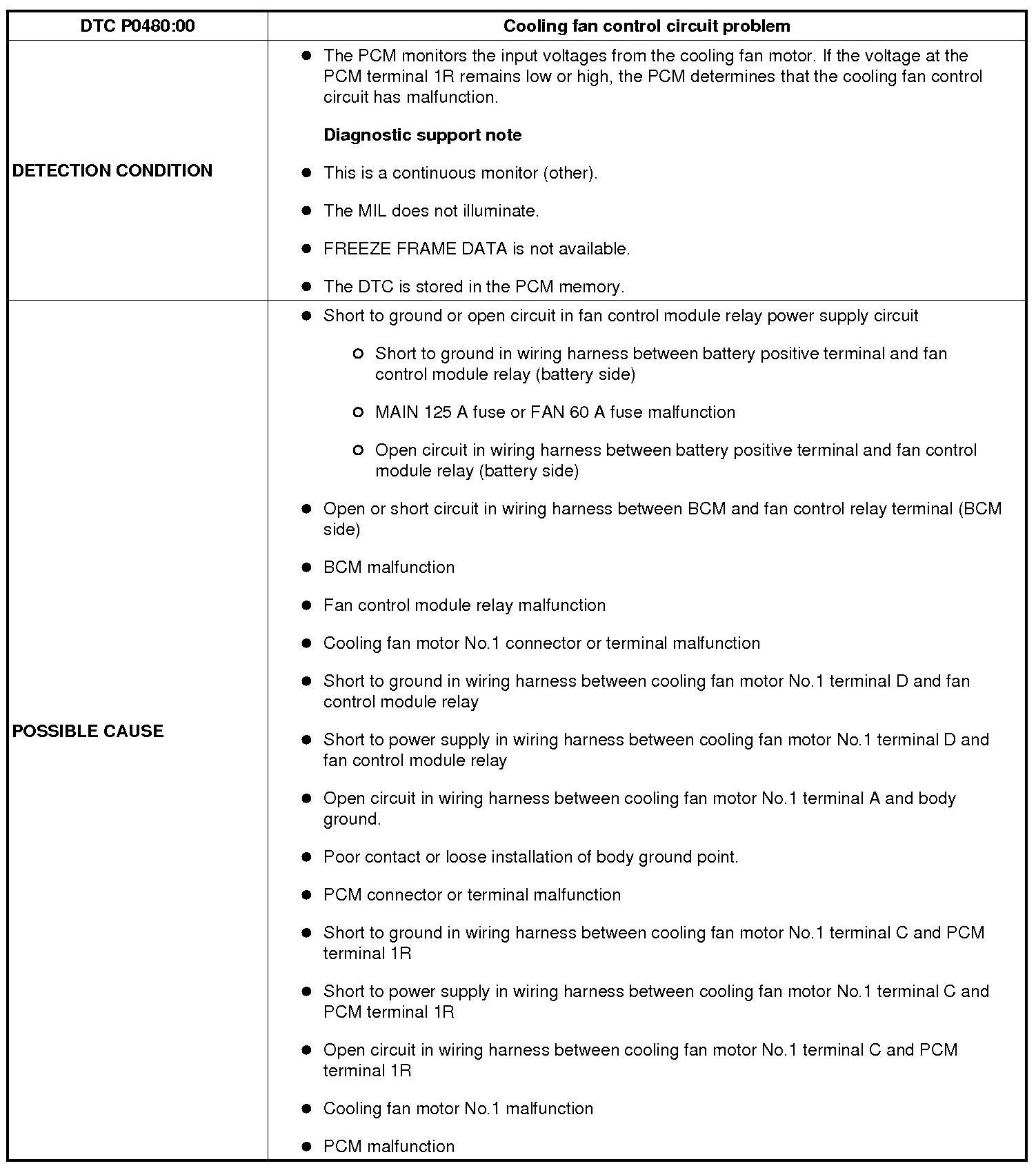

Detection Condition/Possible Cause (Part 1):
Detection Condition/Possible Cause (Part 2):

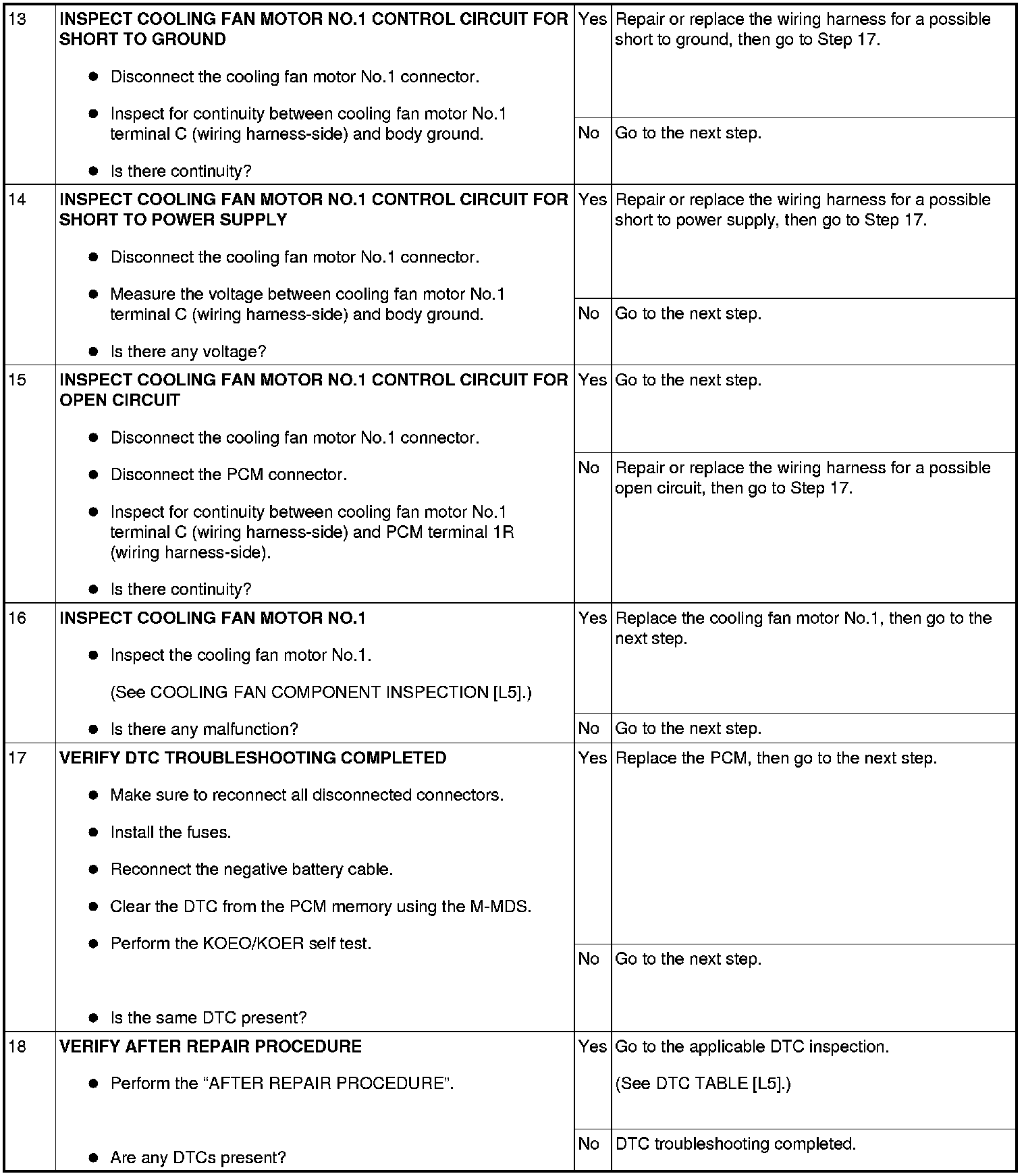

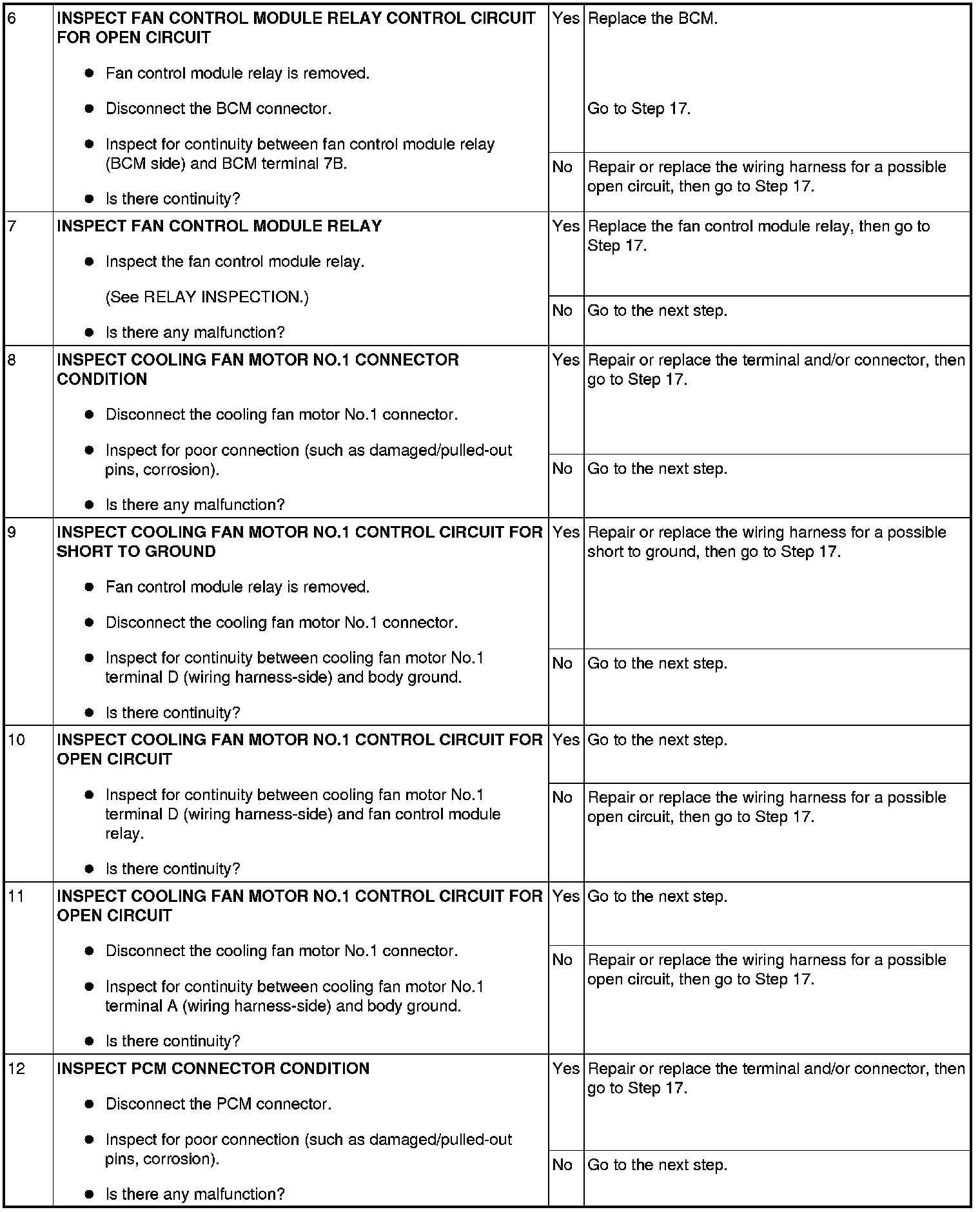

Diagnostic procedure

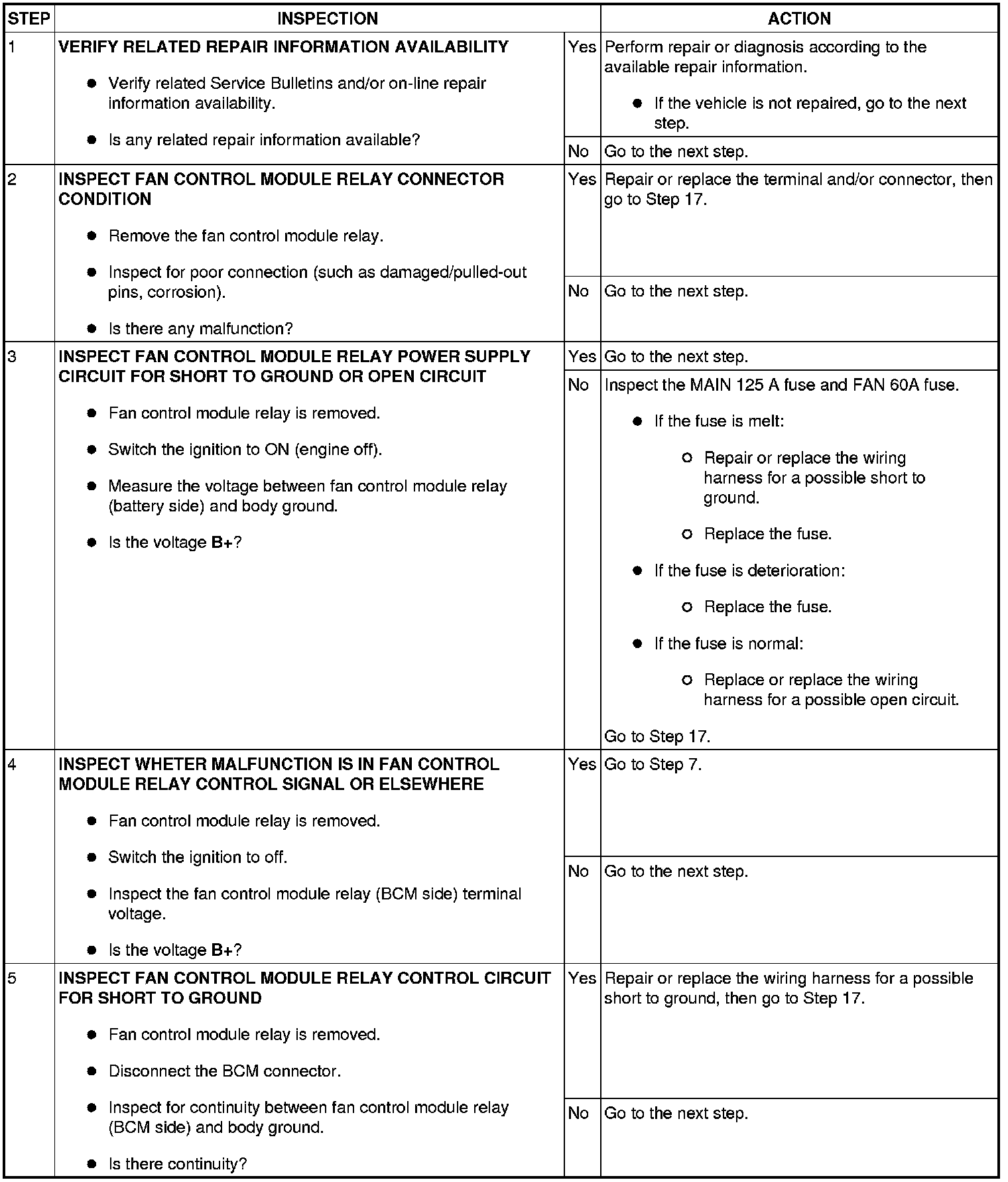

Step 1-Step 5:
