Home >> Mazda >> 2009 >> 6 L4-2.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0456

P0456




DTC P0442:00, P0455:00, P0456:00 [L5]

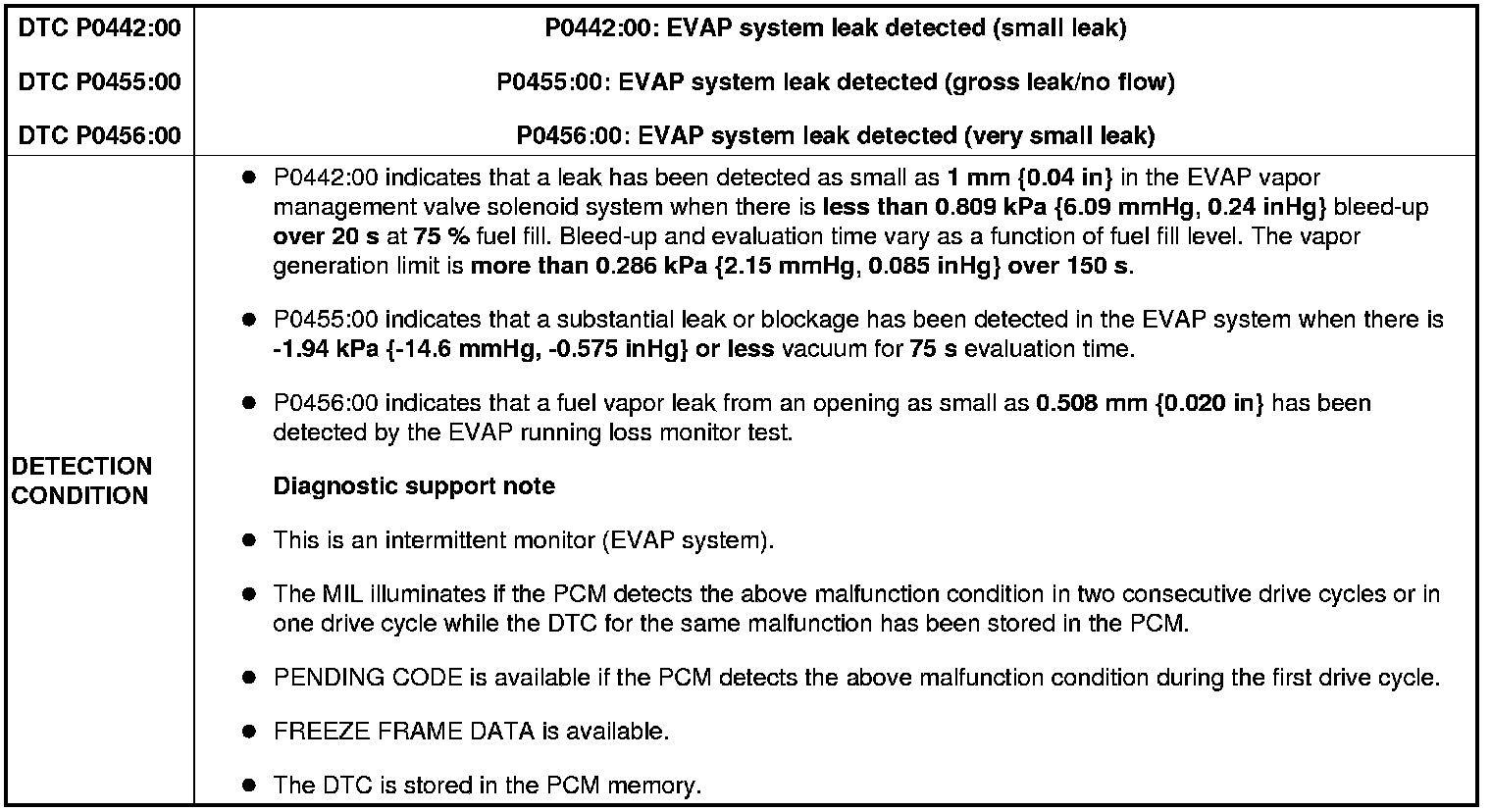

Detection Condition:

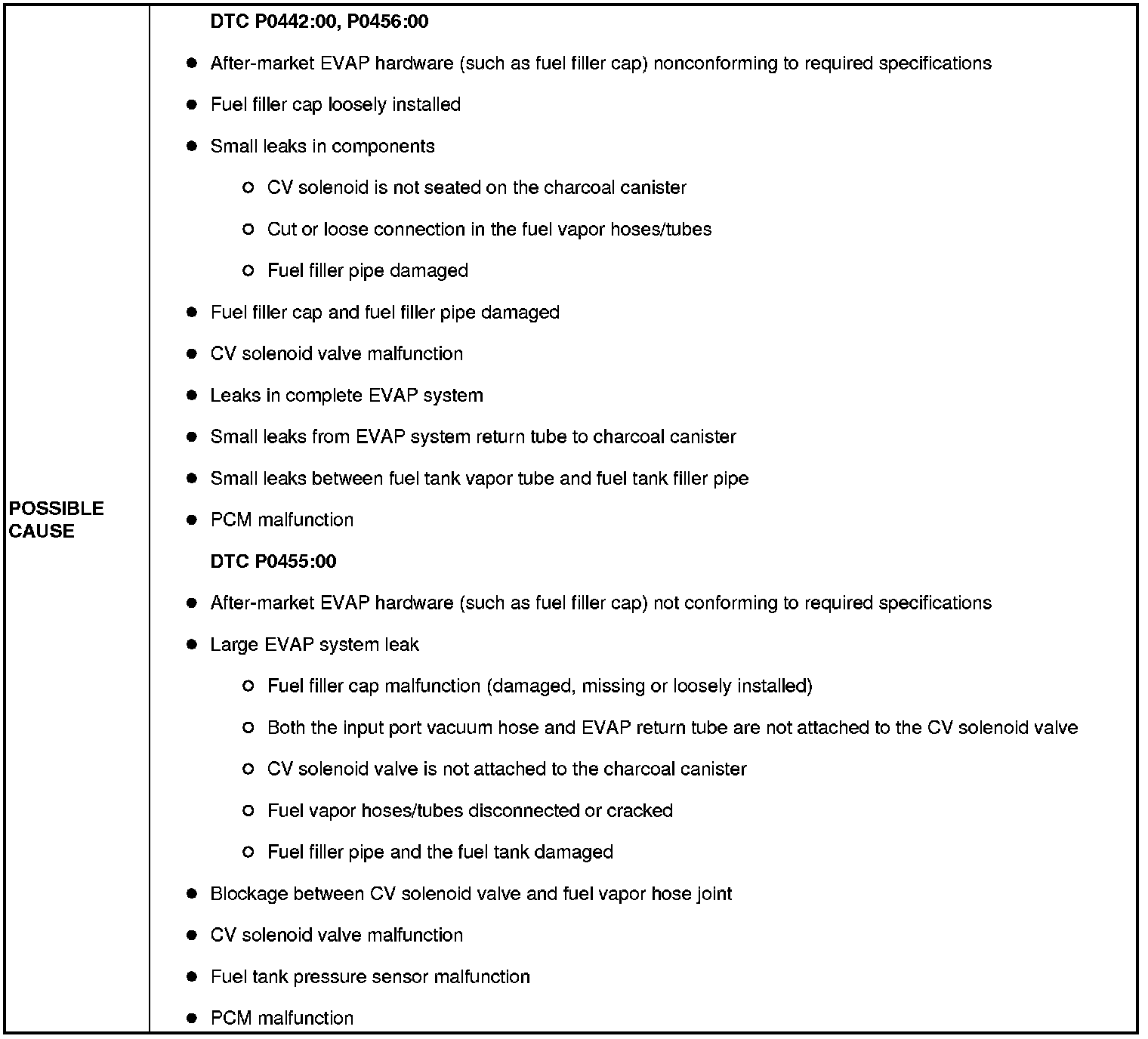

Possible Cause:






Diagnostic procedure

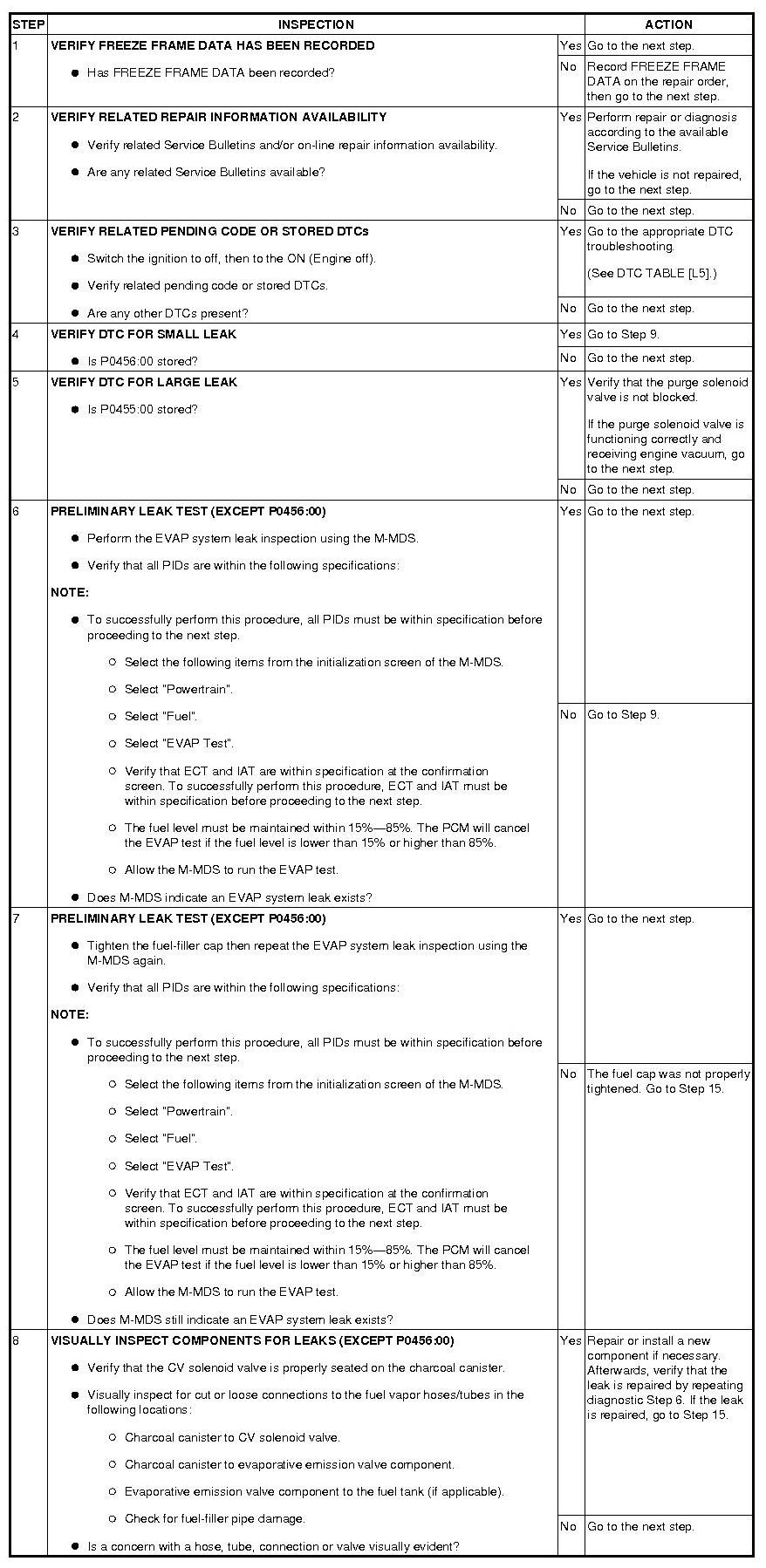

Step 1-Step 8:

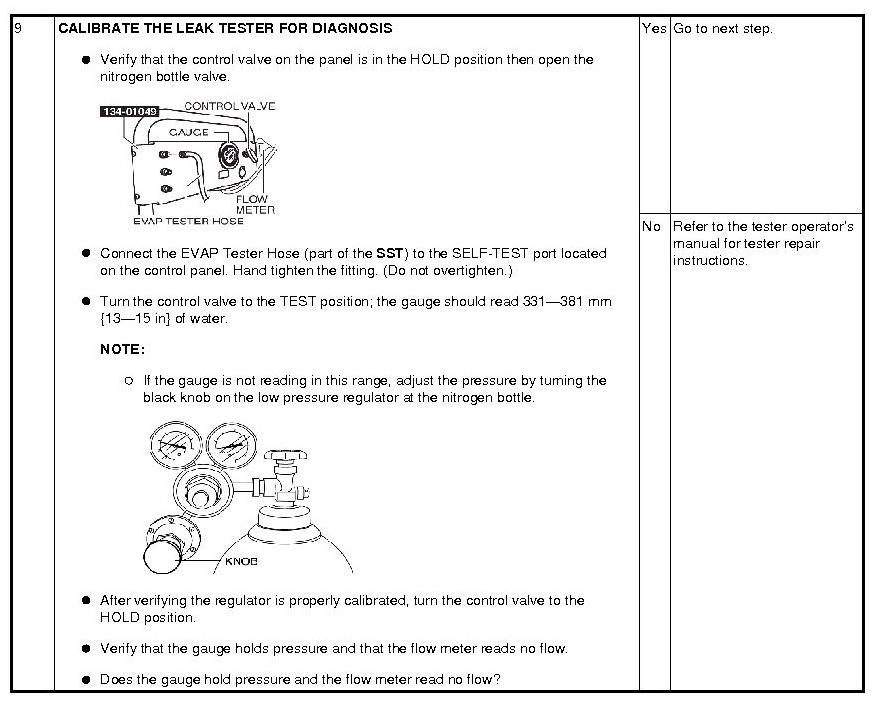

Step 9:

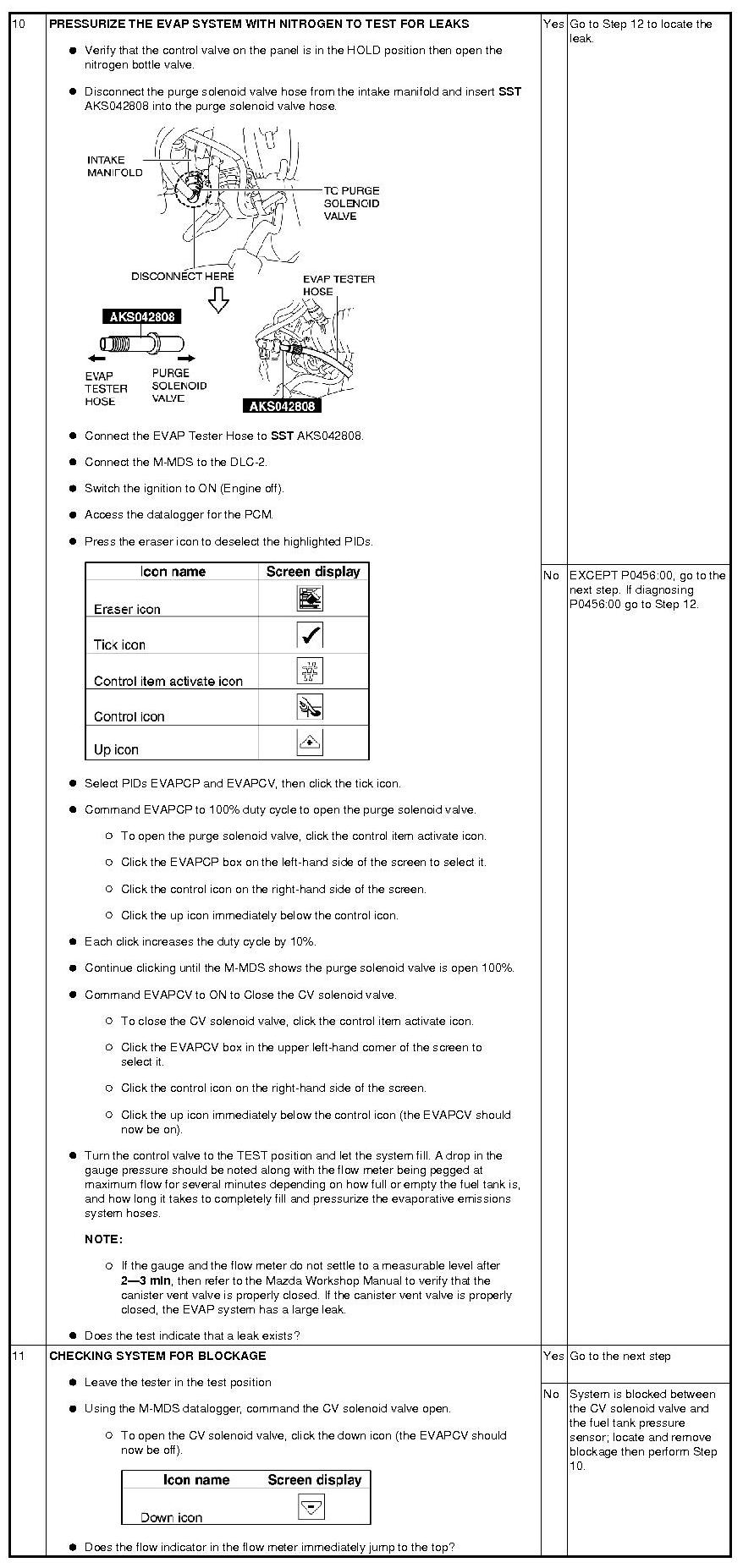

Step 10-Step 11:

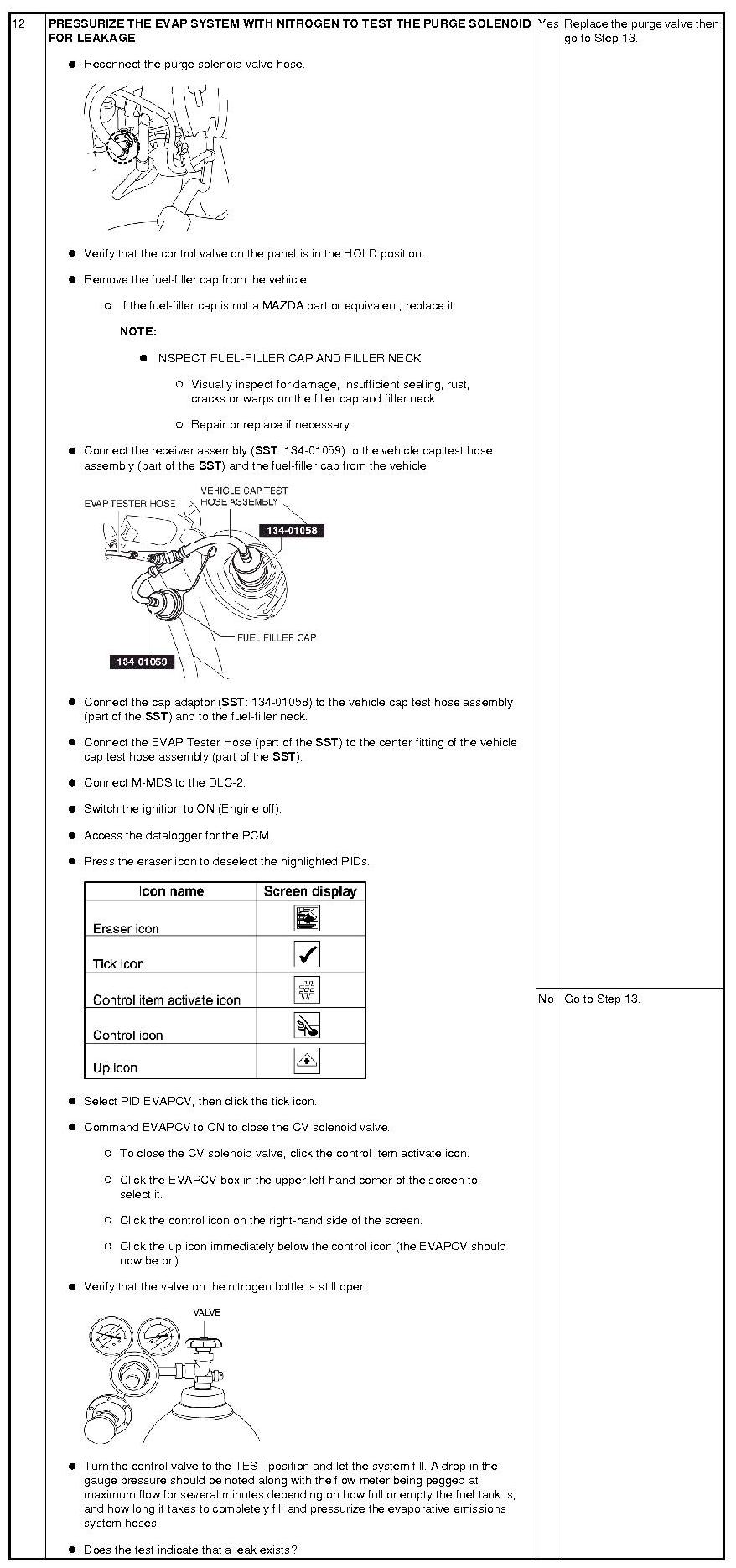

Step 12:

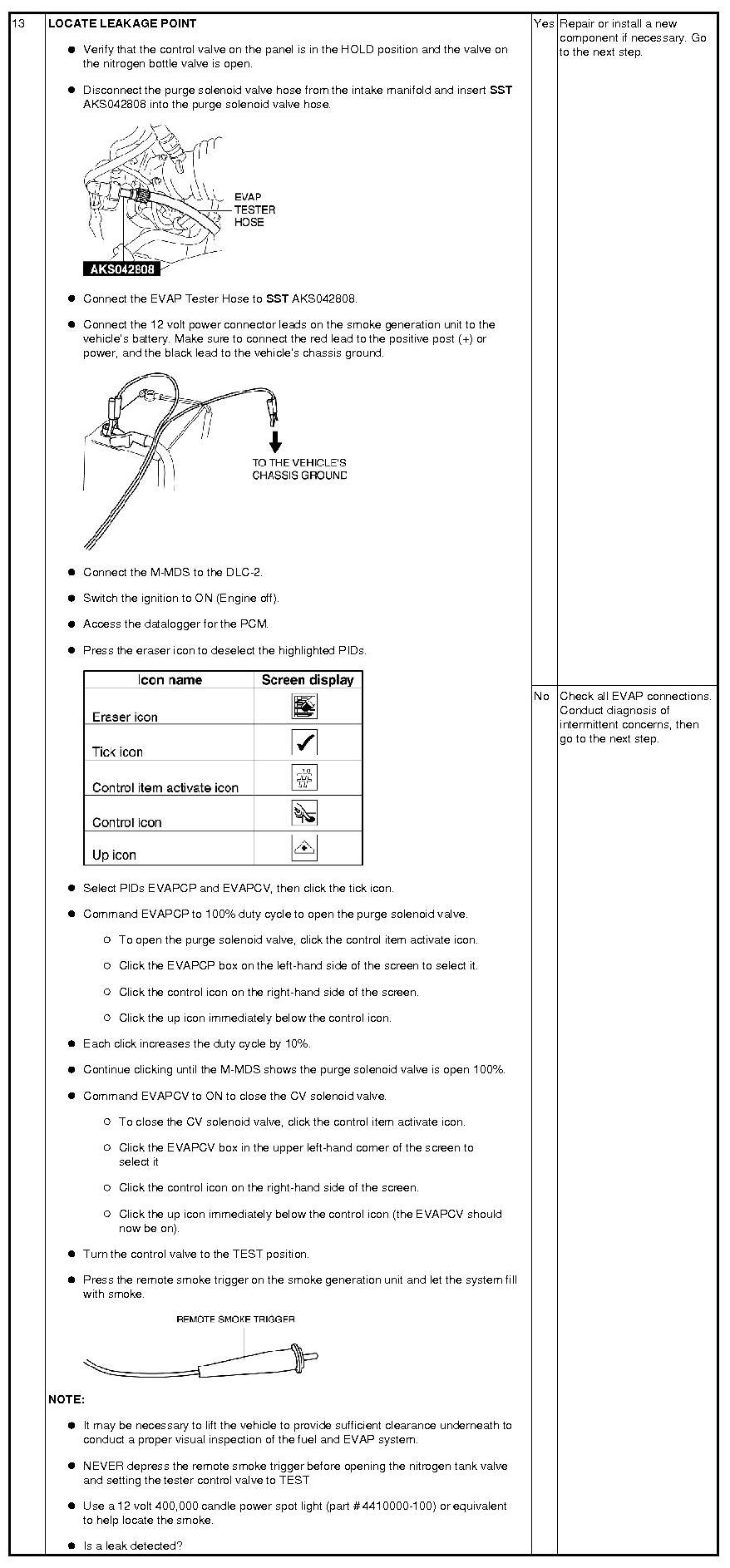

Step 13:

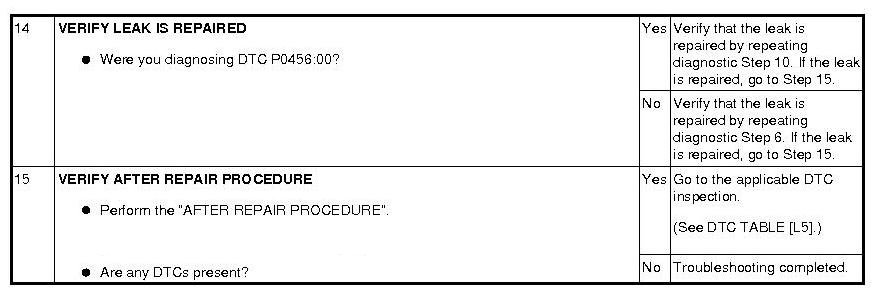

Step 14-Step 15:
