A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Car-Navigation Unit
>>
Device Code 16
>>
Error Code 12
Error Code 12
NO.8 AUDIOPILOT FUNCTION IS INOPERATIVE [ENTIRE AUDIO SYSTEM]
Troubleshooting Hints:

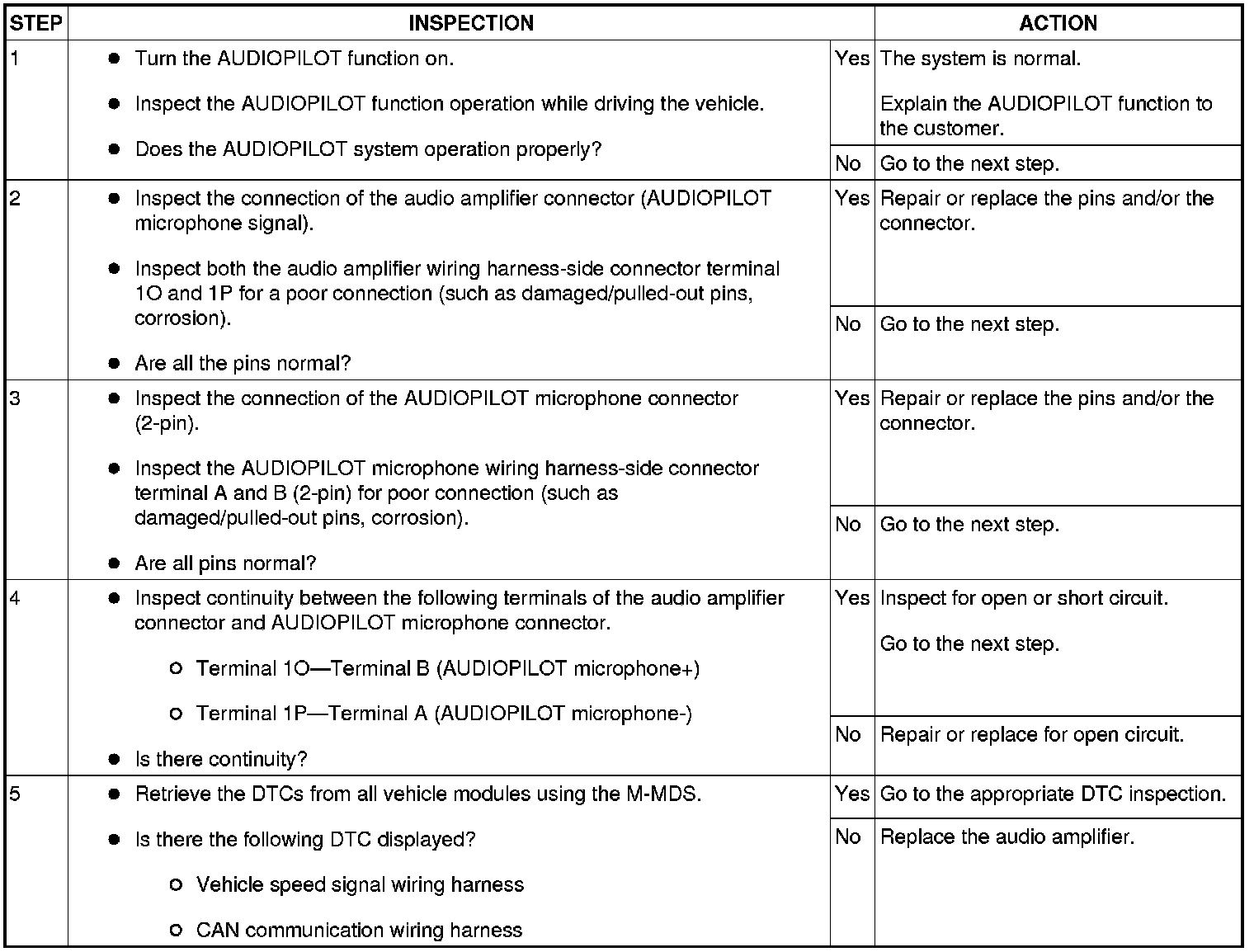

Diagnostic procedure
Step 1-Step 5:
