DTC Table [Blind Spot Monitoring (BSM)]

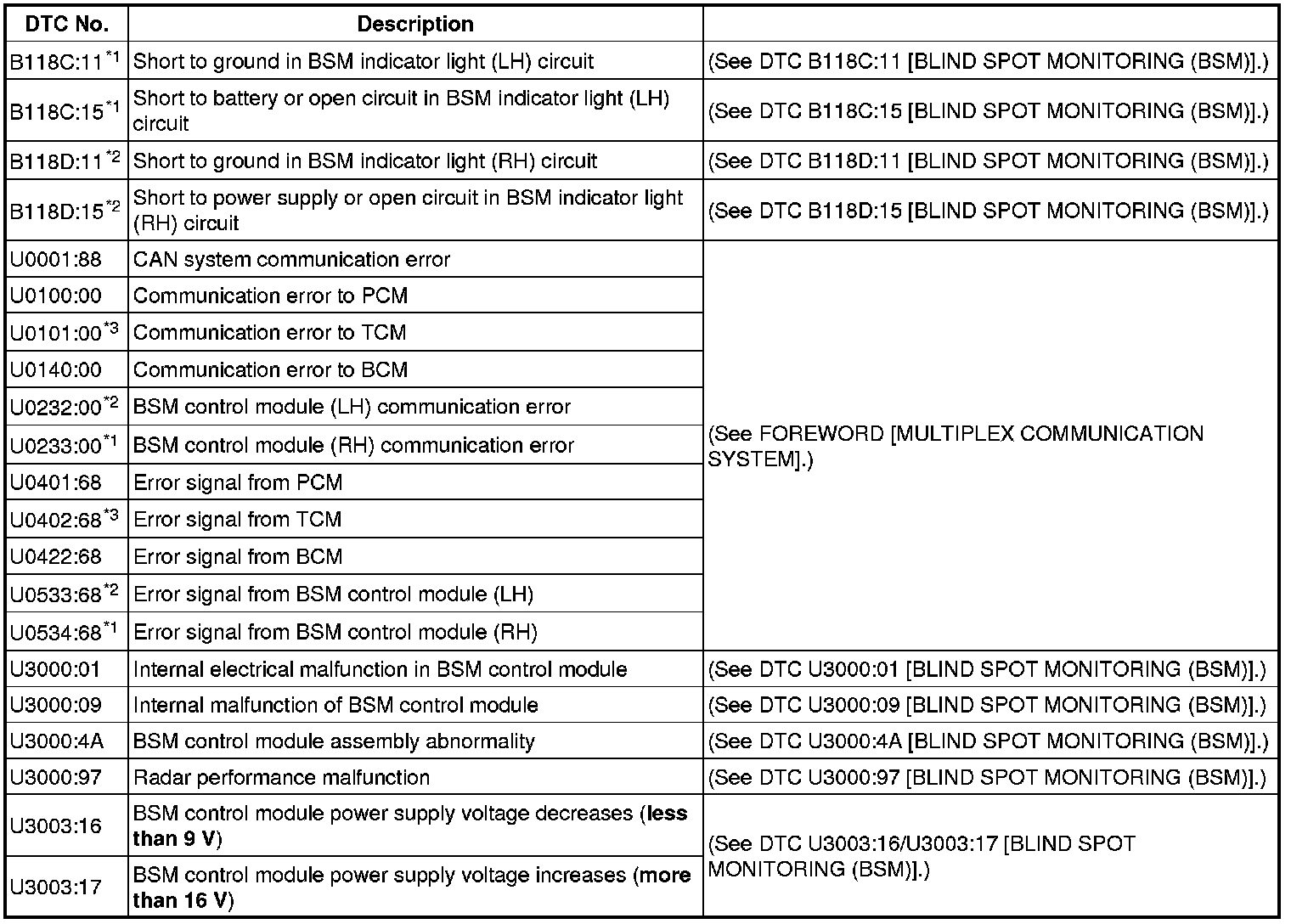

DTC TABLE [BLIND SPOT MONITORING (BSM)]

B118C:11-B118D:15 / U0001:88-U3003:17:





*1
BSM control module (LH) only
*2
BSM control module (RH) only
*3
ATX
