B1127:1A
DTC B1127:11/B1127:12/B1127:19/B1127:1A/B1127:1B
System Malfunction Location
DTC B1127:1A-DTC B1127:19:
Detection Condition
- Resistance other than 1.5-4.1 ohms detected in passenger-side side air bag module circuit
- Wiring harness between the passenger-side side air bag module and SAS control module has a malfunction.
Possible Causes
- Passenger-side side air bag module connector malfunction
- Open or short circuit or short to ground or short to power supply in the wiring harness between the passenger-side side air bag module and SAS control module.
- Passenger-side side air bag module malfunction
- SAS control module malfunction

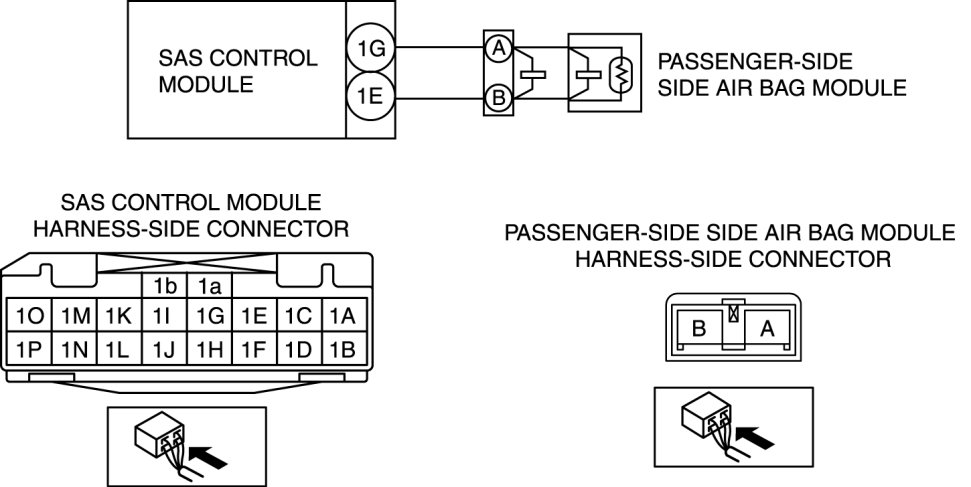

System Wiring Diagram
Diagnostic Procedure

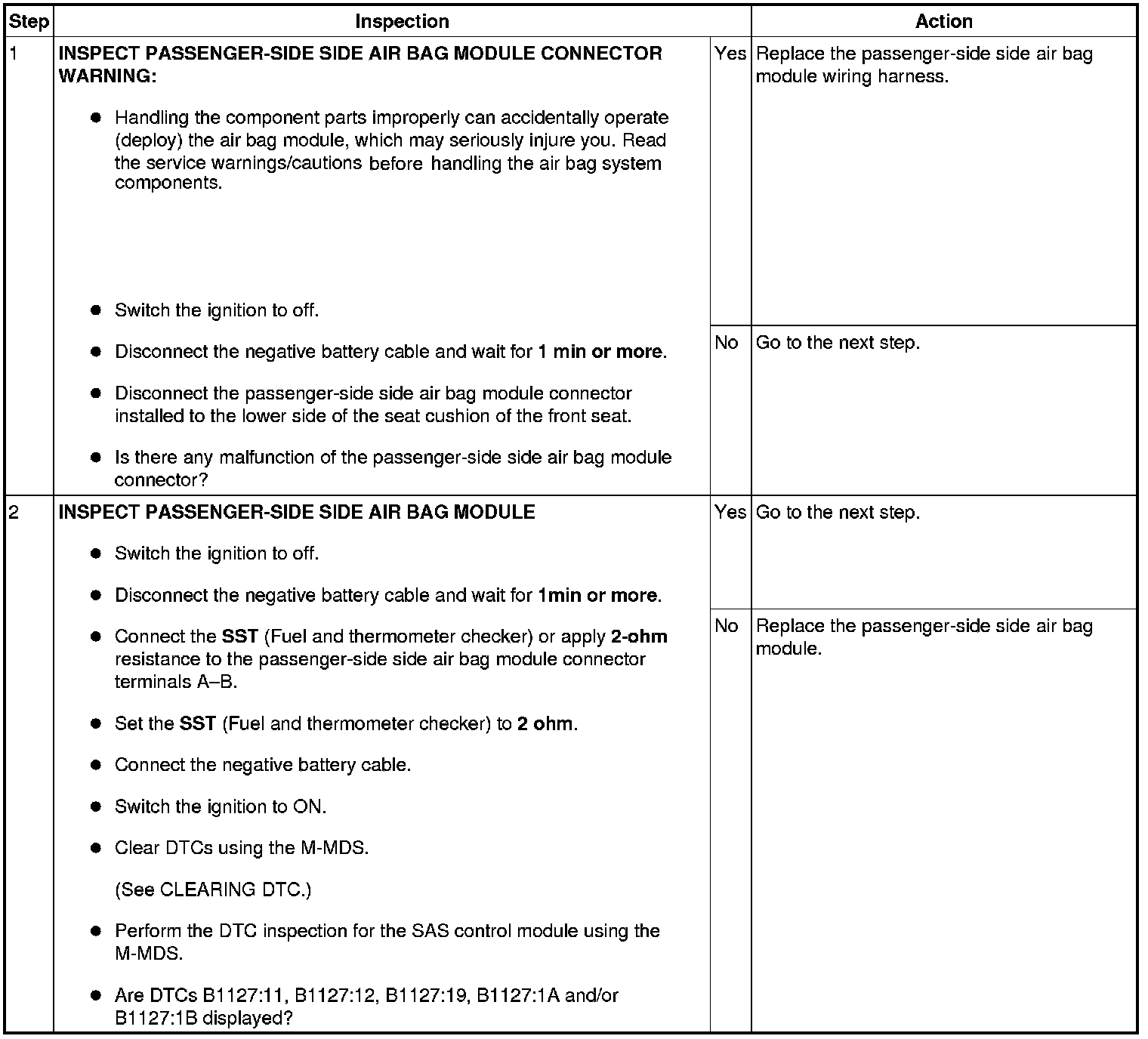

Step 1-Step 2:

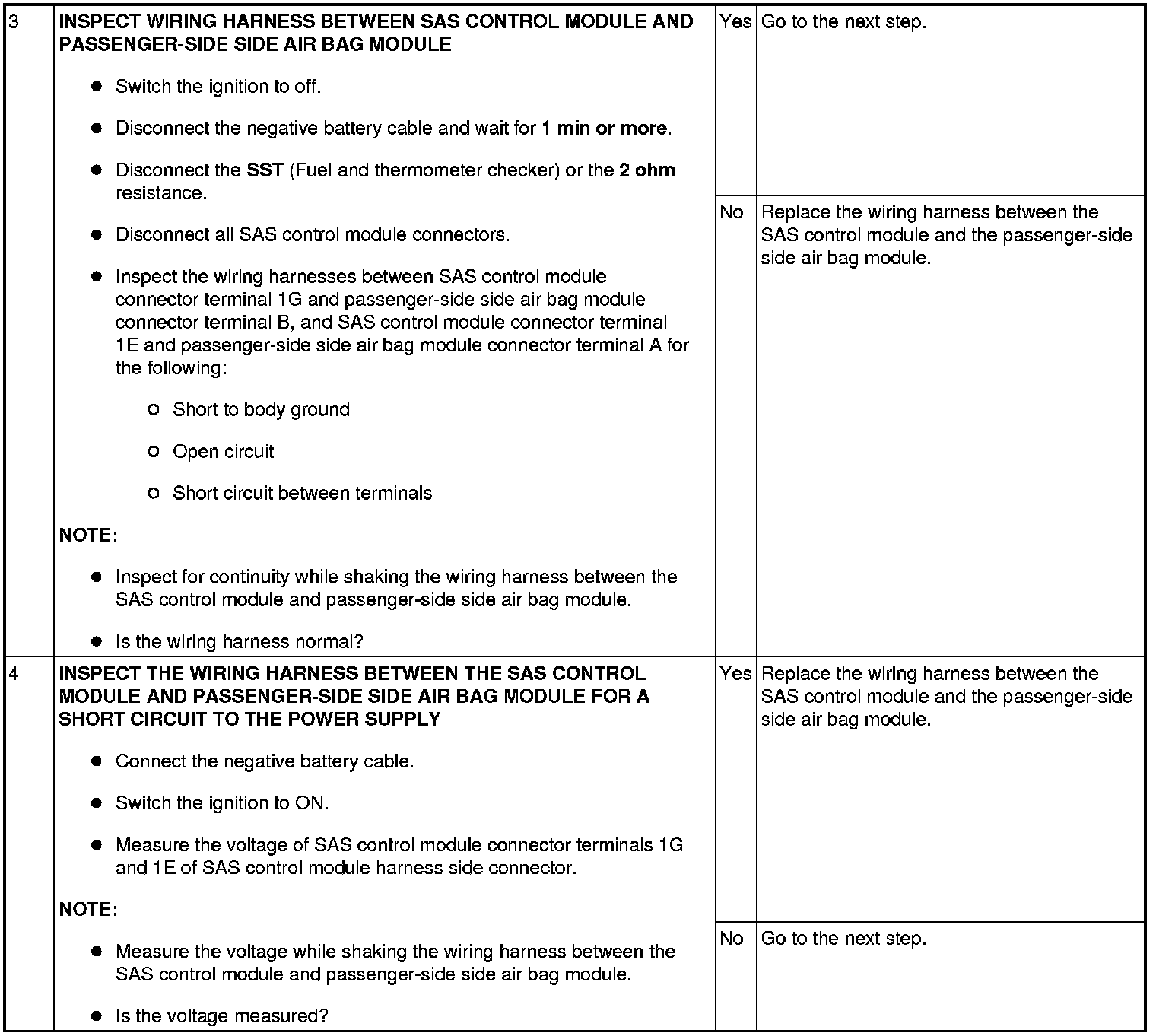

Step 3-Step 4:
