B10FE:96
DTC B10FE:11/B10FE:12/B10FE:87/B10FE:96
System Malfunction Location
DTC B10FE:11-DTC B10FE:96:
Detection Condition
- Wiring harness between passenger-side side air bag sensor No.1 and SAS control module has a malfunction.
- Passenger-side side air bag sensor has a malfunction.
Possible Causes
- Passenger-side side air bag sensor No.1 connector malfunction
- Open or short circuit or short to ground or short to power supply in the wiring harness between the passenger-side side air bag sensor No.1 and SAS control module.
- Passenger-side side air bag sensor No.1 malfunction
- SAS control module malfunction

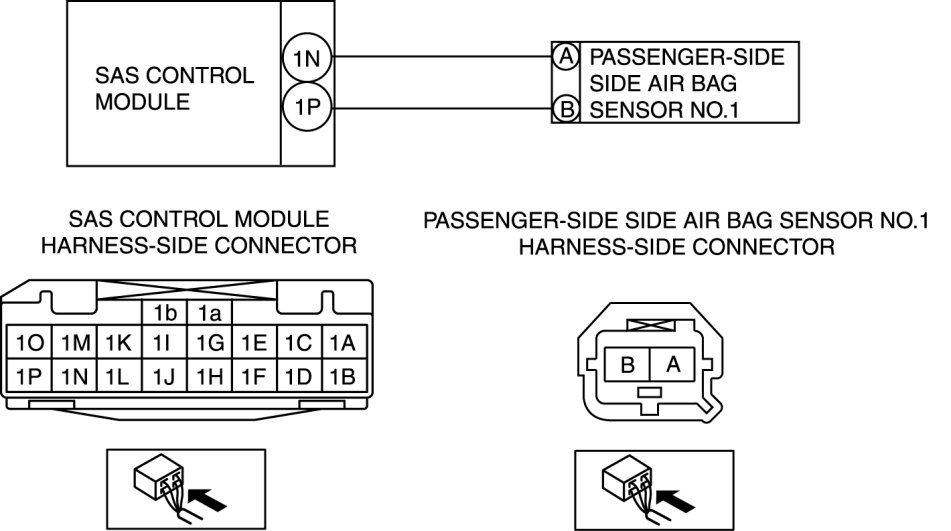

System Wiring Diagram

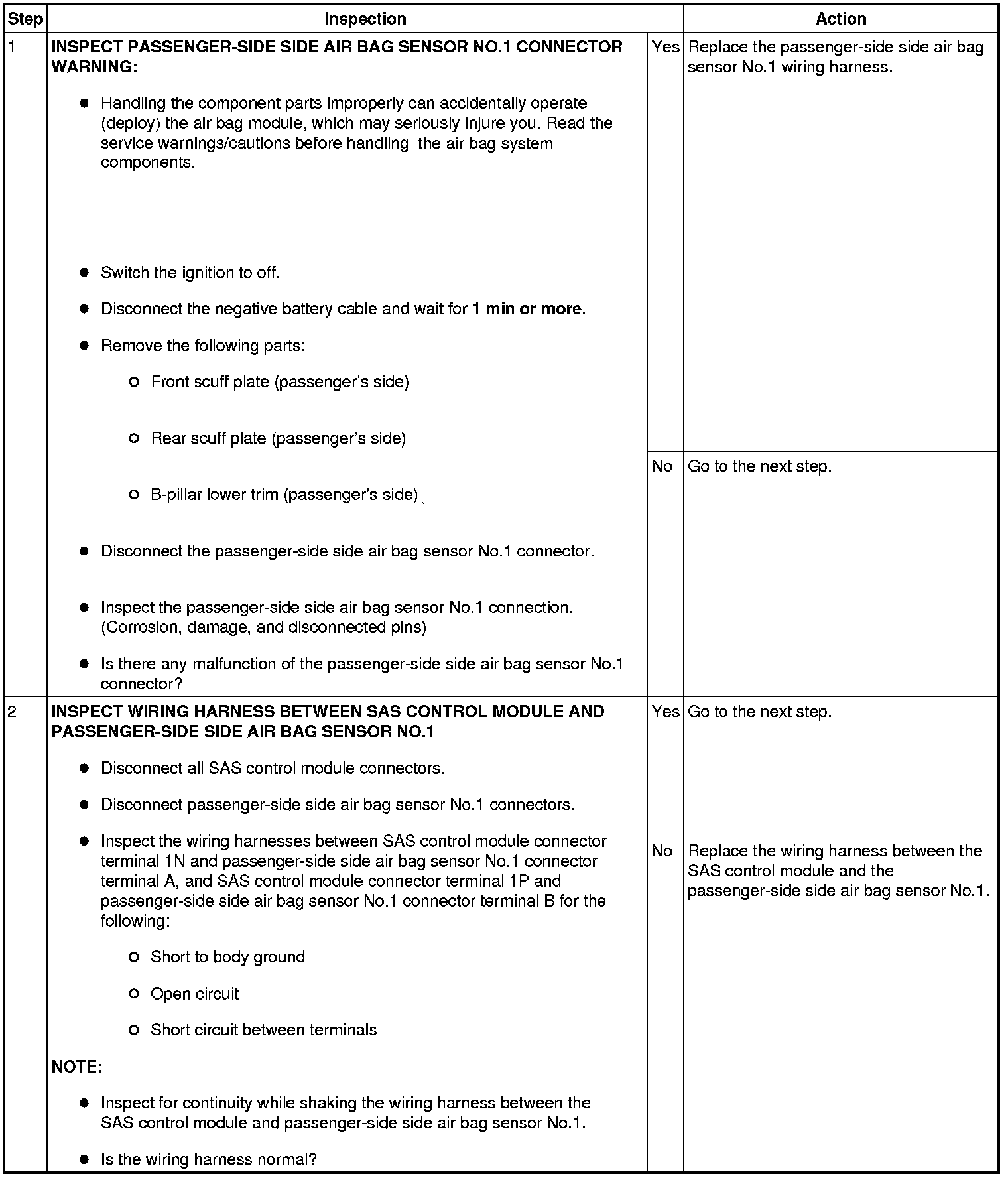

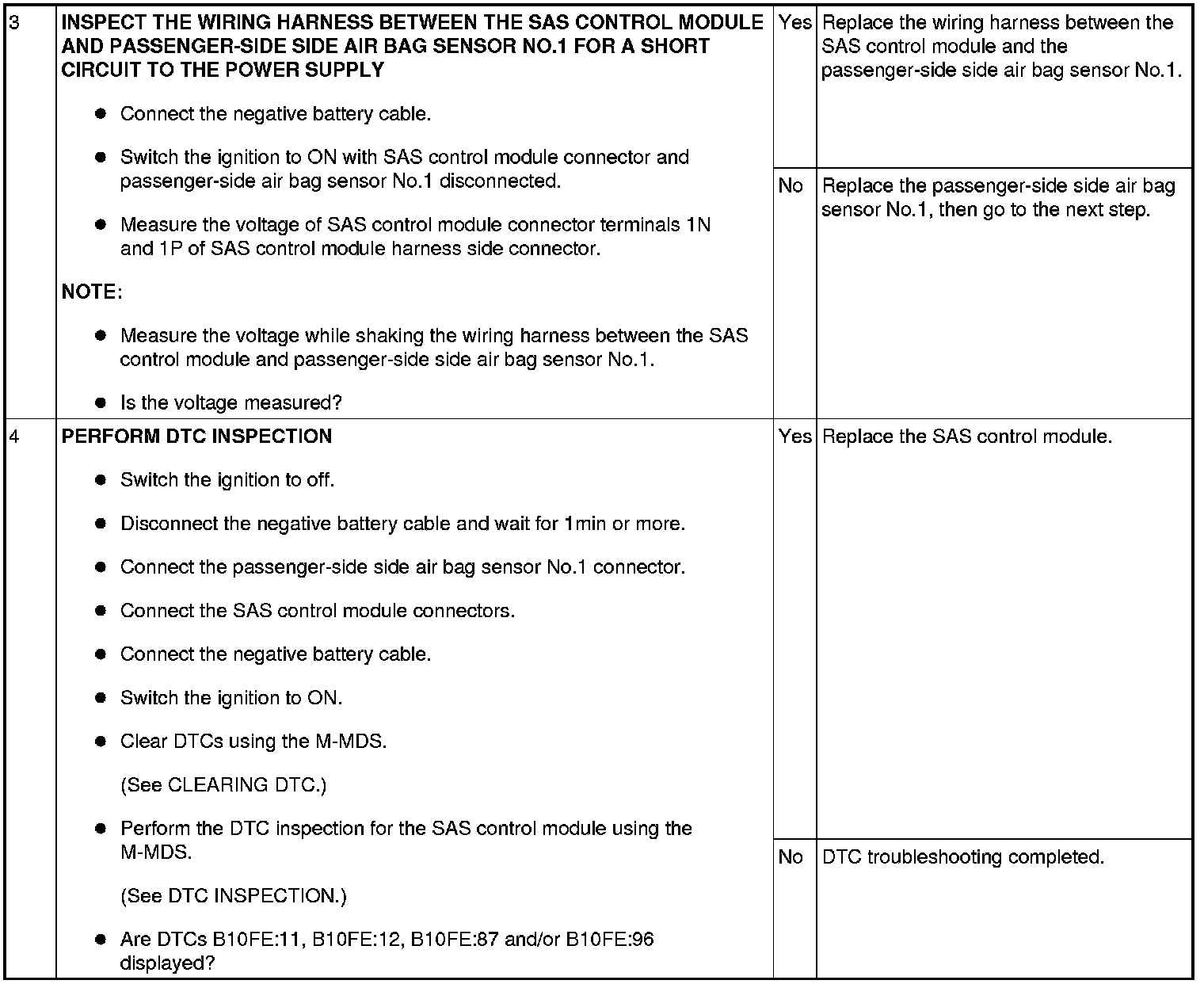

Diagnostic Procedure
Step 1-Step 2:
