B0070:11
DTC B0070:11/B0070:12/B0070:19/B0070:1A/B0070:1B
System Malfunction Location
DTC B0070:1A-DTC B0070:12:
Detection Condition
- Resistance other than 1.5-4.1 ohms detected in driver-side pre-tensioner seat belt circuit
- Wiring harness between the driver-side pre-tensioner seat belt and SAS control module has a malfunction.
Possible Causes
- Driver-side pre-tensioner seat belt connector malfunction
- Open or short or short to ground or short to power supply circuit in the wiring harness between the driver-side pre-tensioner seat belt and SAS control module
- Driver-side pre-tensioner seat belt malfunction
- SAS control module malfunction

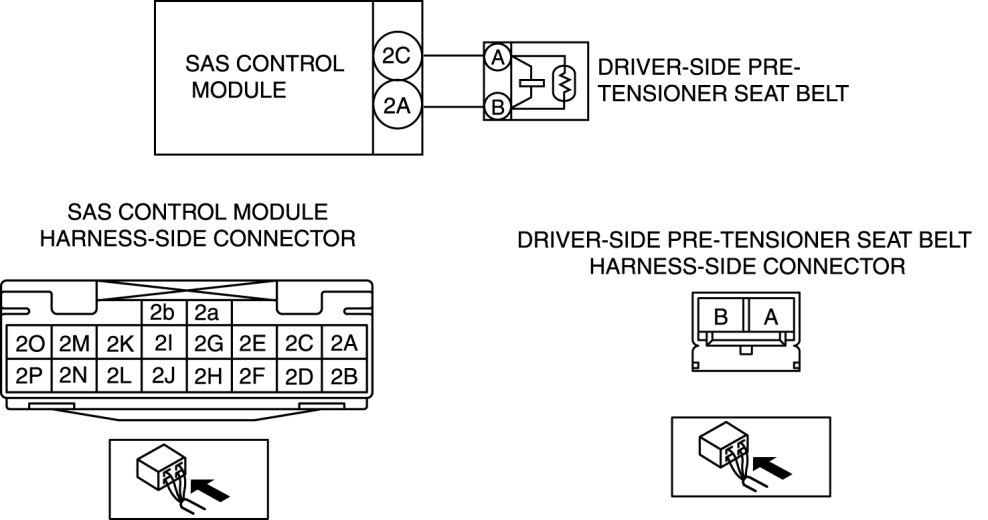

System Wiring Diagram
Diagnostic Procedure

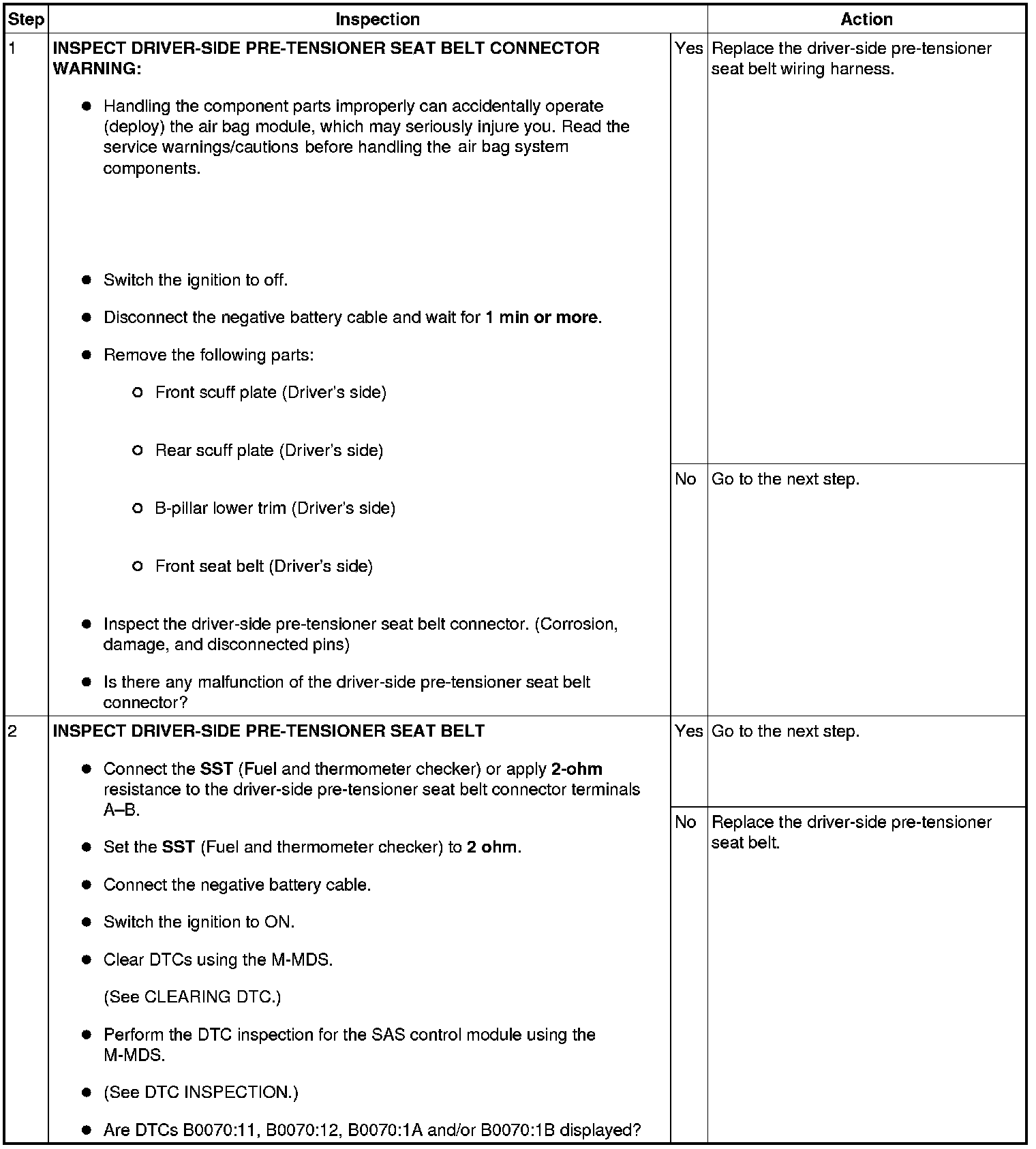

Step 1-Step 2:

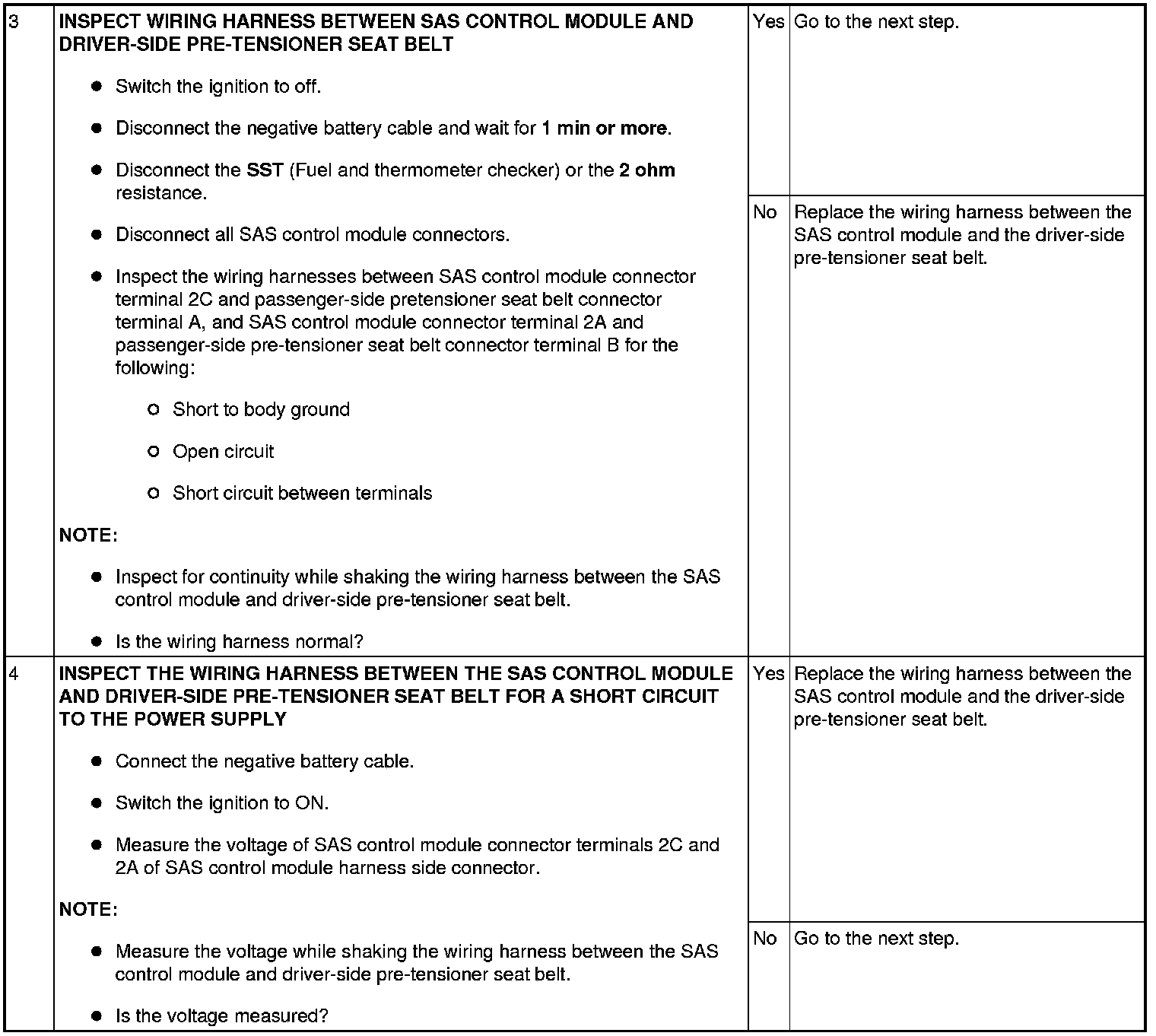

Step 3-Step 4:
