B0010:1A
DTC B0010:11/B0010:12/B0010:19/B0010:1A/B0010:1B
System Malfunction Location
DTC B0010:1A-DTC B0010:19:
Detection Condition
- Resistance other than 1.5-4.1 ohms detected in passenger-side air bag module (inflator No.1) circuit
- Malfunction in the wiring harness between the passenger-side air bag module (inflator No.1) and SAS control module
Possible Causes
- Passenger-side air bag module (infrator No.1) connector malfunction
- Open or short circuit or short to ground or short to power supply in the wiring harness between the passenger-side air bag module (infrator No.1) and the SAS control module.
- Passenger-side air bag module (infrator No.1) malfunction
- SAS control module malfunction

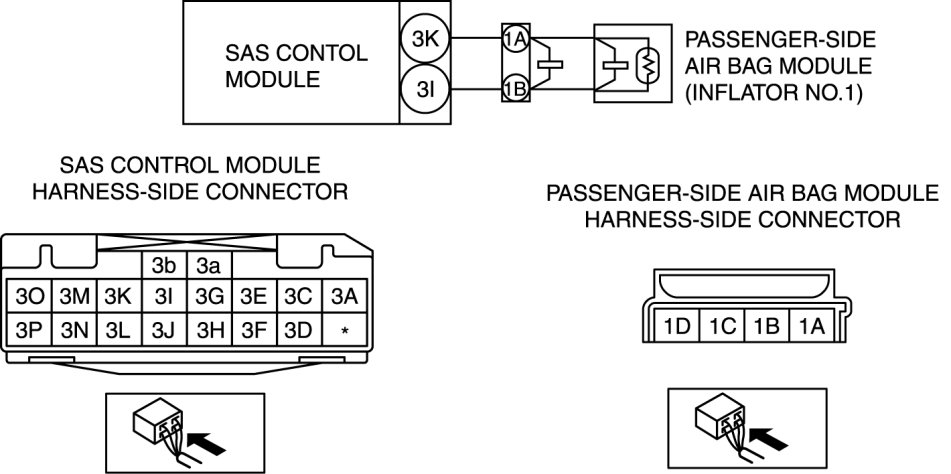

System Wiring Diagram
Diagnostic Procedure

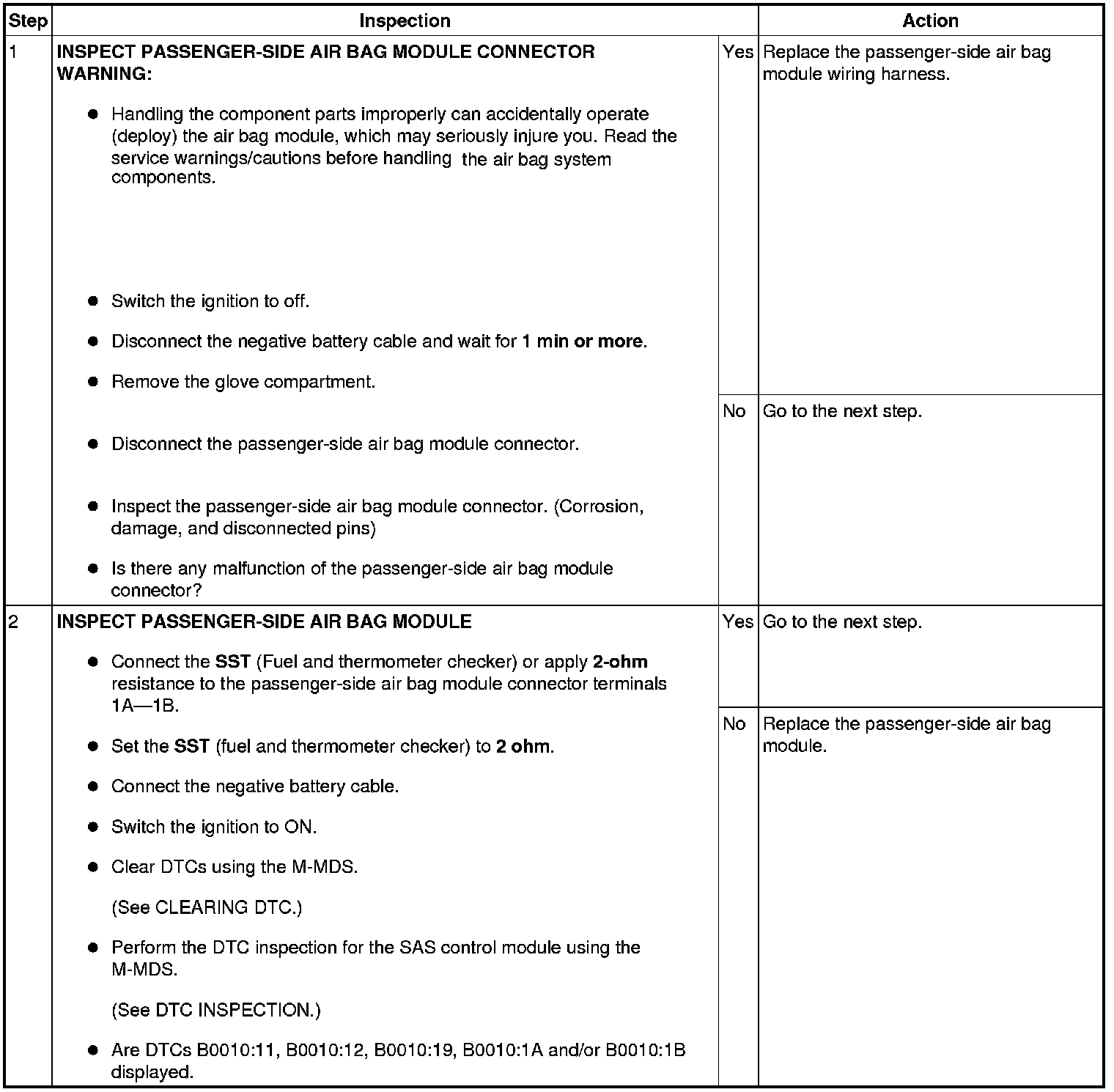

Step 1-Step 2:

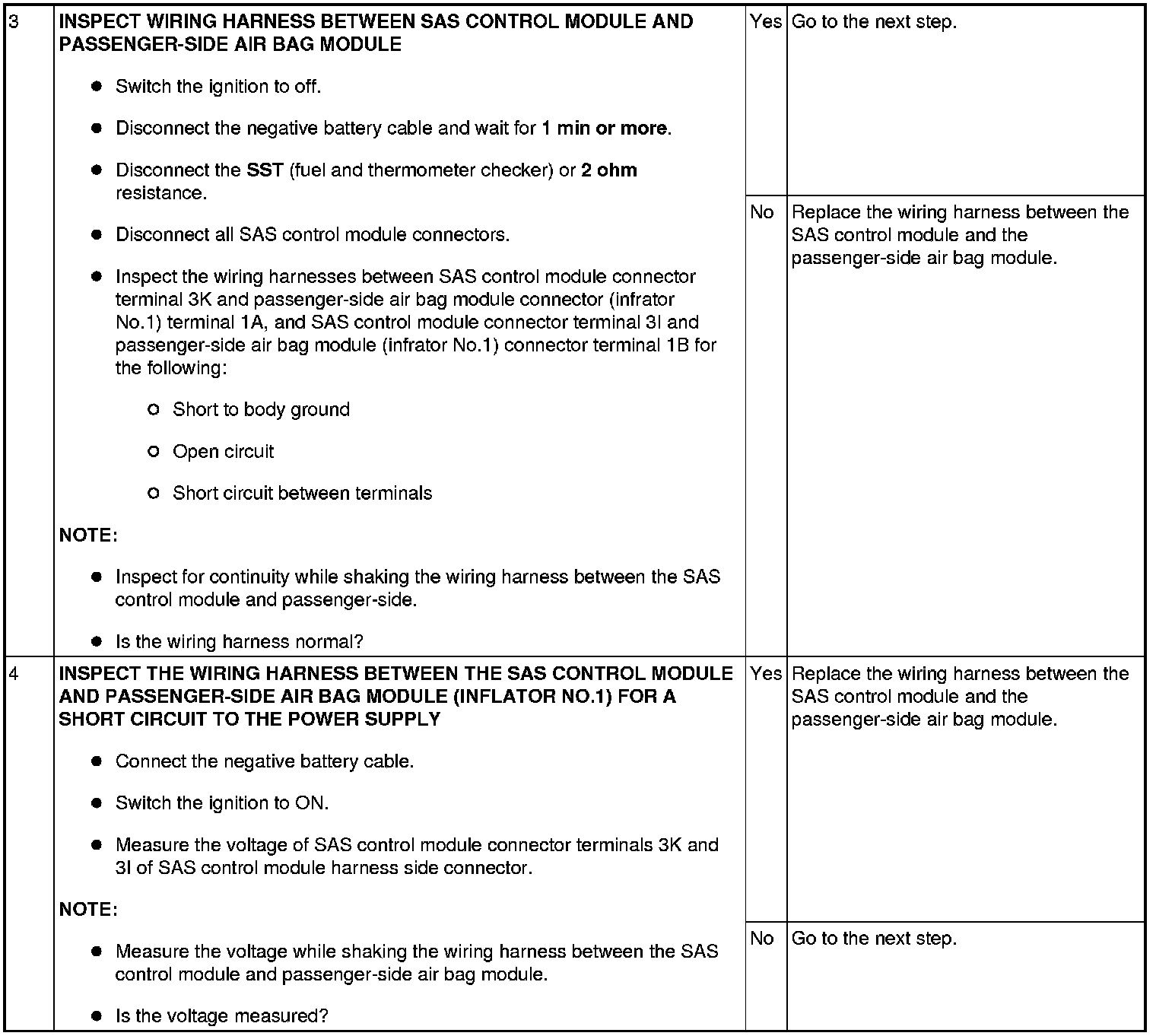

Step 3-Step 4:
